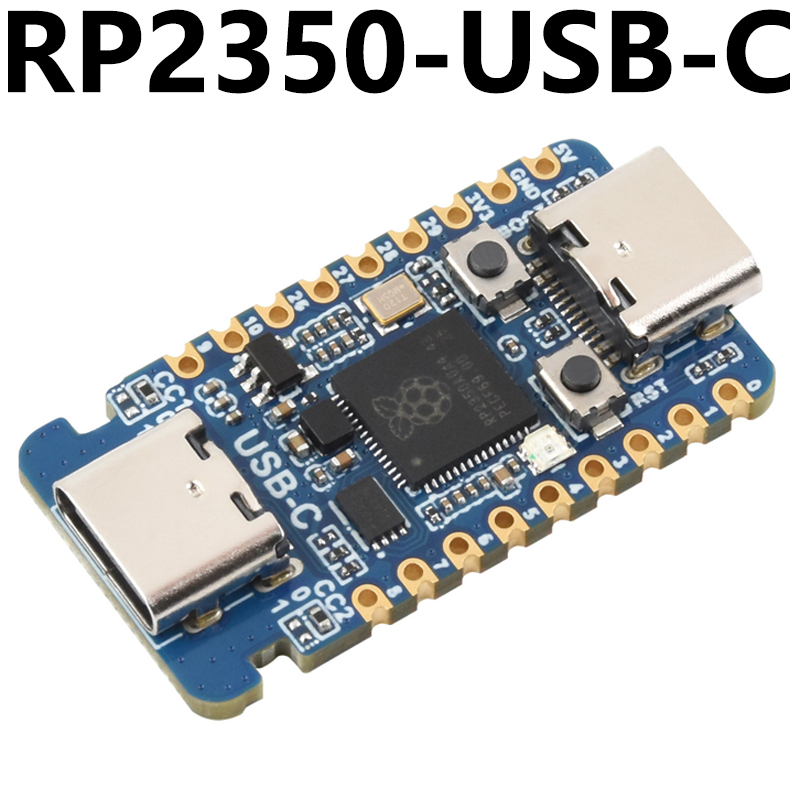

RP2350-USB-C
Mini Development Board

Based on Raspberry Pi RP2350A

Castellated module, suitable for SMD applications

Board Specifications

• RP2350A microcontroller chip designed by Raspberry Pi in the United Kingdom
• Adopts unique dual-core and dual-architecture design: dual ARM Cortex-M33 or dual Hazard3 RISC-V processors support, flexible clock running up to 150 MHz
• Built-in 520KB Static RAM, with onboard 2MB Flash
• Type-C port for easier use
• Compatible with PD-only USB-C power adapters
• Castellated module allows soldering directly to carrier boards
• USB 1.1 with device and host support
• Low-power sleep and dormant modes
• Drag-and-drop programming using mass storage over USB
• Adapting 15 × multi-function GPIO pins from the RP2350A
• 2 × SPI, 2 × I2C, 2 × UART, 4 × 12-bit ADC, and 14 × controllable PWM channels
• Accurate clock and timer on-chip
• Built-in temperature sensor for real-time monitoring of chip temperature
• 12 × Programmable I/O (PIO) state machines for custom peripheral support

C/C++, MicroPython, Arduino Support

Comprehensive SDK, Dev Resources, Tutorials To Help You Easily Get Started

Dual-Core, Dual-Architecture

The Unique Dual-Core, Dual-Architecture Capability Of RP2350A Allows Users To Choose Between A Pair Of Industry-Standard ARM Cortex-M33 Cores, And A Pair Of Open-Hardware Hazard3 Cores, Giving Developers A Chance To Experiment With The RISC-V Architecture In A Stable, Well-Supported Environment

15 × Multi-Function GPIO Pins

Configurable Pin Function, Allows Flexible Development And Integration

What's On Board

1. RP2350A
   Dual-core and dual-architecture design, up to 150MHz operating frequency
2. W25Q16JVUXIQ
   2MB NOR Flash
3. PIO-USB CC pull-up/pull-down resistors
   supports Sink / Source switching via resistor configuration
4. PIO-USB port
   for using as a USB host or device via PIO
5. RT9013-33GB
   500mA low dropout, low noise, ultra fast LDO



6. BOOT button
   press it when resetting to enter download mode
7. USB Type-C port
   for downloading programs, USB 1.1 with device and host support
8. RUN reset button

9. WS2812
   cool RGB LED

Outline Dimensions
