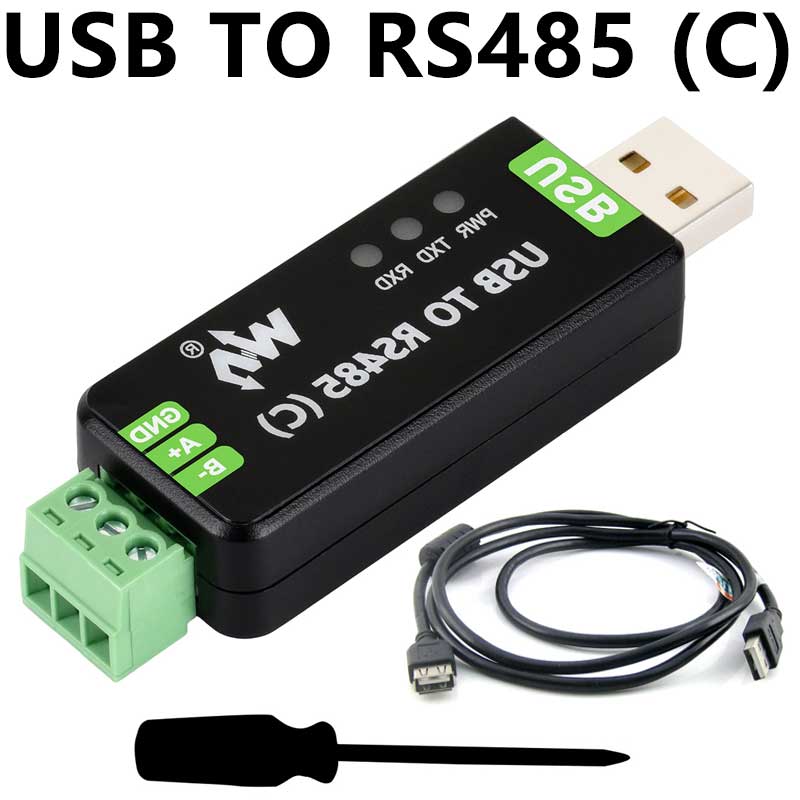

USB To RS485 (C) Industrial Grade Isolated Bidirectional Converter, FT232RNL Chip, Onboard Isolated Transceiver And TVS, Up To 1.2km RS485 Transmission Distance

Industrial USB To RS485 Recommend

USB-TO-8CH-RS485

USB-TO-RS485

USB-TO-RS485-(B)

USB TO RS485 (C)

USB-TO-2CH-RS485

RS232-TO-RS485-422

USB-TO-RS485/422

USB-TO-4CH-RS485

USB TO 4CH RS485 (B)

USB-TO-RS232/485/TTL

USB TO RS232/485/422/TTL

USB TO 4CH Serial Converter

USB TO 4CH RS232-485

USB TO RS232/485

USB TO RS232/485 (B)

USB TO RS232/485 (C)

USB TO RS485 (C)
Isolated Bidirectional Converter

Industrial Grade Isolated USB To RS485 Bidirectional Converter With Original FT232RNL Chip. Supports Stable Communication, It Is Suitable For Industrial Control Equipments Or Applications With High Communication Requirements.

Features At A Glance

Supports USB to RS485 bidirectional conversion
Onboard original FT232RNL chip, enabling high-speed, stable, and reliable communication with excellent compatibility
Onboard isolated transceiver, integrated electrical isolation and ESD protection, effectively improving communication stability and anti-interference capabilities in industrial environments
Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, lightningproof & anti-electrostatic
Onboard resettable fuses and protection diodes, ensures the stable current/voltage outputs, provides over-current/over-voltage protection, improves shock proof performance
Onboard 3 LEDs for indicating the power and transceiver status

Specifications

PRODUCT TYPE	Industrial grade isolated USB to RS485 converter
BAUD RATE	FT232RNL chip	300bps ~ 512000bps
HOST PORT	USB
DEVICE PORT	RS485
USB	Operating voltage	5V
	Connector	USB-A
	Protection	200mA resettable fuses, ESD protection
	Transmission distance	Approx. 5m
RS485	Connector	Screw terminal
	Pins	A+, B-, GND
	Direction control	Hardware automatic control
	Protection	600W Lightningproof, anti-surge, and 15KV ESD protection (onboard 120R balancing resistor)
	Isolation voltage	Up to 2.5KV opto-isolation
	Transmission distance	Approx. 1.2km (low rate)
	Transmission mode	Point-to-multipoints (up to 32 nodes, it is recommended to use repeaters for 16 nodes or more)
LED INDICATORS	PWR	Red power indicator, lights up when there is USB connection and voltage is detected
	TXD	Red TX indicator, lights up when the USB port sends data
	RXD	Red RX indicator, lights up when the device port sends data back
OPERATING ENVIRONMENT	Temperature	-40℃ ~ 85℃
OPERATING ENVIRONMENT	Humidity	5%RH ~ 95%RH
OPERATING SYSTEM	Mac, Linux, Android, WinCE, Windows 11 / 10 / 8.1 / 8 / 7 / XP

Onboard Original Chip

Onboard Original FT232RNL Chip, Providing Better Stability And Compatibility,
Built-In Lightningproof Tube, Resettable Fuses, ESD And TVS Protection Circuits, Etc.

Transmission Distance Up To 1.2km

The USB Signal Can Be Converted Into A Balanced Differential RS485 Signal And The Transmission Rate Is Stable. The Reliable Speed Is 300bps ~ 512000bps, The Transmission Distance Is About 1.2km For RS485, And About 5 Meters For USB

Multi-System Support

Supports Mac, Linux, Android, WinCE, Windows 11 / 10 / 8.1 / 8 / 7 / XP, Etc.

Working Status Indicators

Onboard 3 LEDs For Indicating Power And Transceiver Status

Outline Dimensions
