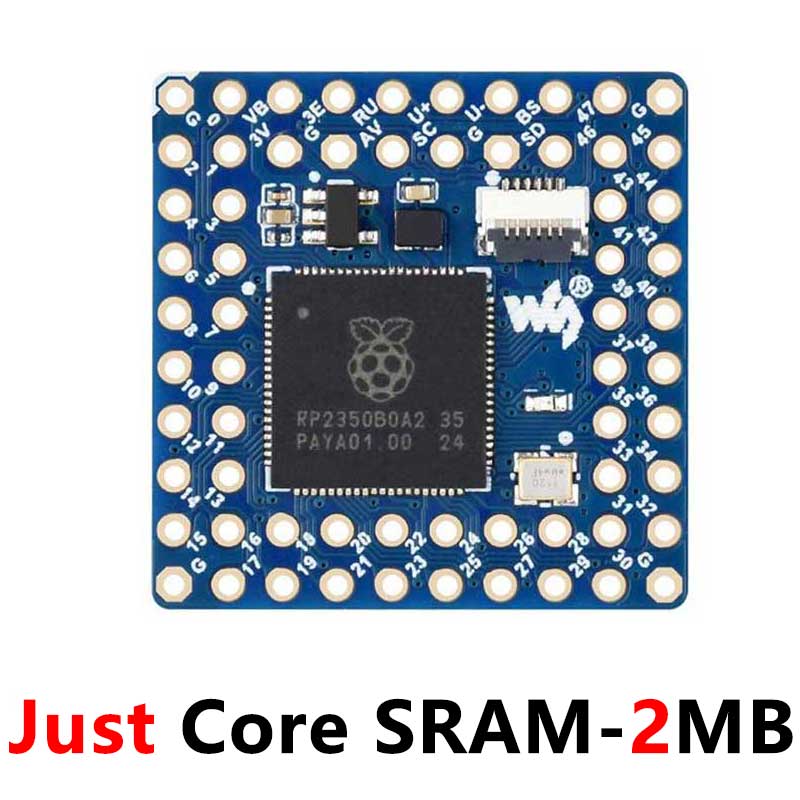

Raspberry Pi Pico 2 RP2350 Core2350B Core Board PSRAM
$5.9
Weixue Core2350B core board is based on Raspberry Pi RP2350B dual-core dual-architecture with clock running frequency up to 150MHz
Raspberry Pi Pico 2 RP2350 Recommend
Core2350B core board
Designed based on Raspberry Pi RP2350
Version selection
Product Features
The Core2350B series is a low-cost, high-performance microcontroller development board designed by Waveshare. In a smaller board, the RP2350B is used as the main control, and 48 multi-function pins are brought out, which is convenient for development and integration into products.
The main features are：
- RP2350B microcontroller chip designed with Raspberry Pi
- Unique dual-core, dual-architecture, equipped with dual-core ARM Cortex-M33 processor and dual-core Hazard3 RISC-V processor, clock frequency up to 150MHz, allowing users to flexibly switch between the two architectures
- Optional PSRAM: None (0MB) / 2MB / 8MB, built-in 520KB SRAM and 16MB on-chip Flash
- Onboard FPC 6PIN interface, can lead out USB Type-C interface through adapter board
- 64 pins arranged at a standard 2.54mm pitch for easy integration into user-developed substrates
- USB1.1 host and slave support
- Supports low power sleep and hibernation modes
- Drag-and-drop program downloading via USB recognition as mass storage
- Bring out 48 multi-function GPIO pins
- 2 I2C, 2 UARTs, 8 12-bit ADCs, and 24 controllable PWM channels
- Precise on-chip clocks and timers
- Temperature Sensor
- 12 Programmable I/O (PIO) state machines for custom peripheral support
Unique dual-core, dual-architecture
The RP2350's unique dual-core, dual-architecture capability allows users to switch between a pair of industry-standard Arm Cortex-M33 cores and a pair of open hardware Hazard3 cores, enabling developers to experiment with the RISC-V architecture in a stable, well-supported environment.
Supports C/C++, MicroPython,
Arduino
Complete SDK and open source tutorials are provided to make it easy to get started and can be quickly embedded into applications
Pin Definition
Resource Overview
- RP2350B
Dual-core, dual-architecture processors, both running at up to 150MHz clock speed
- ME6217C33M5G
Low dropout LDO, supporting current 800mA
- FPC Connectors
0.5mm pitch 6PIN
- LED Light
User indicator light (not power indicator light)
- 16MB NOR-Flash
- PSRAM
0MB / 2MB / 8MB PSRAM (optional)
Product size
