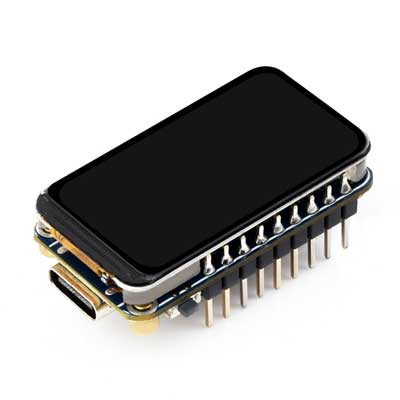

Raspberry Pi Pico 2 RP2350 1.47 inch LCD Display Development board RP2350A 1.47inch Screen RGB color
$9.5
RP2350 1.47 inch 262K color LCD screen development board Type-C interface version 172×320 resolution Dual-core dual-architecture 150MHz processor Onboard RGB color lamp beads
Raspberry Pi Pico 2 RP2350 Recommend
RP2350 LCD Development Board
Designed based on Raspberry Pi RP2350A
Version selection
Product Features
This product is a low-cost, high-performance microcontroller development board designed by Waveshare. In a small form factor, it has onboard peripherals such as a 1.47-inch LCD screen, a Micro SD card slot, and RGB lights, making it easy to develop and integrate into products.
The main features are：
- RP2350A microcontroller chip designed with Raspberry Pi
- Unique dual-core, dual-architecture, equipped with a dual-core ARM Cortex-M33 processor and a dual-core Hazard3 RISC-V processor, both running at clock frequencies up to 150MHz
- Built-in 520KB SRAM and 16MB on-chip Flash
- Uses Type-C interface, no need to worry about plugging it in the right or wrong direction (Type-C interface version only)
- Onboard 1.47-inch LCD screen, 172 × 320 resolution, 262K colors
- USB1.1 host and device support
- Supports low power sleep and hibernation modes
- Drag-and-drop program downloading via USB recognition as mass storage
- Precise on-chip clocks and timers
- Onboard temperature sensor
- Onboard RGB colored lamp beads, combined with transparent acrylic interlayer, can achieve cool lighting effects
Unique dual-core, dual-architecture
The RP2350A's unique dual-core, dual-architecture capability allows users to switch between a pair of industry-standard Arm Cortex-M33 cores and a pair of open hardware Hazard3 cores, enabling developers to experiment with the RISC-V architecture in a stable, well-supported environment.
Application Scenario
Resource Overview
- RP2350A
Dual-core, dual-architecture processor, running at up to 150MHz
- W25Q128JVSIQ
16MB NOR-Flash
- RT9193-33PB
300mA Low Dropout, Low Noise, Ultrafast LDO
- Micro SD card slot
- USB Type-C port (Type-C port version only)
Can be used to download programs and supports USB1.1 host and slave devices
- RST Reset button
- BOOT button
Pin Definition
Product size
