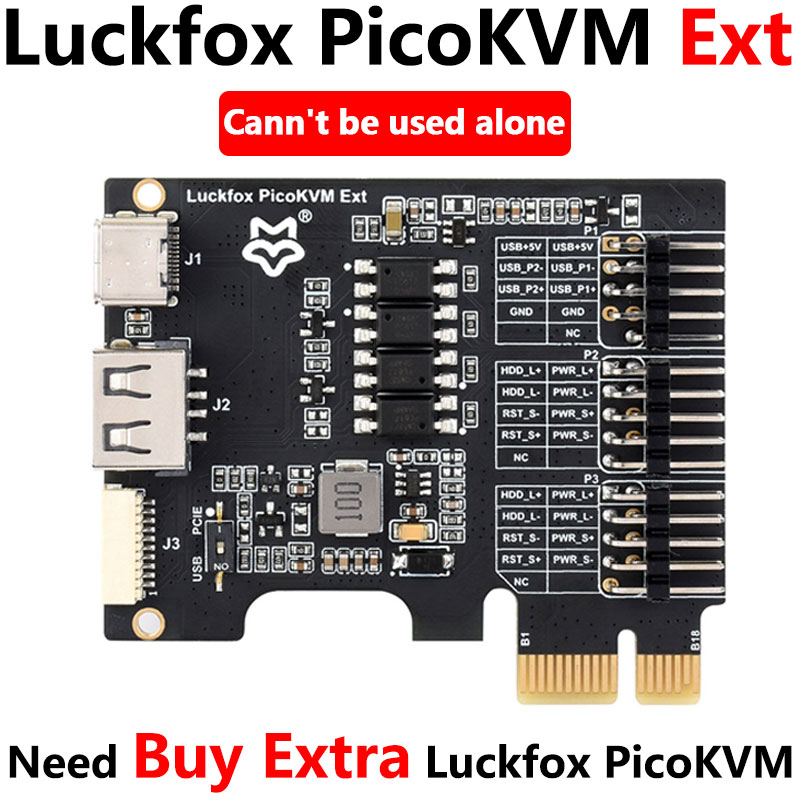

【Notice】

[] It cannot be used alone. A Luckfox PicoKVM controller must be purchased for remote power management.

Luckfox PicoKVM Ext

Works With Luckfox PicoKVM For Remote Power Management

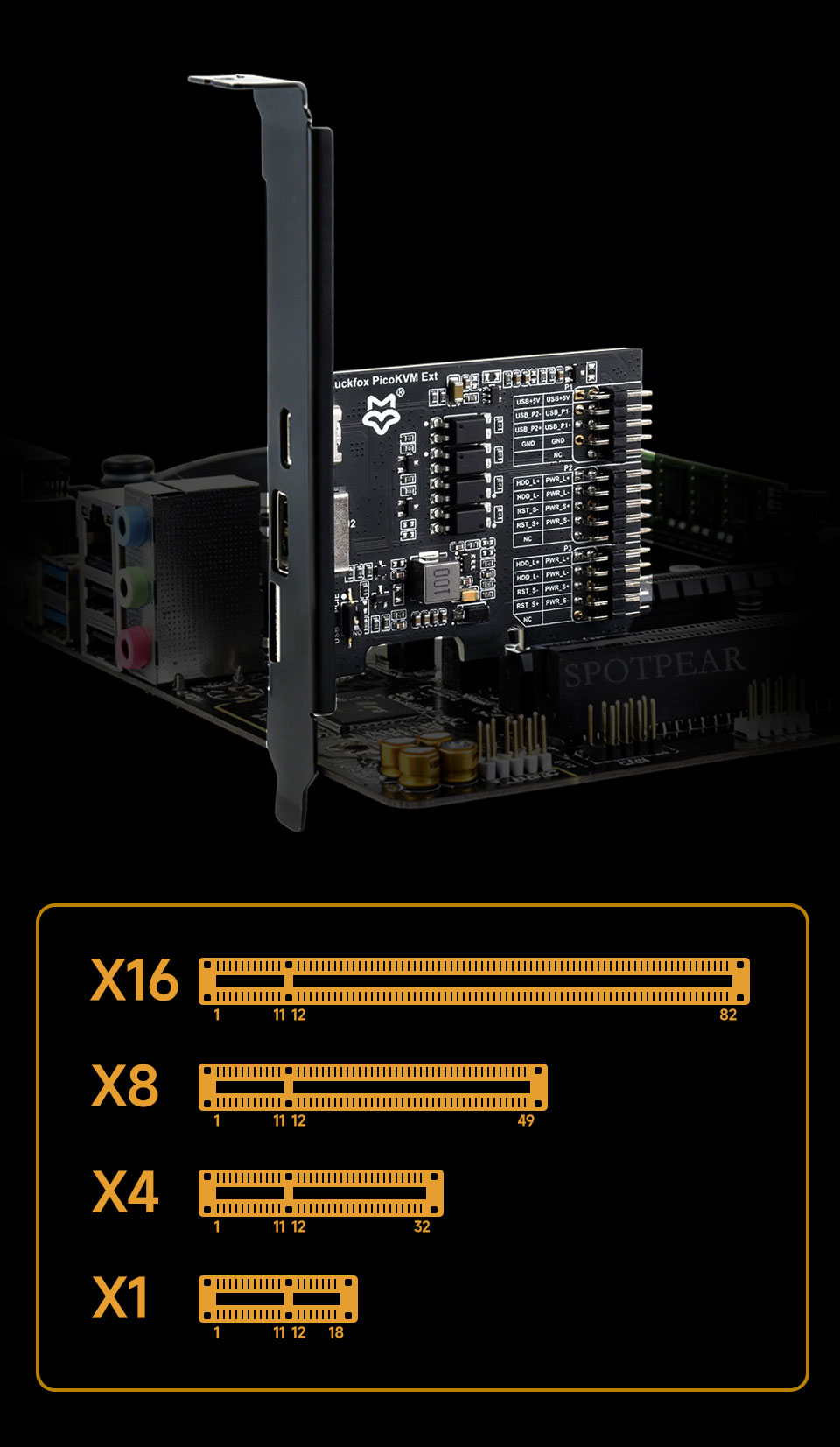

PCIe Interface Compatible

Supports Motherboards With PCIe ×1 / ×4 / ×8 / ×16 Slot

* Note: the PCIe interface is for 12V power supply only.

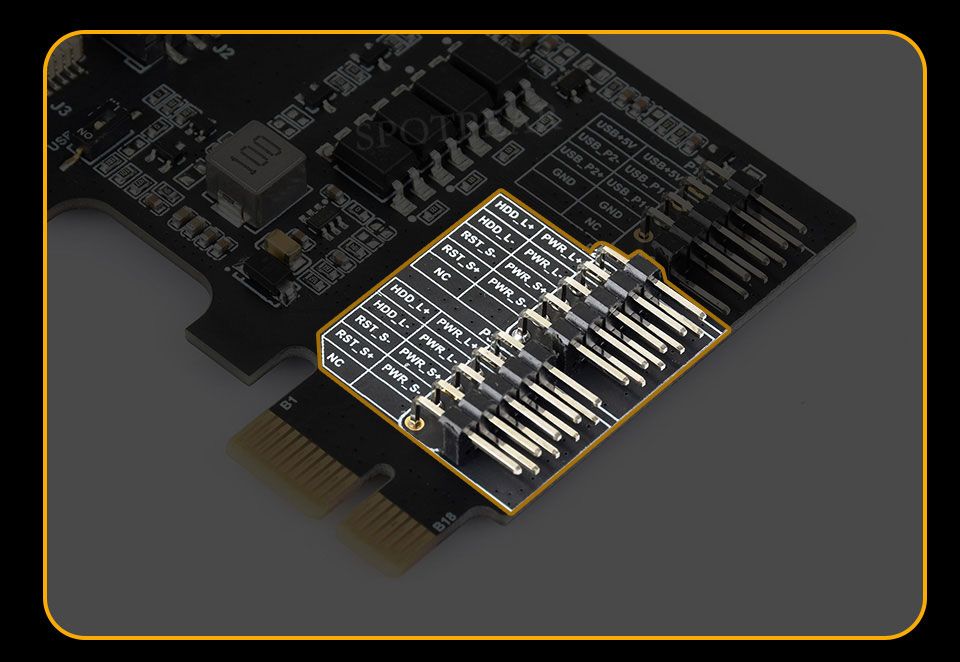

Onboard 2 × Front Panel Header

Allows Simultaneous Connection To The Motherboard Front Panel Header And The Chassis Front Panel, Enabling Shared Power Control

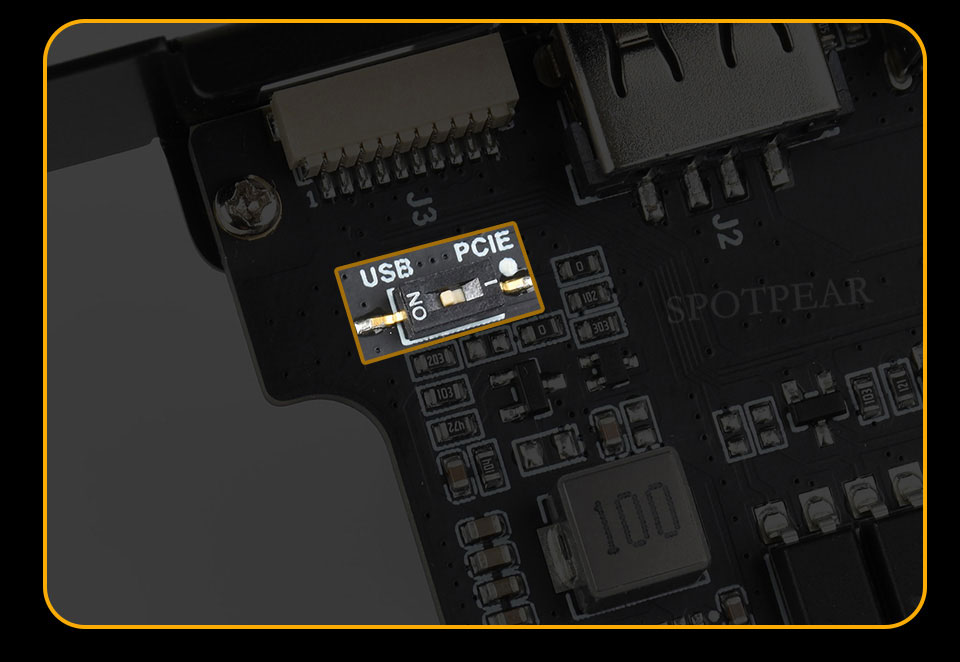

Supports PCIe Or USB Power Supply

Two Power Supply Modes Selectable Via Onboard Switch

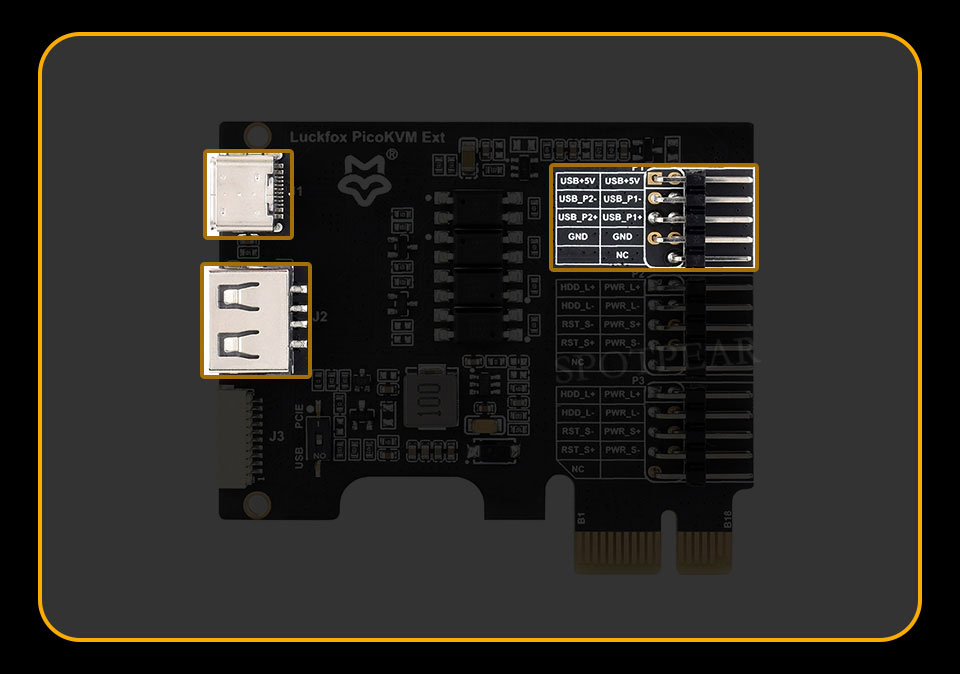

Adapting Motherboard USB Ports

Adapting USB-A & USB-C Ports Via Motherboard USB Header, For Connecting Luckfox PicoKVM Or Other USB Devices

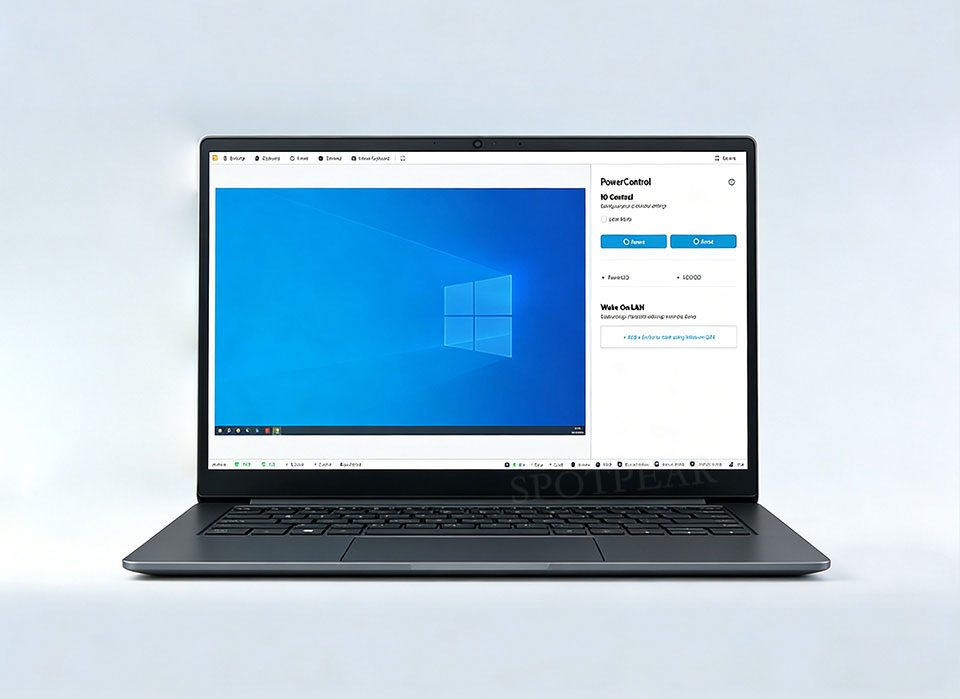

Web Control

Works With Luckfox PicoKVM, Remotely Control The Computer To Power On/Off, Restart, Or Force Shutdown, And Retrieve Power Status

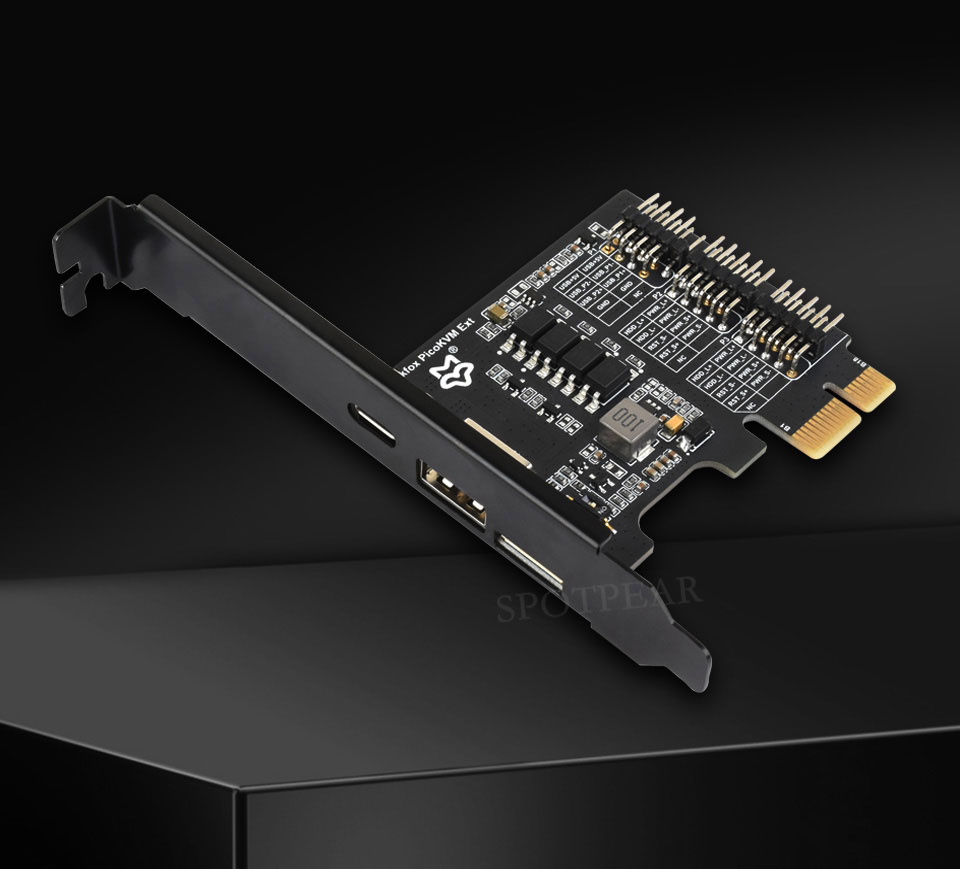

Installation Example

Includes A Full-Height Metal Bracket. Compact Design Compatible With Various Chassis Types, No External Space Required

* the Luckfox PicoKVM is NOT included, please refer to the package content for the detailed part list.

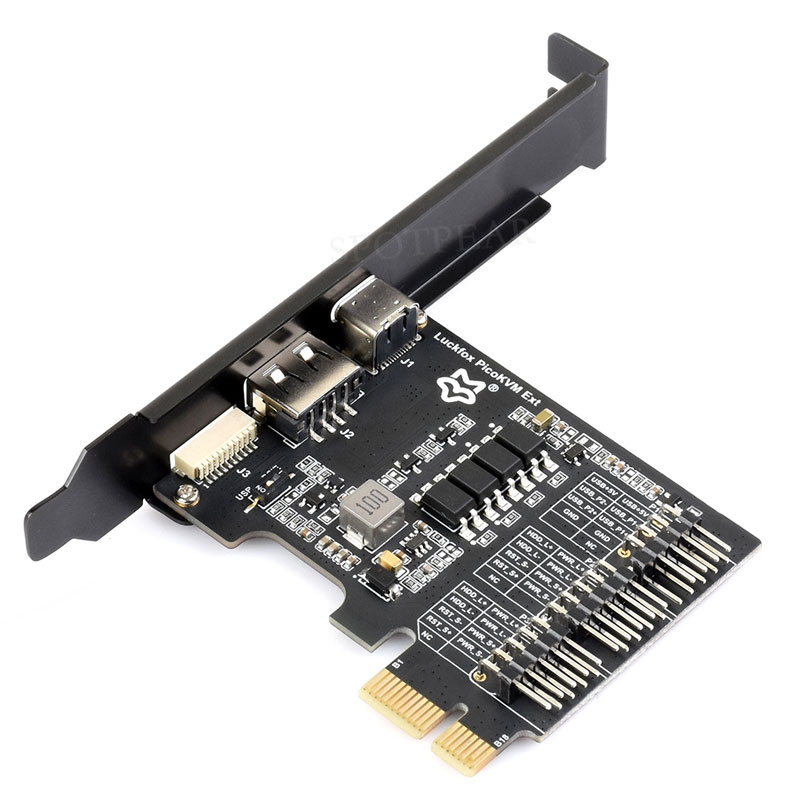

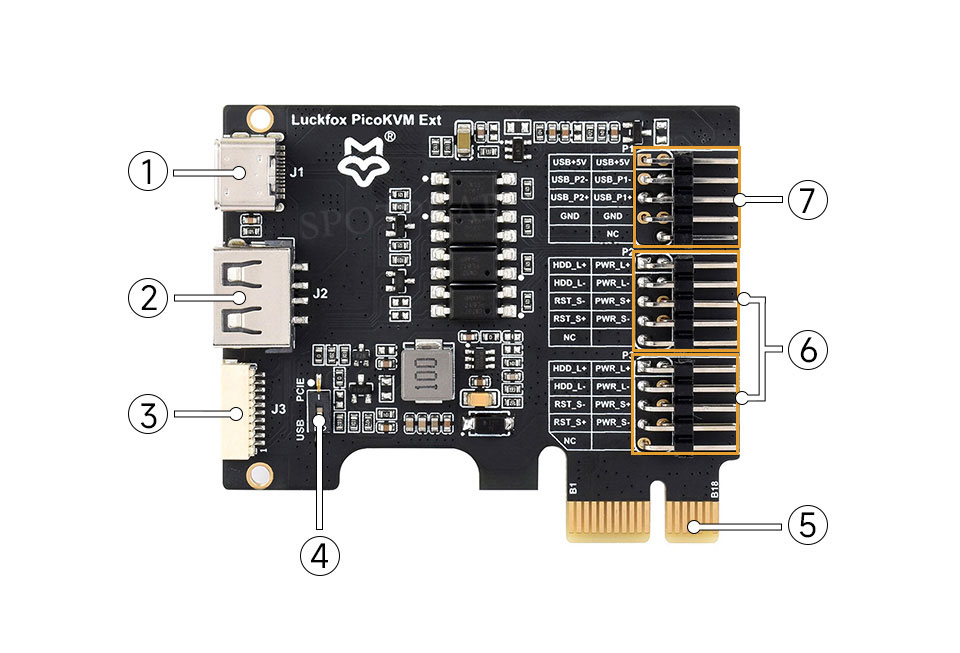

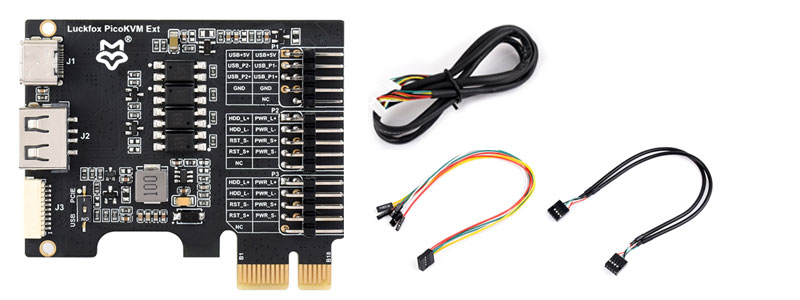

What's On Board

1. USB-C port
   Adapting from motherboard USB header USB_P1
2. USB-A port
   Adapting from motherboard USB header USB_P2
3. IO control connector
4. Power supply selection switch
   USB or PCIe power supply switchable



5. PCIe interface
   for 12V power supply only
6. Motherboard front panel headers
   connects to motherboard front panel and chassis front panel
7. Motherboard USB header

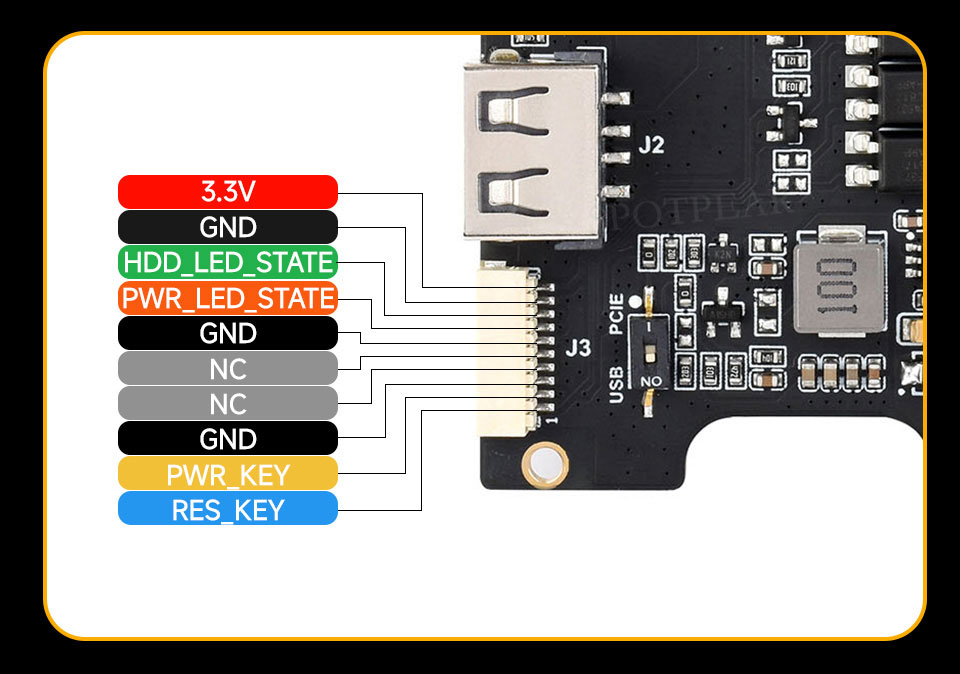

IO Control Connector Pin Definition

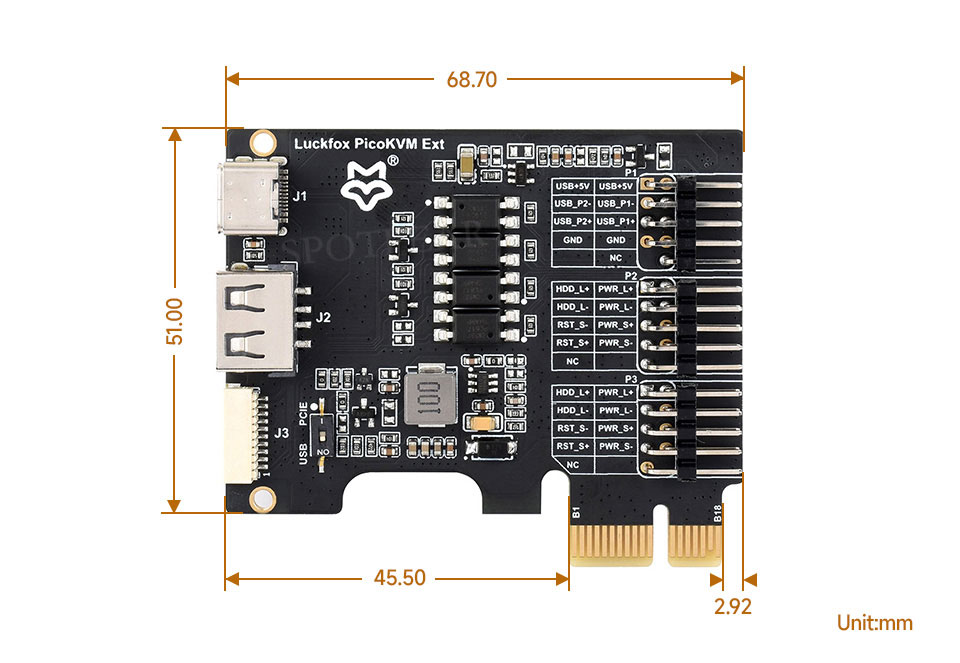

Outline Dimensions

[] Luckfox PicoKVM Ext

To：
