Note: The Lite versions require a TF card (please purchase separately) for proper operation.

Features

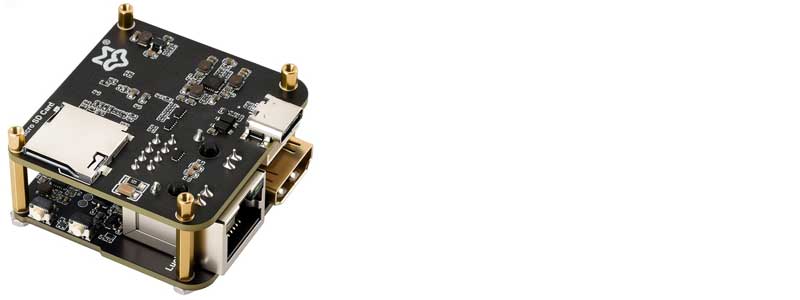

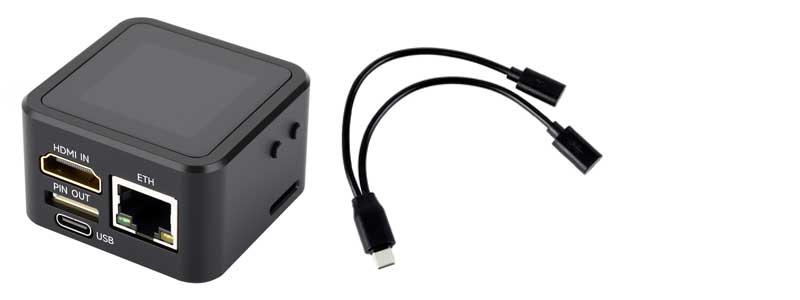

The Luckfox PicoKVM is a lightweight IP KVM management tool, supports real-time video capture and HID input simulation over the network, enabling touch-free operation of development boards, PCs, and servers. This product offers stable, low-latency video capture and remote control capabilities, widely suitable for scenarios such as remote PC control and server maintenance.

Key Features:

• Onboard HDMI input interface: recognized by PC as a display for video capture
• Onboard USB port: Supports simulation of mouse, keyboard, and USB storage devices
• Onboard 100Mbps Ethernet port: for video and control signal transmission
• 1.54inch touch display: for displaying IP address, connection status, and system operating status
• TF card slot: supports storage expansion
• I/O expansion interface: for host power ON/OFF control

Specifications

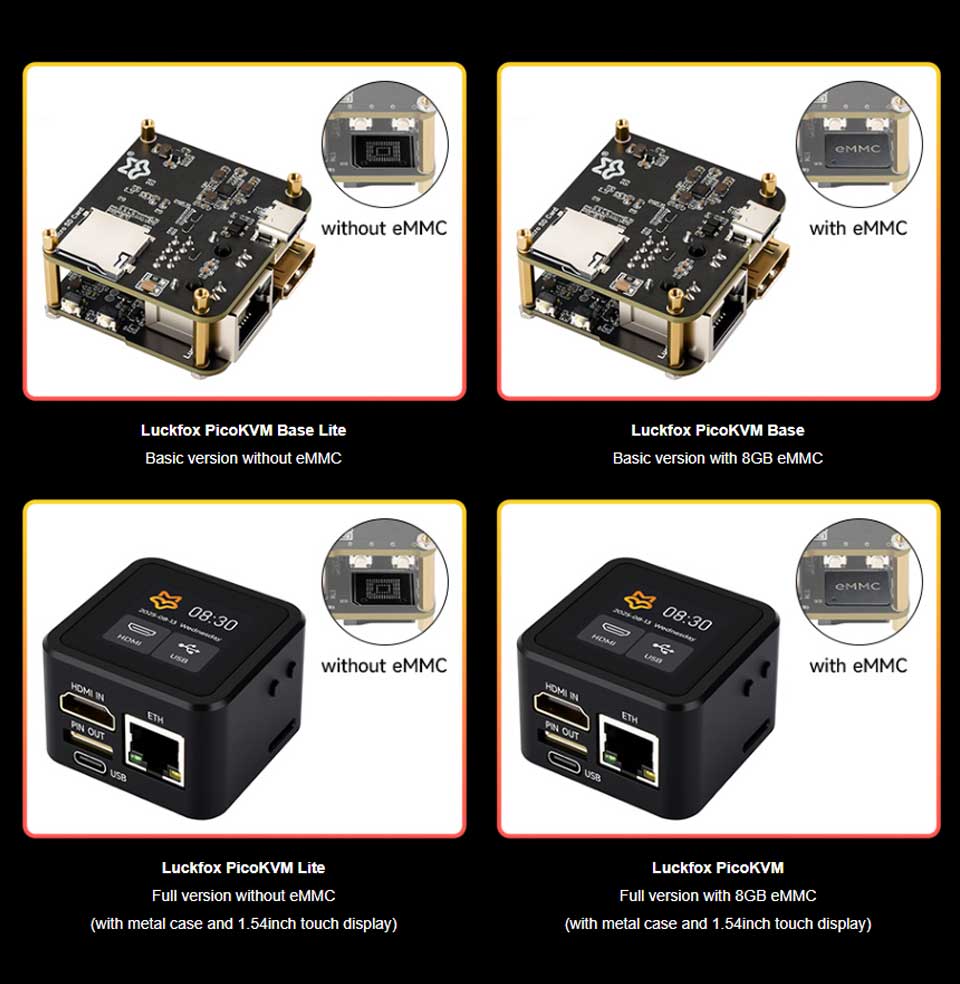

Product	Luckfox PicoKVM	Luckfox PicoKVM Lite
Processor	RV1106G3
Core	1 × A7@1.2G
Memory	256M DDR3
Storage	8G eMMC	TF card (please purchase separately)
System	PicoKVM
Resolution	1080P@60fps
Video Encoding	H.264/AVC, H.265/HEVC
Video Latency	80ms ~ 200ms
Audio Transmission	√
UEFI / BIOS Support	√
USB Keyboard & Mouse Emulation	√
USB Storage Emulation	√
Wake-on-LAN (WOL)	√
Web Terminal	√
Custom Script	√
TF Card Slot	√
Serial Terminal	1-Ch
Power Control	GPIO control
Ethernet	100Mbps
LCD Display	1.54inch 240 × 240 touch display (Only included in the Luckfox PicoKVM full versions)
Power Input	Type-C
Outline Dimension	Luckfox PicoKVM: 48.50 × 48.50 × 29.00 (mm)
	Luckfox PicoKVM Base: 44.00 × 42.00 × 23.60 (mm)

Comparison With Commercial Remote Control Software
