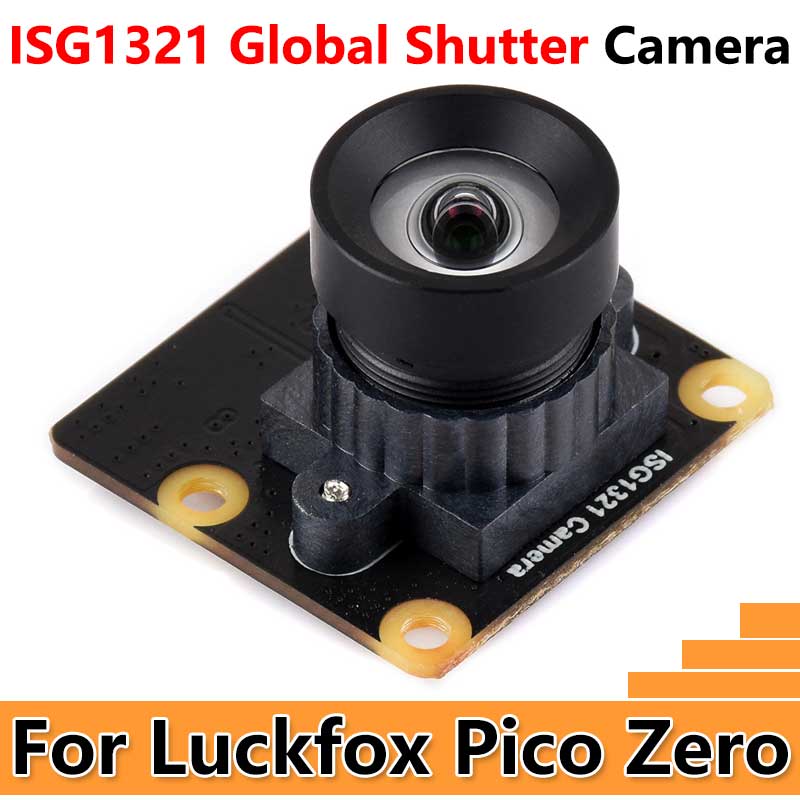

1.38MP Global Shutter Camera ISG1321 For Luckfox Pico Zero

1.38MP Global Shutter Camera ISG1321 For Luckfox Pico Zero

$18.9

Brand：SpotPear

SKU：010309300000

Date：2025-08-16 16:20

Part Number：

ISG1321 Camera

No：

- +

In Stock

Buy It Now

Add to cart

Ask a Question

Copy Link

1.38-megapixel black-and-white global shutter camera module, using the ISG1321 sensor, with a 95.5° wide-angle lens and supporting 1280 × 1080 @ 120fps

Luckfox Pico Recommend

LuckFox Pico Mini

Luckfox-Pico

Luckfox-WebBee

Core1106

Luckfox Pico Pro/Max

Luckfox Pico Ultra RV1106G3 Top-Ver

Luckfox Pico Ultra B RV1106G2

Luckfox-Pico-Ultra-POE-Module

Luckfox-Pico-Pi-A-B

Luckfox Pico Zero

Luckfox-Pico-86-Panel-0208 4in 720x720

LF-WIFI-A

Luckfox-MINI-CASE-A

Luckfox-Pico-Cable

RJ45 For Milk V Duo/LuckFox Pico

SC3336-3MP-Camera-B

MIS5001-5MP-Camera

ISG1321 Camera

Luckfox Pico Ultra 4inch 480x480

Luckfox Pico Ultra 4inch 720x720

Luckfox-Pico-Ultra-W-LCD-Kit

Luckfox-Pico-Ultra Speaker

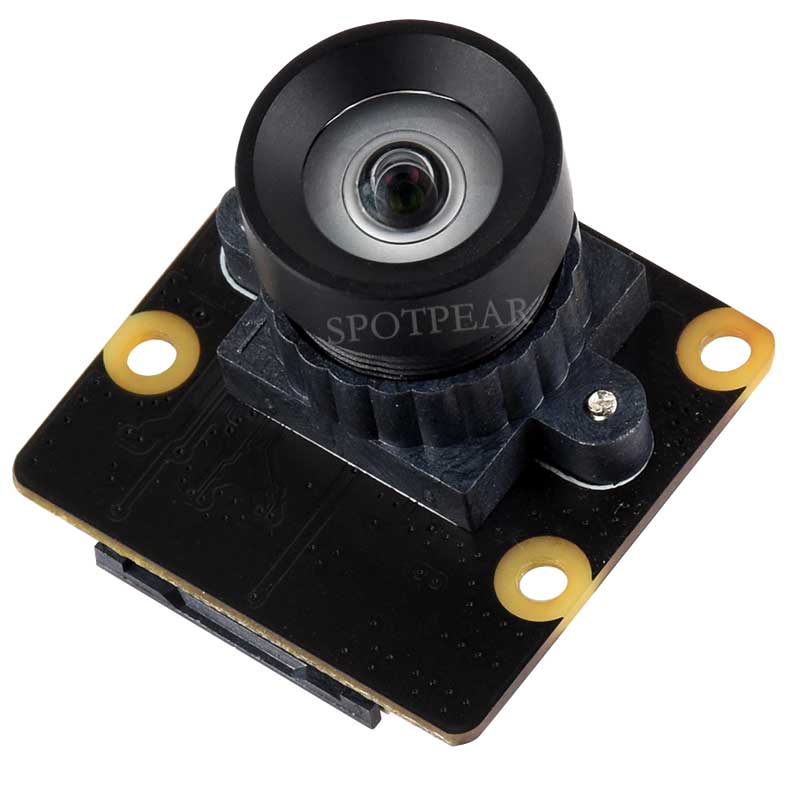

1.38 million pixel black and white global shutter
camera module

Uses ISG1321 photosensitive chip and is equipped with a 95.5° wide-angle distortion-free lens

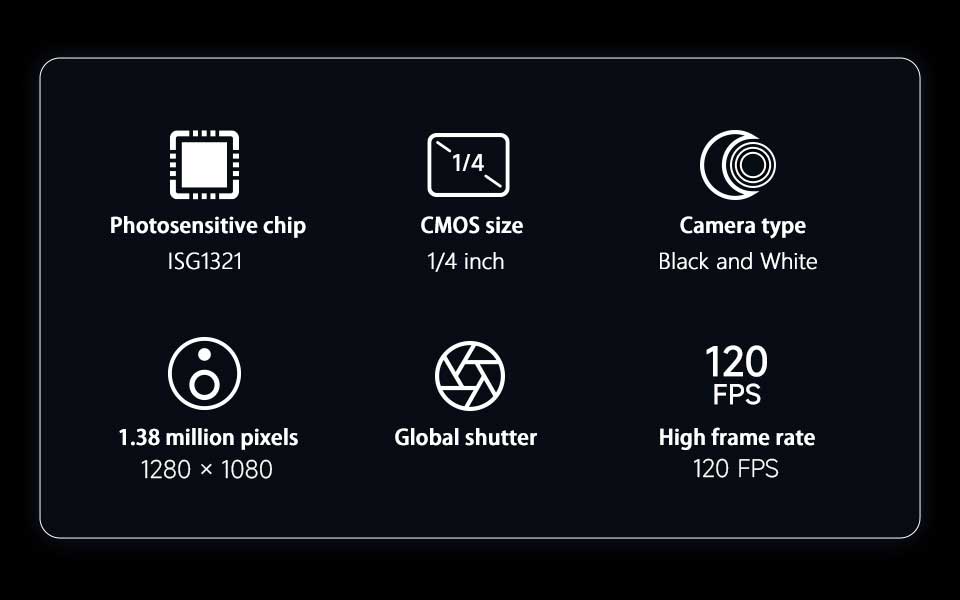

Product Parameters

Photosensitive chip	ISG1321	CMOS size	1/4 inch
Camera type	Black and White	Pixel	1.38 million (1280 × 1080)
Shutter mode	Global shutter	Output frame rate	Up to 120 FPS
interface	MIPI-CSI (2-lane)	aperture	F2.4
distortion	< 1%	Field of view	95.5°
focal length	2.88mm	Focusing method	Manual focus
Application Scenario	Machine vision, logistics code reading and industrial inspection

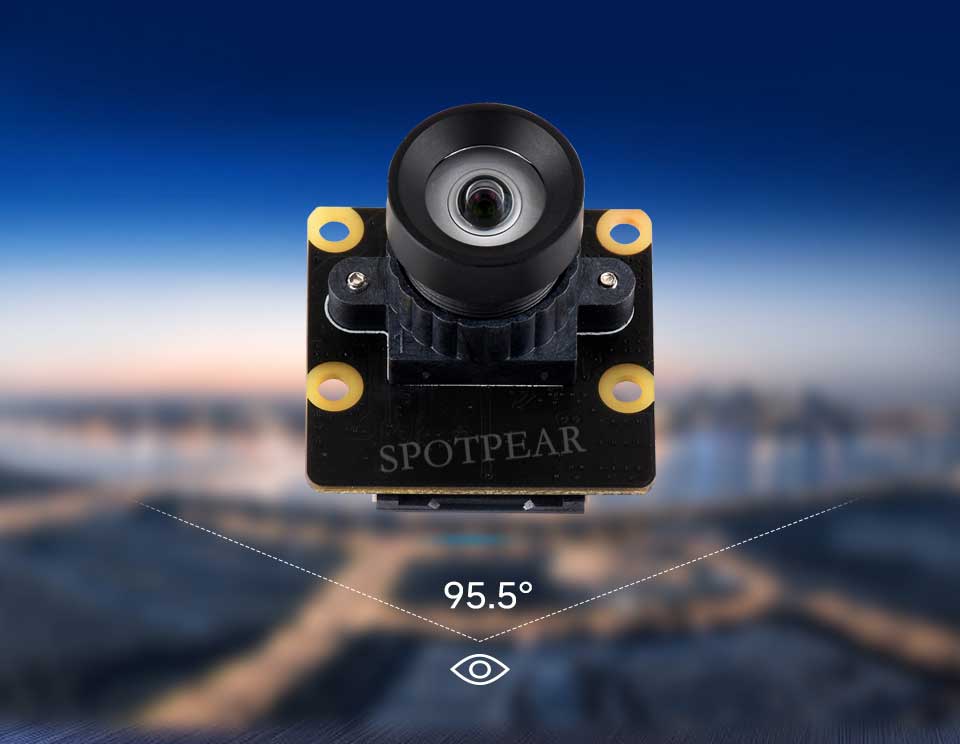

Broader vision

Equipped with a 95.5° wide-angle lens, it presents a wider range of images, no longer limited to a narrow viewing angle

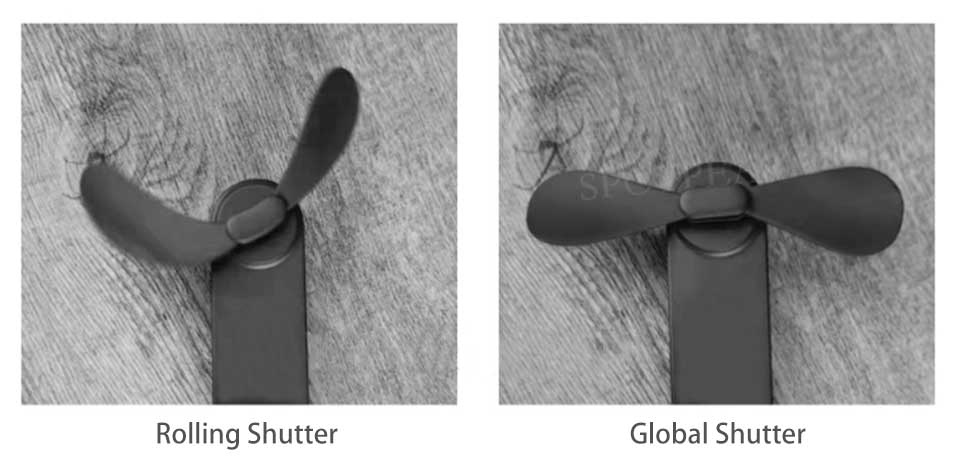

Global shutter

All pixels are exposed simultaneously, so the captured image is less likely to be distorted

High frame rate

Supports up to 1280 × 1080@120fps, accurately capturing fast-moving objects

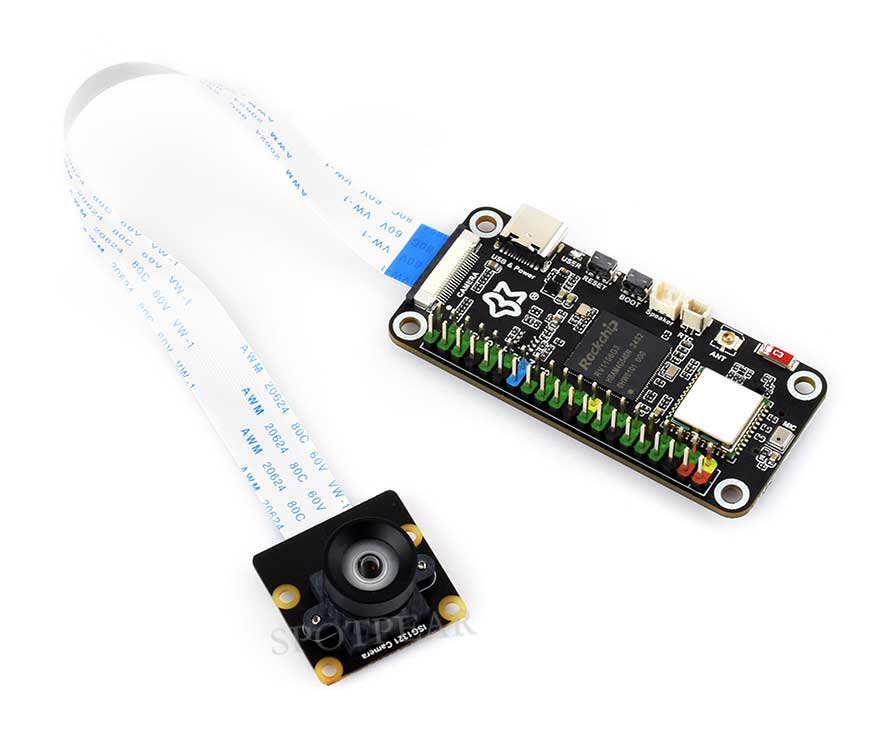

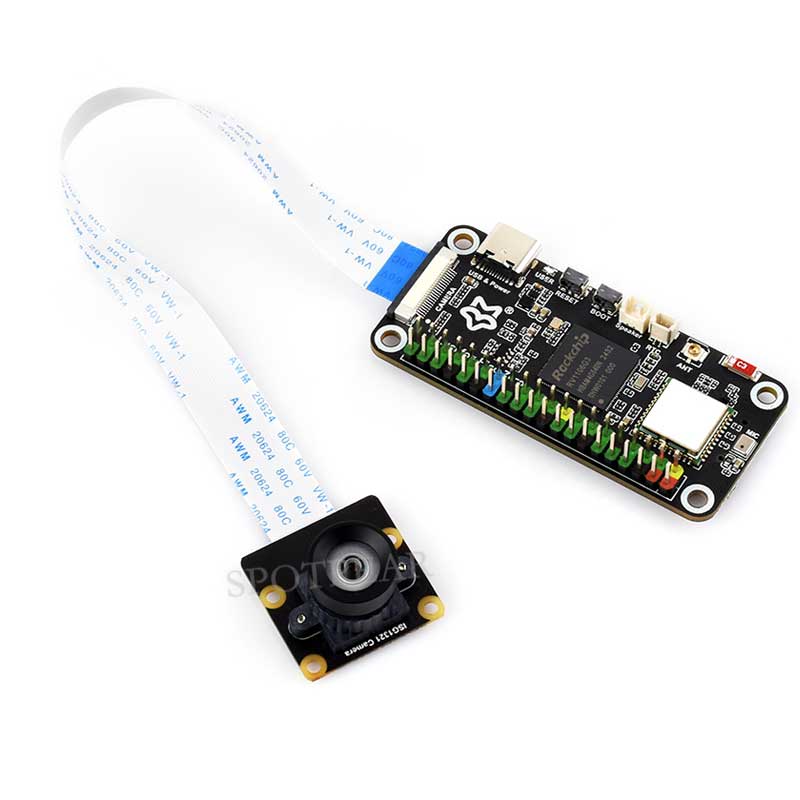

Connect to Luckfox Pico Zero

The pictures are for display only, this product does not contain Luckfox Pico Zero

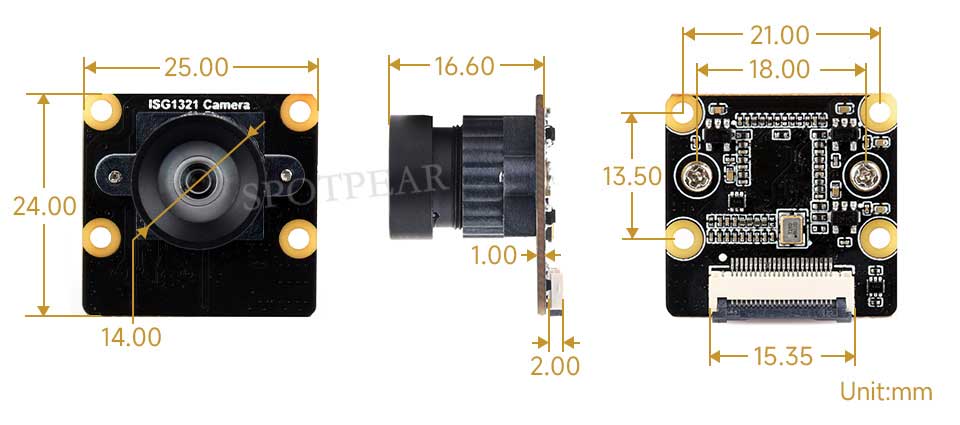

Dimensions

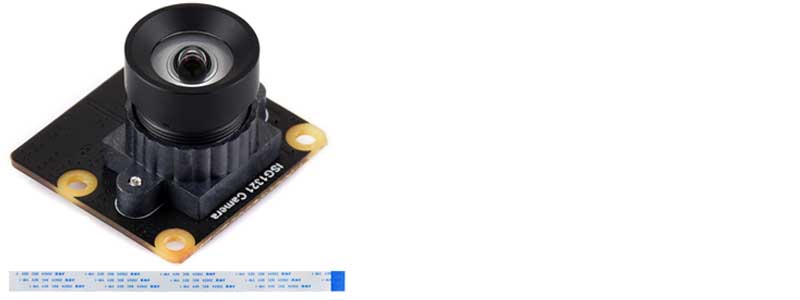

[] ISG1321 Camera
