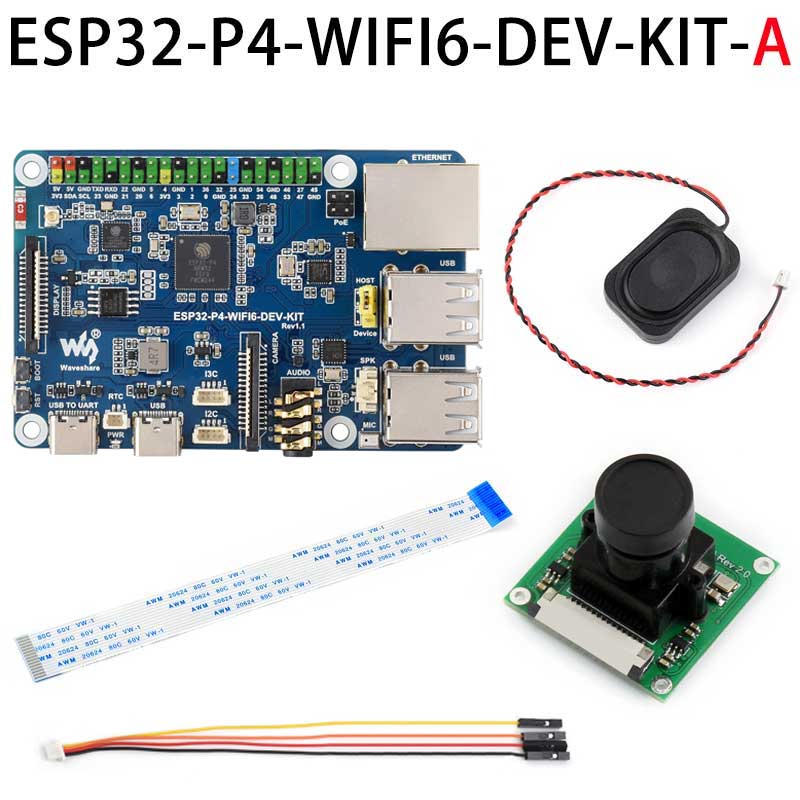

ESP32-P4 DEV-KIT C6 WiFi6 MIPI DSI 7/10.1 inch Display/CSI Camera/Audio Speaker For AI Deepseek
$28.9
ESP32-P4 Development Board: A high-performance development board based on the ESP32-P4 and ESP32-C6. Supports Wi-Fi 6 and Bluetooth 5/BLE 5. Supports Xiaozhi AI DeepSeek.
ESP32-P4 Recommend
EPS32 DeepSeek AI Recommend
ESP32-P4-WIFI6-DEV-KIT
Development Board
High-performance development board based on ESP32-P4 and ESP32-C6
Rich human-computer interaction interface
Development Board Introduction
This product is a high-performance RISC-V development board based on the ESP32-P4, featuring a dual-core and a single-core. It supports a rich set of human-machine interface (HMI) interfaces, including MIPI-CSI (integrated image signal processor) and MIPI-DSI. It also supports common peripherals such as SPI, I2S, I2C, LED PWM, MCPWM, RMT, ADC, UART, and TWAI. It also supports USB OTG 2.0 HS, Ethernet, and SDIO Host 3.0 for high-speed connectivity. The ESP32-P4 chip integrates a digital signature peripheral and a dedicated key management unit to ensure data and operational security. The ESP32-P4-WIFI6-DEV-KIT is designed for high-performance and high-security applications, fully meeting the demands of embedded applications for HMI support, edge computing capabilities, and I/O connectivity.
Main features：
- High-performance MCUs with RISC-V 32-bit dual-core and single-core processors
- 128KB HP ROM、16KB LP ROM、768KB HP L2MEM、32KB LP SRAM、8KB TCM
- Powerful image and voice processing capabilities, including image and voice processing interfaces such as JPEG codec, pixel processing accelerator (PPA), image signal processor (ISP), and H264 video encoder
- 32MB PSRAM is stacked in the chip package, and 16MB Nor Flash is integrated in the module
- Common peripheral interfaces such as MIPI-CSI, MIPI-DSI, USB 2.0 OTG, Ethernet, SDIO 3.0, SD card slot, microphone, speaker terminals, and RTC battery terminals are brought out on the board
- 2 × 20 pin headers are provided on the board, leading to 28 remaining programmable GPIOs
- Security mechanisms: secure boot, Flash encryption, hardware encryption accelerator, and hardware random number generator. Hardware access protection is also supported to implement access rights management (APM) and privilege separation.
Package Selection
Examples of meal combinations
DSI capacitive touch screen comparison
Adopt IPS fully laminated tempered glass panel with 178° wide viewing angle
Support ten-point touch, clear picture, excellent visual experience
| Screen model | 7-DSI-TOUCH-A | 10.1-DSI-TOUCH-A |
|---|---|---|
| Resolution | 720 × 1280 (H×V) | 800 × 1280 (H×V) |
| Communication interface | MIPI-DSI (2-lane) | |
| brightness | 450cd/m² (Support customized 1000cd/m² high brightness version) | 400cd/m² (Support customized 1000cd/m² high brightness version) |
| touch chip | GT9271 | |
| Dimensions | 120.24 × 189.32 (mm) | 147.0 × 239.0 (mm) |
| Display size | 88.0 × 155.0 (mm) | 135.36 × 216.58 (mm) |
| Pixel size | 0.12075 (H) × 0.12075 (V)(mm) | 0.1692 (H) × 0.1692 (V) (mm) |
| Contrast | 800:1 | |
| Operating temperature | 0℃~60℃ | |
(Only Package B and C have screens)
Raspberry Pi Camera Model B
5 megapixels | Manual focus
Compatible with Raspberry Pi series motherboards
| Photosensitive chip | OV5647 | CMOS size | 1/4 inch |
| Pixel | 5 million | aperture | F2.0 |
| focal length | 6mm | Diagonal field of view | 60.6° |
| Infrared night vision | Not supported | Focusing method | Manual focus |
The pictures are for display only. Please refer to the configuration list for detailed configuration.
Highly integrated, powerful performance
The development board uses the ESP32-P4 chip, onboard ESP32-C6, and 16MB Nor Flash
Supports Wi-Fi 6 and Bluetooth modules
Onboard ESP32-C6 chip, ESP32-P4-WIFI6-DEV-KIT
Expanded 2.4GHz Wi-Fi 6 and Bluetooth 5 (LE),
Use SDIO interface protocol to communicate, stable connection and efficient transmission
Reserved PoE module interface
Make the power supply mode of the development board more flexible
Using a PoE module
PoE Ethernet power supply
Connecting a PoE device with just one Ethernet cable allows the ESP32-P4-WIFI6-DEV-KIT to connect to the internet and be powered.
This product does not include a PoE expansion module, which must be purchased separately. For detailed configuration, please refer to the configuration list.
Support AI voice interaction
Supports mainstream AI platforms and can be connected to online large model platforms such as Doubao, DeepSeek and other AI models
(Only Development Board Packages B and C come with a screen)
Resource Introduction
- ESP32-P4NRW32
ESP32-P4 with 32MB PSRAM
- ESP32-C6
SDIO interface protocol, expanding ESP32-P4 Wi-Fi 6 and Bluetooth 5 (LE) capabilities
- 16MB Nor Flash
- ESP32-C6 UART pads
- PoE module interface
Can be connected to an external PoE module and powered by PoE
- 40PIN terminal
- 100M RJ45 network port
- USB OTG function switch pin header
USB port can be expanded by switching HOST
- USB-A port
USB OTG 2.0 High Speed interface, function can be switched via jumper cap
- Speaker jack
MX1.25 2P connector, supports 8Ω 2W speakers
- Chip Microphone
- 3.5mm headphone jack
Can connect headphones to play sound
- Camera interface
MIPI-CSI (2-lane), can be connected to cameras such as OV5647
- Display interface
MIPI-DSI (2-lane), compatible with 5/7/8/10.1-inch DSI displays
- I2C interface
- I3C interface
- Type-C UART interface
Can be used for power supply, program burning and debugging
- Type-C USB port
Can be used for power supply and program burning
- RTC socket
Connect a rechargeable RTC battery (only rechargeable RTC batteries are supported)
- PWR
Power indicator
- ESP32-C6 chip antenna
- BOOT button
Press when powering on or resetting to enter download mode
- RST button
Reset button
- SD card slot
SDIO 3.0 interface protocol
Pin Definition
Product size
