ESP32-P4-Core Development Board: A high-performance development board based on the ESP32-P4, equipped with a RISC-V 32-bit dual-core and single-core processor, and supports USB OTG 2.0 HS.

ESP32-P4 Recommend

ESP32-P4-Module

ESP32-P4-Core-DEV-KIT

WT0132P4-A1-N16R32

ESP32-P4-NANO

ESP32-P4-Module-DEV-KIT

ESP32-P4-WIFI6

ESP32-P4-Pico

ESP32-P4-ETH

ESP32-P4-WIFI6-POE-ETH

ESP32-P4-WIFI6-DEV-KIT

ESP32-P4-WIFI6-Touch-LCD-3.4C

ESP32-P4-WIFI6-Touch-LCD-4C

4-DSI-TOUCH-C

4-DSI-TOUCH-A

ESP32-P4-WIFI6-Touch-LCD-4.3

ESP32-P4-WIFI6-Touch-LCD-7B

ESP32-P4-86-Panel-ETH-2RO

5-DSI-TOUCH-A

5-DSI-TOUCH-B

7-DSI-TOUCH-A 7inch-DSI-LCD-(H)

7-DSI-TOUCH-C

8-DSI-TOUCH-A

8.8-DSI-TOUCH-A

9-DSI-TOUCH-B

10.1-DSI-TOUCH-A

10.1-DSI-TOUCH-B

ESP32-P4-WIFI6-Touch-LCD-7/8/10.1

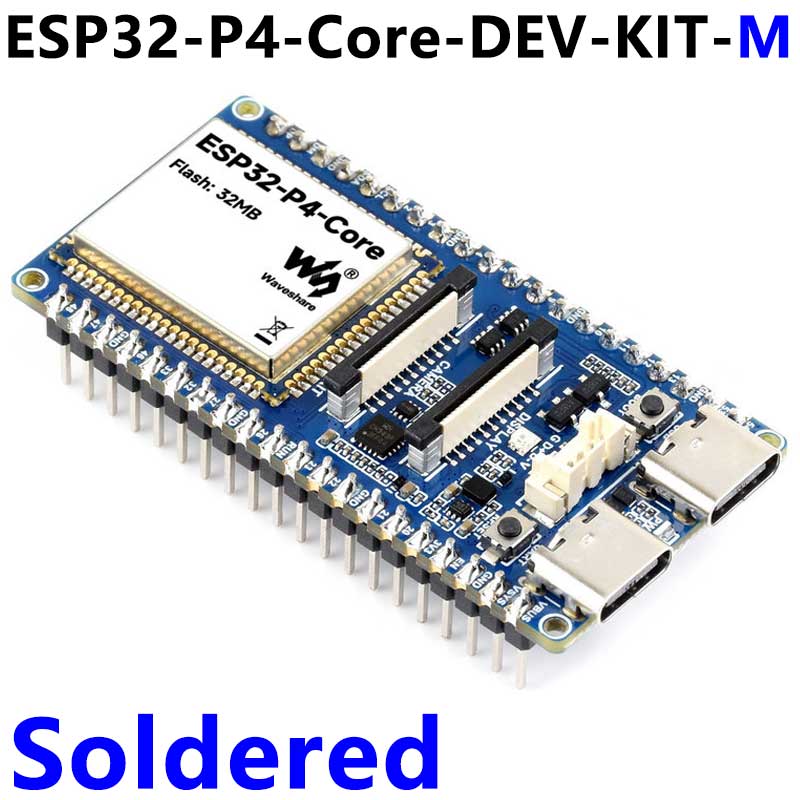

ESP32-P4-Core Board

High-performance development board based on ESP32-P4

Rich human-computer interaction interfaces

Version Selection

Board Introduction

This product is a small-sized multimedia development board based on the ESP32-P4. It offers a rich set of human-machine interfaces, including MIPI-CSI (integrated image signal processor ISP), MIPI-DSI, SPI, I2S, I2C, LED PWM, MCPWM, RMT, ADC, UART, and TWAI. Furthermore, it supports USB OTG 2.0 HS for broader application compatibility. The ESP32-P4 uses a dual-core RISC-V processor, supports 32MB PSRAM, and features peripherals such as USB 2.0, MIPI-CSI, MIPI-DSI, and H.264 encoding, meeting the needs of low-cost, high-performance, and low-power multimedia development. In addition, the ESP32-P4 integrates a digital signature peripheral and a dedicated key management unit to ensure data and operational security. The ESP32-P4-Core-DEV-KIT is designed for high-performance and high-security applications, meeting the needs of embedded systems in areas such as human-machine interaction, edge computing, and I/O expansion.

Main features：

High-performance MCUs equipped with RISC-V 32-bit dual-core and single-core processors
128KB HP ROM, 16KB LP ROM, 768KB HP L2MEM, 32KB LP SRAM, 8KB TCM
Powerful image and audio processing capabilities, with interfaces including a JPEG codec, pixel processing accelerator (PPA), image signal processor (ISP), and H.264 video encoder.
The chip package contains 32MB of PSRAM, and the module integrates 32MB of NOR Flash.
The board features common peripheral interfaces such as MIPI-CSI, MIPI-DSI, and USB 2.0 OTG.
The board has 2*20 header pins and GPIO pads at the bottom.
Security mechanisms include Secure Boot, Flash encryption, a hardware encryption accelerator, and a hardware random number generator. It also supports hardware access protection, enabling Access Management (APM) and permission separation.

Highly integrated, powerful performance

The development board uses an ESP32-P4-Core module and has a built-in 32MB NOR Flash.

Resource Introduction

ESP32-P4-Core
Built-in ESP32-P4, 32MB NOR Flash
Camera interface
MIPI-2lane
Display Interface
MIPI-2lane
WS2812B
RGB LED beads
MX1.25 4PIN terminal block
USB OTG 2.0 High Speed Interface

RST button
Reset button
BOOT button
Press the button during power-on or reset to enter download mode.
Type-C interface
It can be used for power supply and program burning.
Type-C UART interface
It can be used for power supply, program burning, and debugging.
Power indicator light

Pin Definitions

Application Examples

Images are for reference only. Please refer to the configuration list for detailed specifications.

Product Dimensions

[] ESP32-P4-Core-DEV-KIT

[] ESP32-P4-Core-DEV-KIT-M
