ESP32-P4-WIFI6-POE-ETH ESP32-C6 MIPI DSI 10.1 inch Display/CSI Camera/Audio Speaker For AI Deepseek

ESP32-P4-WIFI6-POE-ETH ESP32-C6 MIPI DSI 10.1 inch Display/CSI Camera/Audio Speaker For AI Deepseek

$42

Brand：SpotPear

SKU：020809300000

Date：2025-11-14 17:13

Part Number：

ESP32-P4-WIFI6-POE-ETH【Basic Board】 ESP32-P4-WIFI6-POE-ETH-C【MainBoard+Camera】 ESP32-P4-WIFI6-POE-ETH-D【MainBoard+Camera+10.1inch-LCD】

No：

- +

In Stock

Buy It Now

Add to cart

Ask a Question

Copy Link

ESP32-P4-WIFI6-POE-ETH Development Board - Based on ESP32-P4 and ESP32-C6, Supports Wi-Fi 6 and Bluetooth 5 (LE), Integrated PoE Module for PoE Ethernet Power Supply

ESP32-P4 Recommend

ESP32-P4-Module

ESP32-P4-NANO

ESP32-P4-Module-DEV-KIT

ESP32-P4-WIFI6

ESP32-P4-Pico

ESP32-P4-ETH

ESP32-P4-WIFI6-POE-ETH

ESP32-P4-WIFI6-DEV-KIT

ESP32-P4-WIFI6-Touch-LCD-3.4C

ESP32-P4-WIFI6-Touch-LCD-4C

ESP32-P4-WIFI6-Touch-LCD-7B

ESP32-P4-86-Panel-ETH-2RO

5-DSI-TOUCH-A

7-DSI-TOUCH-A 7inch-DSI-LCD-(H)

8-DSI-TOUCH-A

9-DSI-TOUCH-B

10.1-DSI-TOUCH-A

10.1-DSI-TOUCH-B

ESP32-P4-WIFI6-POE-ETH

High-Performance Development Board Based On ESP32-P4 And ESP32-C6

Rich Human-Machine Interfaces

Development Board Introduction

The ESP32-P4-WIFI6-POE-ETH is a multimedia development board based on ESP32-P4 and ESP32-C6, Supports Wi-Fi 6 and Bluetooth 5 (LE) wireless connectivity. It features rich Human-Machine interfaces, including MIPI-CSI (with integrated Image Signal Processor), MIPI-DSI, SPI, I2S, I2C, LED PWM, MCPWM, RMT, ADC, UART, TWAI, etc. Additionally, it supports USB OTG 2.0 HS, onboard RJ45 Ethernet port with PoE functionality.

The ESP32-P4 adopts a 360MHz dual-core RISC-V processor and supports up to 32MB PSRAM, featuring USB 2.0, MIPI-CSI / DSI, H.264 encoder, and other peripherals, meeting the needs for low-cost, high-performance, and low-power multimedia development. It also integrates a Digital Signature Peripheral and a dedicated Key Management Unit, ensuring secure data and operations. Specifically designed for high-performance and high-security applications, the ESP32-P4-WIFI6-POE-ETH meets the requirements of Human-Machine interaction, efficient edge computing, and IO expansion.

Key features include:

High-performance MCU with RISC-V 32-bit dual-core and single-core processors
128 KB HP ROM, 16 KB LP ROM, 768 KB HP L2MEM, 32 KB LP SRAM, 8 KB TCM
Powerful image and voice processing capability. Provides image and voice processing interfaces including JPEG Codec, Pixel Processing Accelerator, Image Signal Processor, H264 encoder
32MB PSRAM in the chip's package, with onboard 32MB Nor Flash
Commonly used peripherals such as MIPI-CSI, MIPI-DSI, USB 2.0 OTG, Ethernet, SDIO 3.0 TF card slot, microphone, speaker header and RTC Batt. header, etc.
Adapting 2*20 GPIO headers with 28 x remaining programmable GPIOs
Security features: Secure Boot, Flash Encryption, cryptographic accelerators, and TRNG. Additionally, hardware access protection mechanisms help to enable Access Permission Management and Privilege Separation

Kit Selection

Kit Connection Examples

DSI Capacitive Touch Display

Optional For DSI Capacitive Touch Display, IPS Screen, Optical Bonding Toughened Glass Panel, With 178° Wide Viewing Angle. Supports 10-Point Touch, Provides Clear Image And Excellent Visual Experience

MODEL	10.1-DSI-TOUCH-A
RESOLUTION	800 × 1280 (H × V)
COMMUNICATION INTERFACE	MIPI-DSI (2-lane)
BRIGHTNESS	400cd/m² (supports customization for 1000cd/m² high brightness version)
TOUCH CHIP	GT9271
OUTLINE DIMENSION	147.0 × 239.0 (mm)
DISPLAY AREA	135.36 × 216.58 (mm)
PIXEL PITCH	0.1692 (H) × 0.1692 (V) (mm)
CONTRAST RATIO	800:1
OPERATION TEMPERATURE	0℃~60℃

* the DSI LCD is only included in the ESP32-P4-WIFI6-POE-ETH-D kit.

Raspberry Pi Camera (B)

5MP | Manual Focus

Compatible With Raspberry Pi Series Boards

SENSOR	OV5647	CMOS SIZE	1/4inch
PIXELS	5MP	APERTURE	F2.0
FOCAL LENGTH	6mm	FIELD OF VIEW	60.6°
NIGHT VISION FUNCTION	Not support	FOCUSING	Manual Focus

for reference only, please refer to the package content for detailed part list.

Highly Integrated And Powerful Performance
Adopts ESP32-P4-Core Module, Featuring 32MB PSRAM And Onboard 32MB Nor Flash
Wi-Fi 6 And Bluetooth Module
Onboard ESP32-C6-MINI Module To Extend 2.4GHz Wi-Fi 6 And Bluetooth 5 (LE) For ESP32-P4-WIFI6-POE-ETH, Using SDIO Interface Protocol For Communication, Stable Connection And Efficient Transmission
Integrated PoE Module
More Flexible For Power Supply
Supports PoE Power Supply
Provides Both Network Connection And Power Supply For ESP32-P4-WIFI6-POE-ETH Board With Only One Ethernet Cable
for reference only, please refer to the package content for detailed part list.
Supports AI Speech Interaction
Allows Access To Online Large Model Platforms Such As DeepSeek, Doubao, Etc.

*The DSI LCD is only included in the ESP32-P4-WIFI6-POE-ETH-D kit.
What's On Board
ESP32-P4-Core
ESP32-P4NRW32, with 32MB Nor Flash
ESP32-C6-MINI1-U-H8 module
SDIO interface protocol, extending Wi-Fi 6 / Bluetooth 5 (LE) for ESP32-P4, onboard IPEX 3 connector for external antenna
Display interface
MIPI-2lane
Camera interface
MIPI-2lane
5V power supply header
UART header SH1.0 4PIN
for program burning and debugging
I2C header SH1.0 4PIN
for connecting external I2C devices
Power indicator
RST button
Boot button
Press it when powering on or resetting to enter download mode
Type-A and Type-C physical stacked design
Type-A as USB OTG 2.0 High Speed port; Type-C as the UART port, for power supply, program burning and debugging
100Mbps RJ45 Ethernet port
Supports PoE function
TF card slot
SDIO 3.0 interface protocol
ESP32-C6 UART pads
Onboard microphone
40PIN header
Audio codec chip, amplifier chip and MX1.25 speaker header
MX1.25 2P connector, supports 8Ω 2W speaker
IP101
Ethernet chip

Pin Definition
Outline Dimensions

[] ESP32-P4-WIFI6-POE-ETH【Basic Board】

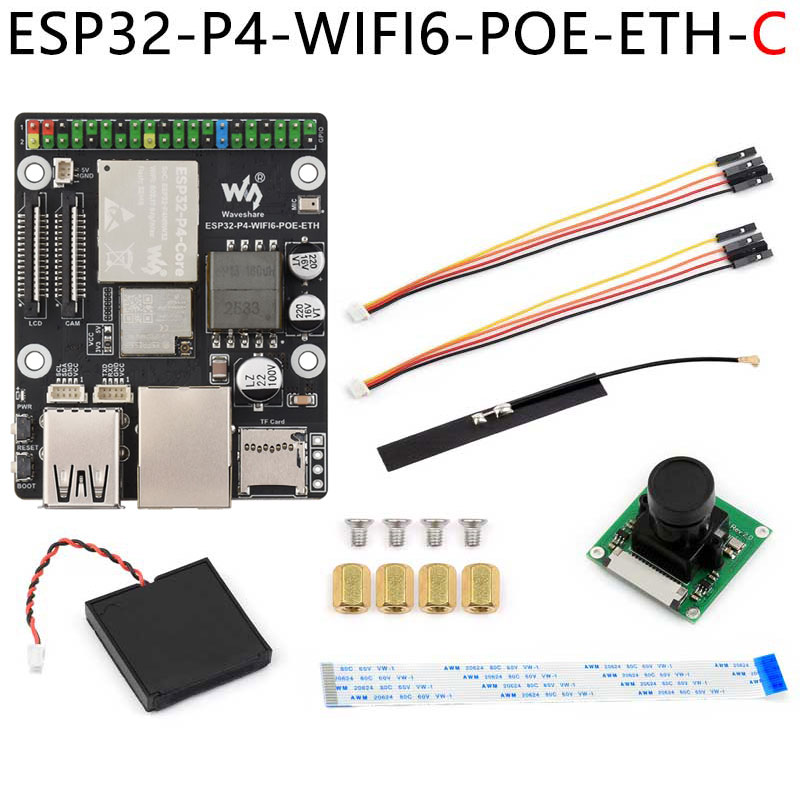

[] ESP32-P4-WIFI6-POE-ETH-C【MainBoard+Camera】
