TOF LASER RANGE SENSOR

Long Range | Short Blind Zone | Stable/Accurate/Sensitive | Indoor/Outdoor

Product Overview

This is a TOF-based (time of flight) laser ranging sensor with embedded MCU and ranging algorithm, which is capable of offering up to 25m / 40m measuring range, and ±3cm accuracy. It supports UART or I2C communication bus, features longer measuring distance and higher light interference tolerance capability due to its ultra narrow FOV, suitable for either indoor or outdoor condition. And its ambient light tolerance is up to 100K LUX.

This sensor can be widely used in applications like common distance measuring, robot obstacle avoidance / route planning, as well as ceiling detection / stacking detection, and more...

Version selection


Specifications

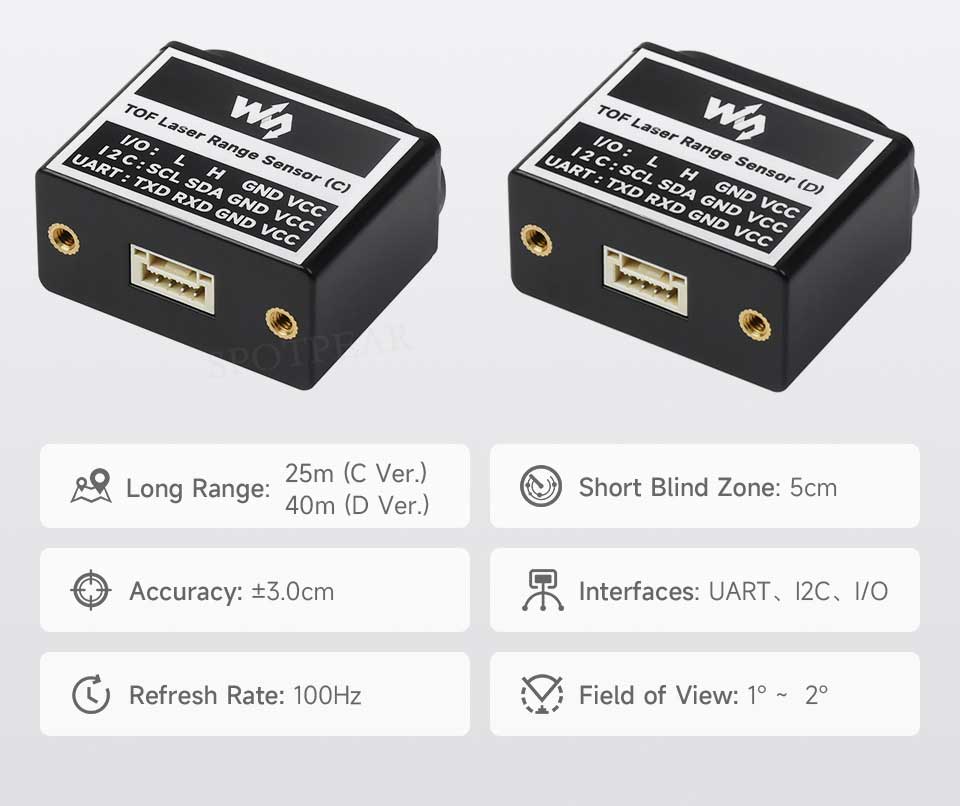

Model	TOF Laser Range Sensor (C)	TOF Laser Range Sensor (D)

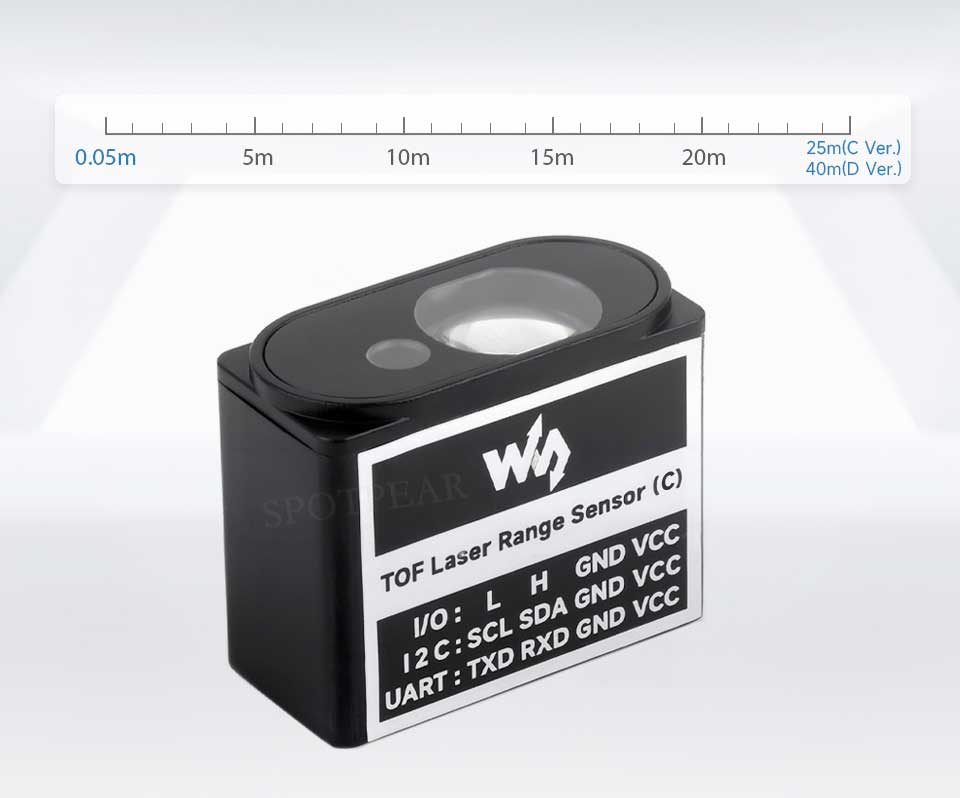

Typical ranging range	0.05m ~ 25.0m	0.05m ~ 40.0m
Typical ranging accuracy	0.05m ~ 25m ±3cm	0.05m ~ 40m ±3cm
Wavelength	905nm
Field of view (FOV)	1° ~ 2°
Communication interface	Default: UART (TTL signal line level 3.3V)
	I2C (supports multiple parallel connections, slave address is 0x08 + module ID)
	I/O complementary level output (distance parameters are not available in this mode)
Communication baud rate	UART：4.8Kbps ~ 3000Kbps (Default 921.6Kbps)
	I2C: up to 400Kbps
Supply voltage	4.3V ~ 5.2V
Product power consumption	250mW（UART active output, supply voltage 5.0V, current 50mA）
Product Weight	7.7g
Operating temperature	-10°C ~ 60°C
Product size	22.7 × 28 × 13.6 (mm) (Length × Width × Height)

Cost Effective Solution

Long-distance low-cost distance measurement module

Highly stable, high-precision, and high-sensitivity distance detection

UART / I2C / IO Communication Support

UART Mode: Supports Active Query Output
I2C Mode: Up To 8x Cascades
I/O Mode: Unable To Output Distance Parameter

Applications

Hydraulic pile detection

Hardware Connection

Connecting With Raspberry Pi (Via I2C)

Connecting With Raspberry Pi (Via UART)

Connecting With Raspberry Pi (Via I/O Pins)

Outline Dimensions

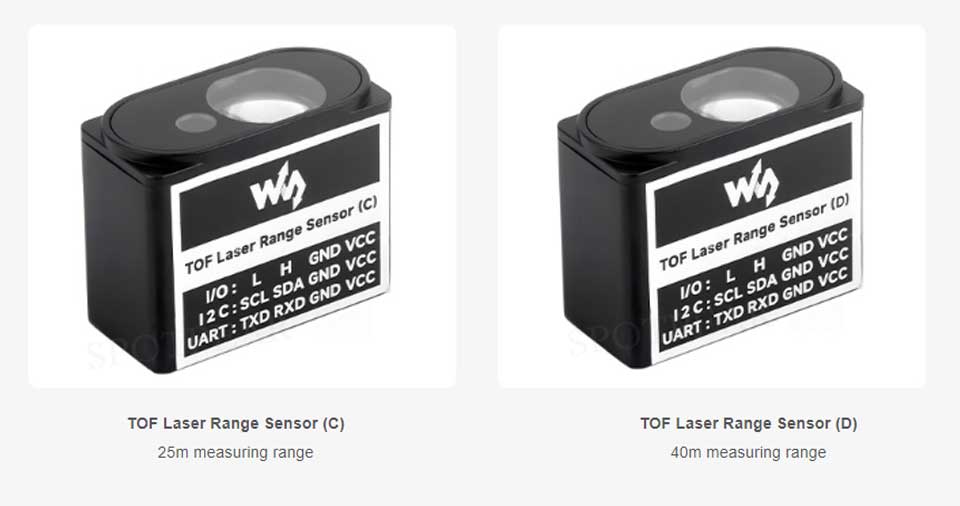

[] TOF Laser Range Sensor (C) (25m)

[] TOF Laser Range Sensor (D) (40m)
