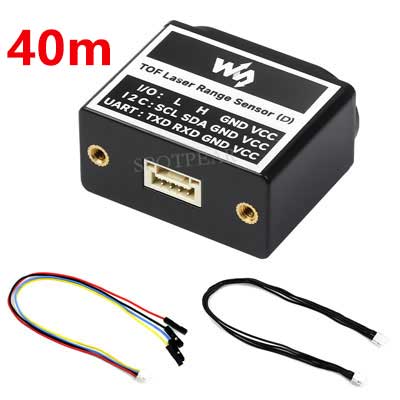

TOF LASER RANGE SENSOR

Long Range | Short Blind Zone | Stable/Accurate/Sensitive | Indoor/Outdoor

Product Overview

This is a laser ranging sensor based on TOF (Time of Flight) technology. With built-in controller and ranging algorithm, the ranging range can reach 25m / 50m (optional) and the accuracy is up to ±3cm. It supports UART and I2C communication and has an ultra-small field of view (FOV), which makes the ranging range longer and the anti-light interference ability stronger. It is suitable for both indoor and outdoor environments, and the anti-light interference ability is up to about 100K LUX illumination. It can be used as a ranging tool for distance detection, as well as for robot obstacle avoidance/route planning, and can also be used in drone height determination/ceiling detection and material level measurement.

Version selection


Specifications

Model	TOF Laser Range Sensor (C)	TOF Laser Range Sensor (D)
Typical ranging range	0.05m ~ 25.0m	0.05m ~ 50.0m
Typical ranging accuracy	0.05m ~ 25m ±3cm	0.05m ~ 50m ±3cm
Wavelength	905nm
Field of view (FOV)	1° ~ 2°
Communication interface	Default: UART (TTL signal line level 3.3V)
	I2C (supports multiple parallel connections, slave address is 0x08 + module ID)
	I/O complementary level output (distance parameters are not available in this mode)
Communication baud rate	UART：4.8Kbps ~ 3000Kbps (Default 921.6Kbps)
	I2C: up to 400Kbps
Supply voltage	4.3V ~ 5.2V
Product power consumption	250mW（UART active output, supply voltage 5.0V, current 50mA）
Product Weight	7.7g
Operating temperature	-10°C ~ 60°C
Product size	22.7 × 28 × 13.6 (mm) (Length × Width × Height)

Cost Effective Solution

Long-distance low-cost distance measurement module

Highly stable, high-precision, and high-sensitivity distance detection

UART / I2C / IO Communication Support

UART Mode: Supports Active Query Output
I2C Mode: Up To 8x Cascades
I/O Mode: Unable To Output Distance Parameter

Applications

Hydraulic pile detection

Hardware Connection

Connecting With Raspberry Pi (Via I2C)

Connecting With Raspberry Pi (Via UART)

Connecting With Raspberry Pi (Via I/O Pins)

Outline Dimensions

[] TOF Laser Range Sensor (C) (25m)

[] TOF Laser Range Sensor (D) (50m)
