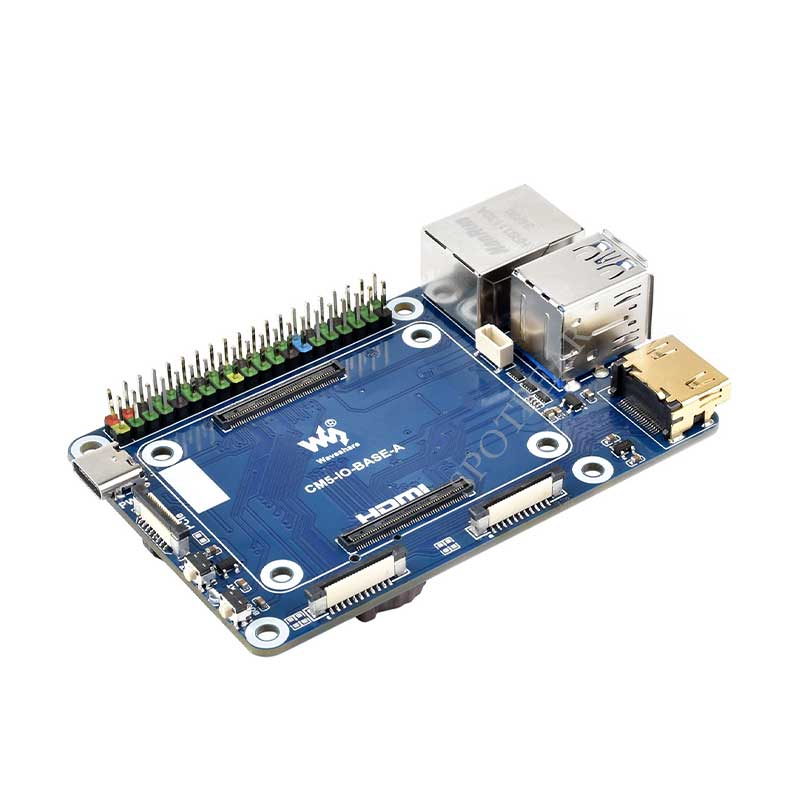

Raspberry Pi CM5 IO BASE A Mini Board a Base Development Platform Compute Module 5 IO Board
$19.31
Brand：SpotPear
SKU：010146000000
Date：2025-04-25 19:23
Part Number：

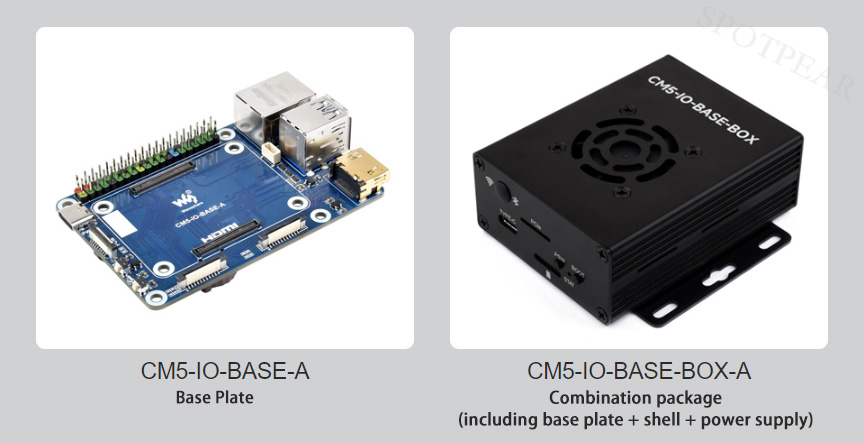

Raspberry Pi Compute Module 5 (Basic Expansion Board) Mini Expansion Board Type A Combination Package Computing Module Core Board Baseboard
CM5 Compute Module Mini PC
Designed for the Raspberry Pi Compute Module 5 core board
Built-in CM5-IO-BASE-A, easy assembly to become a host, convenient and fast

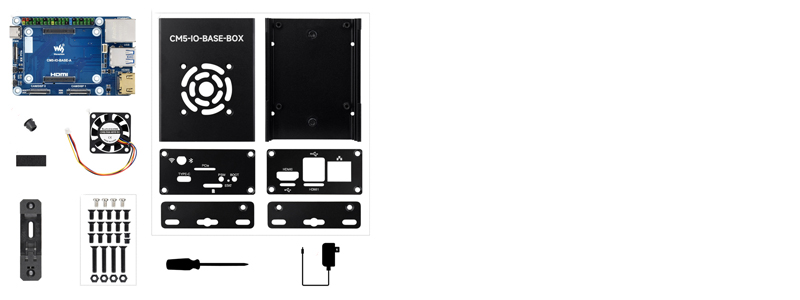

Version selection
Product Parameters
| CM5 Card Holder | Applies to all versions of Compute Module 5 |
|---|---|
| networking | Gigabit Ethernet RJ45 port |
| Connectors | 16PIN PCIe (PCIe Gen2/3 x1) |
| Raspberry Pi 40-pin GPIO interface | |
| USB | USB 3.2 Gen1 (Type-A) × 2; USB 2.0 × 2 (6PIN 1mm FFC connector) |
| MIPI | 4-lane MIPI interface × 2 (22PIN 0.5mm FFC connector) |
| video | HDMI interface × 2 (including FFC lead interface × 1), support dual 4K output |
| storage | Onboard Micro SD card slot (for versions without eMMC) |
| Fan connector | 5V, 4PIN JST-SH PWM fan connector |
| Power Input | DC 5V 5A |
| size | Base Plate：85 × 56 (mm) |
| shell：90 × 68 (mm) |

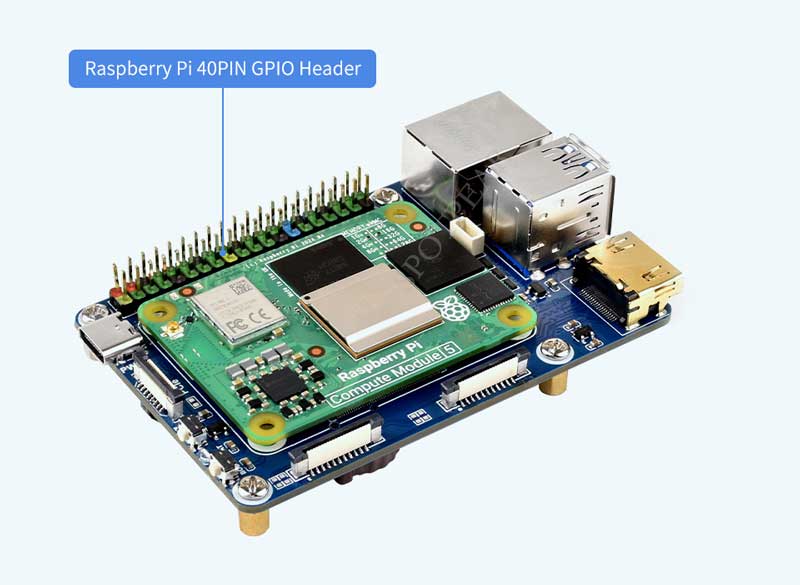

Connecting to the Compute Module 5 core board
Onboard 40PIN GPIO interface and standard CM5 connector
Supports access to Compute Module 5 Lite / eMMC series core boards

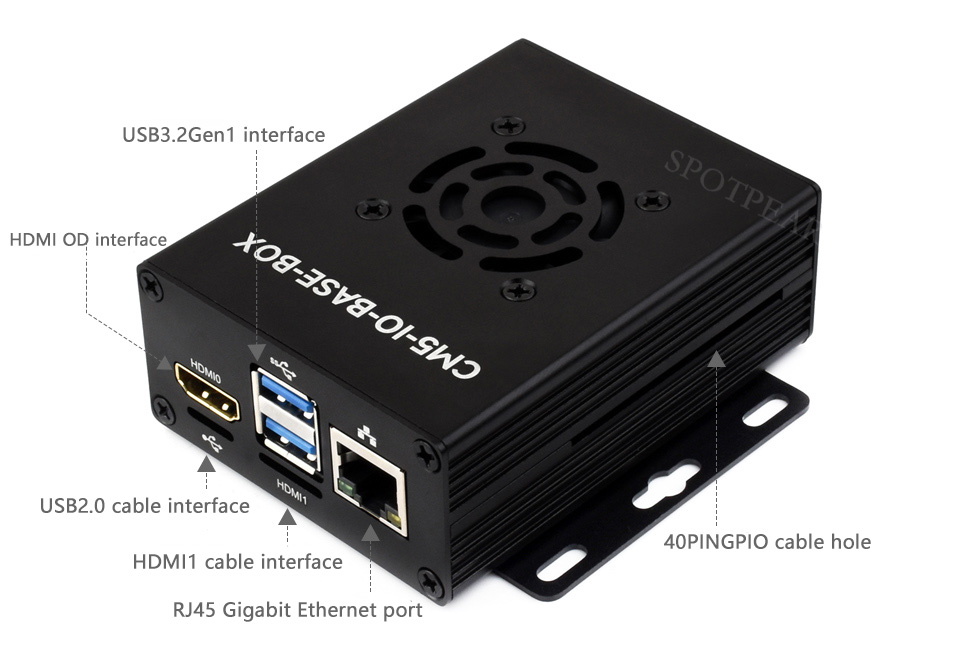

Small but complete
Equipped with multiple interfaces, more convenient to use

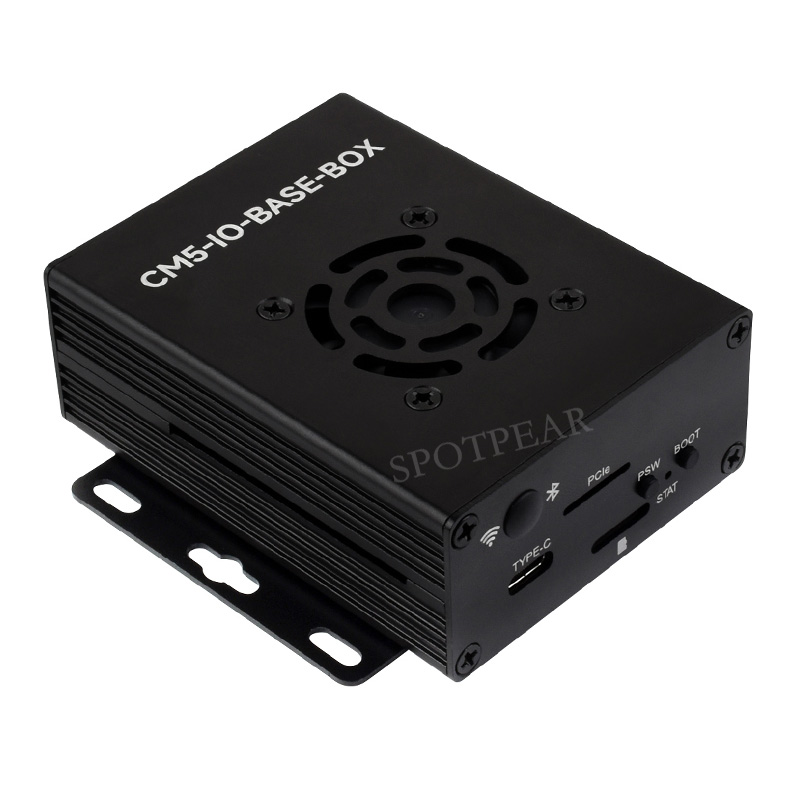

Delicate hole design
Ensure that each interface fits the motherboard perfectly
The interface is clearly marked with silk screen for easy viewing

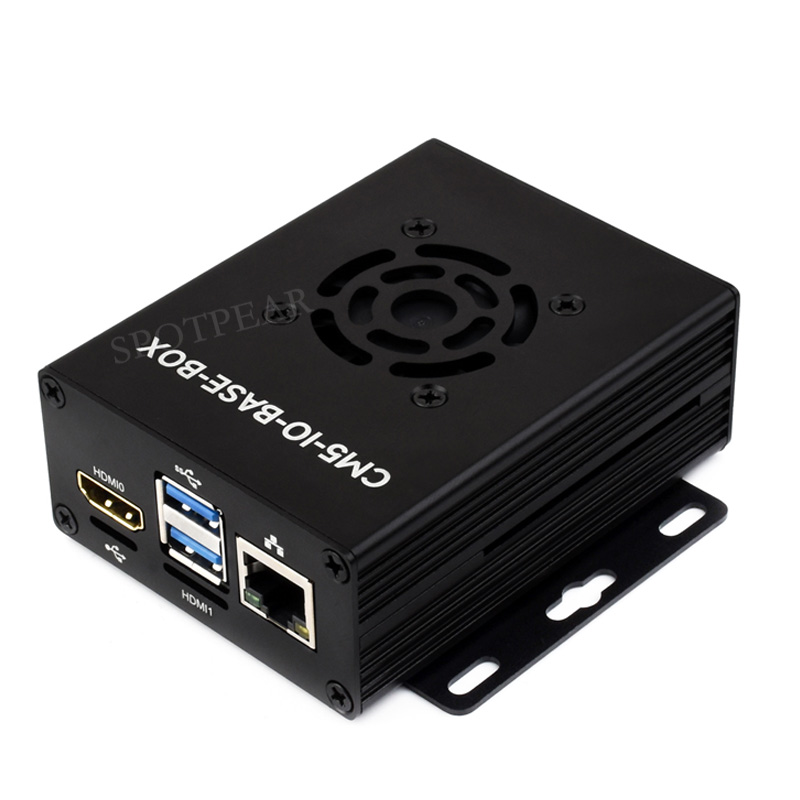

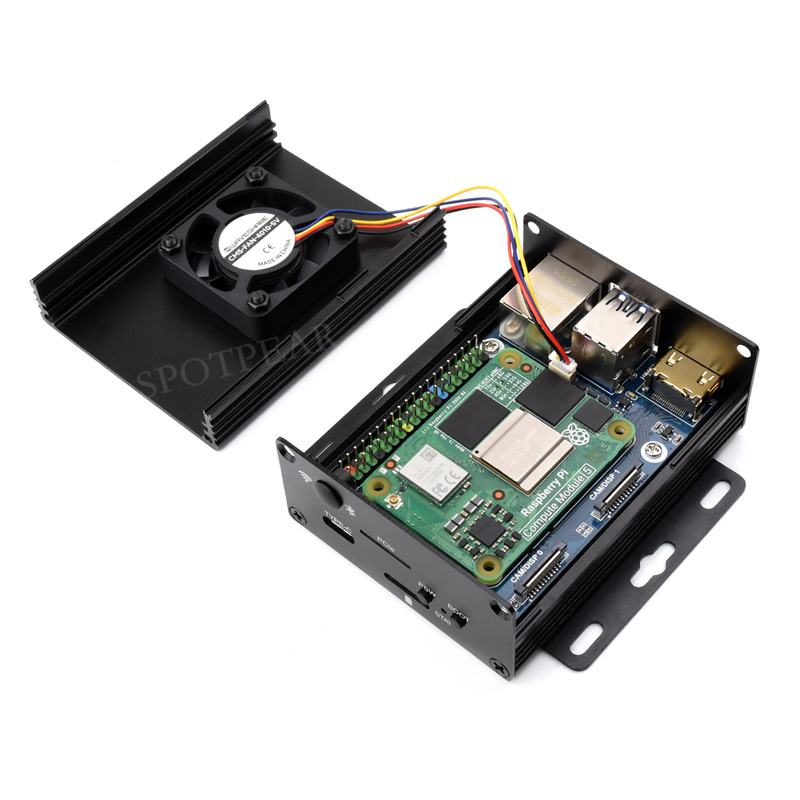

Supporting cooling fan
The top has a reserved vent and the built-in fan is integrated to provide better heat dissipation effect.

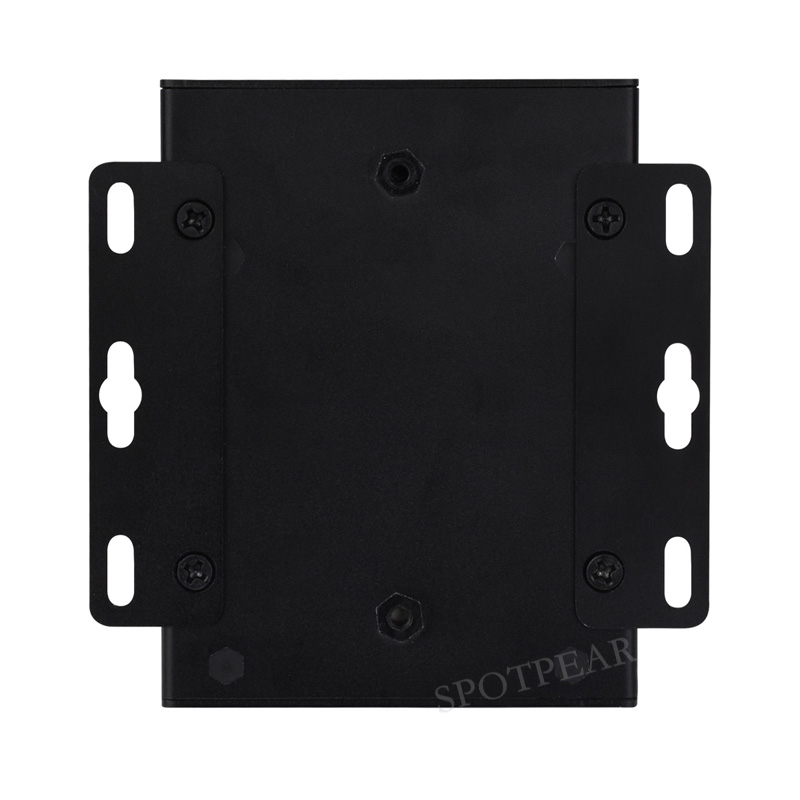

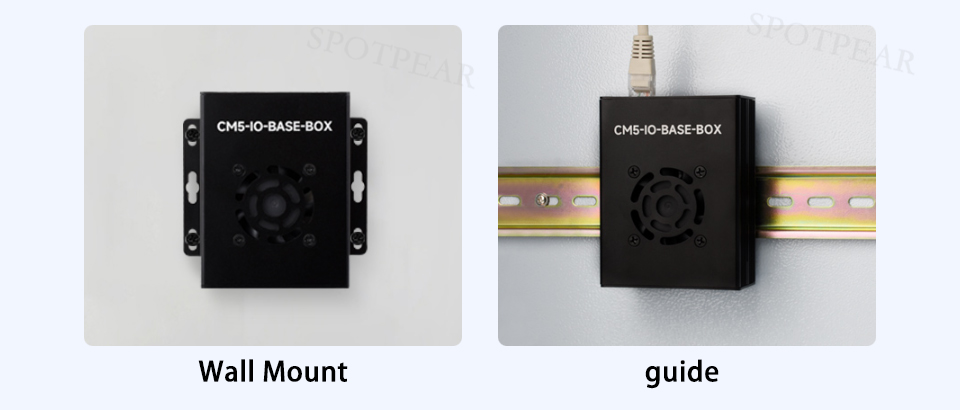

Support wall mounting and rail mounting
There are wall-mounting holes on both sides and a guide rail on the back, making installation and fixing more convenient
USB HDMI extension
This product does not contain the adapter plate shown in the picture. If necessary, please purchase it separately.

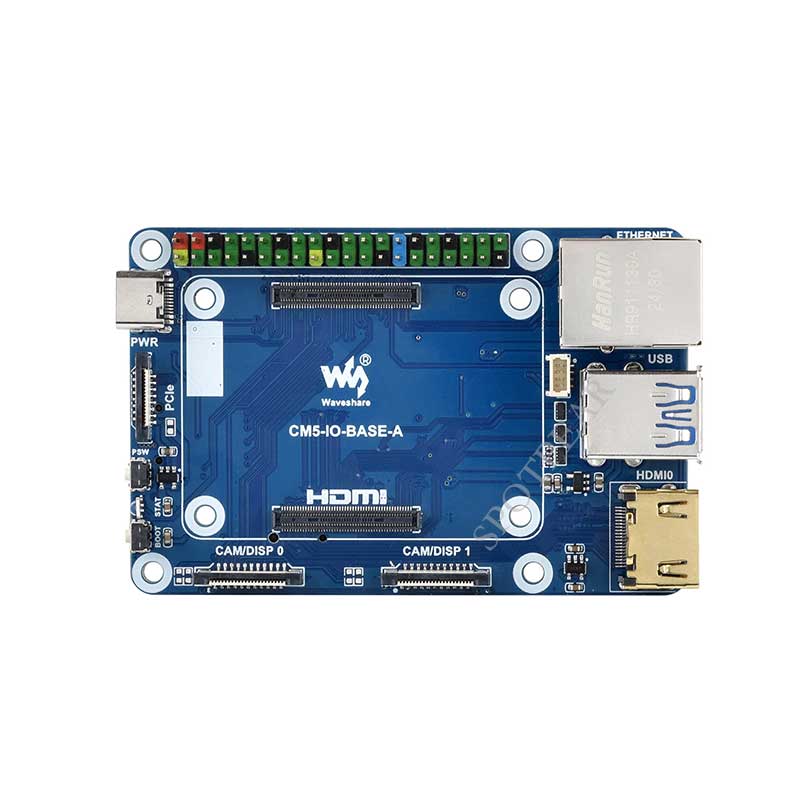

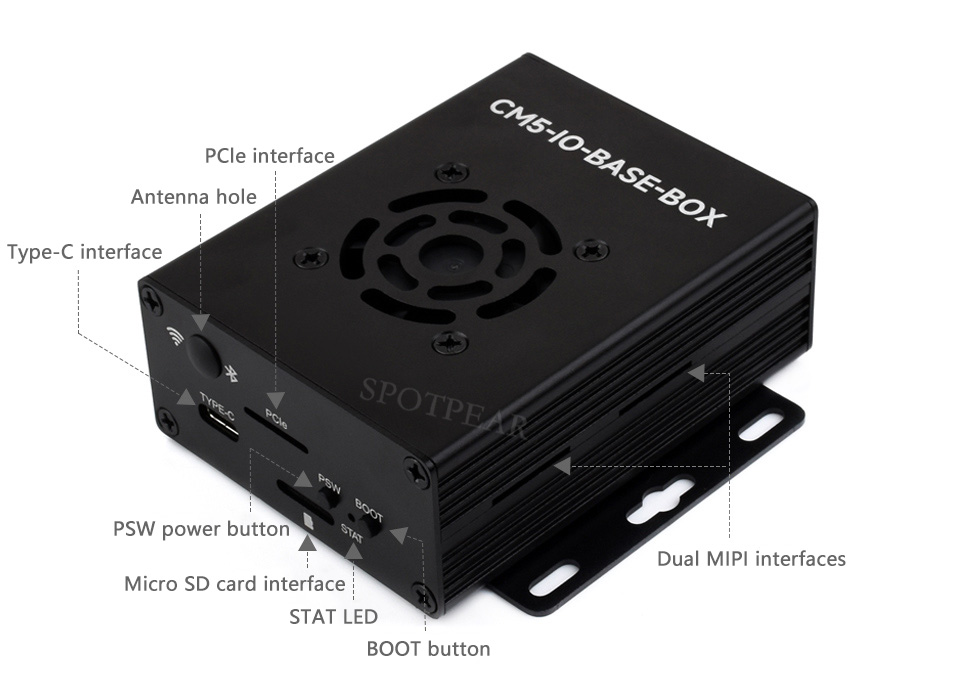

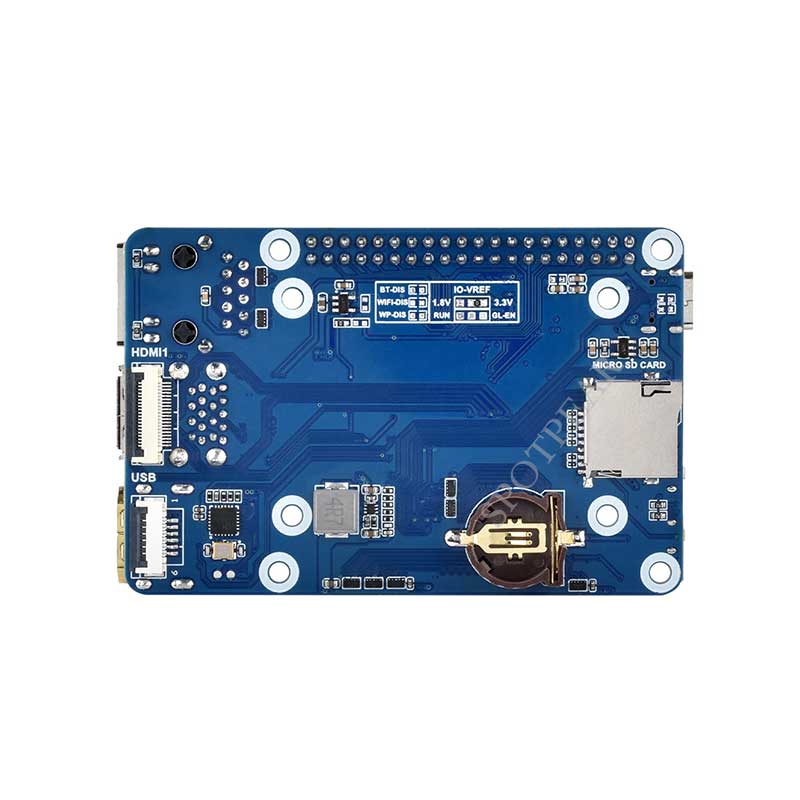

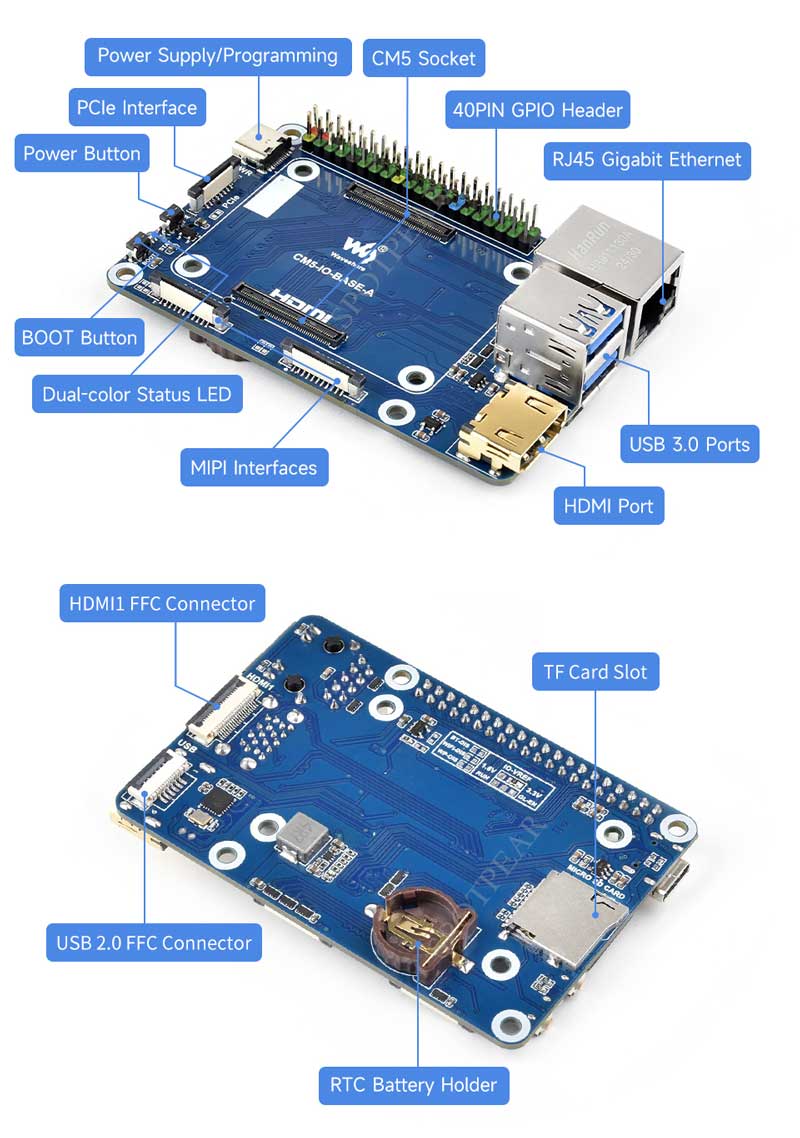

What's On Board
- CM5 socket
suitable for all variants of Compute Module 5 - 40PIN GPIO header
for connecting various HAT / HAT+ modules - Power input/Programming
5V / 5A power supply, or used for eMMC burning - PCIe interface
for connecting various PCIe expansion boards - PSW Power button
Long press to force power off, short press to soft power off or on - STAT LED
Dual-color status LED - BOOT button
Press before powering on and release after powering on to enter the burning mode - Dual MIPI interfaces
for connecting DSI displays and CSI cameras - HDMI0 connector
HDMI0 port, supports 4K output - USB 3.2 Gen1 ports
2x USB 3.2 Gen1 high-speed ports, supports 5Gbps synchronous operation
- RJ45 Gigabit Ethernet port
Supports 10M / 100M / 1000M network access - 4PIN JST-SH PWM Fan header
for connecting cooling fan, 5V power supply - TF card slot
for connecting a TF card with pre-burnt image (Lite variant ONLY) - IO-VREF selection
CM5 IO logic level: 3.3V (default) or 1.8V - Other function pins
WIFI / BT hardware disable or write protection - HDMI1 FFC connector
HDMI1 port, supports 4K output, can be connected through an adapter - USB 2.0 FFC connector
can be connected through an adapter - RTC battery holder
Supports CR / ML1220 button cell

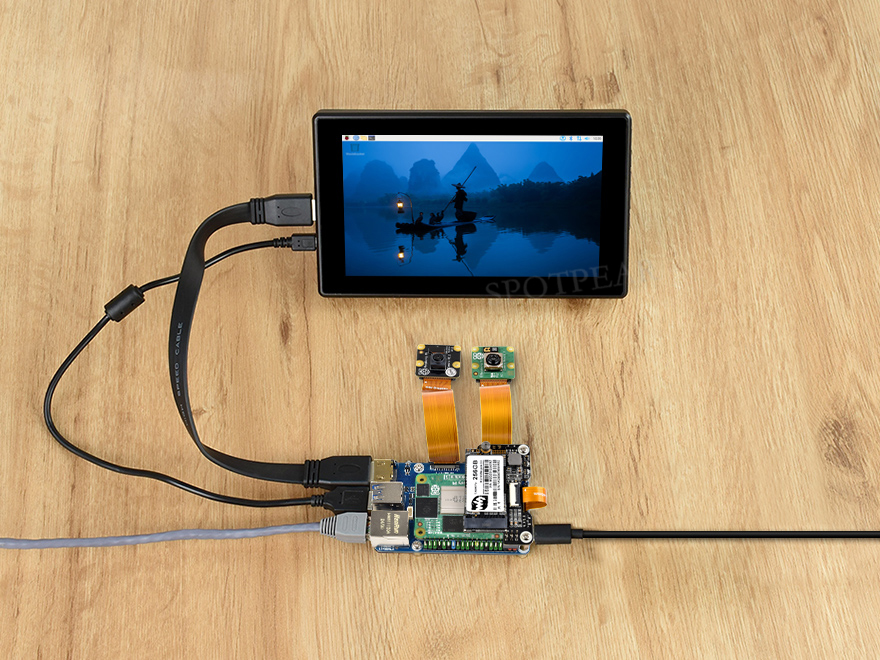

Application Examples
This product does not include the CM5, display screen, and camera shown in the picture. If necessary, please purchase them separately.

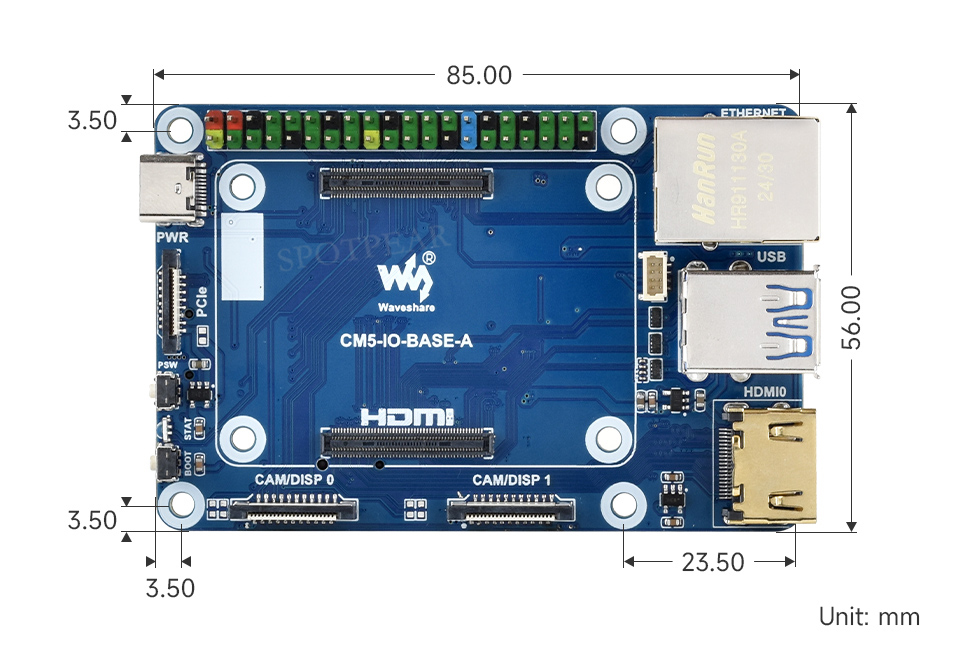

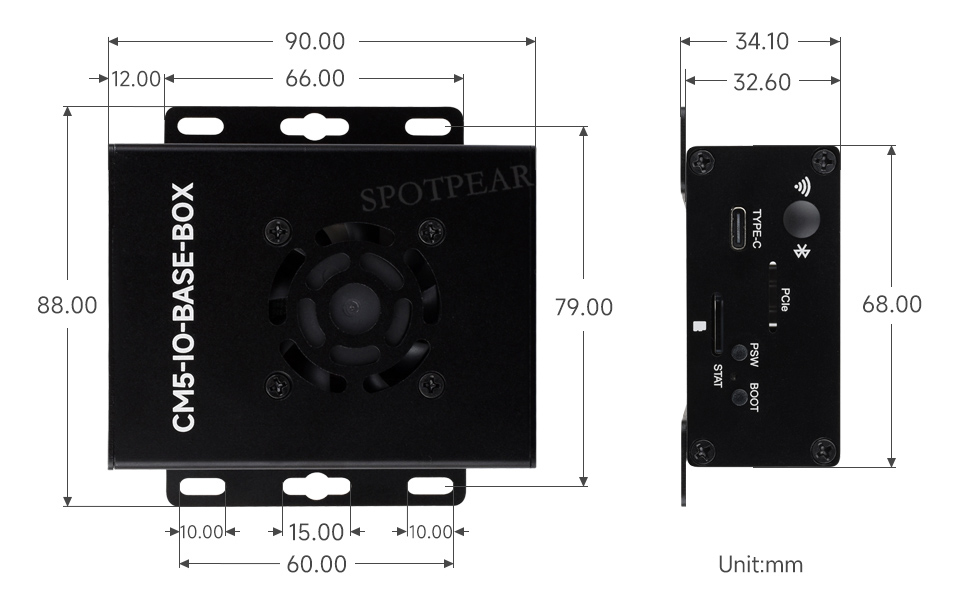

Product size
Base Plate
shell
