Raspberry Pi CM5 to Pi 5 Expansion Board With USB microphone & Audio Port
$25.9
Raspberry Pi CM5 to Pi 5 expansion board, Raspberry Pi 5 alternative board, Raspberry PI 5 alternative solution, suitable for CM5 with new audio interface support for microphone connection
Raspberry Pi Compute Module 5 CM5 Recommend
CM5 Compute Module Mini Host
Designed specifically for Raspberry Pi Compute Module 5 Core Board
Product Specifications
| CM5 Socket | Compatible with all versions of Compute Module 5 |
|---|---|
| Connect to the Internet | Gigabit Ethernet RJ45 Interface |
| Connector | 16PIN PCIe (PCIe Gen2/3 x1) Raspberry Pi 40PIN GPIO |
| USB | USB 3.2 Gen1 × 2； USB 2.0 × 2 |
| MIPI | 4-lane MIPI interface × 2 (22PIN 0.5mm FFC connector) |
| Video | HDMI interface × 2 supporting dual 4K output |
| Audio | The accompanying module can be used to connect standard 3.5mm interface headphones for audio input and output |
| Storage | On-board Micro SD card slot (for the CM5 version without eMMC) |
| Fan Interface | 5V, 4-pin JST-SH PWM fan connector |
| Power input | DC 5V 5A |
| Size | 85 × 56 (mm) |
Designed based on Raspberry Pi CM5
Use the Raspberry Pi CM5 to restore the original appearance of the Pi 5 motherboard as much as possible
No longer worry about the compatibility with various interfaces of the Pi 5 motherboard
The picture is for reference only. For detailed configuration, please refer to the configuration list
Access the Compute Module 5 core board
It features a 40-pin GPIO interface on board and a standard CM5 connector
Support access to Compute Module 5 Lite/eMMC series core boards
The picture is for reference only. For detailed configuration, please refer to the configuration list
On-board USB audio decoding chip
Compared with the Pi 5 product, this product has added an audio interface and supports the connection of microphones
The picture is for reference only. For detailed configuration, please refer to the configuration list

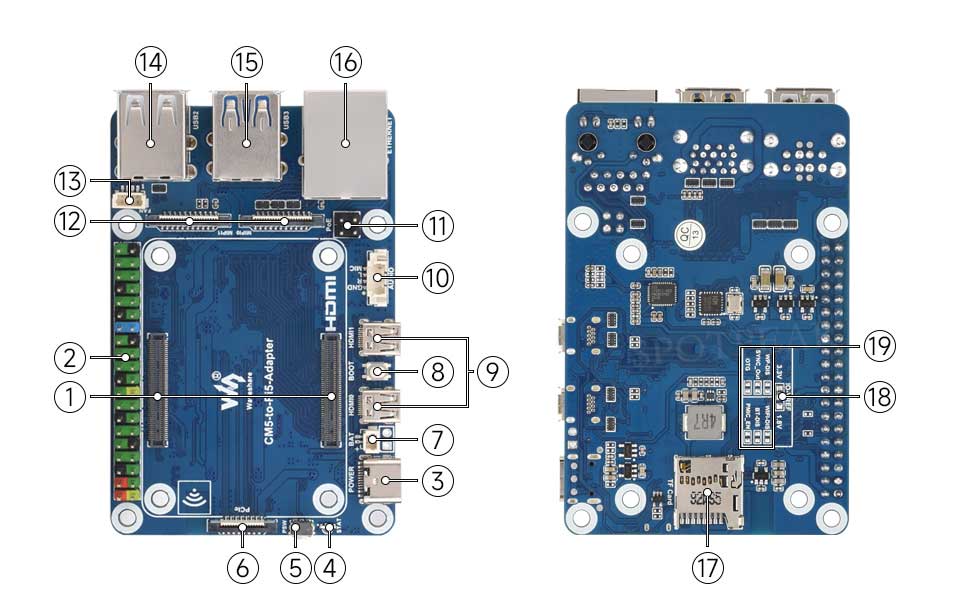

Resource Introduction
- CM5 connector
Applicable to all versions of Compute Module 5
- 40-pin GPIO interface
It is convenient to connect various HAT/HAT+ modules
- Power supply/programming interface
It is powered by 5V / 5A and can also be used as an eMMC burning interface
- STAT LED
Dual-color state LED
- PSW power button
Long press to force power off, short press to soft power off or power on
- PCIe
It is convenient to connect to various PCIe expansion boards
- RTC battery socket
It is used for external RTC batteries to maintain the real-time clock operation
- BOOT button
Press before power-on and release after power-on to connect to the burning mode
- micro HDMI
HDMI interface, supporting 4K output
- Extended audio interface
The audio interface can be expanded via USB, and standard 3.5mm headphones can be connected using the accompanying module
- PoE 4-pin interface
It can be used to connect PoE modules
- Dual MIPI interfaces
Supports connection to DSI displays and CSI cameras
- FAN interface
Convenient for connecting to the cooling fan, 5V, 4-pin JST-SH PWM fan connector
- USB 2.0 interface
Standard USB 2.0 interface
- USB 3.2 Gen1 interface
The dual USB 3.2 Gen1 interfaces support simultaneous reading and writing at 5Gbps
- Gigabit network port
RJ45 Gigabit network port, supporting 10M / 100M / 1000M network access
- Micro SD card interface
It is used to connect to the Micro SD card with the system and is only applicable to the CM5 version without eMMC
- IO-VREF
The IO logic voltage switches to 3.3V (default) or 1.8V
- Other functional pins
Hardware disable function or write protection
