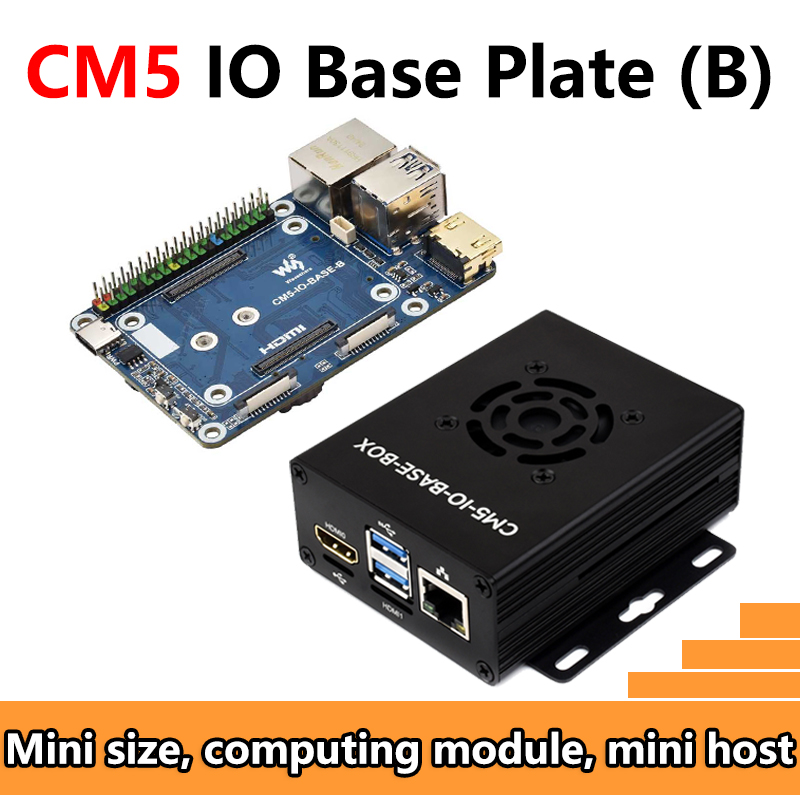

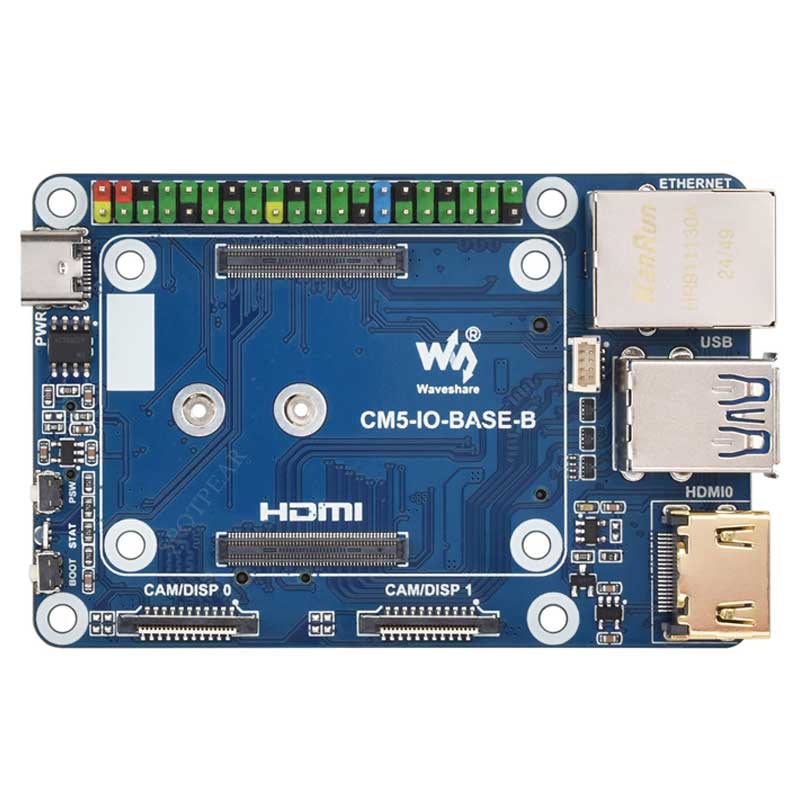

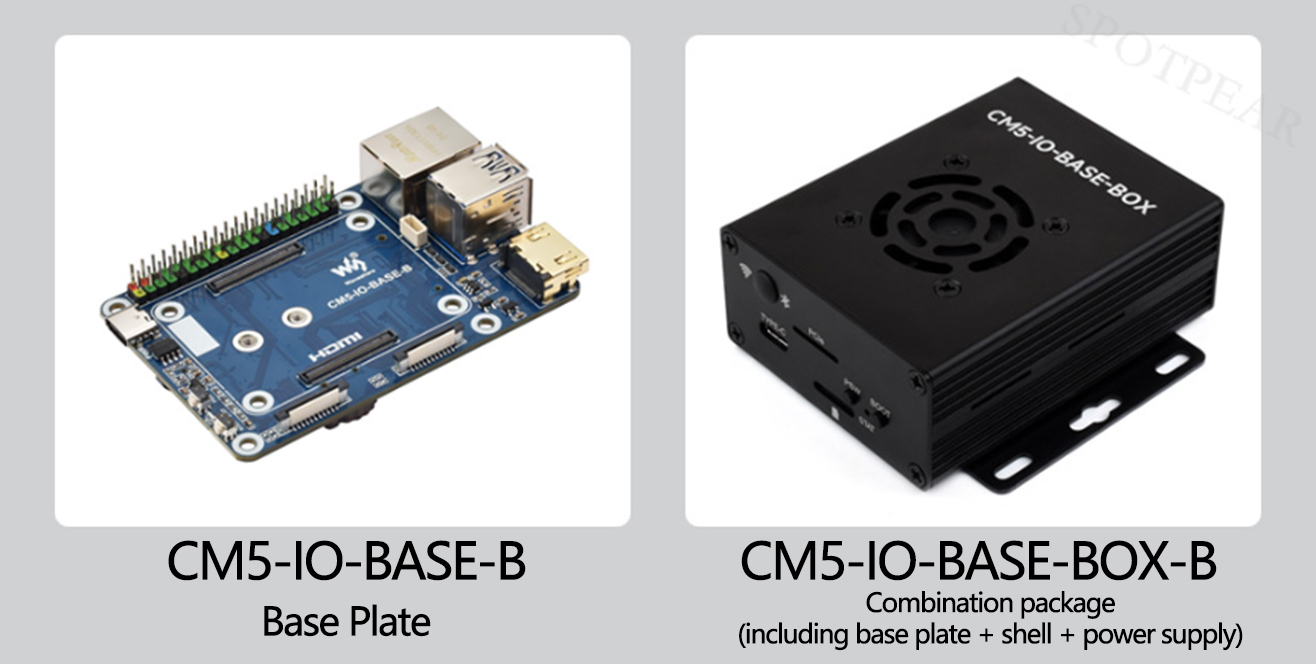

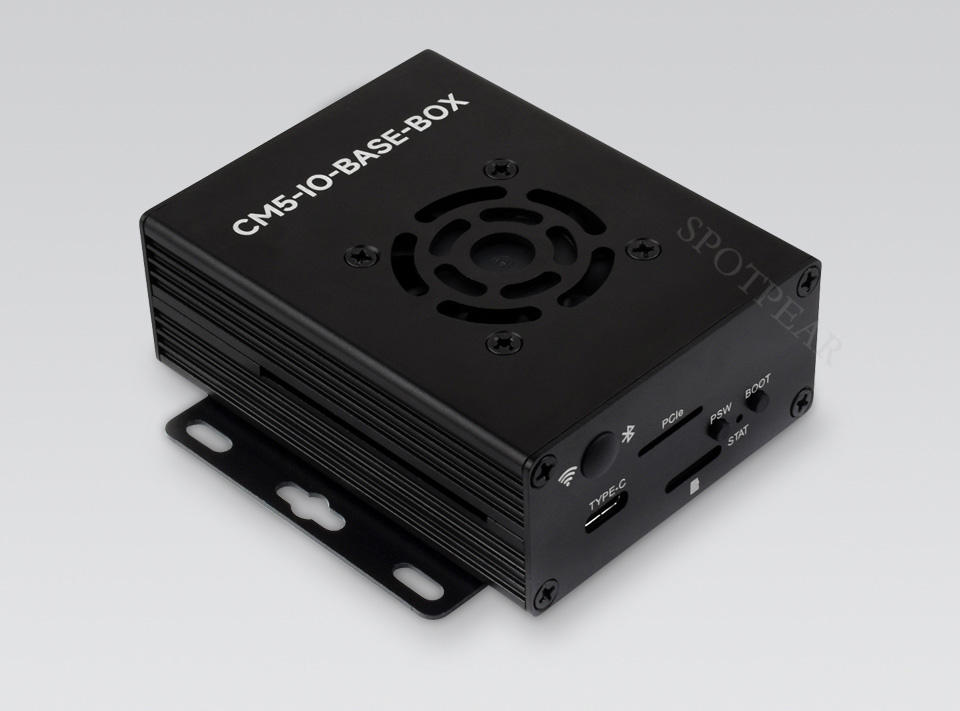

Raspberry Pi CM5 IO BASE B Mini Board a Base Development Platform Compute Module 5 IO Board with EEPROM And Encryption chip
$21.9
Raspberry Pi Compute Module 5 Mini Expansion Board Type B Compute Module Core Board Base Board Onboard EEPROM and Encryption Chip
Raspberry Pi Compute Module 5 CM5 Recommend

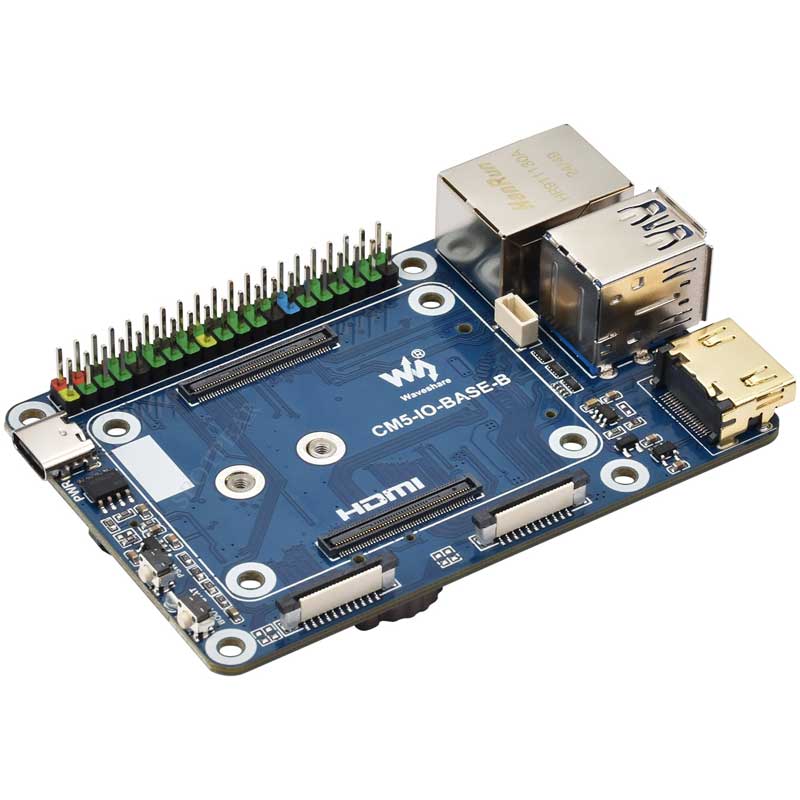

CM5 Basic Expansion Board
Powerful functions, mini size, just the size of a bank card
Convenient for learning and evaluating the Raspberry Pi Compute Module or integrating directly into products
Product Parameters
| CM5 Deck | Applies to all versions of Compute Module 5 |
|---|---|
| networking | Gigabit Ethernet RJ45 port |
| Connectors | M.2 M KEY (2230 / 2242) |

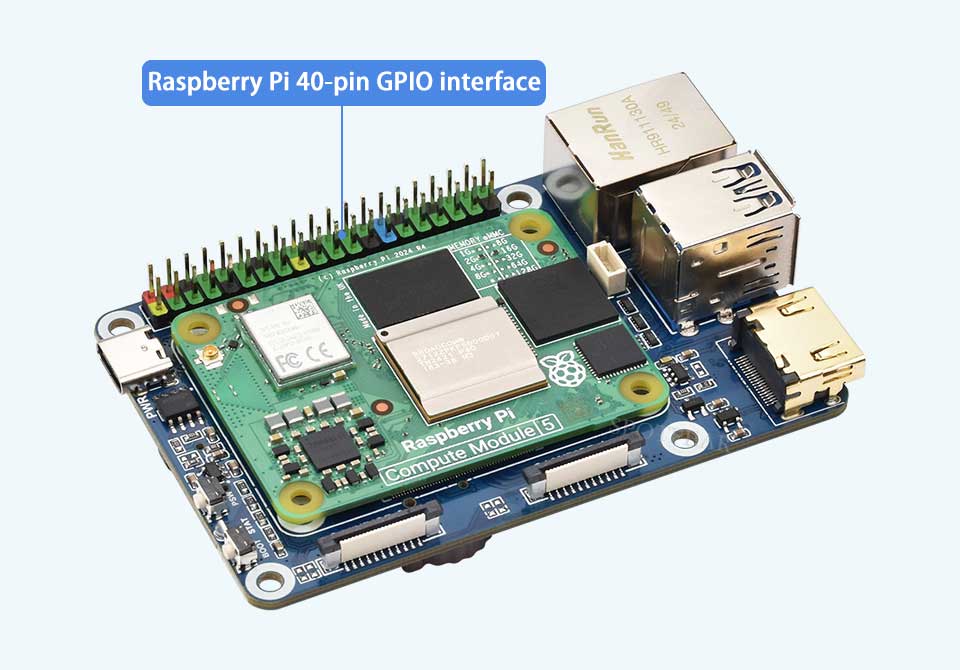

| Raspberry Pi 40-pin GPIO interface | |
| USB | USB 3.2 Gen1 (Type-A) × 2； USB 2.0 × 2 (6PIN 1mm FFC connector) |
| MIPI | 4-lane MIPI interface × 2 (22PIN 0.5mm FFC connector) |
| video | HDMI interface × 2 (including FFC lead interface × 1), support dual 4K output |
| storage | Onboard Micro SD card slot (for versions without eMMC) |
| Fan connector | 5V, four-pin JST-SH PWM fan connector |
| other | Onboard EEPROM and encryption chip |
| Power Input | DC 5V 5A |

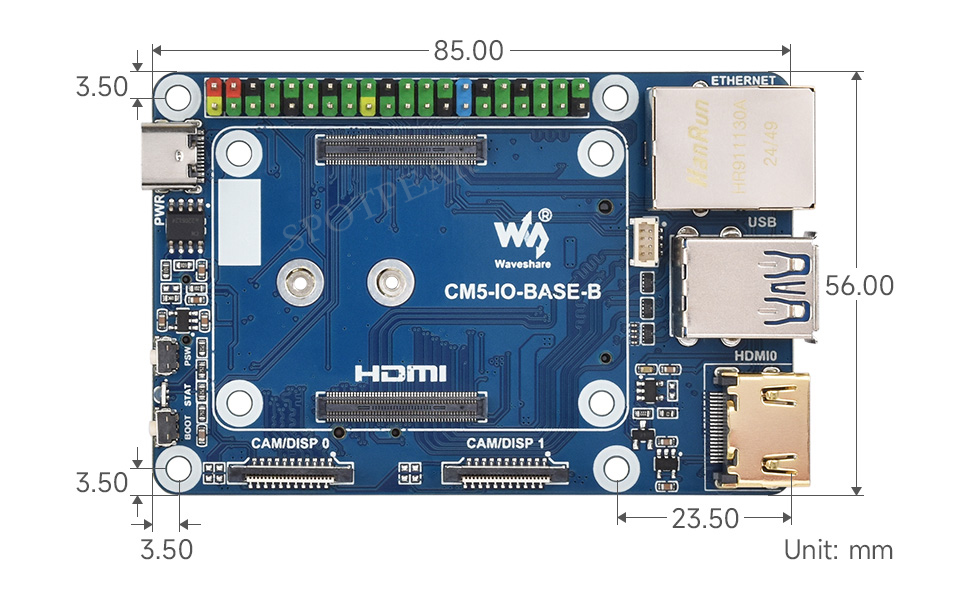

| size | 85 × 56 (mm) |
Connecting to the Compute Module 5 core board
Onboard 40PIN GPIO interface and standard CM5 connector
Supports access to Compute Module 5 Lite / eMMC series core boards
Small but complete
Equipped with multiple interfaces, more convenient to use
Onboard EEPROM and encryption chip
Provides fast and secure symmetric authentication

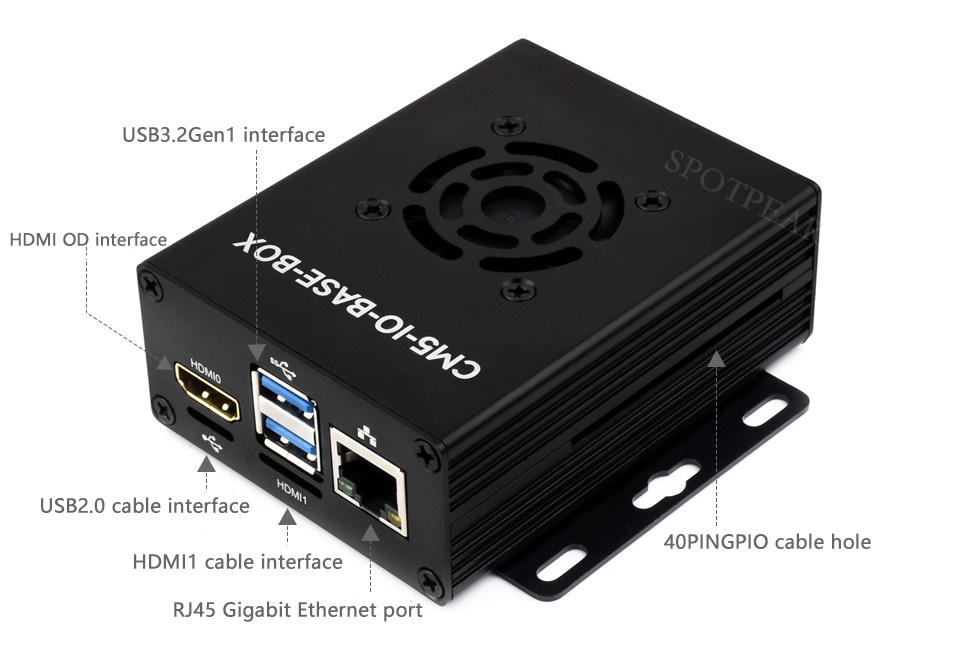

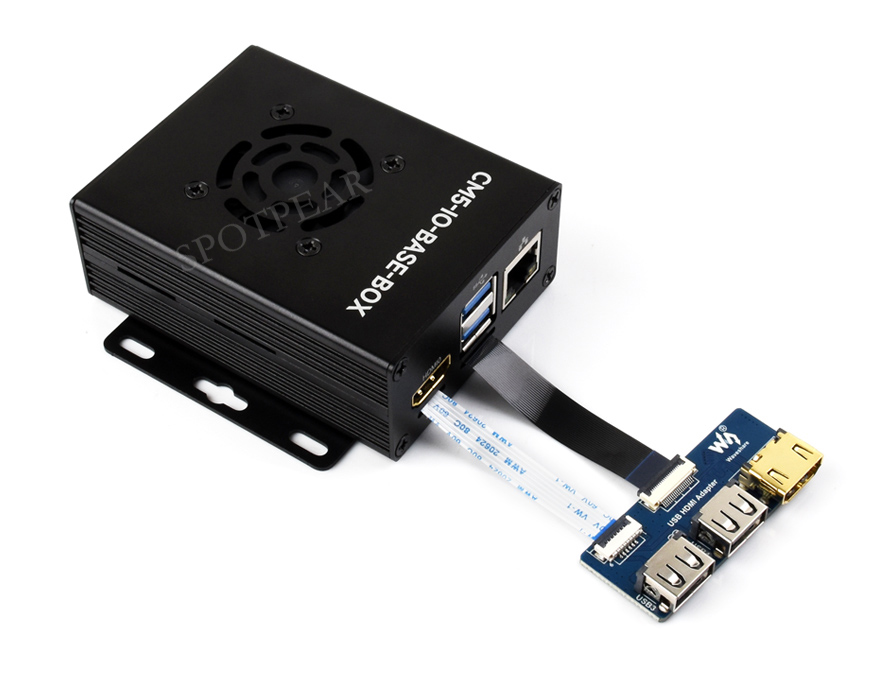

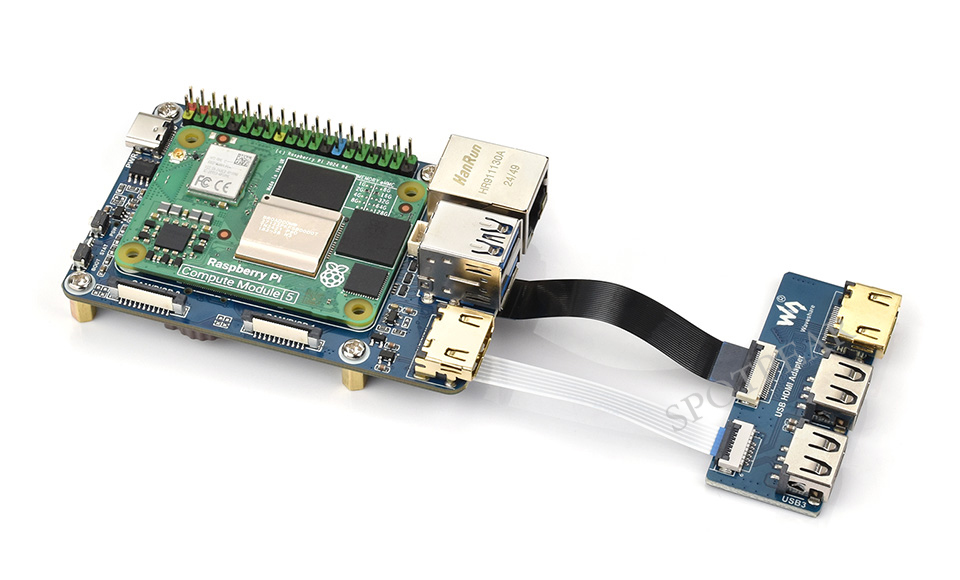

USB HDMI extension
This product does not include the CM5 and adapter plate shown in the picture. If necessary, please purchase them separately.

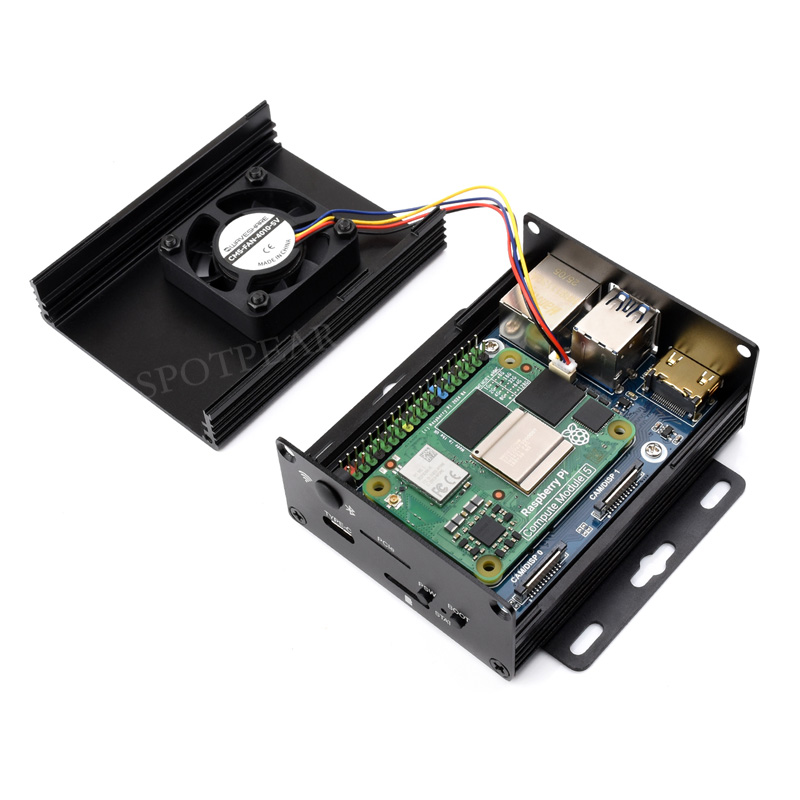

Connect cooling fan
This product does not contain the fan shown in the picture. If necessary, please purchase it separately.
Application Examples

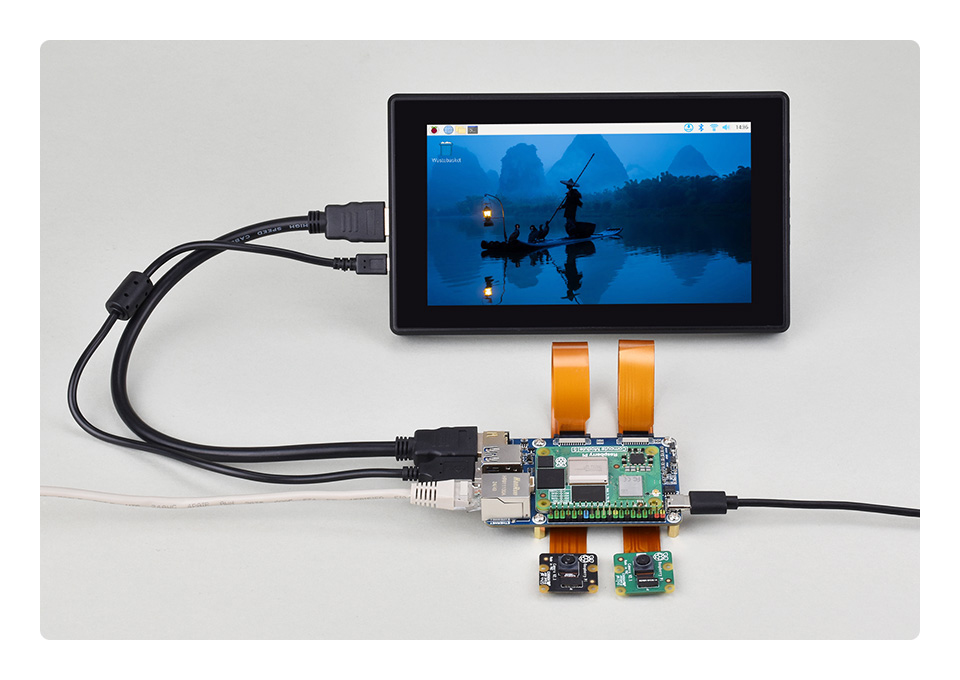

This product does not include the CM5, display screen, and camera shown in the picture. If necessary, please purchase them separately.

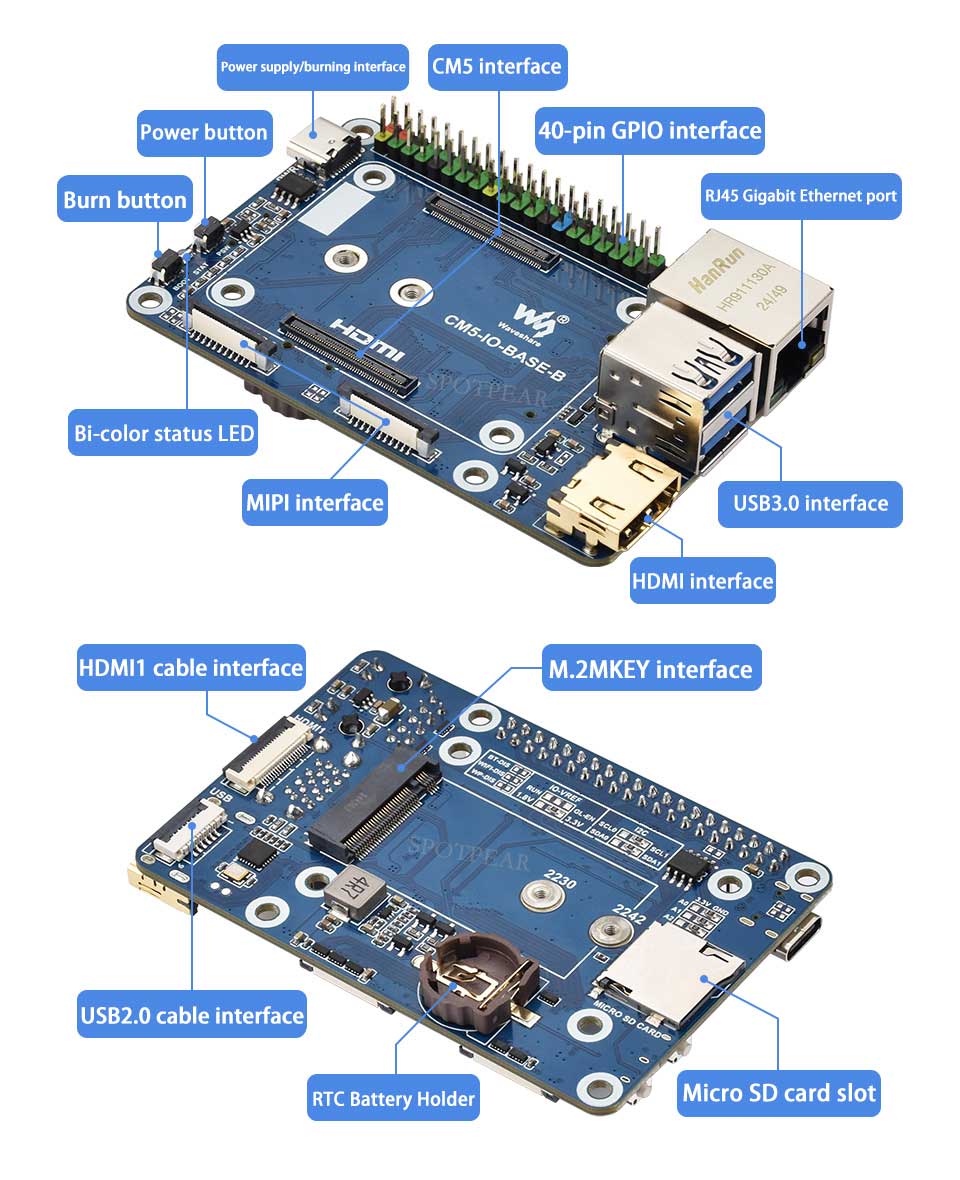

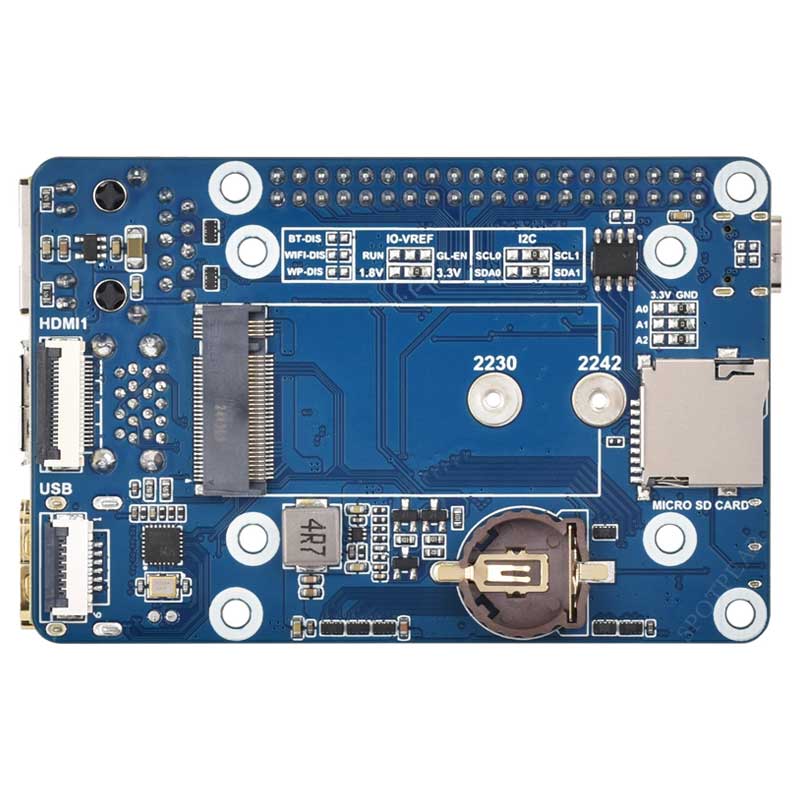

Resource Overview
- CM5 Connectors
Applies to all versions of Compute Module 5
- 40-pin GPIO interface
Convenient access to various HAT / HAT+ modules
- Power supply/burning interface
5V / 5A power supply, can also be used as eMMC burning interface
- Encryption chip (ATSHA204)
Supports fast and secure symmetric authentication
- PSW Power Button
Long press to force shutdown, short press to soft shutdown or power on
- STAT LED
Bi-color status LED
- BOOT button
Press before power on, release after power on to enter the burning mode
- Dual MIPI interfaces
Supports access to DSI displays and CSI cameras
- HDMI0 port
HDMI0 interface, supports 4K output
- USB3.2 Gen1 port
Dual USB3.2 Gen1 ports support simultaneous 5Gbps read and write
- Gigabit Ethernet
RJ45 Gigabit Ethernet port, supports 10M / 100M / 1000M network access
- FAN interface
Easy access to cooling fans, 5V, four-pin JST-SH PWM fan connector
- Micro SD card interface
Used to access the Micro SD card with the system, only applicable to the version without eMMC
- IO-VREF
IO logic voltage switch 3.3V (default) or 1.8V
- Other function pins
Hardware disable function or write protection
- HDMI1 cable interface
HDMI1 interface, supports 4K output, connected via adapter board
- USB 2.0 cable interface
USB 2.0 cable interface, connected via adapter board
- RTC battery connector
Accepts CR / ML1220 button battery
- M.2 M KEY
Support 2230 / 2242 NVMe SSD, support SSD boot
- I2C Selection
Encryption chip and EEPROM use I2C0 or I2C1 (default)
- EEPROM Chip
CAT24C32

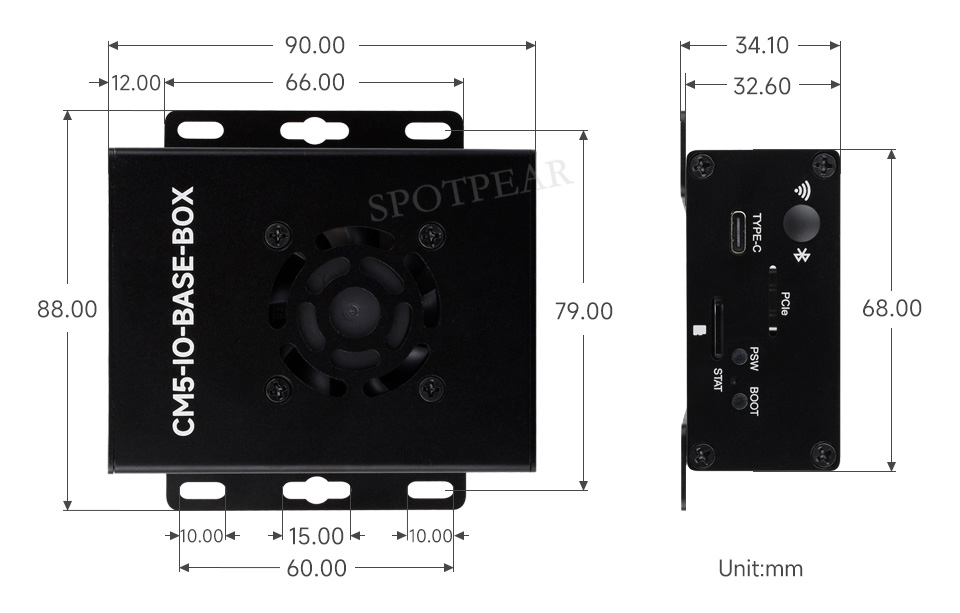

Product size
