Raspberry Pi USB Global Shutter Camera 1MP OV9281 120fps Black/White 120fps also For Jeston RDK
$25.9
Brand：SpotPear
SKU：010308900000
Date：2025-07-15 11:33
Part Number：

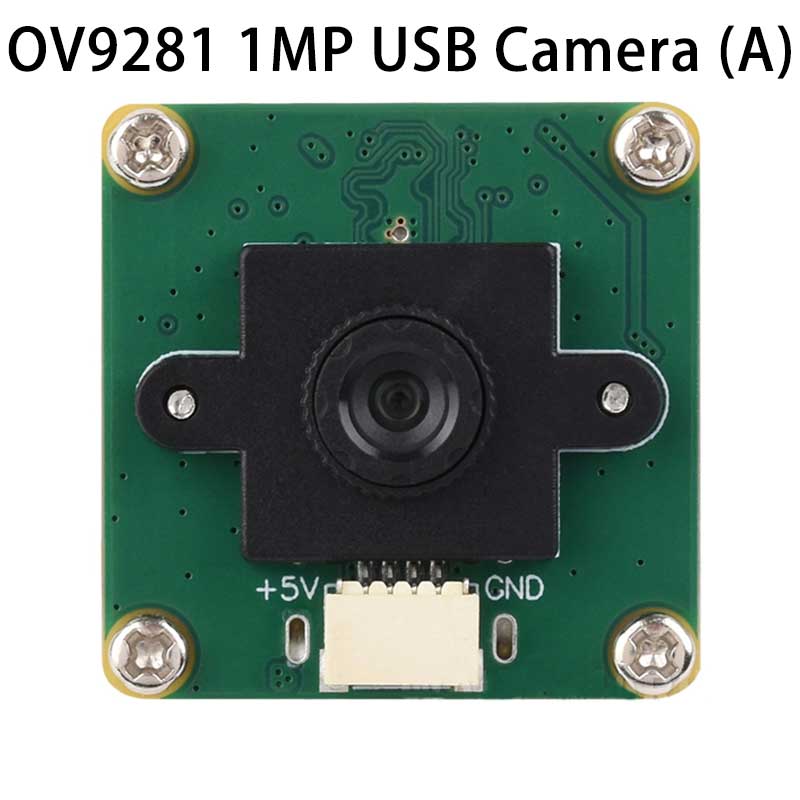

OV9281 black and white USB camera module 1 million pixels 120FPS high frame rate video global shutter clearer imaging
OV9281 Black and White USB Camera
1 megapixel | Global shutter | 120° FOV | 120 FPS
Product Parameters
| Pixel | 1 million (black and white) | |
|---|---|---|
| Photosensitive chip | OV9281 | |
| Interface Type | USB2.0 Type-C | |
| Camera | Sensor size | 1/4 inch |
| Aperture (F) | 2.2 | |
| Focal length (EFL) | 1.65mm | |
| Field of View (FOV) | 120° | |
| distortion | < 10% | |
| Focusing method | Hard-burning | |
| Thread | M12 | |
| Lens construction | No IR filter | |
| image | Supported formats | MJPG、YUY2 |
| Still image resolution | 1280 × 720 | |
| Video recording support | 120 FPS 1280 × 720 120 FPS 800 × 600 120 FPS 640 × 480 | |
| Dynamic Range | 52dB | |
| Signal-to-Noise Ratio | 46dB | |
| Operating voltage | 5V ± 5% | |
| Operating temperature | 0°C ~ 50°C | |
| Module size | 25.00 × 25.00 (mm) | |
USB cable connection effect diagram
The above pictures are for display only. This product does not include Raspberry Pi 5, Jetson Orin kit and RDK kit.
Global exposure for clearer imaging
The global shutter camera has no jello effect when shooting fast-moving objects, and is more suitable for high frame rate capture.
High frame rate video, full control of dynamics
Supports 120 FPS high frame rate recording to ensure dynamic scene details are not missed
Interface line sequence
Two interfaces for worry-free connection
Dimensions
