Overview

Specifications

• Pixels: 1 million (black and white)
• Resolution: 1280 × 720
• Photosensitive chip: OV9281
• DSP: Auto gain/exposure/white balance
• Shutter type: Global shutter
• Camera:
  • CCD size: 1/4inch
  • Aperture (F): 2.2
  • Focal length (EFL): 1.65mm
  • Field of View (FOV): 120°
  • Dynamic range: 52dB
• Interface type: USB2.0
• Supported image formats: MJPEG, YUY2
• Operating temperature: 0°C ~ 50°C
• Outline dimensions: 25mm × 25mm
• Supported systems: Windows, Linux

Working with Windows PC

Test Software

Currently, a camera software is generally pre-installed with Windows 10 systems. You can test it by opening the camera software that comes with your Windows computer.
If you are using the Windows 7 system, or if the camera software cannot be found in the system, you can download and install the AMCAP test software provided by us from Resources->Softwares.

Test Steps

Window camera software

• Search for "Camera" to open the software
• Click the gear icon in the upper left corner to open the settings interface, where you can set the resolution for taking pictures or videos

• Click the video or capture icon on the right to switch between recording and shooting

AMCap software

• Download and install AMCap software

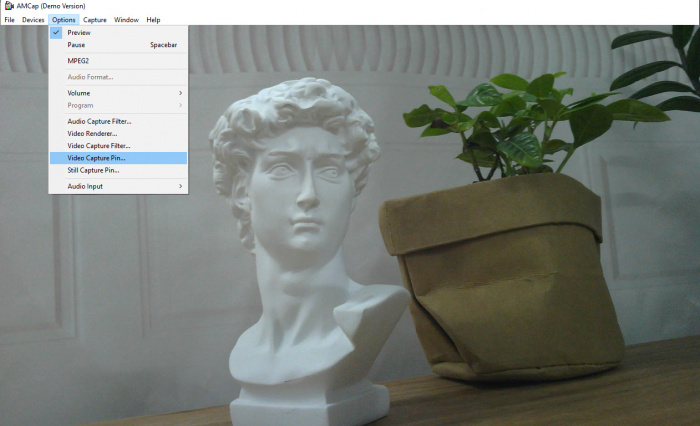

• You can click on the Option option and select Video Capture Pin... or Still Capture Pin... to set the parameters of the image and video

Working with Raspberry Pi

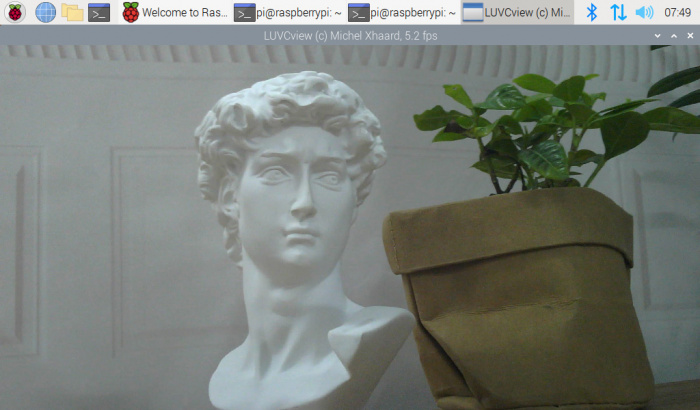

• Open the Raspberry Pi terminal, enter the command to install the Luvcview software
  • sudo apt-get install luvcview -y
• After installation, enter the command on the terminal to open the software for USB camera testing

sudo luvcview -s 1920x1080

Working with Jetson Nano Developer Kit

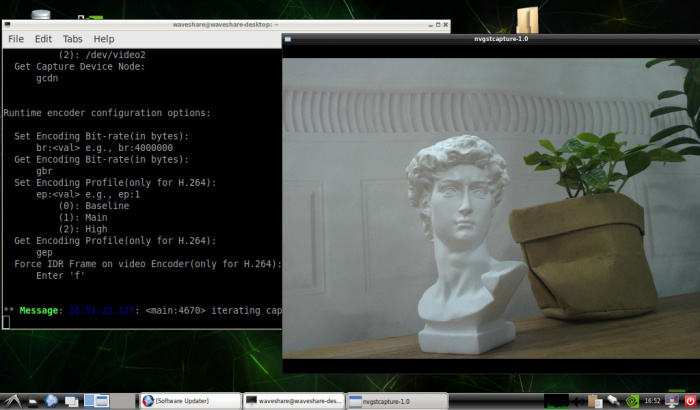

• Open the Jetson Nano Developer Kit terminal (open with Ctrl+Alt+T or mouse click)
• Input the following command to preview:
  • nvgstcapture-1.0 --camsrc=0
• After inputting, a preview window will open
•

Note: In practical application, you may need to call with a program, and you can refer to Opencv and other related image processing library materials by yourself
