Raspberry Pi Pico 2 RP2350B RP2350-PiZero Development Board PSRAM DVI For HDMI
$9.9
Weixue RP2350-PiZero development board Based on RP2350B dual-core processor Built-in 520KB SRAM and 16MB on-chip Flash Compatible with Raspberry Pi 40PIN GPIO interface
Raspberry Pi Pico 2 RP2350 Recommend

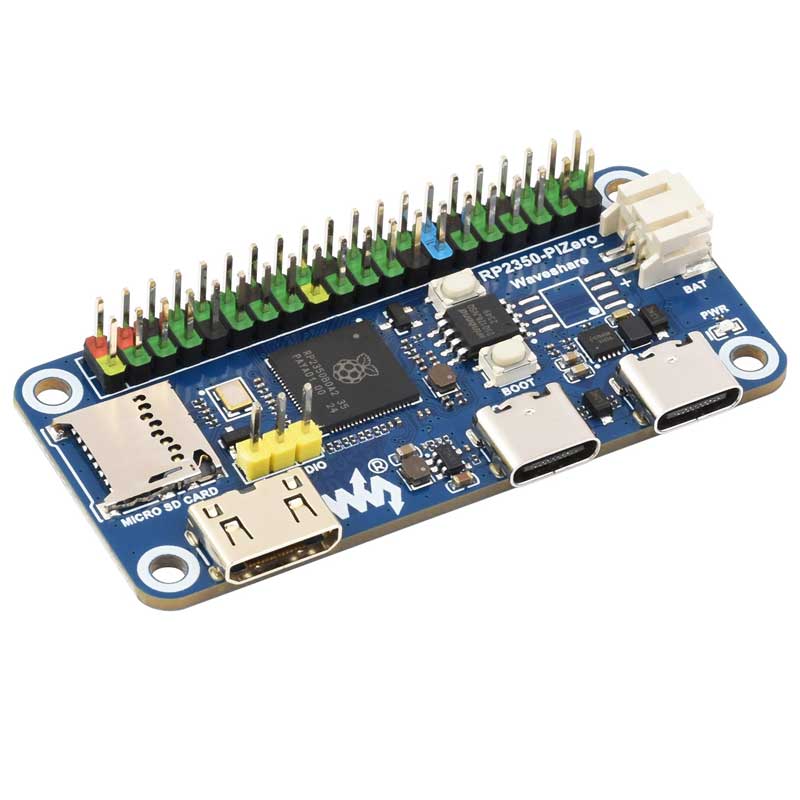

RP2350-PiZero Development Board
Designed based on Raspberry Pi RP2350
Onboard DVI port, Micro SD card slot and PIO-USB port
Product Features
RP2350-PiZero is a high-performance, cost-effective microcontroller designed by Waveshare. It has an onboard DVI interface, Micro SD card slot and PIO-USB interface, leads out a Raspberry Pi-compatible 40PIN GPIO interface, and reserves a PSRAM interface for easy development and integration into products.
The main features are：
- RP2350B microcontroller chip designed with Raspberry Pi
- Unique dual-core, dual-architecture, equipped with dual-core ARM Cortex-M33 processor and dual-core Hazard3 RISC-V processor, clock frequency up to 150MHz, allowing users to flexibly switch between the two architectures
- Built-in 520KB SRAM and 16MB on-chip Flash, and a PSRAM interface is reserved
- Uses Type-C interface, no need to worry about plugging it in the right or wrong direction
- Onboard DVI interface, can drive most HDMI screens (needs compatible DVI interface)
- Onboard PIO-USB interface, can be used as USB host and slave
- Onboard Micro SD card slot, can read and write Micro SD card
- Onboard lithium battery charging and discharging interface, which is convenient for mobile use
- USB1.1 host and slave support
- Supports low power sleep and hibernation modes
- Drag-and-drop program downloading via USB recognition as mass storage
- Bring out 5 multi-function GPIO pins
- 2 SPI, 2 I2C, 2 UART, 2 12-bit ADC, and 16 controllable PWM channels
- Precise on-chip clocks and timers
- Temperature Sensor
- On-chip accelerated floating point library
- 12 Programmable I/O (PIO) state machines for custom peripheral support
Multiple uses in one
Onboard DVI, PIO-USB and Micro SD card slots provide you with more possibilities
The picture is for display only, this product does not include 1.3-inch LCD expansion board and 7-inch touch screen
Supports C/C++, MicroPython,
Arduino
Complete SDK and open source tutorials are provided to make it easy to get started and can be quickly embedded into applications
*DVI interface and PIO-USB are only implemented in C language environment and can only be used separately.
Unique dual-core, dual-architecture
The RP2350's unique dual-core, dual-architecture capability allows users to switch between a pair of industry-standard Arm Cortex-M33 cores and a pair of open hardware Hazard3 cores, enabling developers to experiment with the RISC-V architecture in a stable, well-supported environment.
Resource Overview
- RP2350B
Dual-core, dual-architecture processors, both running at up to 150MHz clock speed
- Native USB Type-C port
Can be used to download programs and supports USB1.1 host and slave devices
- PIO-USB Interface
Can be used as USB host or slave through PIO
- DVI interface (Mini HDMI package)
Use HDMI cable to drive DVI monitor
- Micro SD card slot
Support SPI, SDIO communication
- 16MB NOR-Flash
- PSRAM Interface
Compatible with mainstream PSRAM chips for user expansion and upgrade
- RUN button
Reset button
- BOOT button
Press during reset to enter download mode
- Lithium battery interface
PH2.0 connector, can be used to connect 3.7V lithium battery, supports charging and discharging
- 40-pin GPIO interface
Compatible with some Raspberry Pi HAT expansion boards
- Debug interface
Product size
