ESP32 1.9 inch LCD Capacitive TouchScreen 1.9inch Display ST7789 170x320 for Arduino /Raspberry Pi /Pico

$11.3

Brand:SpotPear
SKU:010606400000
Date:2025-04-29 14:57
No:
In Stock

1.9 inch IPS 262K color LCD touch display with expansion board 170×320 resolution SPI / I2C interface communication

1.9 inch Touch LCD with expansion board

Built-in ST7789V2 driver chip and CST816 capacitive touch chip

Provides examples for Raspberry Pi, ESP32S3, Pico, Arduino, etc.

Features

  • 170 × 320 resolution, 262K color, can clearly display color images
  • The touch screen has high transmittance, fast response and long service life
  • Built-in ST7789V2 driver chip and CST816 capacitive touch chip, using SPI and I2C interface communication respectively, not occupying too many interface pin resources, can be connected to Raspberry Pi / ESP32S3 / Pico / Arduino
  • Provides examples for Raspberry Pi, ESP32S3, Pico, and Arduino

Product Parameters

Display PanelLCDDisplay size1.9inch
Display resolution170 × 320Display Color262K
Display brightness500cd/m²Contrast900:1
Communication interfaceSPIDriver ICST7789V2
TouchsupportTouch ICCST816

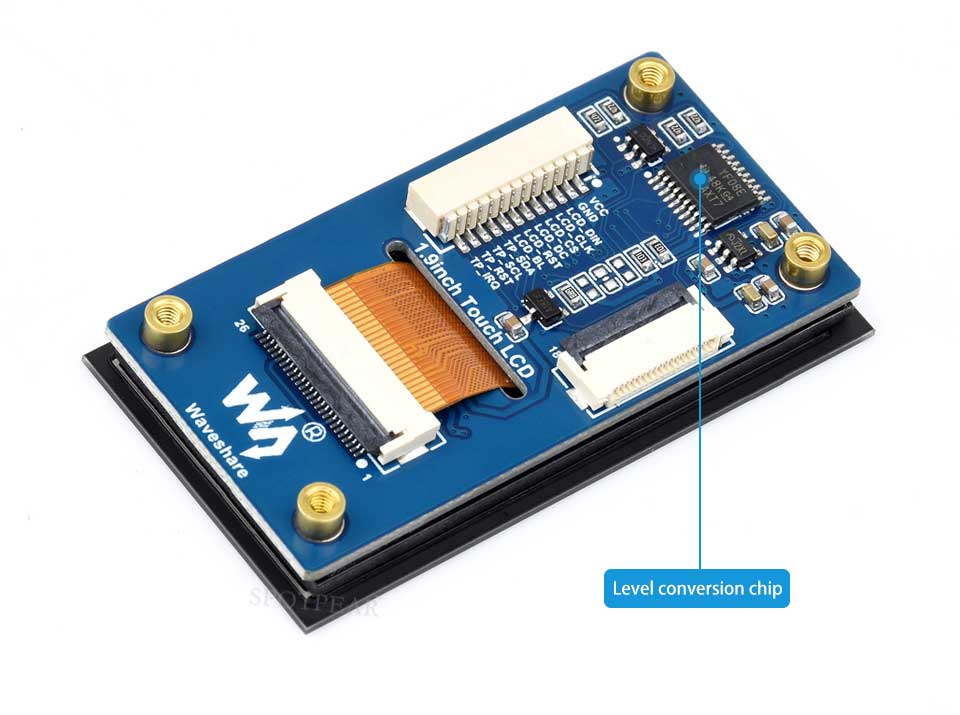

Onboard level conversion chip

Compatible with 3.3V / 5V power input

SPI and I2C control interfaces

Built-in ST7789V2 driver chip and CST816 capacitive touch chip

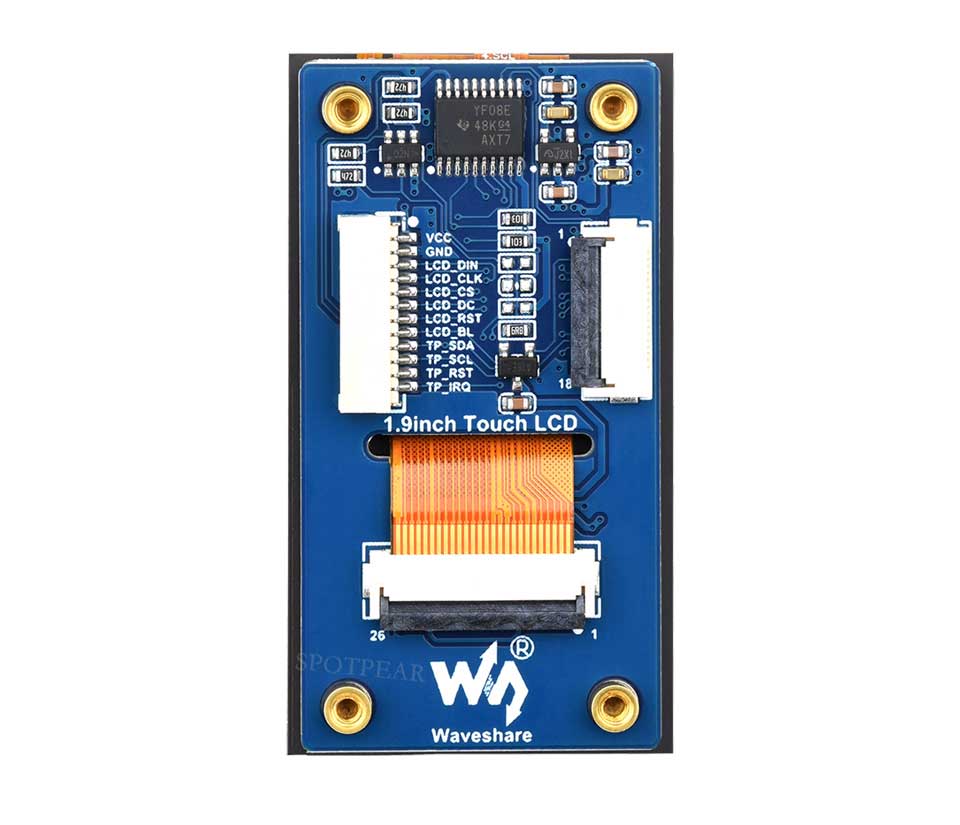

VCCPower supply positive (3.3V / 5V power input)
GNDPower Ground
LCD_DINSPI Communication MISO Pin
LCD_CLKSPI Communication SCLK Pin
LCD_CSLCD chip select pin, low level is effective
LCD_DCLCD data/command pin, low level indicates command, high level indicates data
LCD_RSTLCD reset pin, low level is effective
LCD_BLLCD backlight pins
TP_SDATP data pin
TP_SCLTP clock pin
TP_RSTTP reset pin, low level is effective
TP_IRQTP interrupt pin


Hardware connection diagram

The pictures are for display only. Please refer to the configuration list for detailed configuration.

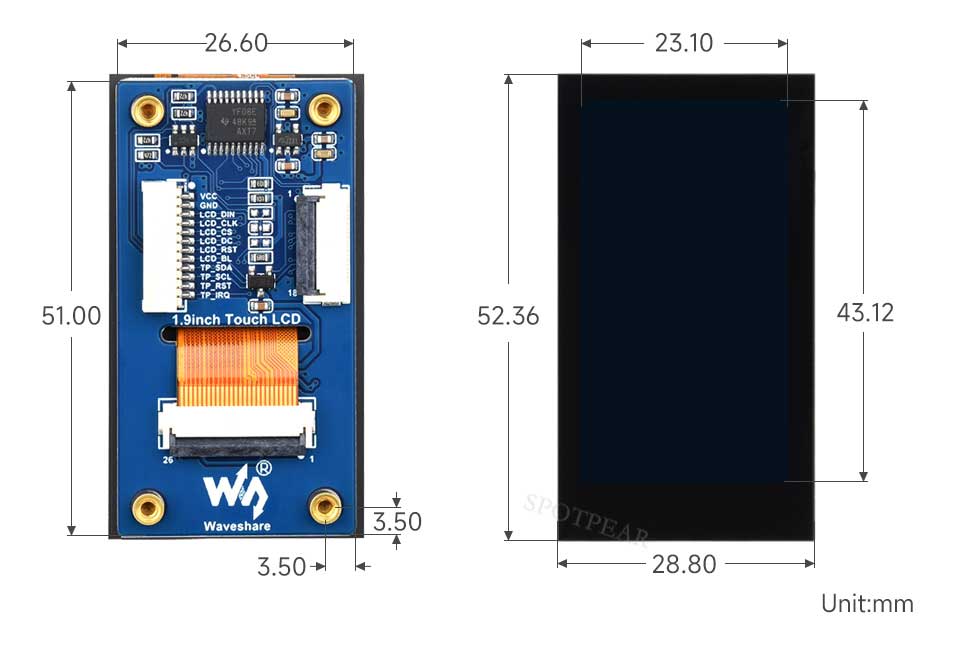

Product size
