Hello! Can you please help? Tell me how to switch 3.3v 5v 12v.
I connect 12v to the dc input. On 1 2 3 vcc contacts of lvds I see 3.3v. And this is suitable for the laptop display. What should I do to get 5v or 12v on contacts 1, 2, 3 of the LVDS?
- sales/support
Google Chat: zj734465502@gmail.com
- sales
+86-0755-88291180
- sales01
sales01@spotpear.com
- sales02
dragon_manager@163.com
- support
services01@spotpear.com
- CEO-Complaints
manager01@spotpear.com
- sales/support
WhatsApp:13246739196
PCB800099 Tell me how to switch 3.3v 5v 12v.
2024-11-22 17:32:45 Ask
3answers
SpotPearGuest9a52c
- Answer time:
There is no 5V voltage on the board. The default voltages on the board are 3V3 and 1V8

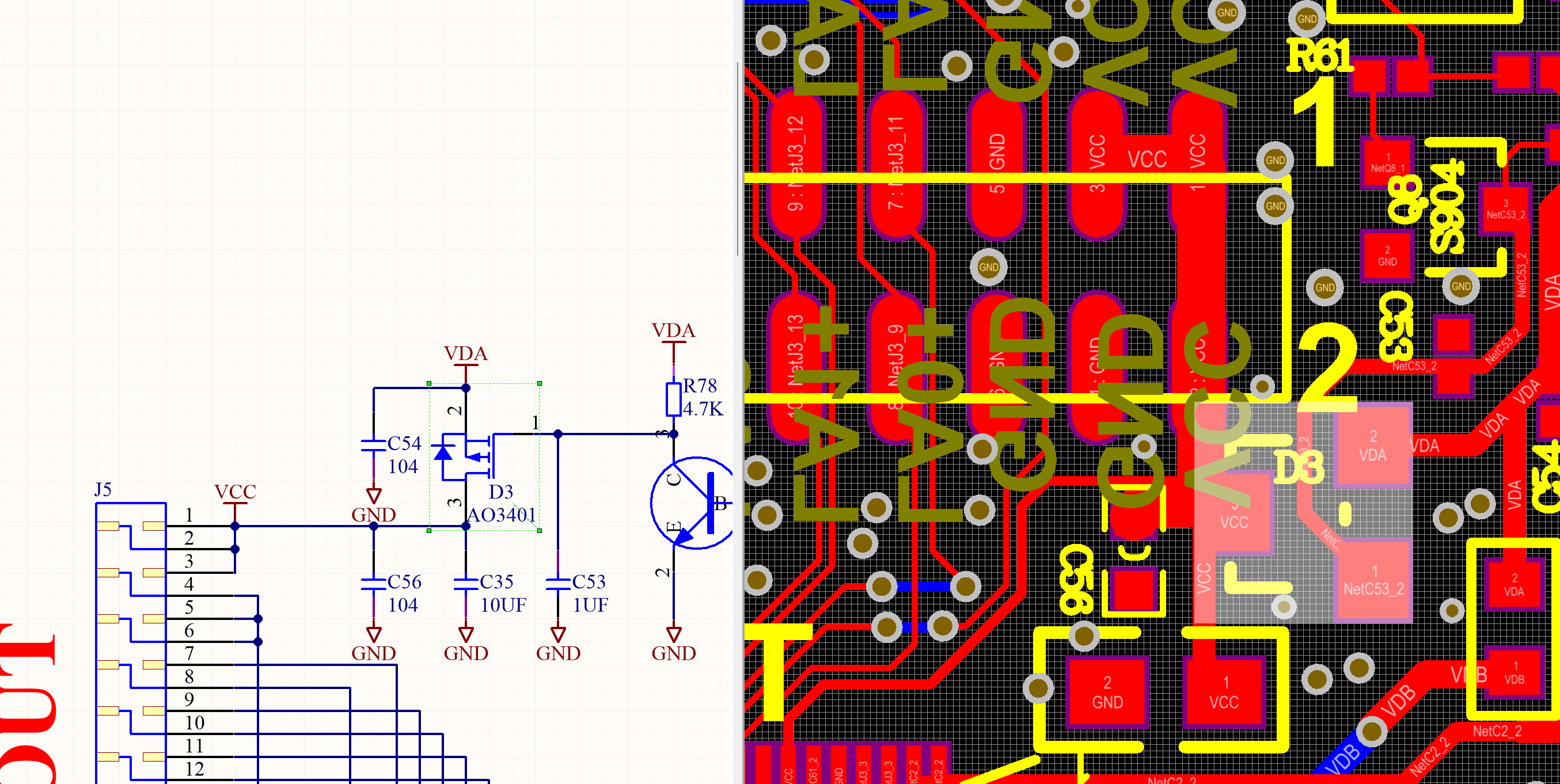

Maybe this schematic can help you
Like0
report
SpotPearGuest9a52c
- Answer time:
If you want to connect other power sources, you can remove this transistor and then jumper to select other power input
Like0
report
SpotPearGuest9a52c
- Answer time:

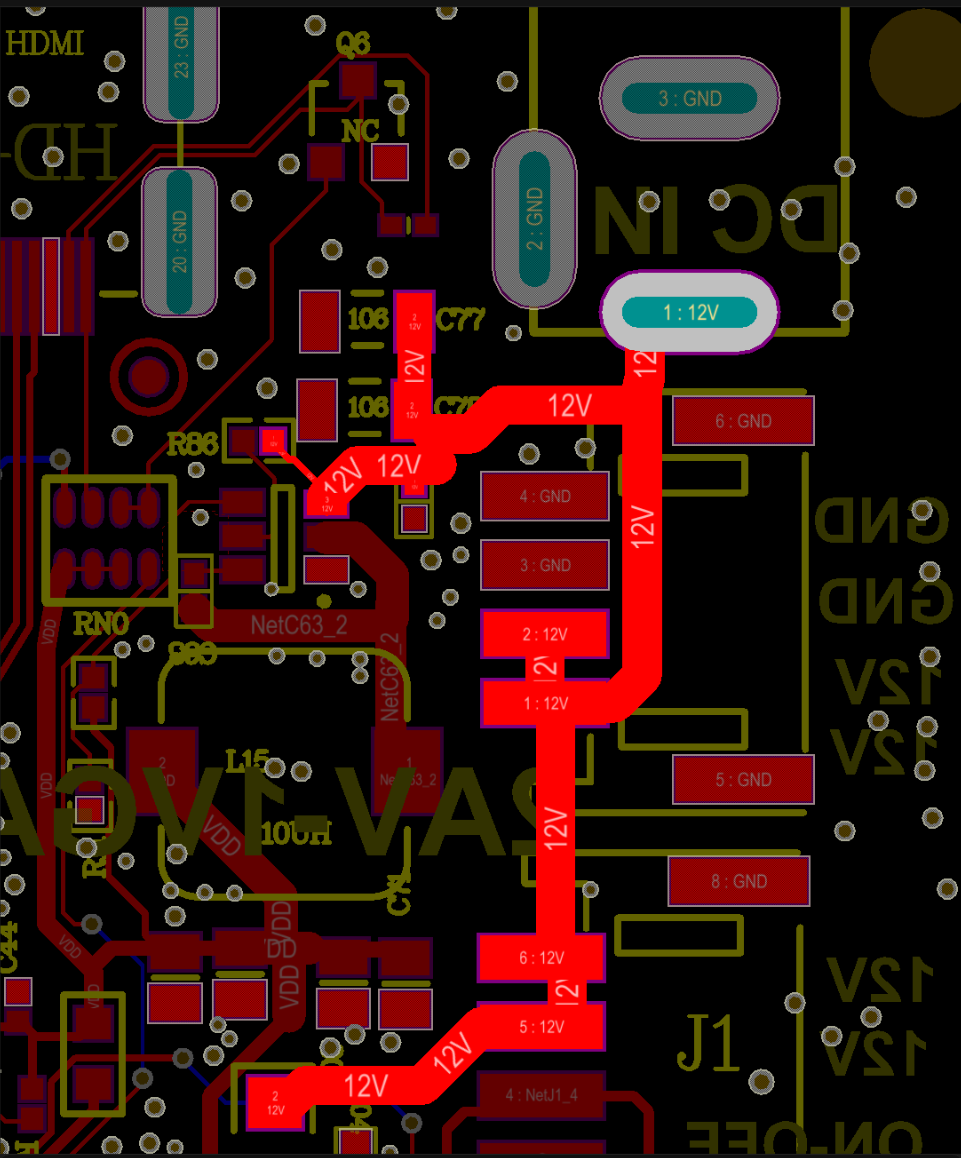

12V power supply can be jumpered from these places
Like0
report
