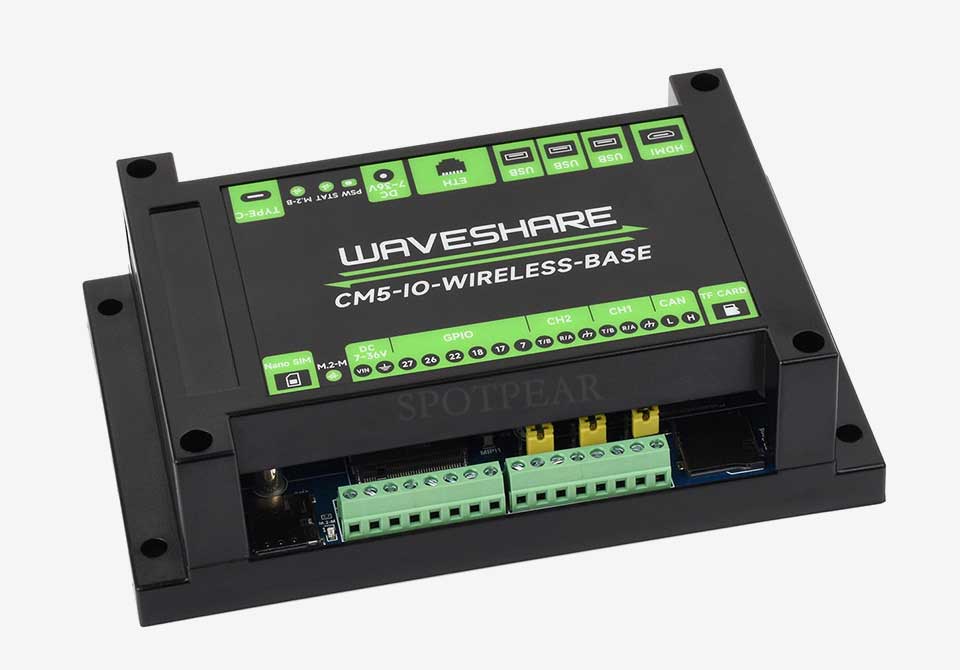

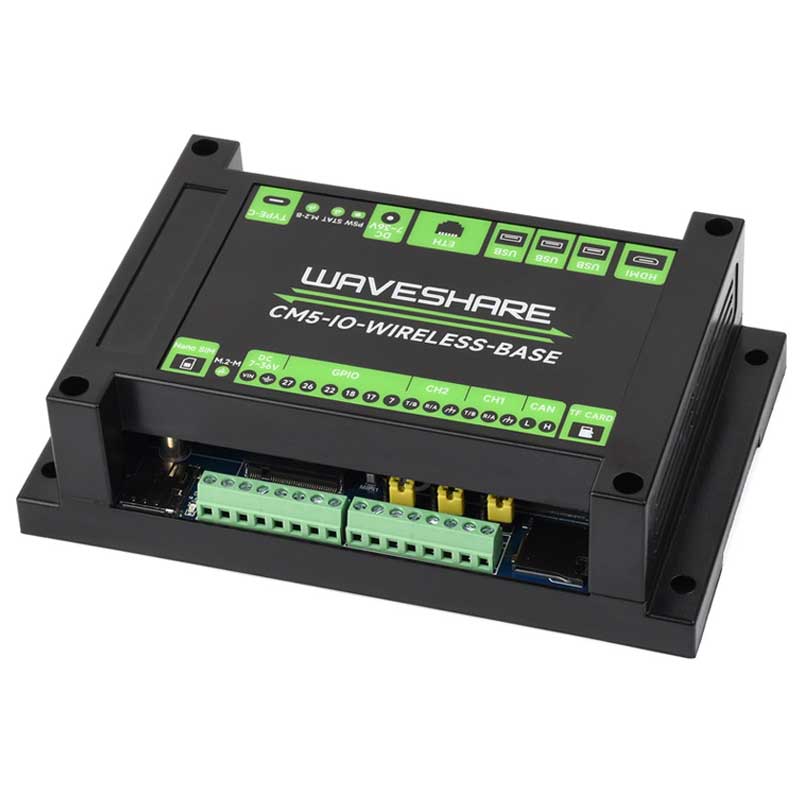

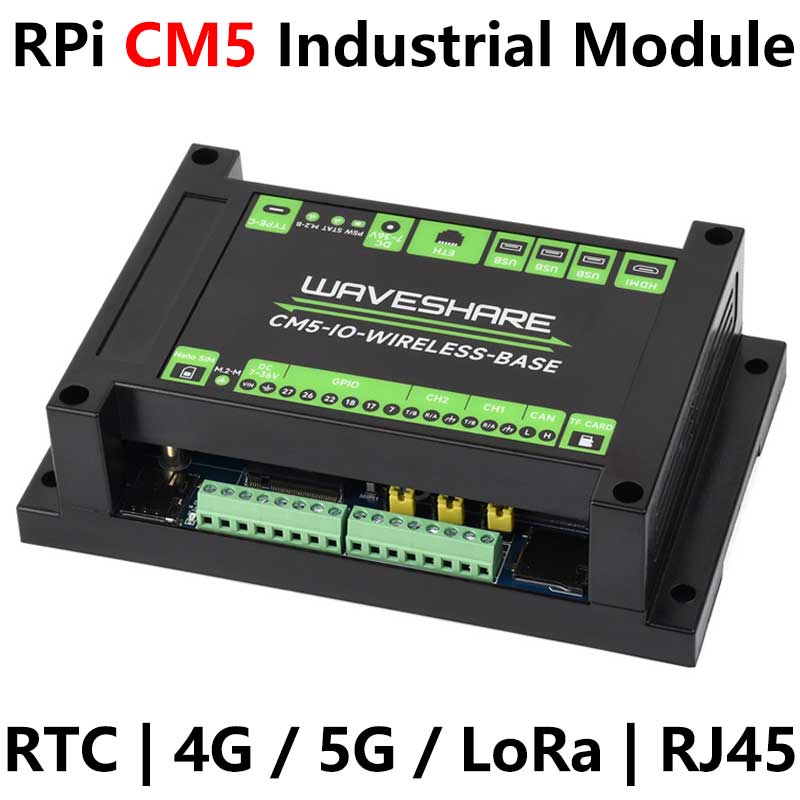

Industrial IoT Wireless Expansion Board For Raspberry Pi CM5, 4G / 5G / LoRa Expansion Board, Gigabit Ethernet RJ45 Port, Dual MIPI Interfaces, Supports 4K Output

Industrial Wireless Expansion Board
For Raspberry Pi CM5

Suitable For IoT Applications Like IoT Gateway, Wireless Router,
Intelligent Data Acquisition, Etc.

4G / 5G / LoRa Support, Multiple Interfaces

Specifications

CM5 SOCKET	Suitable for all variants of Compute Module 5
NETWORKING	Gigabit Ethernet RJ45 port
	Supports connecting LoRa communication module via M.2 B KEY slot (an adapter board is required)
	Supports connecting 4G / 5G communication module via M.2 B KEY slot
USB	USB 2.0 port (Type-C) × 1
USB	USB 2.0 port (Type-A) × 2 USB 3.2 Gen1 port (Type-A) × 1
VIDEO	HDMI port × 1, supports 4K output
VIDEO	MIPI interface × 2, supports CSI / DSI communication
M.2	M.2 M KEY (PCIe Gen2/3 × 1, supports 2230/2242 NVMe or AI module)
M.2	M.2 B KEY / Mini-PCIe (via adapter board), supports 5G, 4G, LoRa, and other wireless modules
STORAGE	TF card slot for Compute Module 5 Lite (without eMMC) variants
SERIAL INTERFACE	2 × RS485
SERIAL INTERFACE	1 × CAN with up to 1Mbps communication rate
INPUT/OUTPUT	Adapting 6 × GPIO pins (directly connected to the Compute Module 5 core)
FAN HEADER	5V, 4PIN JST-SH PWM fan connector
POWER INPUT	7V ~ 36V wide voltage range (screw terminal and DC jack), 5V 5A (Type-C)
DIMENSIONS	145 × 90 × 40 (mm)

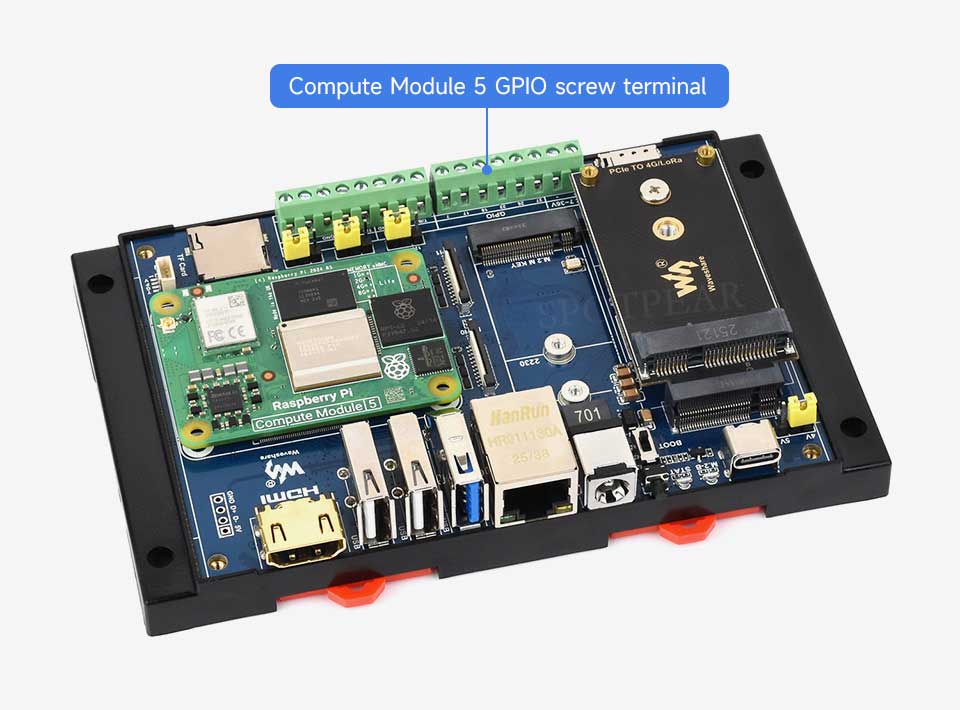

Connecting With Compute Module 5

Adapting 6 × GPIO Pins And Onboard Standard CM5 Socket, Suitable For
Compute Module 5 Lite / EMMC Series Module

* for reference only, the CM5 is NOT included, please purchase separately

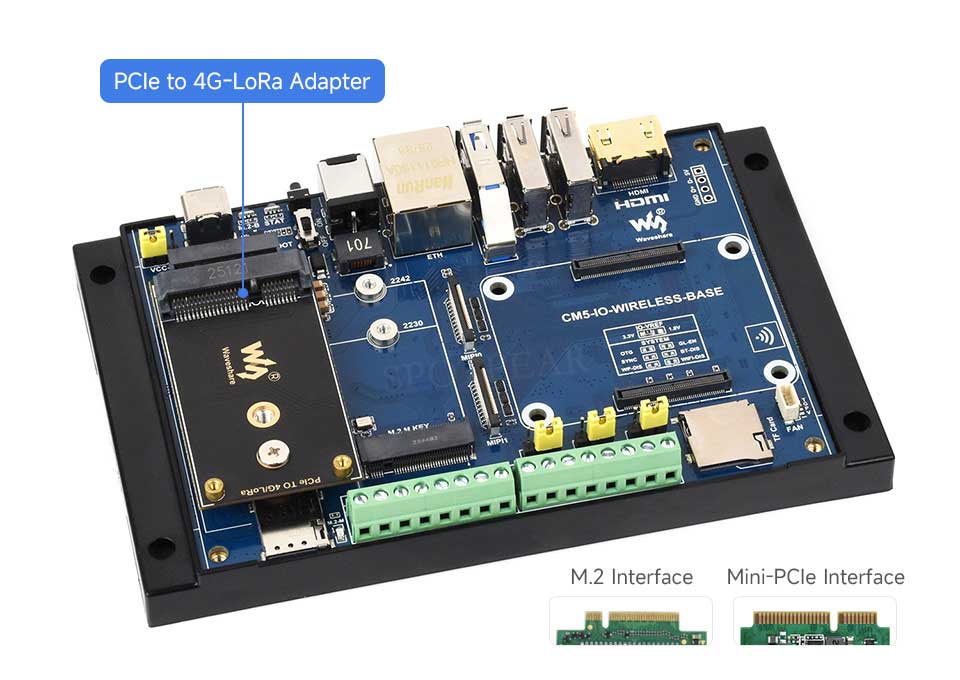

4G / 5G / LoRa Communication
Modules Support

Onboard M.2 Slot And Comes With A Mini-PCIe Adapter, Compatible With 4G / 5G / LoRa And Other Communication Modules With M.2 Or Mini-PCIe Interface

An additional communication module is required to enable 5G / 4G / 3G / 2G cellular network or LoRa gateway function, recommended: SIM7600G-H-M.2, SIM7600G-H-PCIE, SIM8260G-M2, SX1302 868M LoRaWAN Gateway (B).

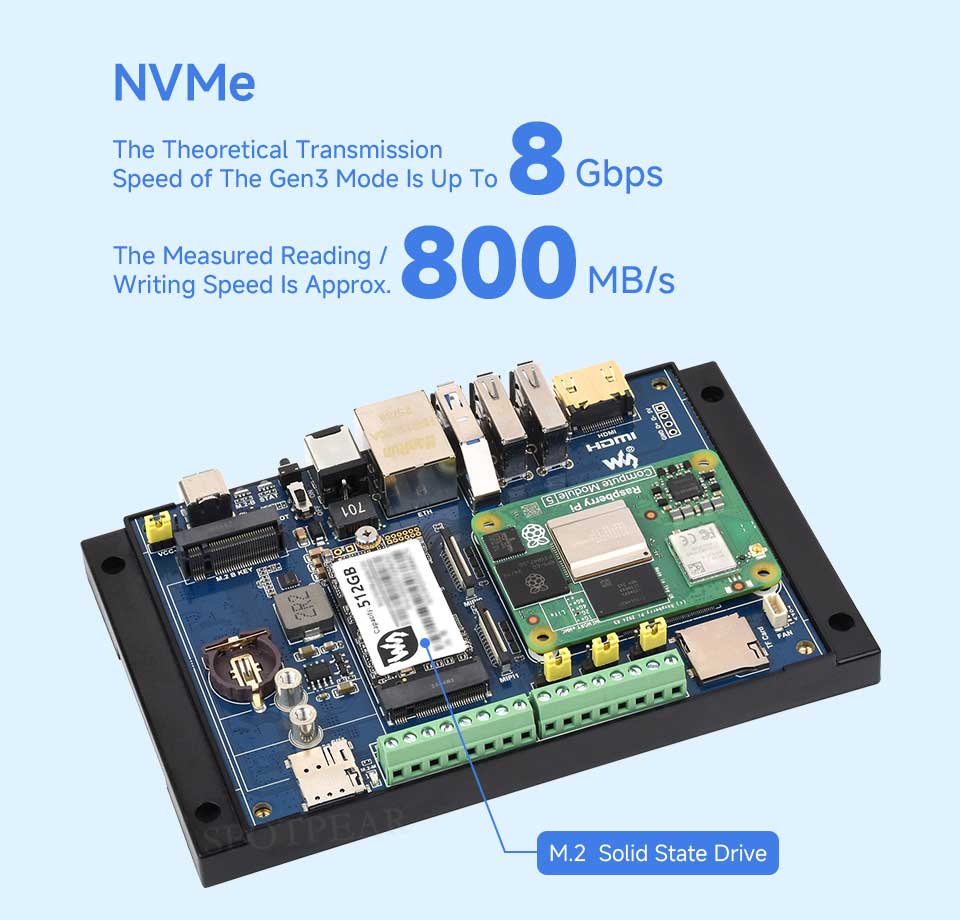

Supports Connecting To M.2 NVMe Drive

Faster Reading/Writing Speed Compared To The TF Card Slot Of Raspberry Pi, Greatly Improving Reading/Writing Efficiency Of The System Or Files, Supports Booting Pi5 From NVME Solid State Drive

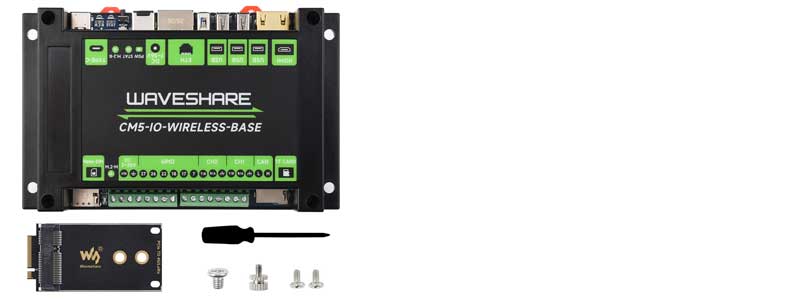

* for reference only, please refer to the package content for detailed part list

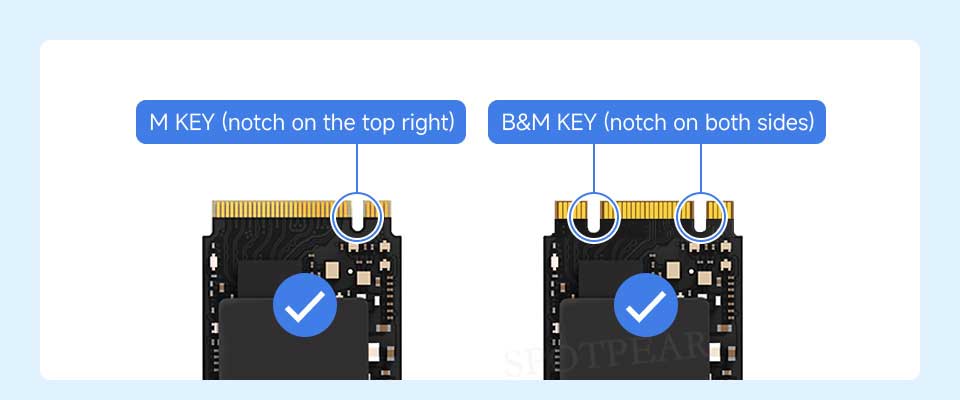

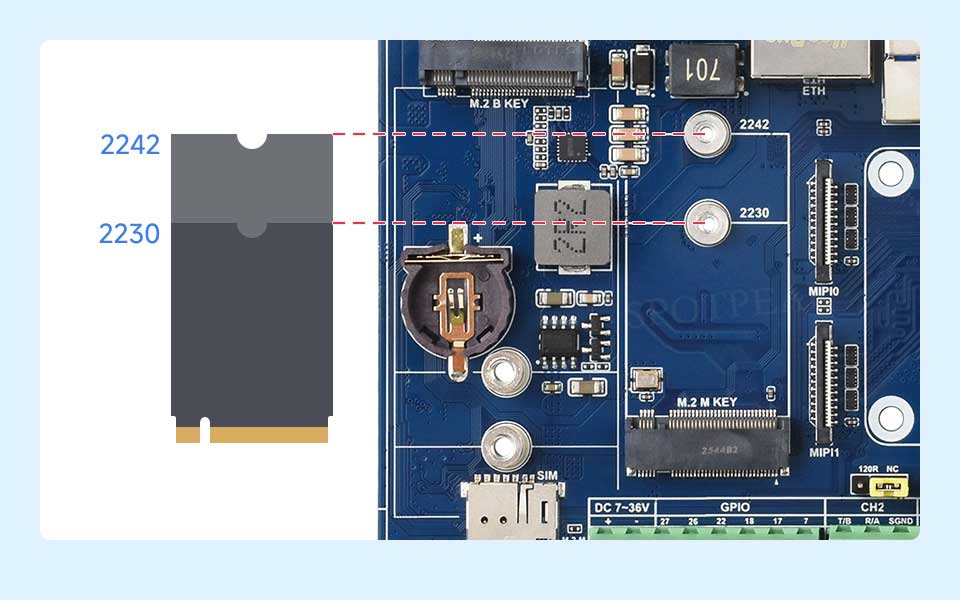

Applicable M.2 Drive Sizes

NVMe Drive Slot Support

* Only supports the NVMe Protocol Solid State Drives

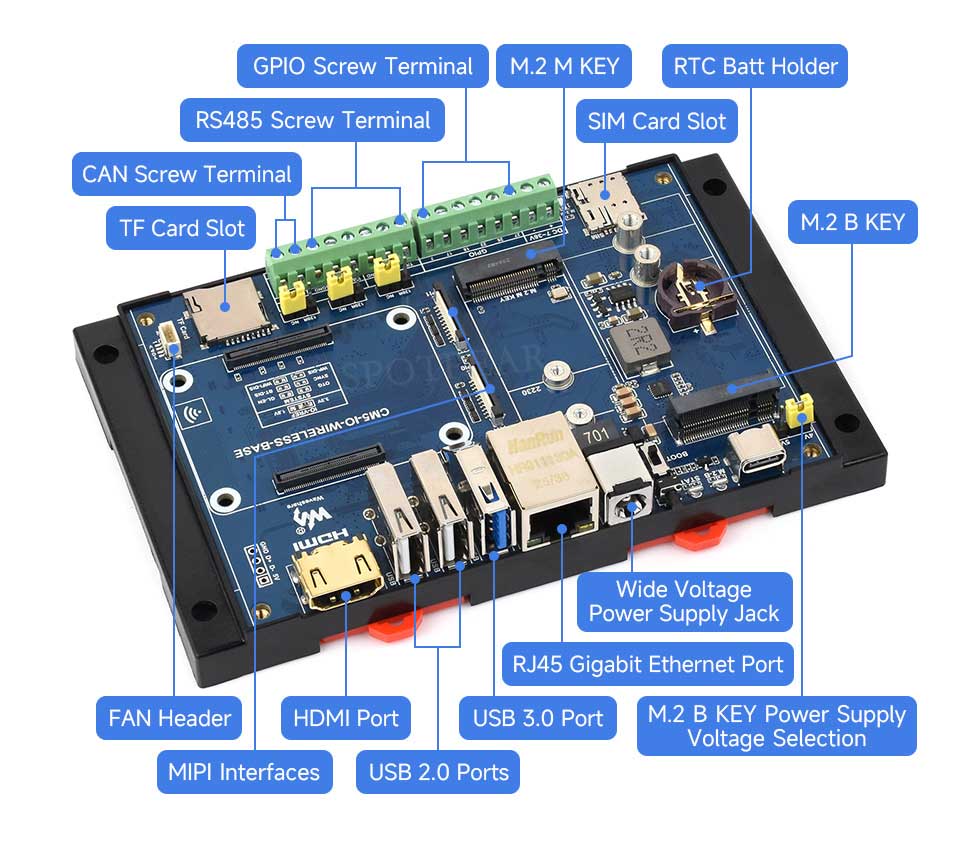

More Rich Interfaces

Features Multiple Interfaces Including USB 3.0 / CAN / RS485 /
M.2 M KEY / M.2 B KEY, Easy To Use

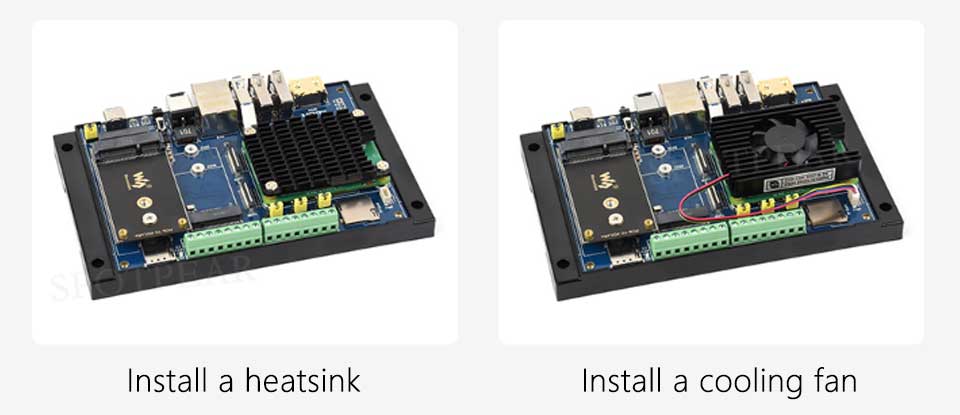

Reserved Space For CM5 Cooling Solution

* for reference only, the heatsink and cooling fan are NOT included,
please purchase separately

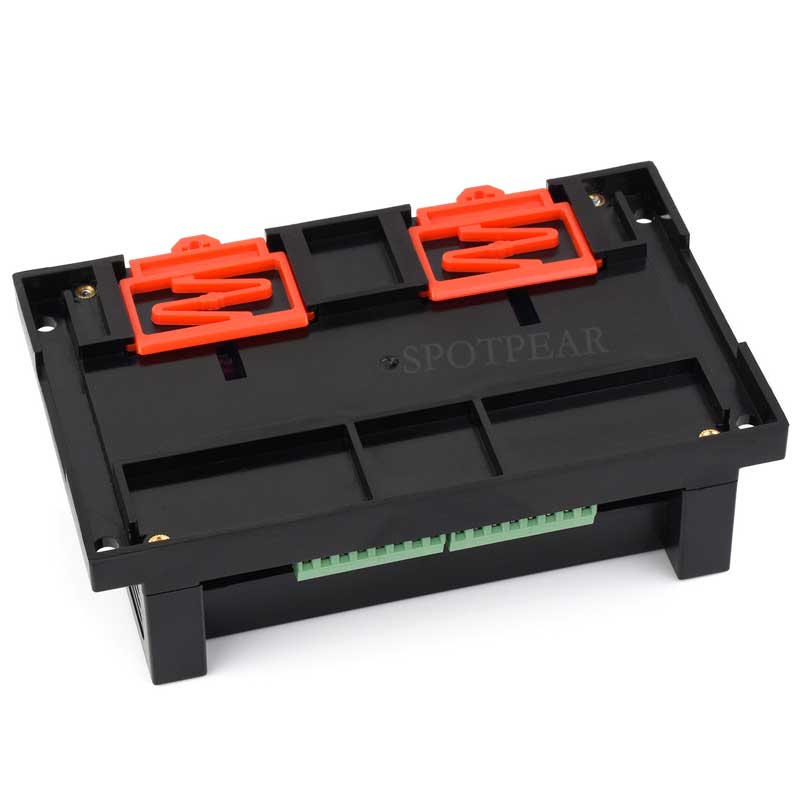

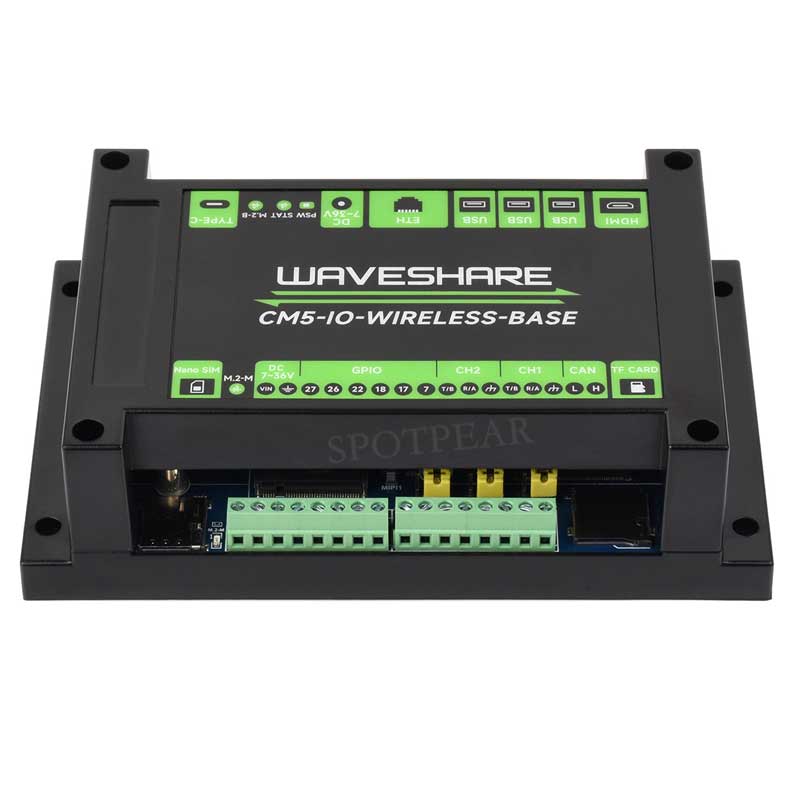

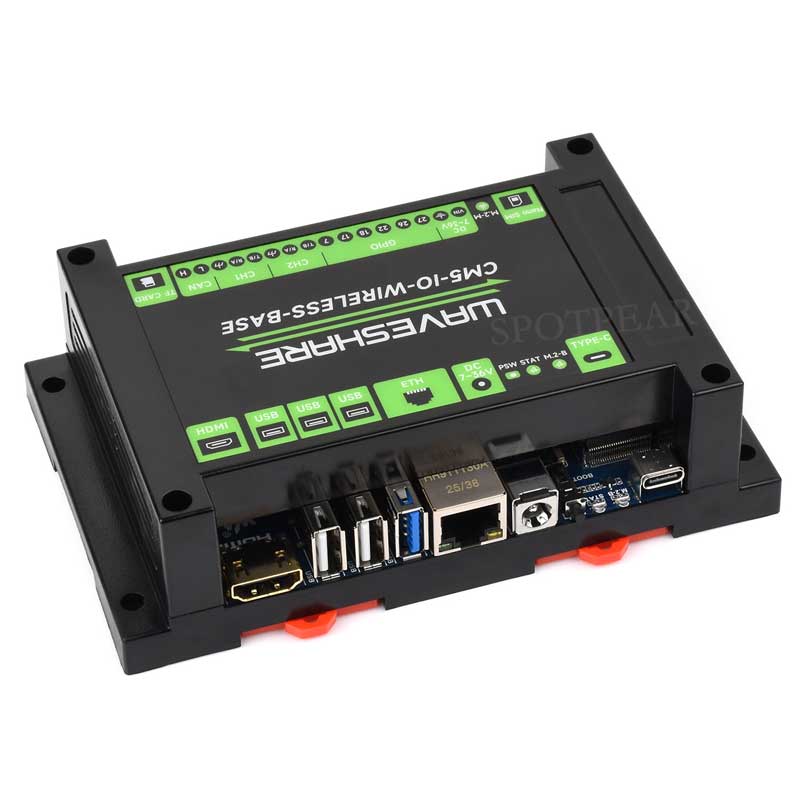

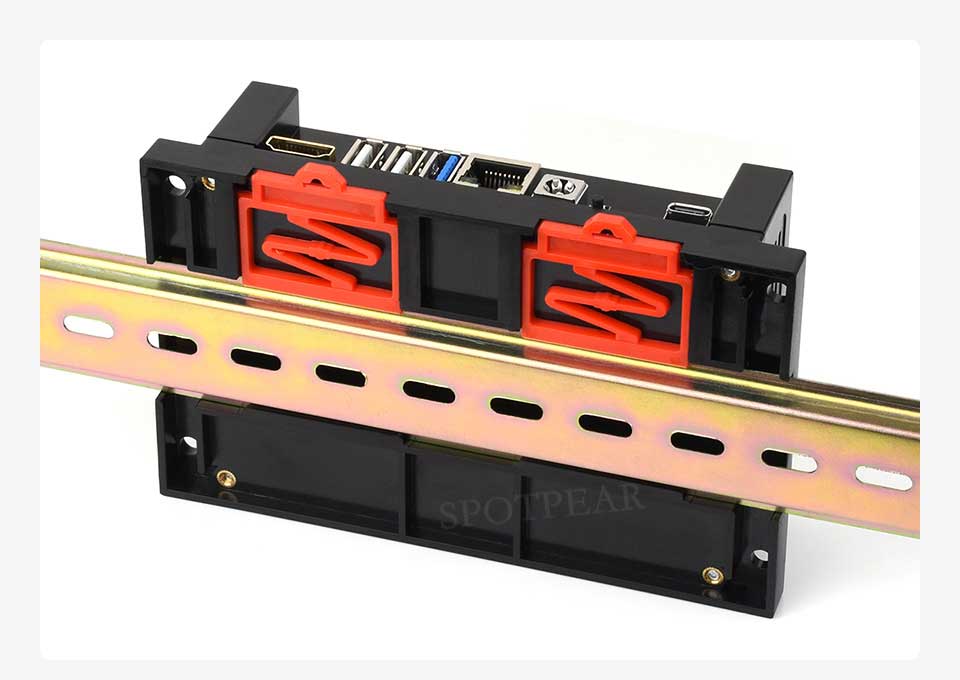

Rail-Mount Support

Rail-Mount ABS Protection Case, Easy To Install, More Safe Operation

* for reference only, the rail-mount buckle is NOT included, please refer to the package content for detailed part list.

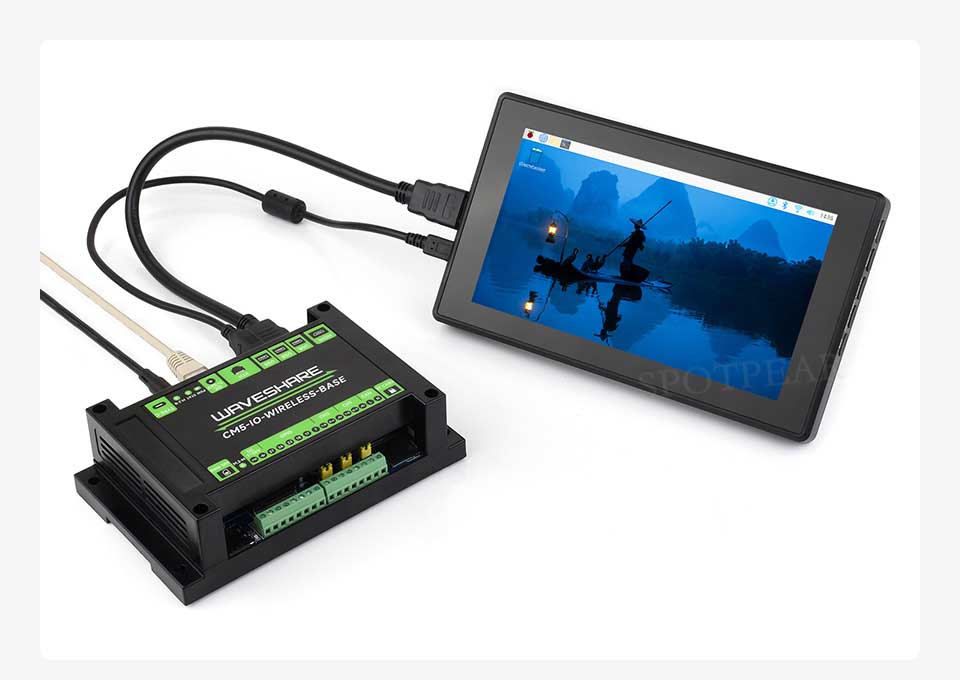

Application Example

Suitable For IoT Gateway, 4G / 5G Router, LoRa Gateway, IoT Data Acquisition And Monitoring, Industrial PLC, Or Other Industrial Applications

* for reference only, the CM5 and display are NOT included, please refer to the package content for detailed part list

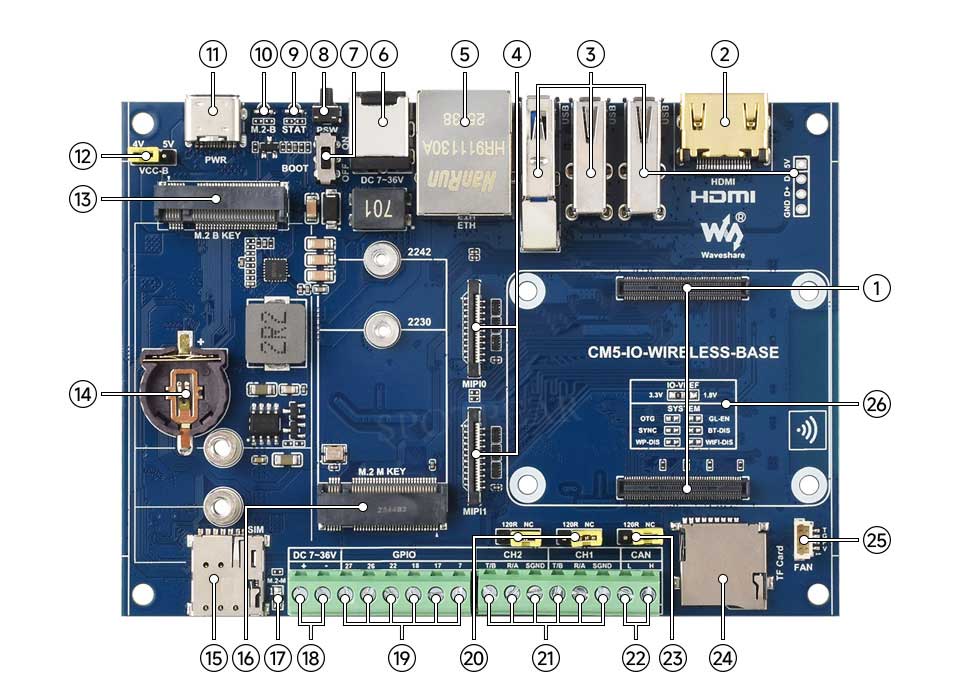

What's On Board

CM5 socket
suitable for all variants of Compute Module 5
HDMI port
supports 4K output
USB ports
2 × standard USB 2.0 Type-A ports, 1 × USB 2.0 4PIN header, 1 × USB 3.2 Gen1 Type-A port with up to 5Gbps rate
Dual MIPI interfaces
supports DSI / CSI communication
RJ45 Gigabit Ethernet
supports 10M / 100M / 1000M network connection
DC power supply jack
supports DC 7V ~ 36V power supply (please do not connect power via the screw terminal at the same time)
BOOT switch
slide to ON before powering on to enter burning mode
PSW button
long press to force power off, short press to soft shutdown or power on
System status indicator
M.2 B KEY working status indicator
PWR & USB port
for 5V DC power supply, eMMC programming, or USB OTG
M.2 B KEY power supply voltage selection
Select 4V for 4G / 5G modules and 5V for LoRa modules
M.2 B KEY
supports M.2 B KEY 4G / 5G or other USB communication module, and can be converted to Mini PCIe interface via the adapter board included in the accessory pack for connecting LoRa module

RTC Batt holder
supports ML / CR1220 button cell
SIM card slot
supports standard Nano-SIM card for 5G, 4G, 3G, and 2G networks
M.2 M KEY
supports 2230 / 2242 NVMe Solid State Drives or AI modules
M.2 M KEY status indicator
DC power screw terminal
supports DC 7V ~ 36V power supply (please do not connect power via the DC power supply jack at the same time)
GPIO screw terminal
directly connected to the Compute Module 5 core, please reserve appropriate protection components when performing special control operations
RS485 120R terminal resistor selection
Dual isolated RS485 screw terminal
dual RS485 with 600W lightningproof, anti-surge, and 15KV ESD protection (reserved 120R balancing resistor selection)
Isolated CAN screw terminal
ESD protection and transient spike voltage protection (reserved 120R balancing resistor selection)
CAN 120R terminal resistor selection
TF card slot
for connecting a TF card with pre-burnt system (Lite variant ONLY)
FAN header
5V 4PIN JST-SH PWM fan connector for connecting a cooling fan
System function configuration resistor

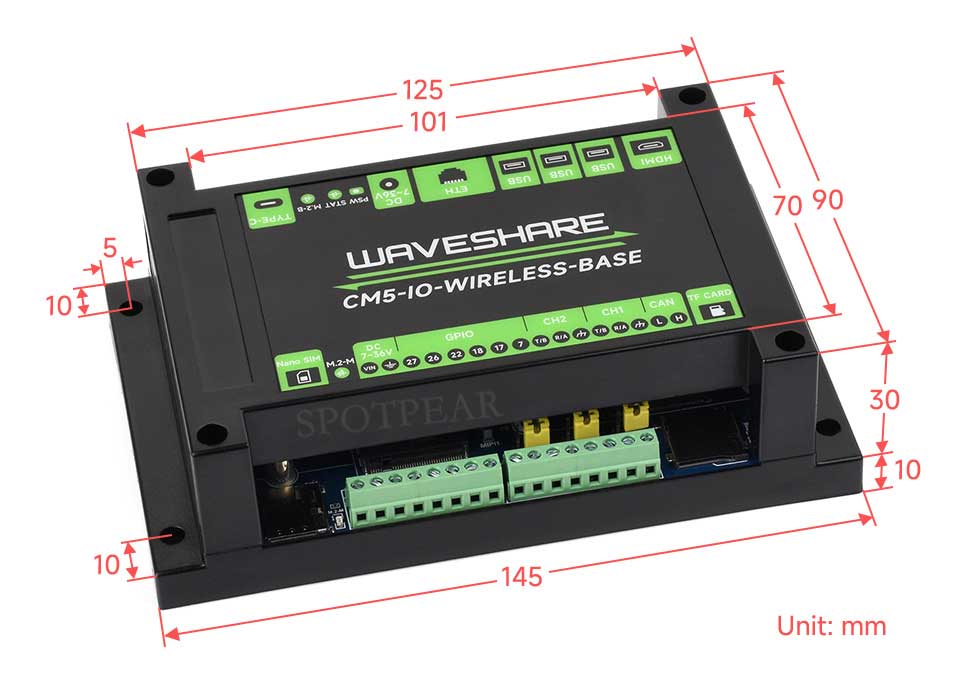

Outline Dimensions

[] CM5-IO-WIRELESS-BASE
