ESP32-S3 1.54inch
E-Paper AIoT Development Board

Supports AI Speech Interaction, Temperature And Humidity Monitoring, And DIY Creative Function, Etc.

Version Options

Features

The ESP32-S3-ePaper-1.54G is an e-Paper AIoT development board, equipped with ESP32-S3 microcontroller, which supports Wi-Fi and BLE dual-mode communication. Onboard 1.54inch e-paper display, features ultra-low power consumption and ambient light readability, suitable for portable devices and long-Batt-life scenarios. Integrated with an RTC chip, SHTC3 temperature and humidity sensor, TF card slot, low-power audio codec chip circuit, and Lithium Batt recharge management circuit. Reserved interfaces including USB, UART, I2C, and GPIO for easy functionality expansion and sensor connectivity, providing a flexible and reliable development platform for IoT terminals, electronic tags, portable displays, and other applications.

Adopts high-performance Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency
Supports 2.4GHz Wi-Fi and Bluetooth 5 (LE), with onboard antenna
Built-in 512KB Static RAM, 384KB ROM, with integrated 8MB Flash and 8MB PSRAM
Onboard 1.54inch e-paper display, 200 × 200 resolution, features high contrast and wide viewing angle
Onboard audio codec chip, supports voice capture and playback, enabling AI voice interaction applications
Onboard PCF85063 RTC chip and SHTC3 temperature & humidity sensor for accurate RTC management and environmental monitoring
Onboard TF card slot for external storage of images or files
Onboard programmable PWR and BOOT side buttons for customized function development
Reserved 2 × 6 2.54mm pitch pin header for convenient external expansion

Specifications

DISPLAY PANEL	e-paper display	DISPLAY SIZE	1.54inch
RESOLUTION	200 × 200	GREY SCALE	2
COMMUNICATION INTERFACE	SPI	FULL REFRESH TIME	20s
DISPLAY COLOR	red, yellow, black, white	FAST REFRESH TIME	15s
VIEWING ANGLE	>170°	DISPLAY TYPE	passively reflective

Onboard Audio Codec Chip

Supports High-Quality Audio Processing, Providing Clear And High-Quality Audio Input And Output

Supports AI Speech Interaction

Allows Access To Online Large Model Platforms Such As DeepSeek, Doubao, Etc

Application Scenarios

Suitable For Voice Interaction And Indoor Temperature & Humidity Display, Etc

Supports ESP-IDF, Arduino IDE

Comprehensive SDK, Dev Resources, And Tutorials To Help You Easily Get Started

What's On Board

ESP32-S3-PICO-1-N8R8
Wi-Fi and Bluetooth SoC, 240MHz operating frequency, with integrated 8MB Flash and 8MB PSRAM
TF card slot
The TF card must be formatted to FAT32 before use
ES8311 audio codec chip
Supports audio input and output, low-power design, suitable for speech recognition and voice playback applications
BOOT button
Press it when powering on to enter download mode
PWR button
enables power control via software configuration when using Lithium Batt for power supply
Type-C port
ESP32-S3 USB port for program burning and log printing
Microphone
for audio capture

SHTC3 temperature and humidity sensor
provides ambient temperature and humidity measurement, enabling environmental monitoring function
MX1.25 2PIN speaker header
audio output signal, for connecting external speaker
MX1.25 2PIN Lithium Batt header
for connecting Lithium Batt
Onboard antenna
supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE)
PCF85063 (back side)
RTC chip with timekeeping function
2 × 6PIN 2.54mm pitch female pin header
Speaker
for audio playback

Outline Dimensions

[] ESP32-S3-ePaper-1.54G

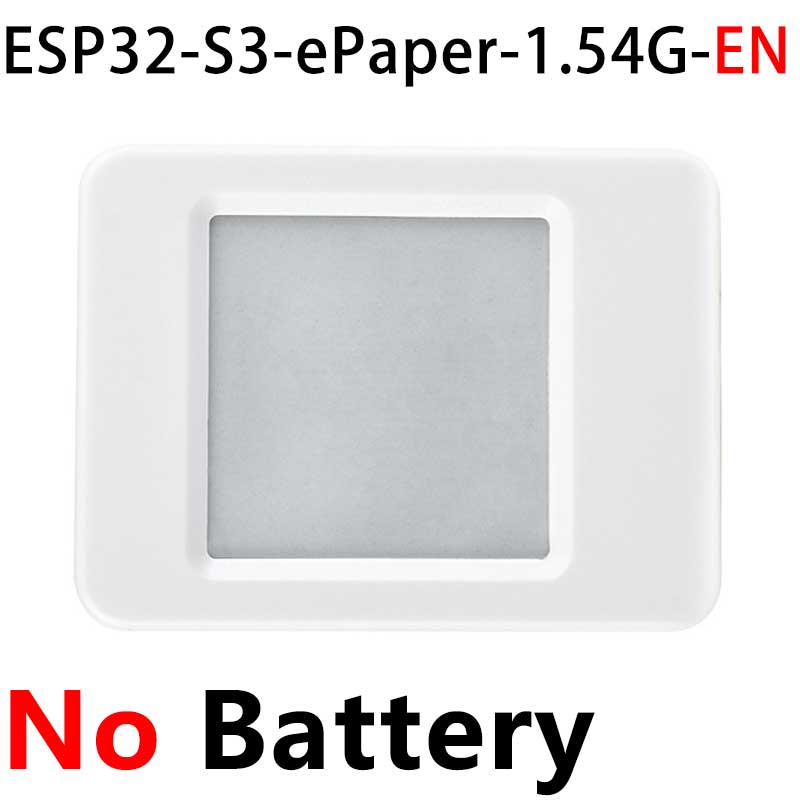

[] ESP32-S3-ePaper-1.54G-EN
