5″ DSI Capacitive Touch Display

The display orientation is portrait by default, 720 × 1280 resolution (H×V).
Change the software config for landscape display.

Version Options

Device & System Support

* (the case supports Raspberry Pi 5 only, due to connector layout)

Connection Examples

Working With Raspberry Pi 5

Please connect the FFC cable as shown above, and power the LCD through the GPIO 5V pin

With Protective Case (Suitable For Raspberry Pi 5 Only)

Working With Raspberry Pi 4B

Please connect the DSI cable as shown above, and power the LCD through the GPIO 5V pin

Working With ESP32-P4-Module-DEV-KIT

Working With Luckfox Lyra

Working With Luckfox Omni3576

* for reference only, the above controller boards or hosts are NOT included

IPS Display Panel

Excellent Display Performance With 178° Wide Viewing Angle

5-Point Capacitive Touch

1. Up to 5-point touch, depending on the operating system
2. Up to 6H hardness toughened glass panel
3. Optical bonding, provides clear image, dustproof

Supports Backlight Adjustment Via Software

Thinner And More Space-Saving

The Total Thickness Of The LCD Is Only 8mm*, Lightweight And Nice Looking

* Note: Does not include the standoff height.

Interface Definition

With Protective Case

How To Install

* for reference only, the Raspberry Pi 5 is NOT included

Outline Dimensions

Standard Version

The Protective Black Case

[] 5-DSI-TOUCH-B

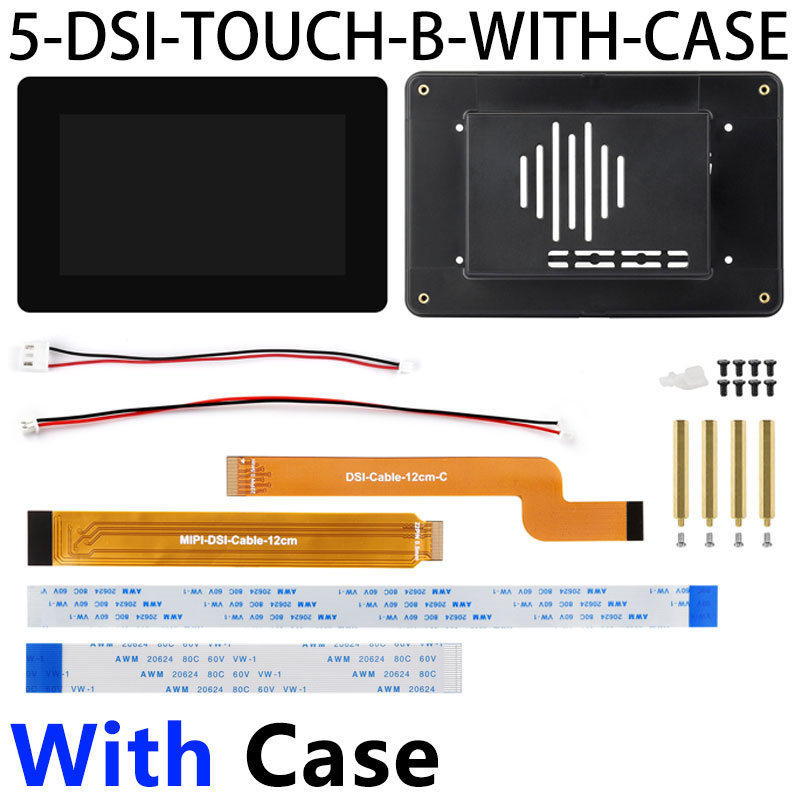

[] 5-DSI-TOUCH-B-WITH-CASE
