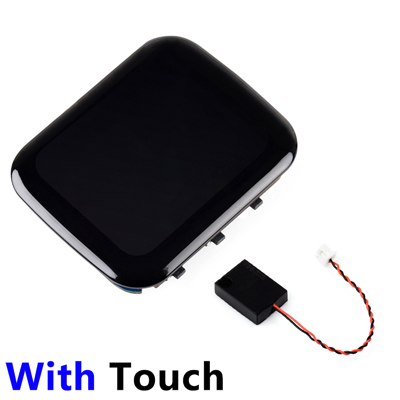

DeepSeek AI Voice Chat ESP32 C6 Development Board 1.69 inch LCD Display 240x280 1.69inch TouchScreen Programmable Watch
$20.9
ESP32-C6 1.69-inch 240×280 resolution Wi-Fi 6 LCD touch screen development board AI voice dialogue support Xiaozhi deepseek
ESP32-C6
1.69 inch touch LCD development board
Built-in ST7789V2 display driver chip and CST816T capacitive touch chip
Version selection
LCD screen parameters
| Display Panel | IPS | Display size | 1.69 in |
|---|---|---|---|
| Display resolution | 240 × 280 pixels | Display Color | 262K |
| Display Brightness | 435cd/㎡ | Contrast | 315:1 |
| Communication interface | SPI | Driver IC | ST7789V2 |
| Touch Type | Capacitive Sensing | Touch IC | CST816T |
Product Features
ESP32-C6-Touch-LCD-1.69 is a low-cost, high-performance microcontroller development board designed by Waveshare. In a small form factor, it is equipped with a 1.69-inch capacitive touch LCD screen, a lithium battery charging chip, an audio codec chip, a six-axis sensor (three-axis accelerometer and three-axis gyroscope), and RTC and other peripherals, making it easy to develop and embed applications into products.
The main features are：
- Equipped with a high-performance RISC-V 32-bit processor and a low-power RISC-V 32-bit processor, the high-performance processor clock is up to 160MHz, and the low-power processor clock can reach 20MHz
- Integrated Wi-Fi 6, Bluetooth 5, and IEEE 802.15.4 (Zigbee 3.0 and Thread) wireless communications for superior RF performance
- Onboard 320KB ROM, 512KB HP SRAM, 16KB LP SRAM and external 16MB Flash
- Uses Type-C interface, no need to worry about plugging it in the right or wrong direction
- Onboard 1.69-inch capacitive touch LCD screen, 240 × 280 resolution, 262K color, can clearly display color images
- Built-in ST7789V2 driver chip and CST816T capacitive touch chip, using SPI and I2C interface communication respectively, without occupying too many interface pin resources
- Onboard QMI8658 six-axis inertial measurement unit (3-axis acceleration, 3-axis gyroscope) for motion detection, step counting, etc.
- Onboard PCF85063 RTC chip, which can easily realize RTC function requirements
- Onboard RST, BOOT and a customizable side button, convenient for custom function development using buttons
- Onboard 3.7V MX1.25 lithium battery charging and discharging interface
- Onboard ES8311 audio codec chip, microphone and speaker, easy to use Xiaozhi AI
- Lead out GPIO, I2C, USB and UART pads for external devices and debugging, flexible configuration of peripheral functions
- Supports flexible clock, module power individual setting and other precise control, realizing multi-scenario low power consumption mode
- Touch screen has high transmittance, fast response and long life
ESP32-C6 for the AIoT Market
Equipped with a high-performance RISC-V 32-bit processor and a low-power RISC-V 32-bit processor, with a main frequency of up to 160MHz, powerful AI computing capabilities and secure encryption mechanism
More powerful wireless connectivity
Supports Wi-Fi 6, Bluetooth 5, and IEEE 802.15.4 (Zigbee 3.0 and Thread), and its low-power Bluetooth subsystem supports Bluetooth 5 (LE) and Bluetooth Mesh
Support AI voice interaction
No need for tedious assembly and wiring steps, quickly connect to Xiaozhi AI of Brother Xia
Transform into your exclusive intelligent AI partner
Supports a number of domestic large language models such as DeepSeek, Doubao and Tongyi Qianwen
Small panel, more touch possibilities
Applicable to the development of various intelligent devices and can realize human-computer interaction functions
Resource Overview
- ESP32-C6
- W25Q128JVSIQ
16MB NOR-Flash
- PCF85063
RTC clock chip
- QMI8658
Six-axis inertial measurement unit (IMU), including a 3-axis gyroscope and a 3-axis accelerometer
- ETA6098
High-efficiency lithium battery charging chip
- MX1.25 Li-ion battery port
MX1.25 2P connector, can be used to connect 3.7V lithium battery, support charging and discharging
- Type-C port
ESP32-C6 USB interface, used for burning programs and
log printing
- MX1.25 speaker port
- Onboard patch antenna
- Power on function button
Supports detection of power-on function, single click, double click, multi-click and long press operations
- BOOT button
- RST Reset button
- microphone
- NS4150B
3.0W Mono Class-D Audio Power Amplifier
- ES8311 (back)
Low-power mono audio codec
Pin Definition
Product size
