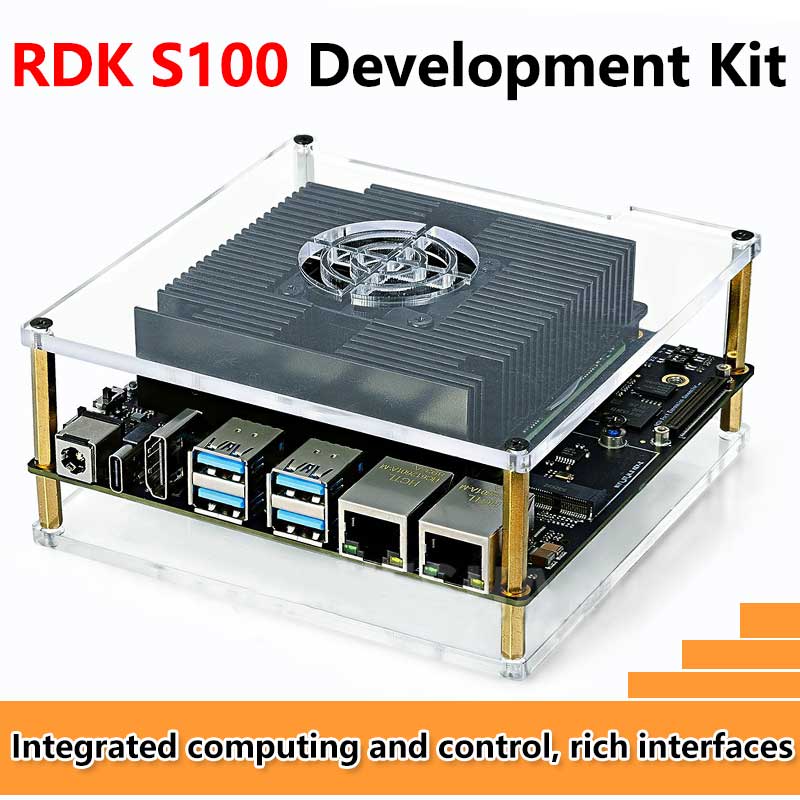

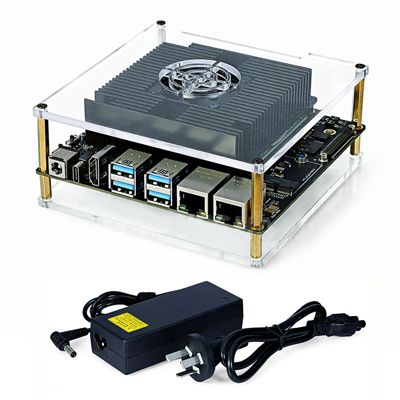

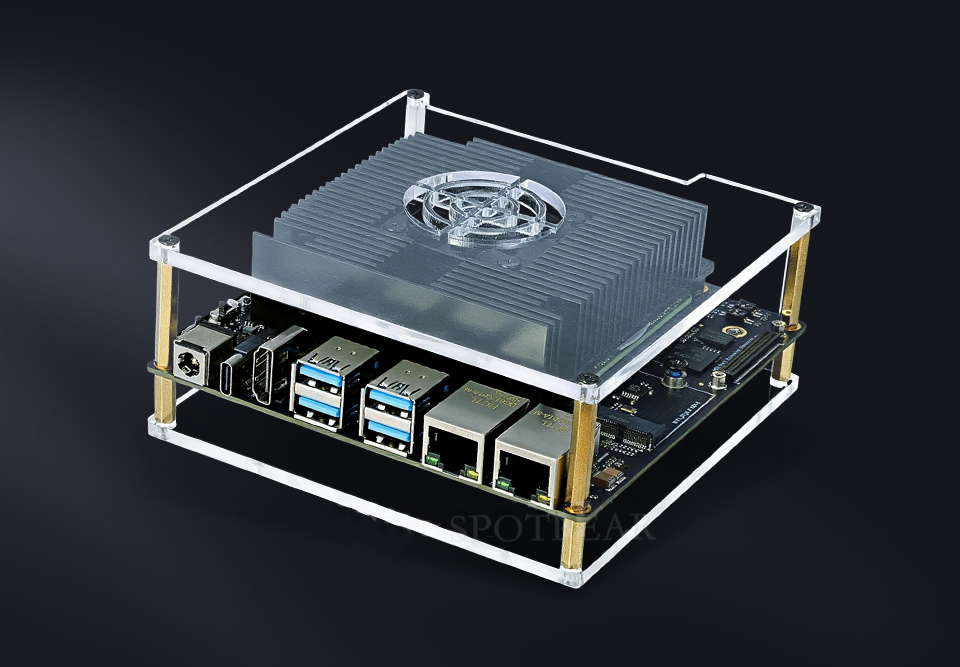

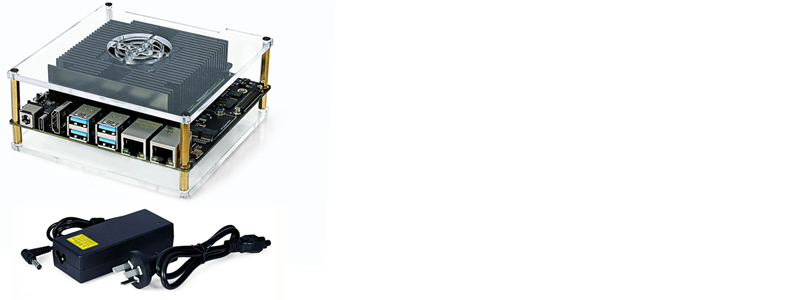

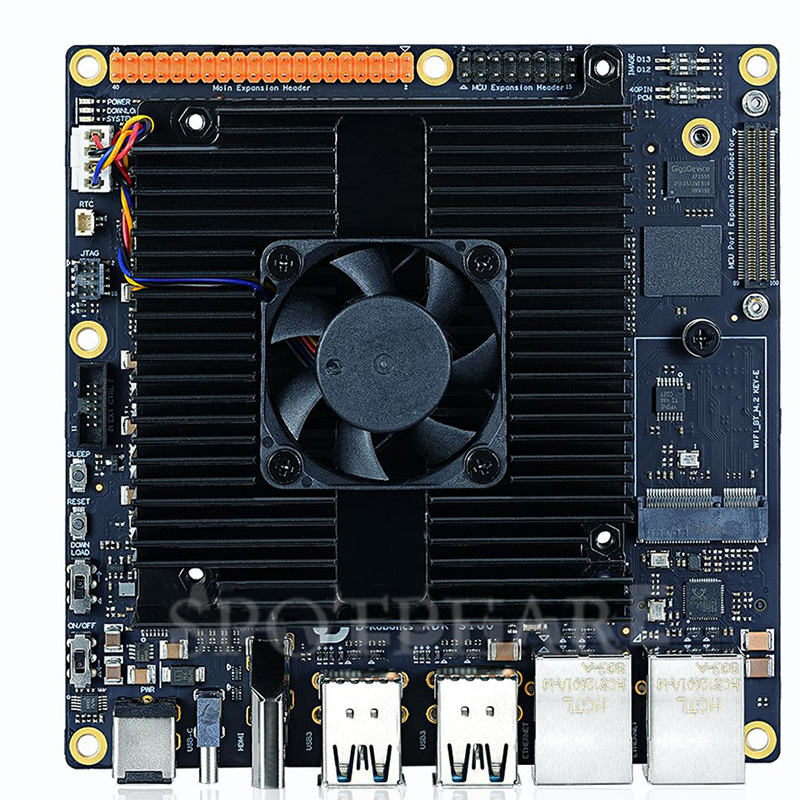

D-Robotics RDK S100 Robot Development Kit Horizon Sunrise 80TOPS BPU 4 × USB3.0 Type-A
$439
D-Robotics RDK S100 Robot Development Kit 80 TOPS BPU Equipped with S100 Intelligent Computing Chip
D-Robotics Horizon Sunrise Recommend
RDK S100
Driving the Co-evolution of the Brain and Brain of Embodied Robots
Integrated computing and control Robot development kit
The Digua Robot RDK S100 series developer kit is equipped with the S100 intelligent computing chip. The BPU can provide up to 80 TOPS of computing power. It is a development board for intelligent computing and robotics applications. It has rich interfaces and is easy to use. The unique heterogeneous design can take into account the needs of perception reasoning and real-time motion control at the same time, reducing the size and complexity of the control system.
Product Specifications
| Product Name | RDK S100 Development Kit |
|---|---|
| AI Performance | 80 TOPS |
| BPU | 1 × BPU Nash |
| CPU | 6 × Arm Cortex-A78AE@1.5GHz |
| MCU | 4 × Arm Cortex-R52+@1.2GHz |
| GPU | 1 × Arm Mali-G78AE@100 GFLOPS |
| Memory | 12GB LPDDR5 96-bit |
| storage | 64GB eMMC，M.2 Key M (PCIe 3.0 x1) × 1 |
| Display Interface | HDMI 1.4, supports 2K@60FPS |
| network | Gigabit Ethernet (RJ45 port) × 2 M.2 Key E (PCIe 3.0 x1, UART) for Wi-Fi and Bluetooth |
| interface | USB 2.0 (Type-C) × 1 (for flashing and debugging) USB 3.0 × 4 |
| Extension Header | JTAG interface × 1 Automatic control interface × 1 40PIN main GPIO interface× 1 16-pin MCU GPIO interface × 1 Camera expansion interface × 1 MCU port expansion interface × 1 |
| powered by | 12V ~ 20V DC |

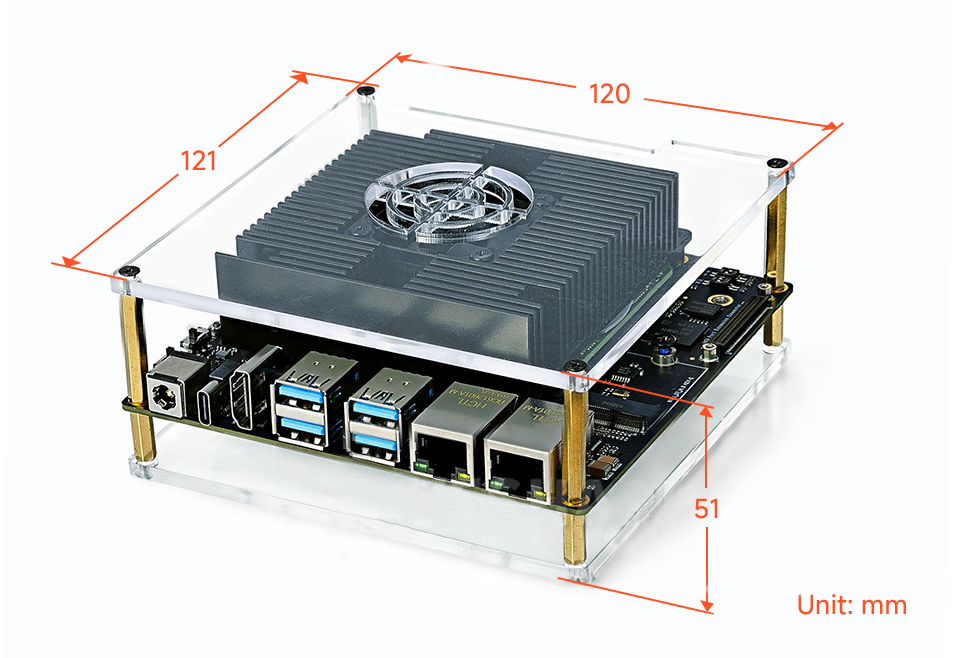

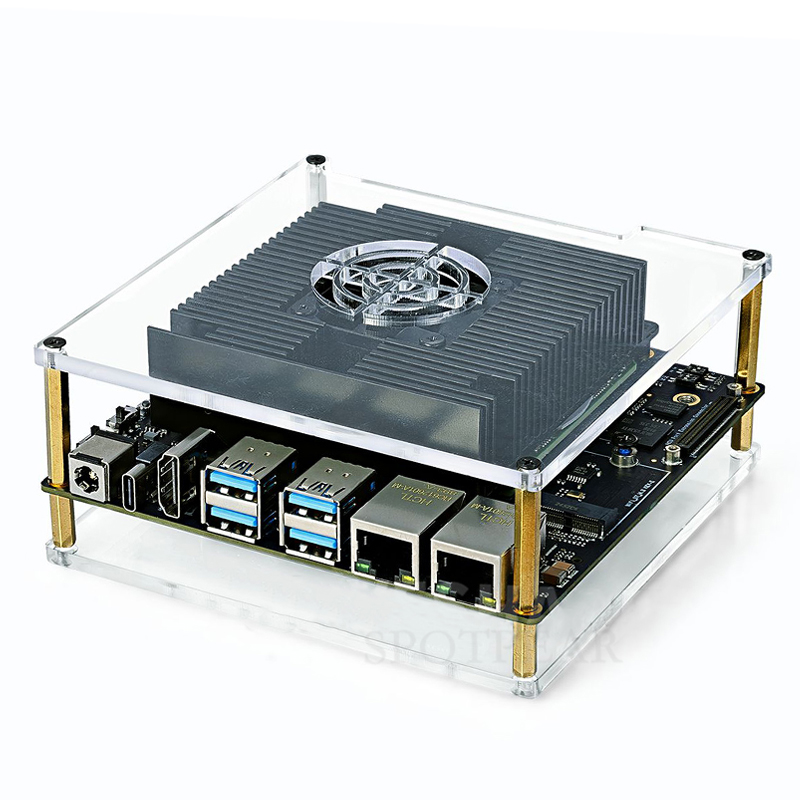

| Mechanical Dimensions | 120 × 121 × 51 (mm) (including housing) |

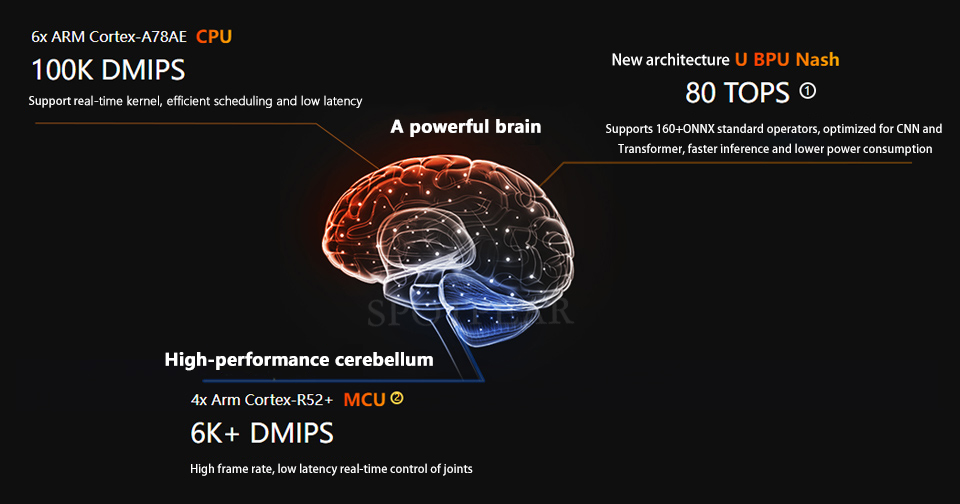

Human-like brain structure
Integrate CPU + BPU + MCU for efficient collaboration

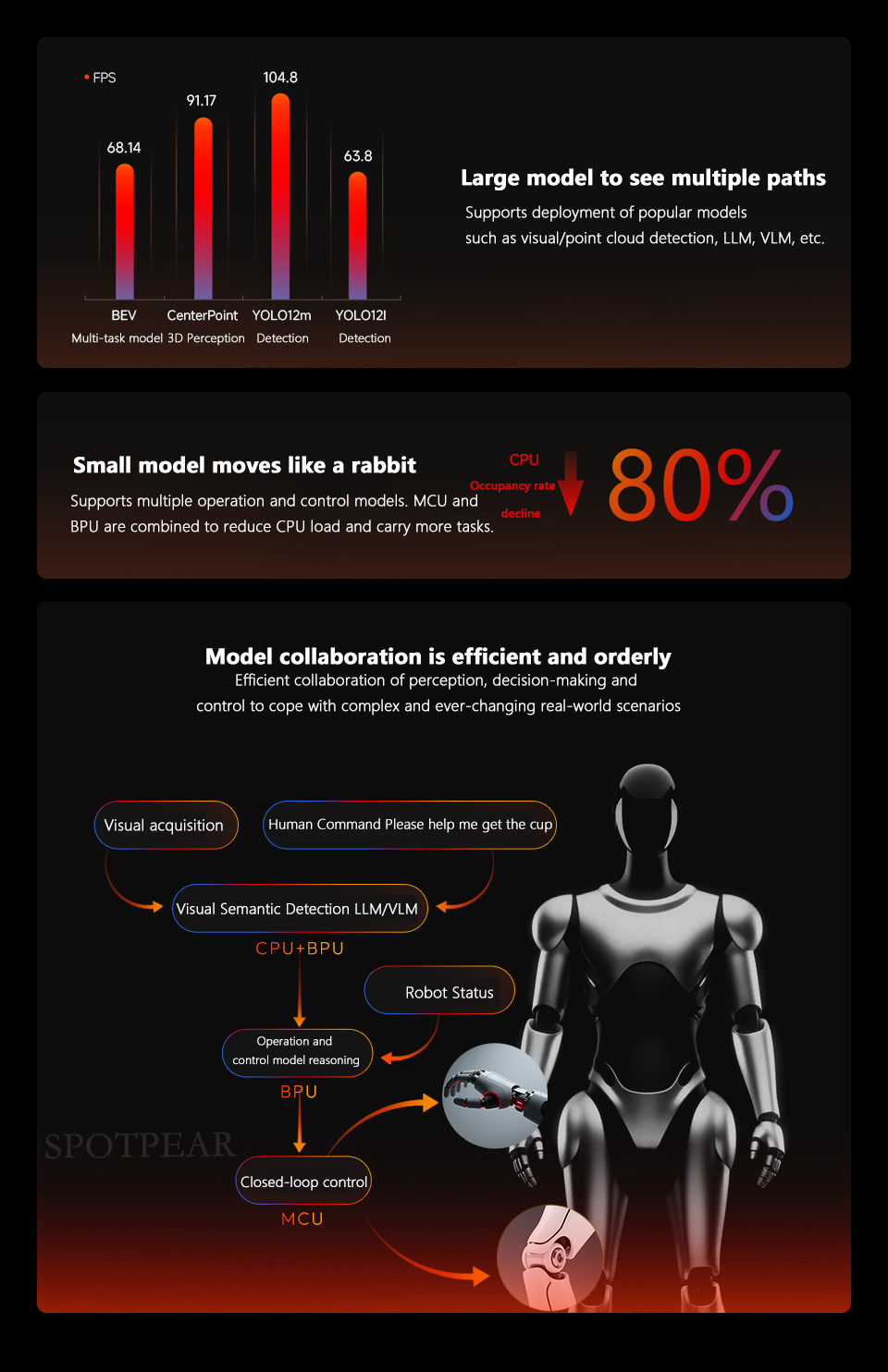

Large and small models "Efficient collaboration"
From perception to execution, large and small models are dynamically integrated and switched seamlessly
Remark：
① Equivalent computing power，INT8 quantization。
② It includes a pair of DCLS cores running in lock-step and two cores supporting Split-Lock mode, which can be operated in lock-step or independently according to application requirements.
③ The BPU is responsible for operation and control model reasoning, and the MCU is responsible for action command interpolation and high-frequency communication, reducing the CPU load.
Remark：
① Equivalent computing power，INT8 quantization。
② It includes a pair of DCLS cores running in lock-step and two cores supporting Split-Lock mode, which can be operated in lock-step or independently according to application requirements.
③ The BPU is responsible for operation and control model reasoning, and the MCU is responsible for action command interpolation and high-frequency communication, reducing the CPU load.
Develop "All the Way"
Software and hardware collaboration, end-to-end cloud integration, one-stop solution to development problems
Application "Quick Build"
200+ open source algorithms and application examples to accelerate deployment in multiple scenarios

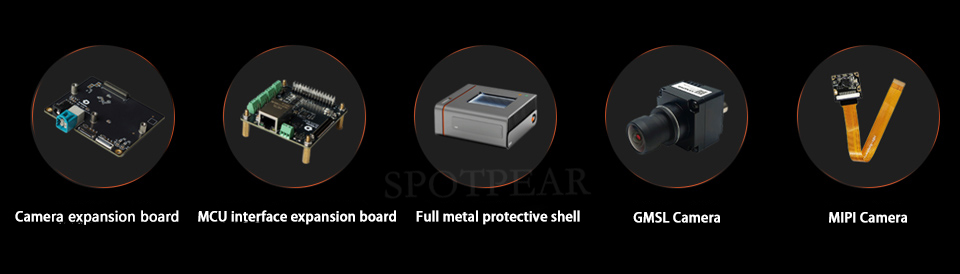

Rich peripheral accessories
More peripheral accessories are coming soon

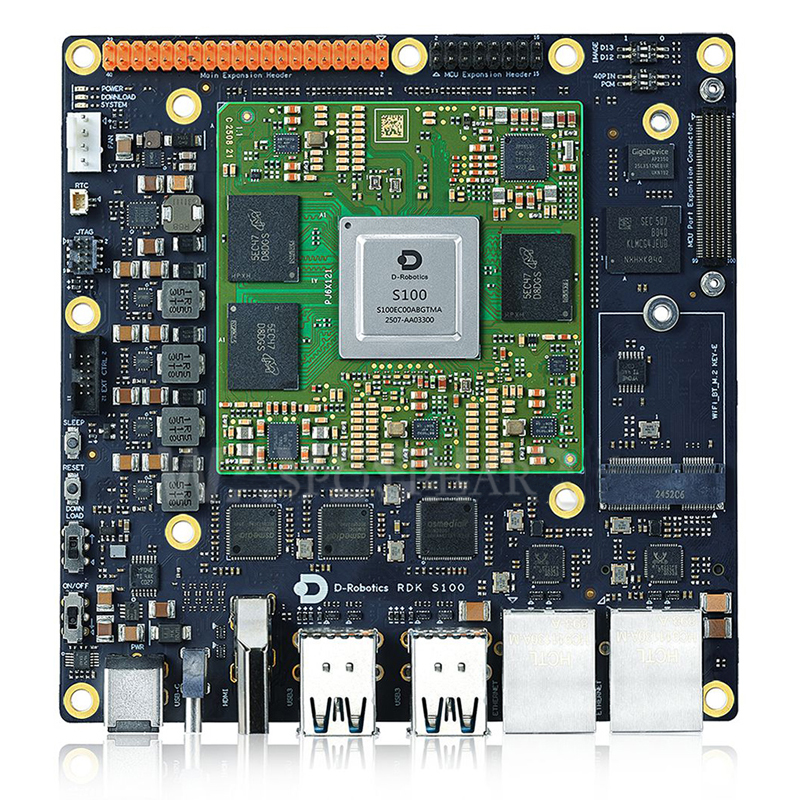

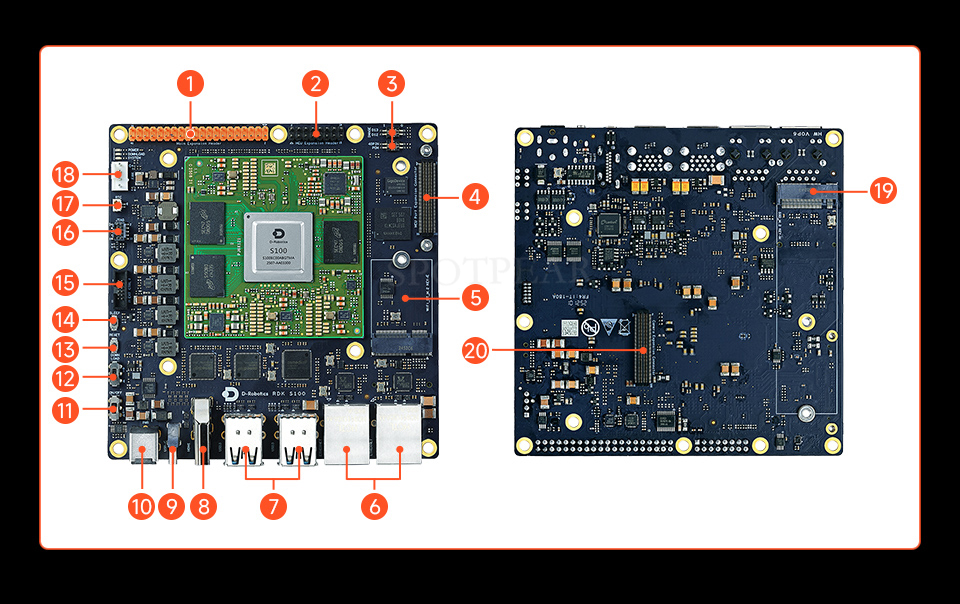

Resource Overview
- 40-pin interface
- 16-pin interface of MCU domain
- Pin function switching DIP switch
- MCU expansion board 100PIN interface
- M.2 Key E connector
- 2 × Gigabit RJ45 network ports
- 4 × USB3.0 Type-A ports
- HDMI port
- Type-C port
Used for burning, Main domain and MCU domain debugging
- Motherboard power supply interface
- Power switch
- Burning mode switch
- Reset button
- Sleep button
- Mainboard function connector
- Main Domain and MCU Domain JTAG Interface
- RTC battery connector
- Fan control interface
- M.2 Key M solid state drive interface
- Camera expansion 100PIN interface
