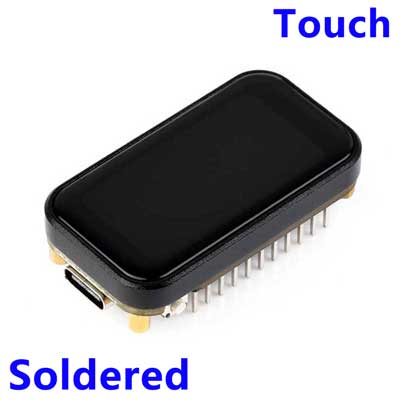

ESP32 C6 Development Board 1.47 inch LCD Touch Screen 1.47inch Display 172×320SD AXS5106L JD9853
$15.9
Brand：SpotPear
SKU：020804800000
Date：2025-05-09 13:48
Part Number：
ESP32-C6 1.47-inch 172×320 resolution 262K Wi-Fi 6 color LCD touch screen development board 160MHz RISC-V processor
ESP32 Display Recommend
ESP32-C6
1.47-inch touch screen development board
Run LVGL and other GUI interface programs smoothly, and quickly develop HMI applications for ESP32-C6
Version selection
Product Features
This product uses ESP32-C6FH8, a microcontroller development board that supports 2.4GHz Wi-Fi 6 and Bluetooth BLE 5. It has 8MB Flash and an onboard 1.47-inch capacitive touch LCD screen, which can smoothly run GUI interface programs such as LVGL; combined with a variety of peripheral interfaces, it can quickly develop applications such as HMI of ESP32-C6.
- Equipped with a high-performance RISC-V 32-bit processor and a low-power RISC-V 32-bit processor, the high-performance processor clock is up to 160MHz, and the low-power processor clock can reach 20MHz
- Supports 2.4 GHz Wi-Fi 6 (802.11 ax/b/g/n) and Bluetooth 5 (LE) wireless communication protocols with onboard antenna
- Onboard 320KB ROM, 512KB HP SRAM, 16KB LP SRAM and 8MB Flash
- Onboard 1.47-inch capacitive touch LCD screen, 172 × 320 resolution, 262K colors
- Lead out most GPIOs and integrate full-speed USB serial port
- Onboard Micro SD card holder, can be connected to an external SD card to store pictures or files
- Supports flexible clock, multiple power modes and other accurate control to achieve multi-scenario low power consumption mode
LCD screen parameters
| Display size | 1.47inch | Resolution | 172 × 320 pixels |
|---|---|---|---|
| Display chip | JD9853 | Touch chip | AXS5106L |
| Display Interface | 4-wire SPI | Touch interface | I2C |
| Display Panel | IPS | Touch Type | Capacitive Sensing |
ESP32-C6 for the AIoT Market
Equipped with a high-performance RISC-V 32-bit processor and a low-power RISC-V 32-bit processor, with a main frequency of up to 160MHz, powerful AI computing capabilities and secure encryption mechanism
Support for Wi-Fi 6 and BLE 5
ESP32-C6 integrates 2.4GHz Wi-Fi 6 (802.11 ax/b/g/n) with 40MHz bandwidth, and its low-power Bluetooth subsystem supports Bluetooth 5(LE) and Bluetooth Mesh
Application Scenario
Interface Definition
Supports expansion of multiple peripherals, and can connect more expansion devices through GPIO pins
Resource Overview
- ESP32-C6FH8
- Chip Ceramic Antenna
- ME6217C33M5G
Low dropout LDO, current 800mA (Max)
- QMI8658
IMU six-axis inertial sensor
- ETA6098
- Micro SD card holder
- RESET button
- BOOT button
- Type-C port
Product size
