【Overview】

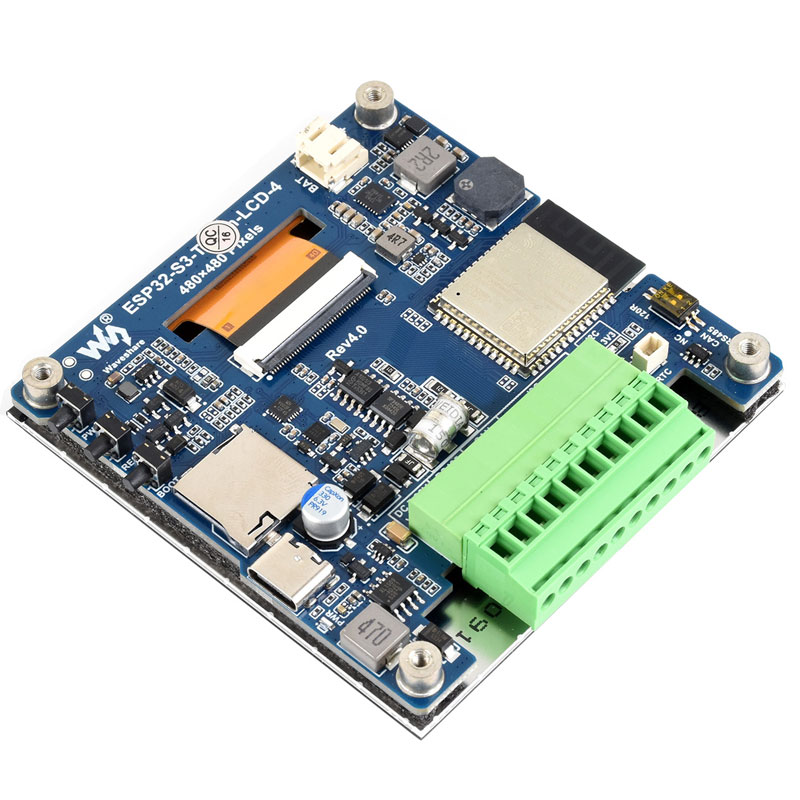

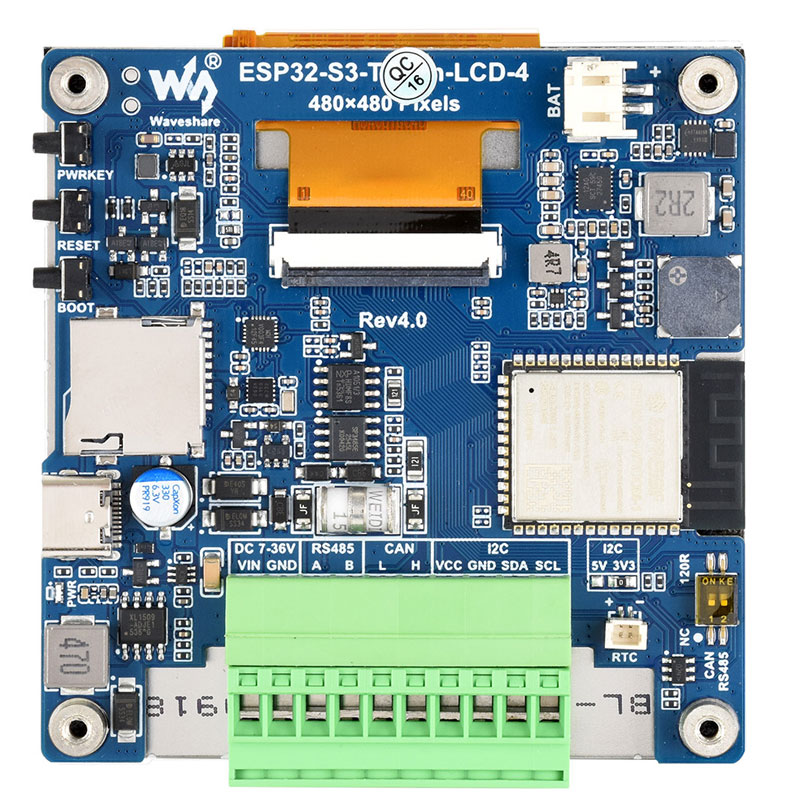

[] ESP32-S3-Touch-LCD-4

[] Integrates RGB Interface LCD With 5-Point Capacitive Touch, Multiple Peripheral Interfaces

【Features】

ESP32-S3-Touch-LCD-4 is a microcontroller development board with 2.4GHz WiFi and BLE 5 support, integrates 16MB Flash and 8MB PSRAM. Onboard 4inch 480 × 480 capacitive touch screen can smoothly run GUI programs such as LVGL. Combined with various peripheral interfaces to quickly develop the HMI of ESP32-S3, suitable for scenarios such as smart control panel, home gateway, intelligent interactive panel, industrial control, and smart lighting control.

[] Equipped with Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency

[] Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna

[] Built in 512KB SRAM and 384KB ROM, with onboard 16MB Flash and 8MB PSRAM

[] Onboard 4inch capacitive touch display, 480×480 resolution, 65K color

[] Supports capacitive touch control via I2C interface, 5-point touch with interrupt support

[] Onboard CAN, RS485, I2C interface and TF card slot, and integrates full-speed USB port

[] Supports flexible clock, module power supply independent setting and other controls to realize low power consumption in different scenarios
【Application Scenarios】

【IPS Display Panel】
[] Excellent Display Performance, 160° Wide Viewing Angle

【Capacitive 5-Point Touch】
[] Supports Touch Function With I2C Interface, 5-Point Touch For Flexible Operation And Smooth Multi-Point UI Interaction

【WIFI And Bluetooth Support】
[] Supports 2.4 GHz Wi-Fi (802.11 B/G/N) And Bluetooth 5 (LE), Onboard Antenna

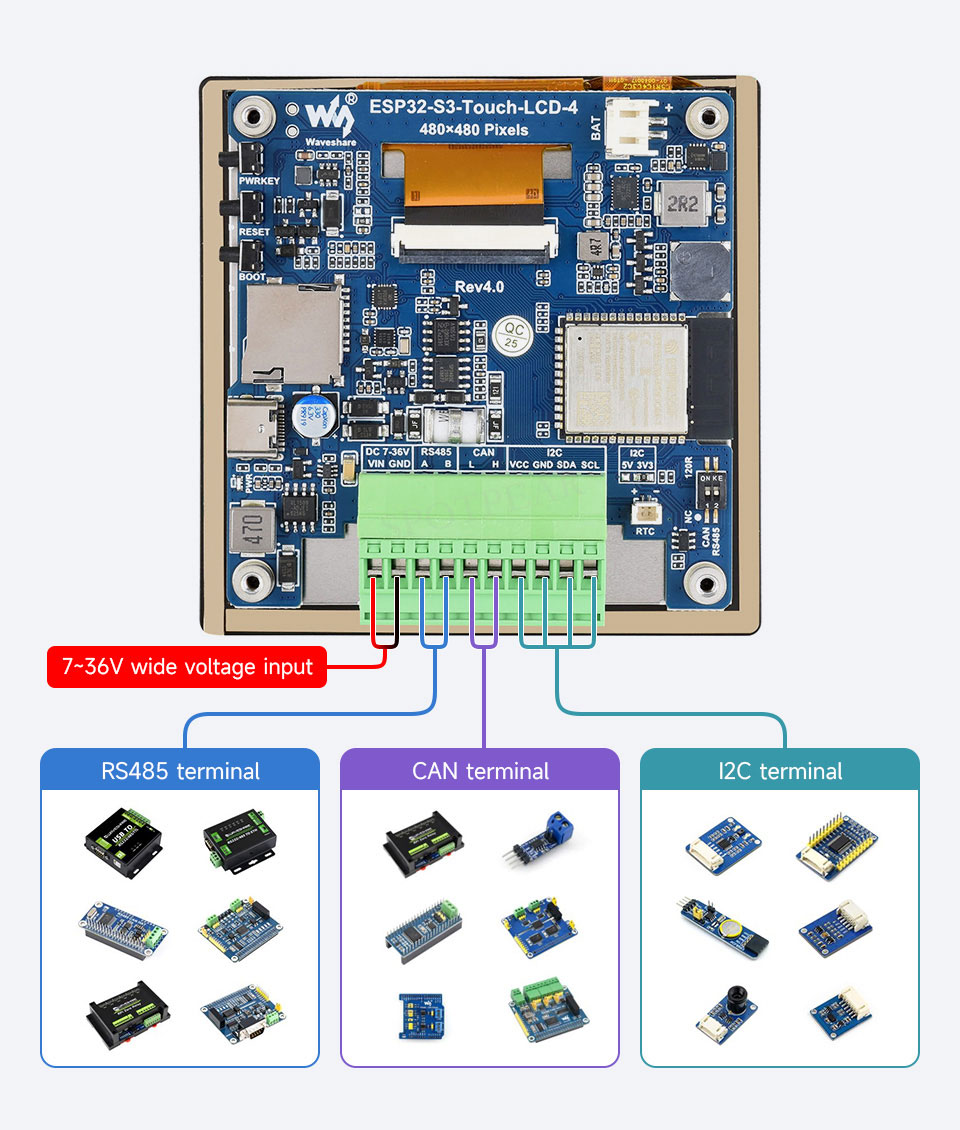

【Supports Multiple Peripherals】
[] Supports The Expansion Of Multiple Peripherals Via CAN, RS485, And I2C Interfaces

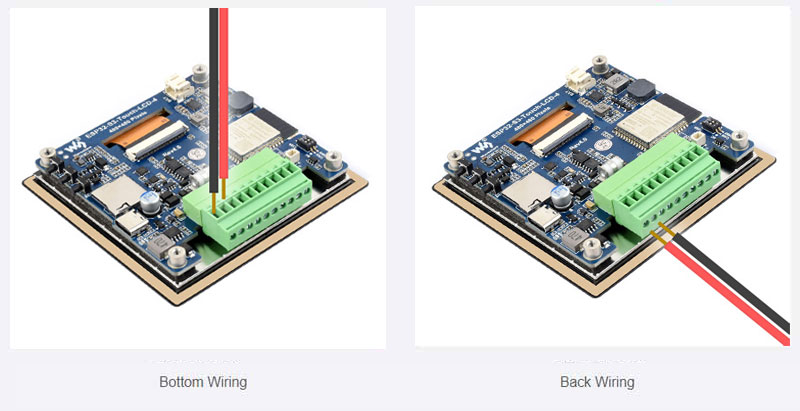

【Supports Two Wiring Methods】
[] Comes With Two Types Of Screw Terminals, Allowing For Bottom Or Back Wiring, Which Is More Convenient To Integrate Into Various Application Scenarios Such As DIN Rail Or Embedded Devices

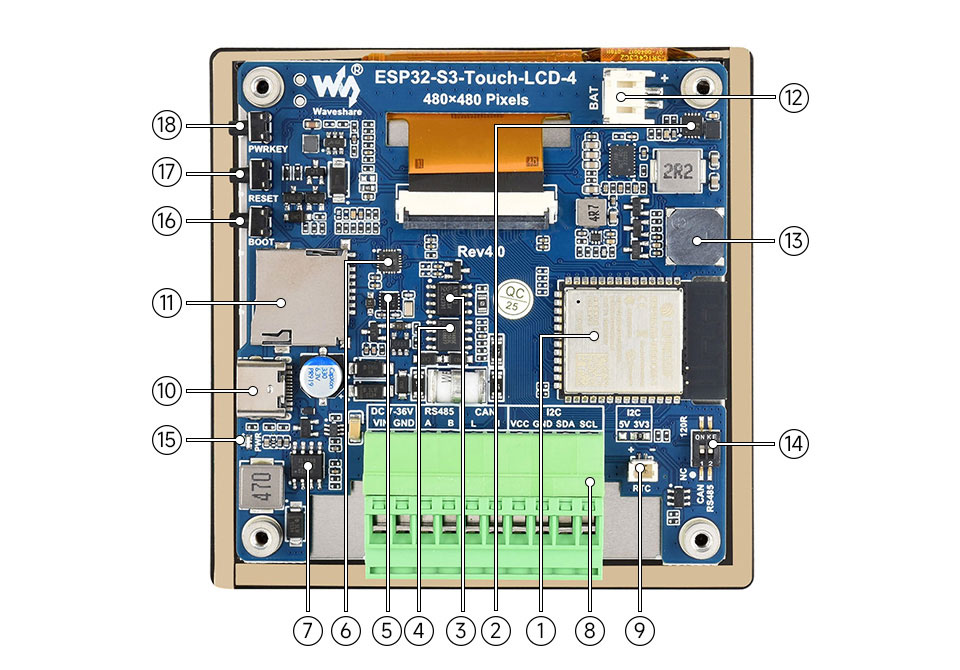

【What's On Board】

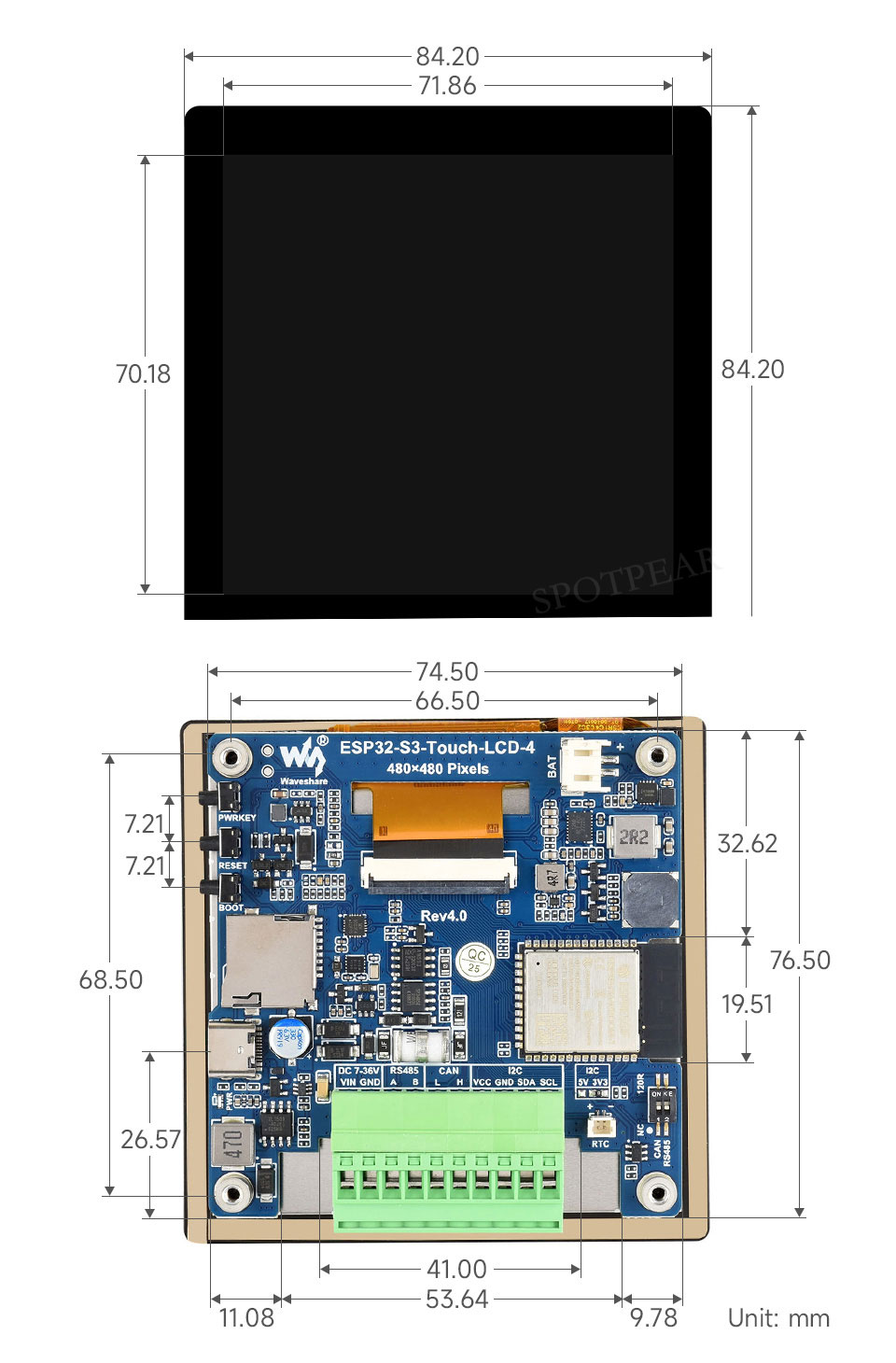

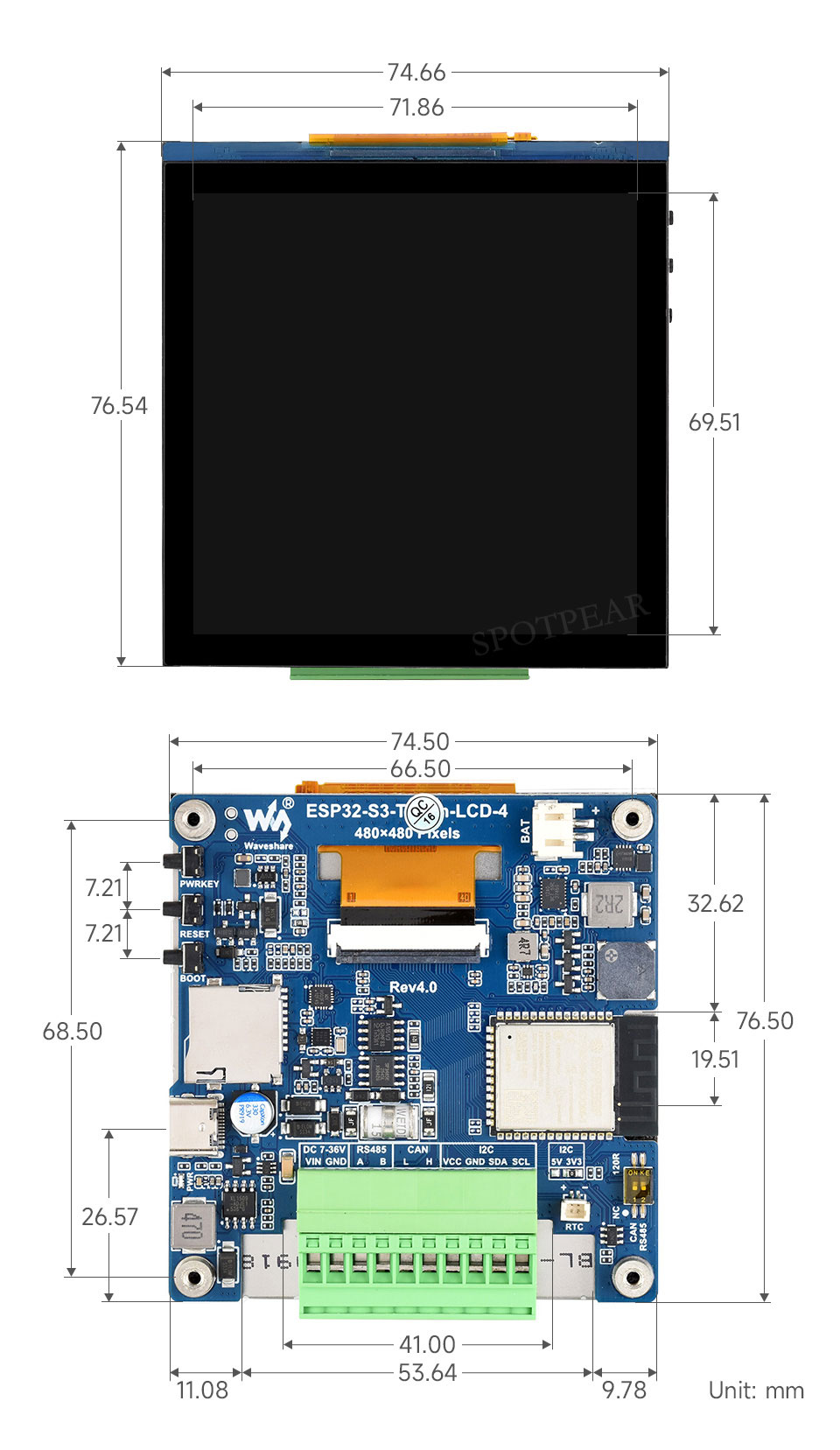

【Outline Dimensions】

[] ESP32-S3-Touch-LCD-4
