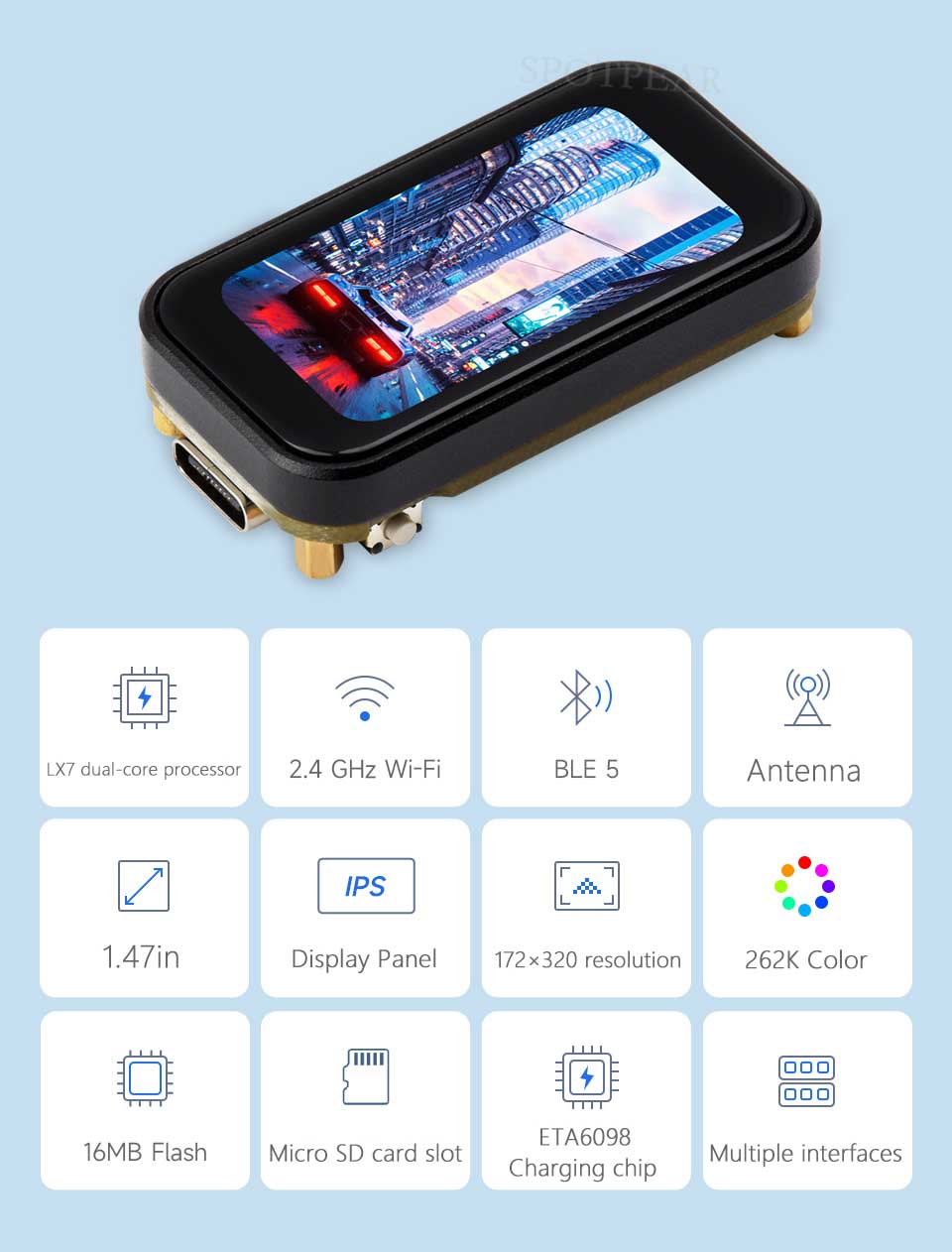

Product Features

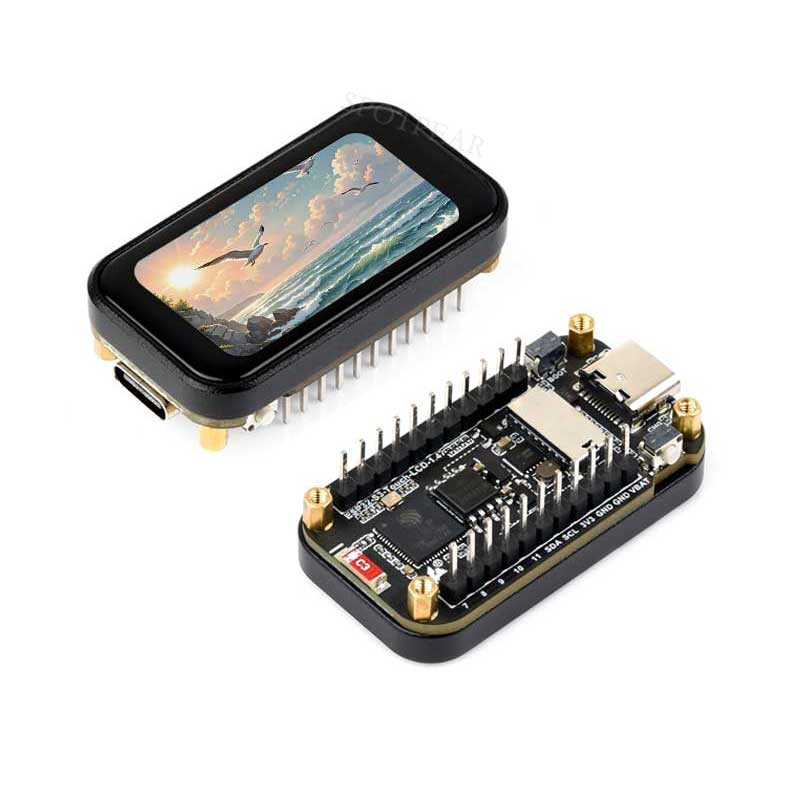

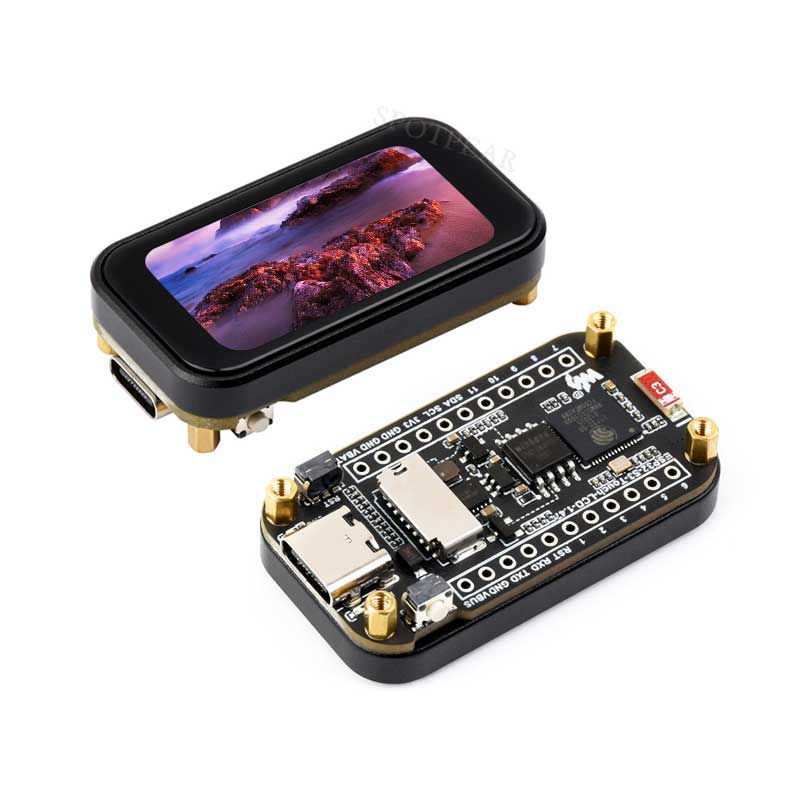

This product uses the ESP32-S3R8 chip, supports 2.4GHz Wi-Fi and BLE 5 Bluetooth functions, and has built-in large-capacity Flash and PSRAM. It is equipped with a 1.47-inch high-definition IPS display and can run GUI programs such as LVGL smoothly.

• Equipped with high-performance Xtensa 32-bit LX7 dual-core processor, with a main frequency of up to 240MHz
• Supports 2.4 GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE) wireless communication protocols with onboard antenna
• Built-in 512 KB SRAM and 384 KB ROM, stacked 8 MB PSRAM and onboard 16 MB Flash

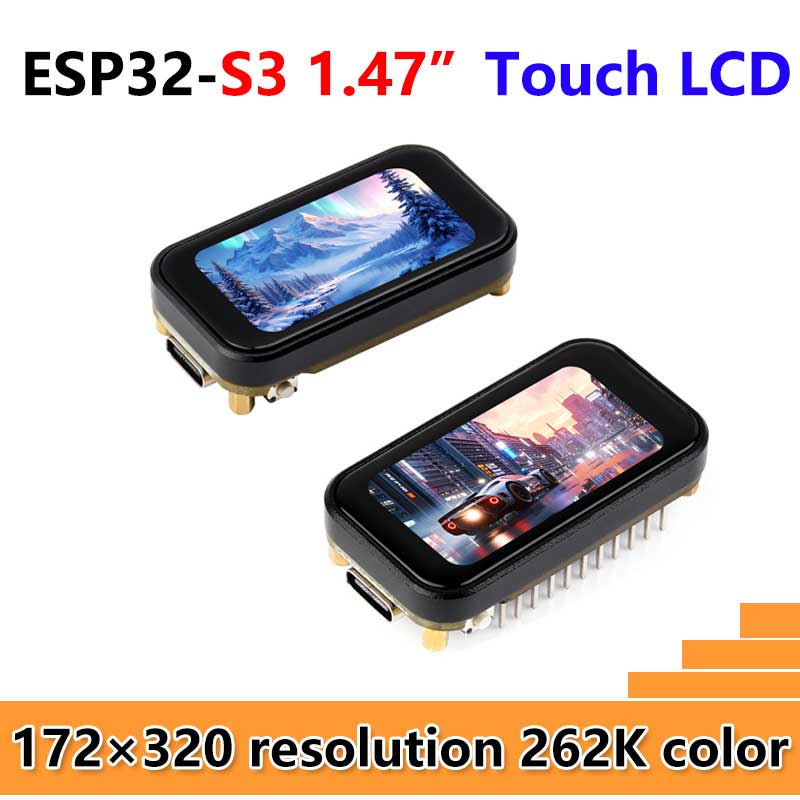

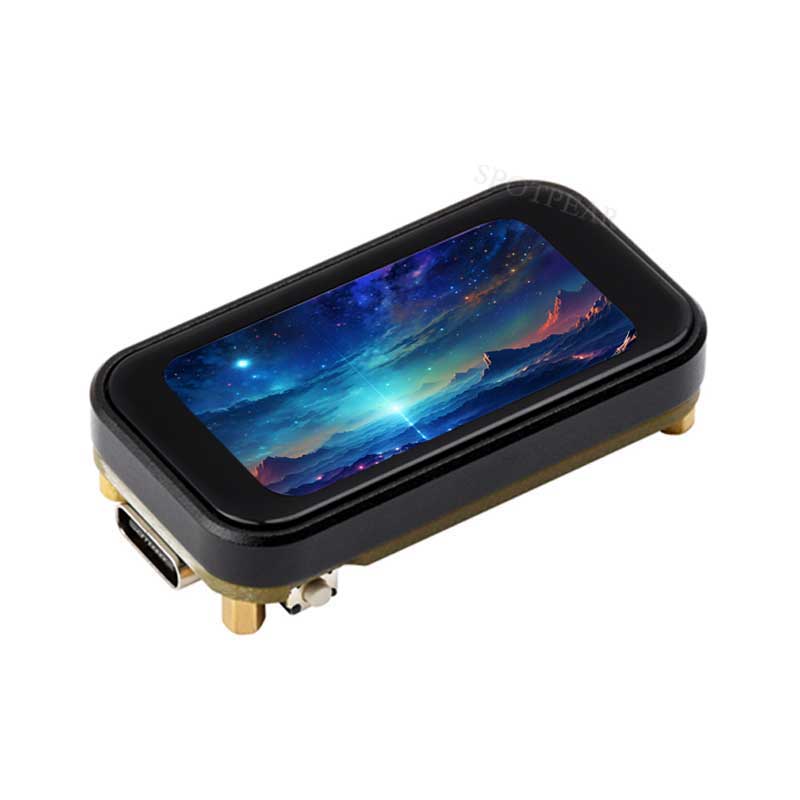

• Onboard 1.47-inch capacitive touch LCD screen, 172 × 320 resolution, 262K colors

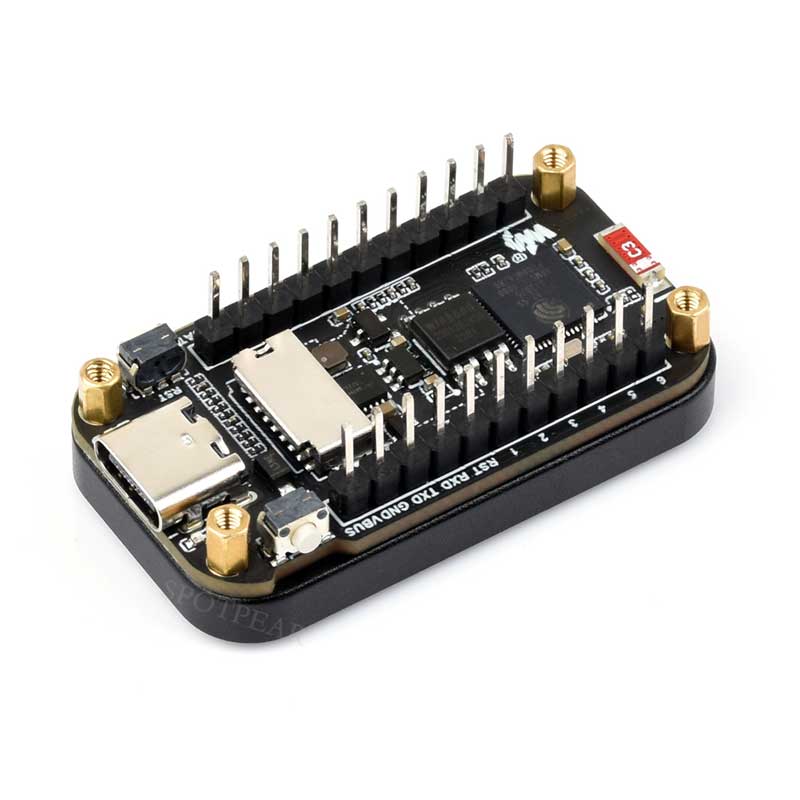

• Lead out most GPIOs and integrate full-speed USB serial port
• Onboard Micro SD card holder, can be connected to an external SD card to store pictures or files
• Supports flexible clock, multiple power modes and other accurate control to achieve multi-scenario low power consumption mode

LCD screen parameters

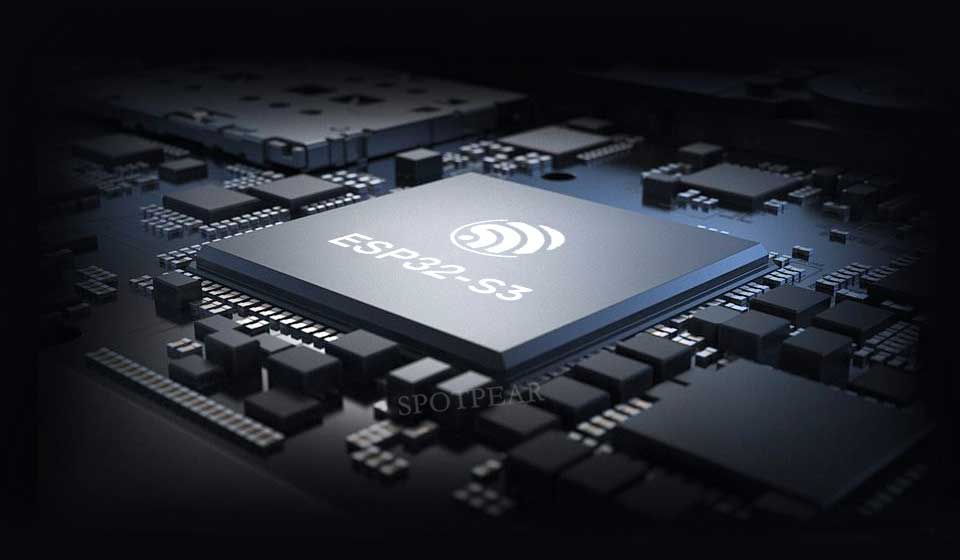

ESP32-S3 for the AIoT Market

Equipped with high-performance Xtensa 32-bit LX7 dual-core processor, with a main frequency of up to 240MHz, powerful AI computing capabilities and secure encryption mechanism

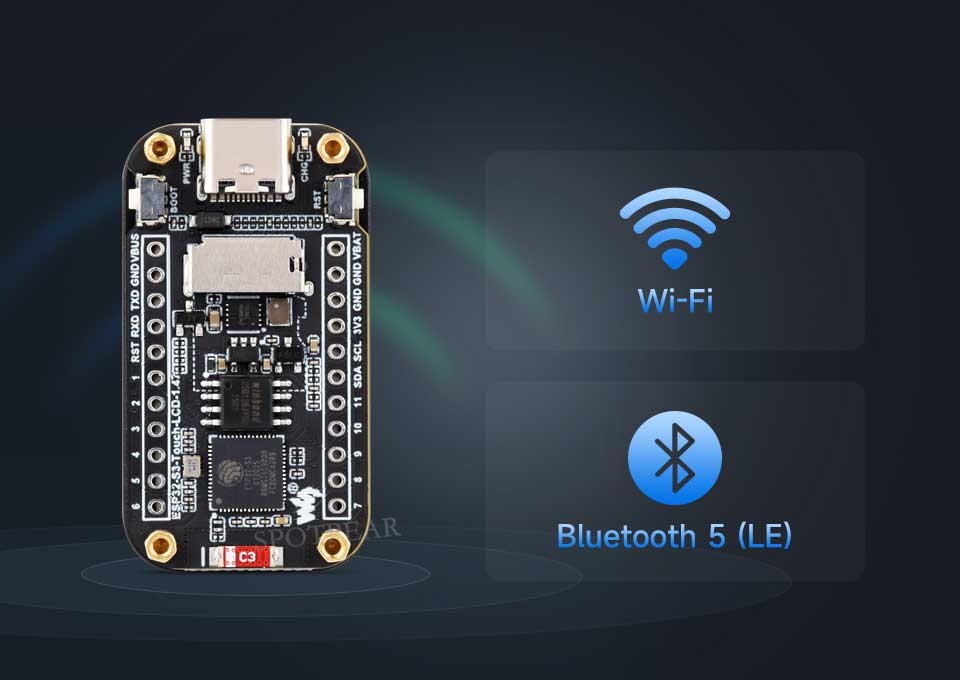

Supports Wi-Fi and BLE 5

ESP32-S3 integrates 2.4GHz Wi-Fi (802.11 b/g/n) supporting 40MHz bandwidth, and its low-power Bluetooth subsystem supports Bluetooth 5 (LE) and Bluetooth Mesh

Application Scenario

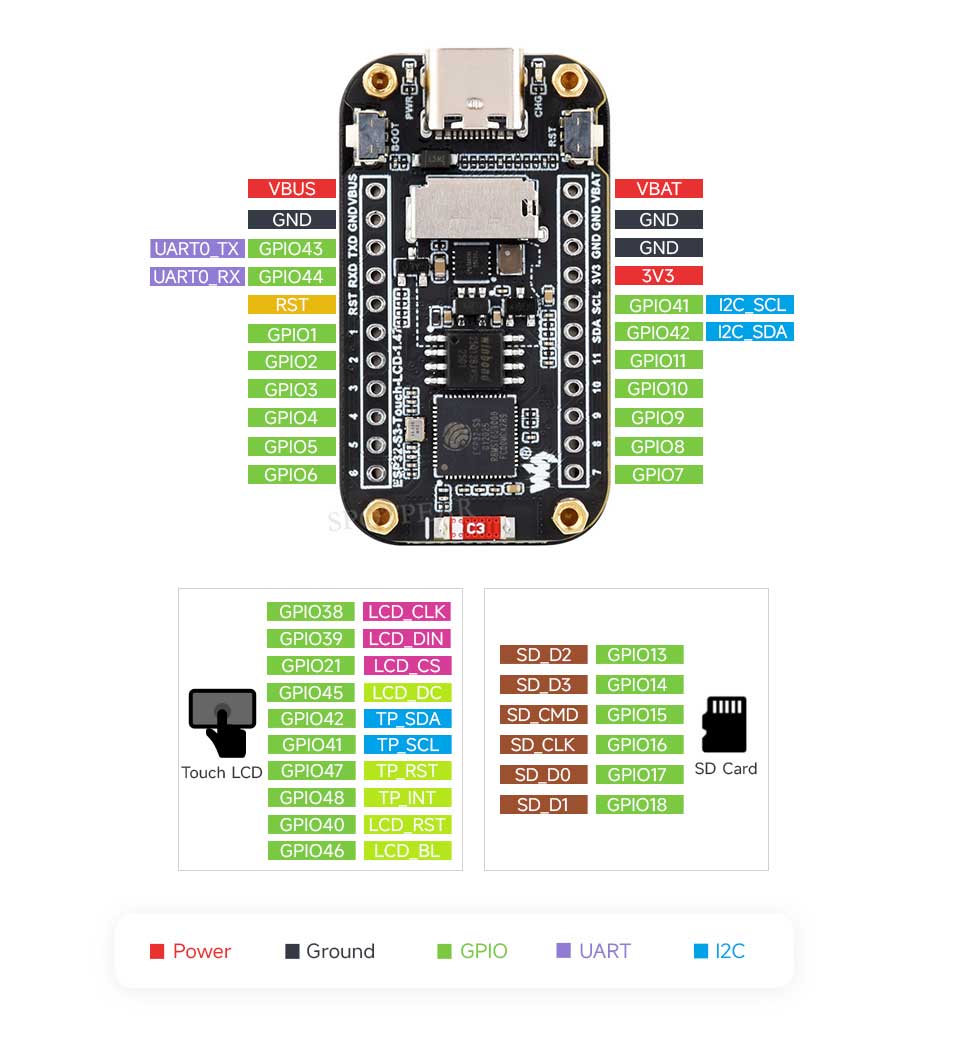

Interface Definition

Supports expansion of multiple peripherals, and can connect more expansion devices through GPIO pins

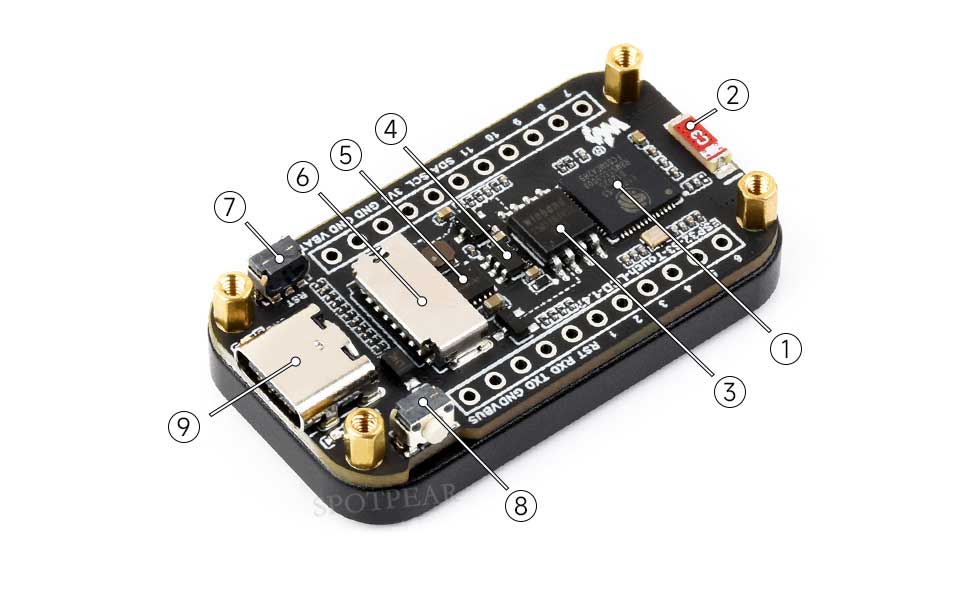

Resource Overview
