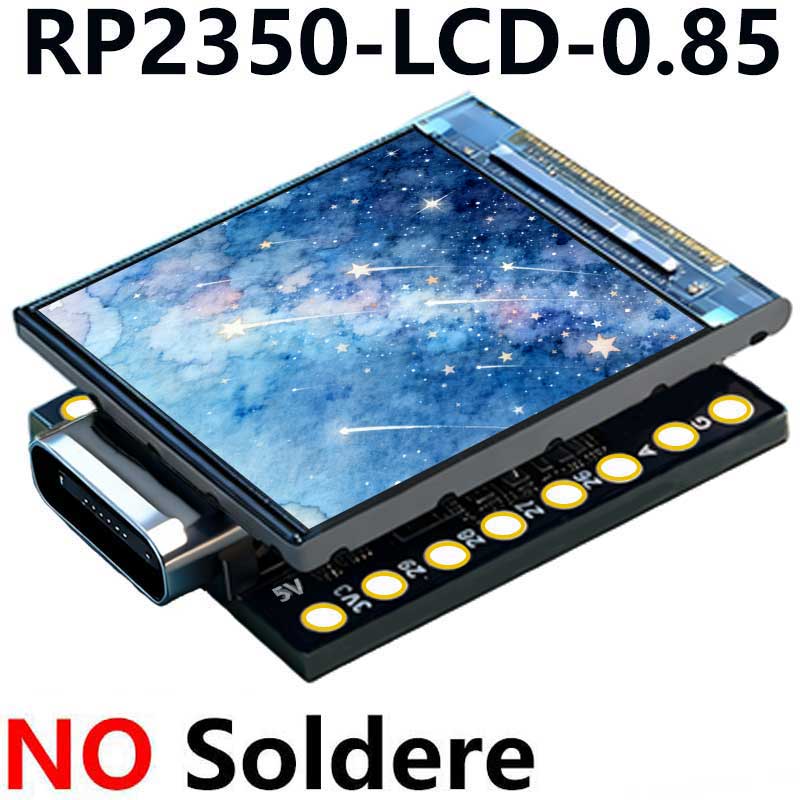

Raspberry Pi Pico 2 RP2350 0.85 inch LCD Display mini Development Board 0.85inch Screen RGB LED/SD Slot /QMI8658 Gyroscope Sensor
$8.4
Brand：SpotPear
SKU：010178000000
Date：2025-09-18 15:58
Part Number：
Raspberry Pi Pico 2 RP2350 0.85 inch LCD Display mini Development Board 0.85inch Screen RGB LED/SD Slot /QMI8658 Gyroscope Sensor
Raspberry Pi Pico 2 RP2350 Recommend

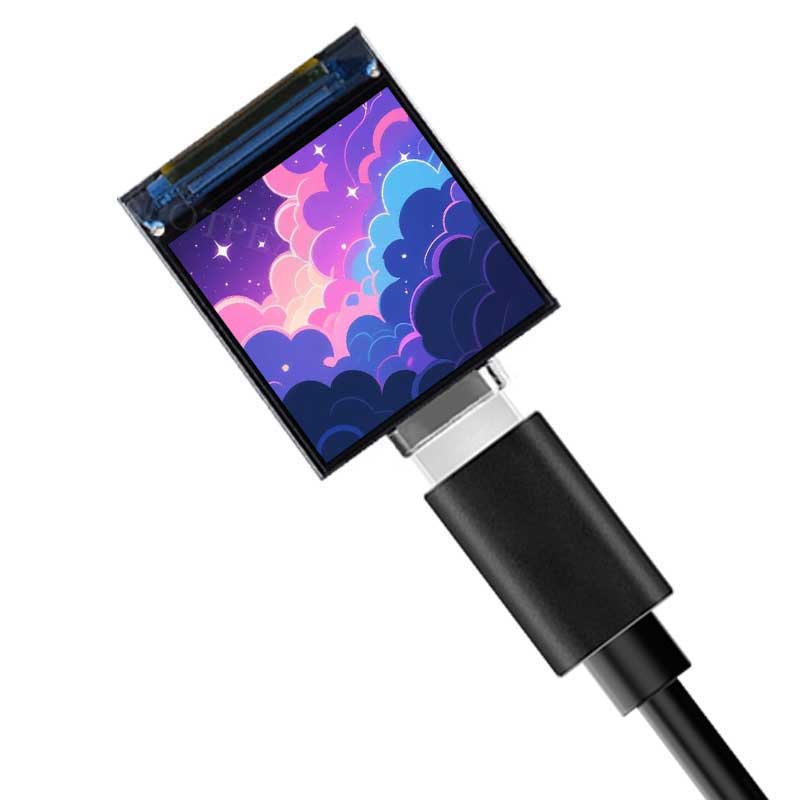

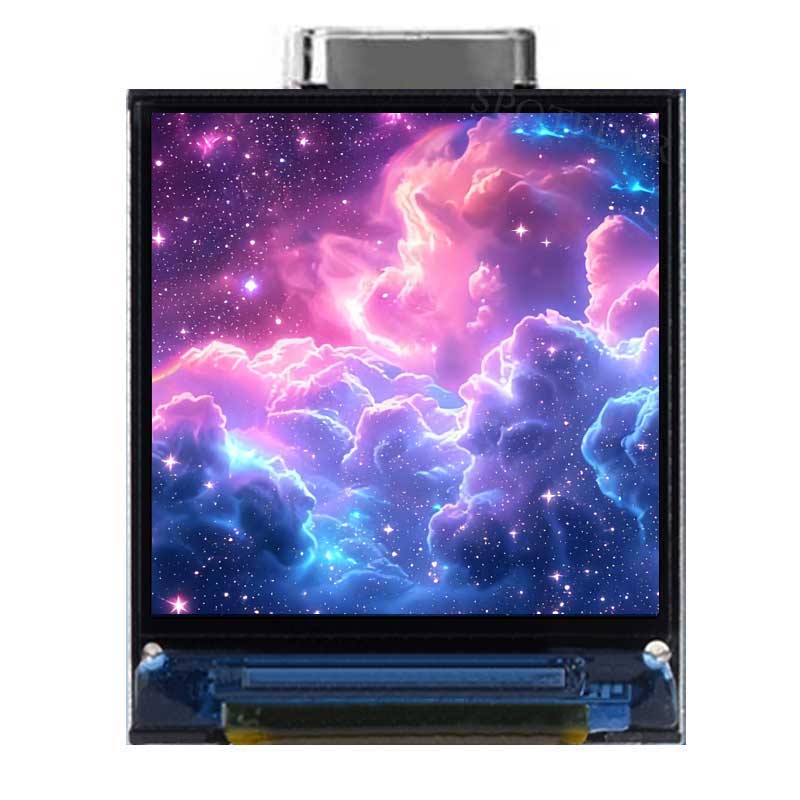

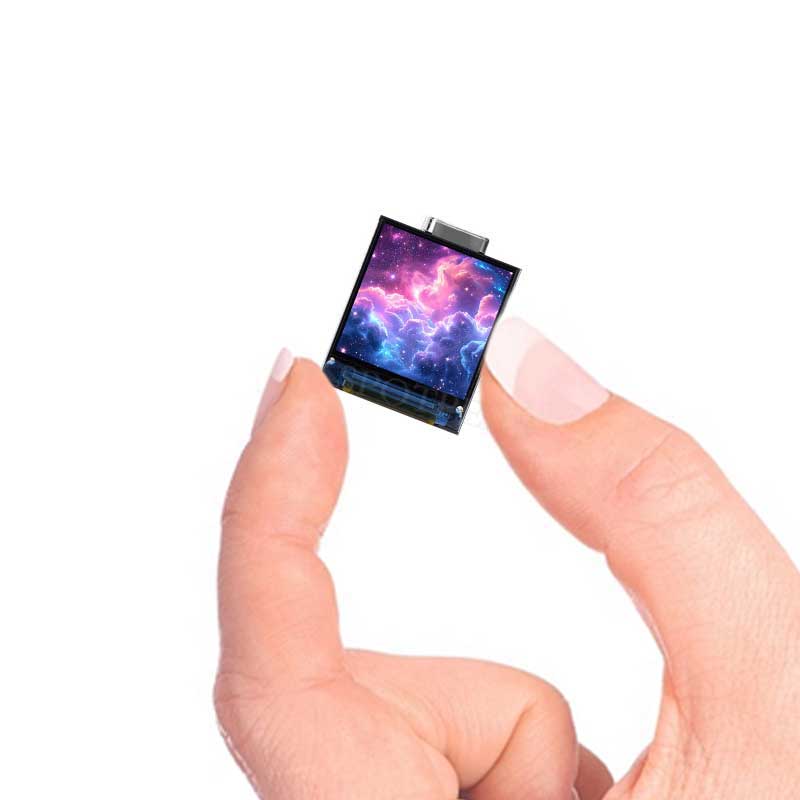

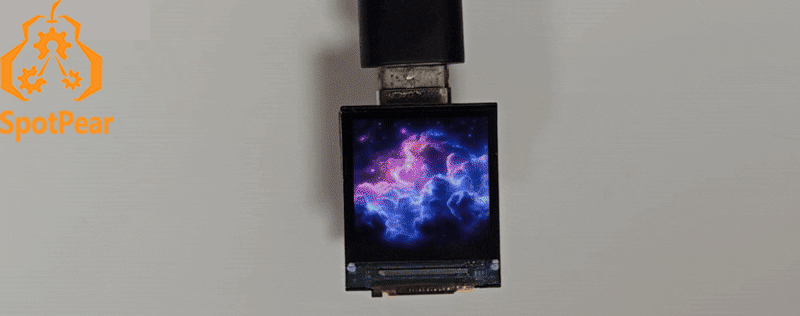

【Product Display】

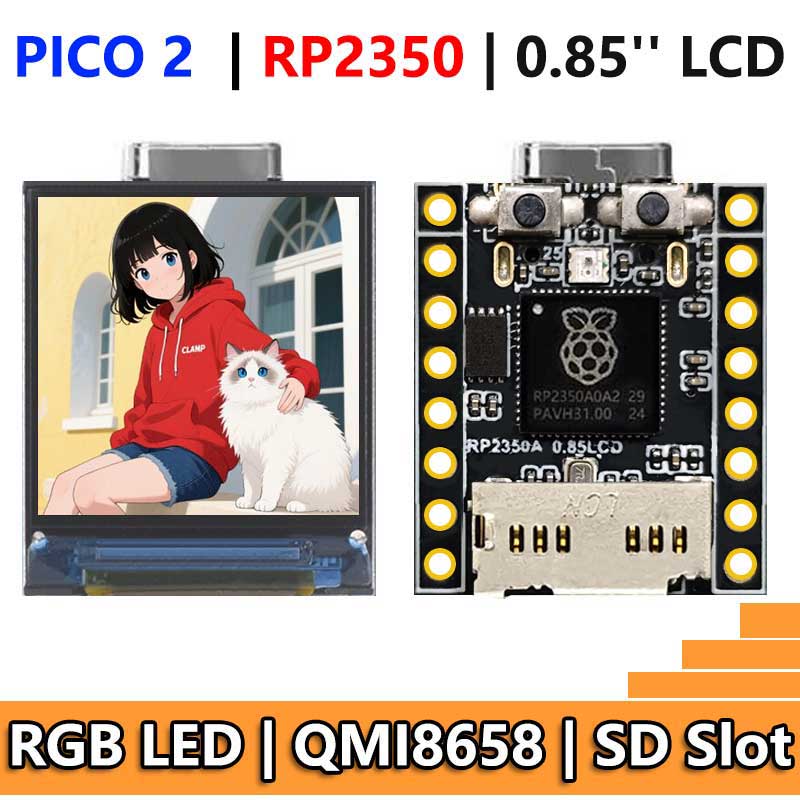

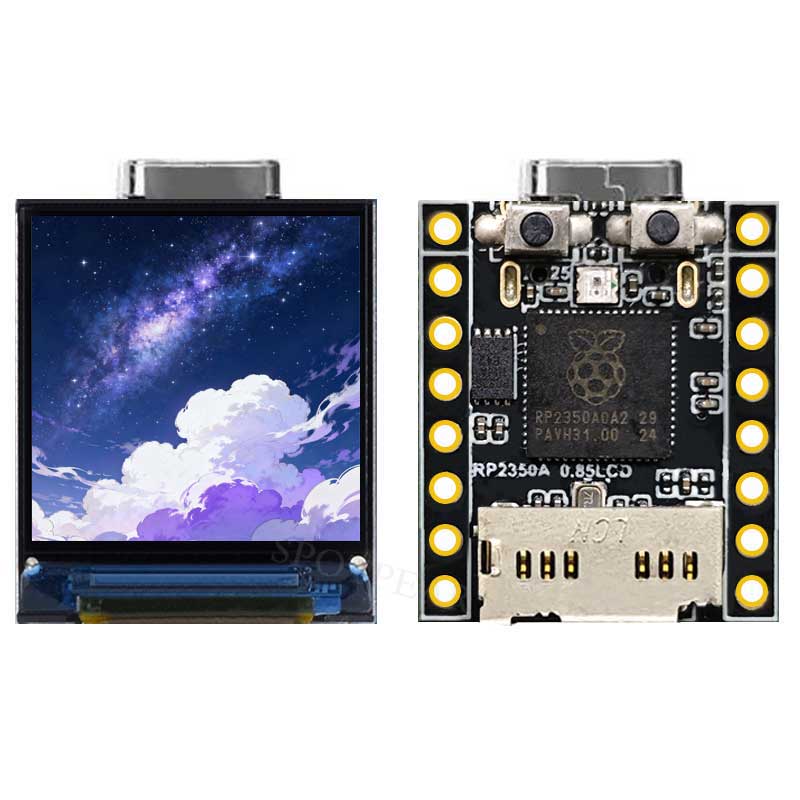

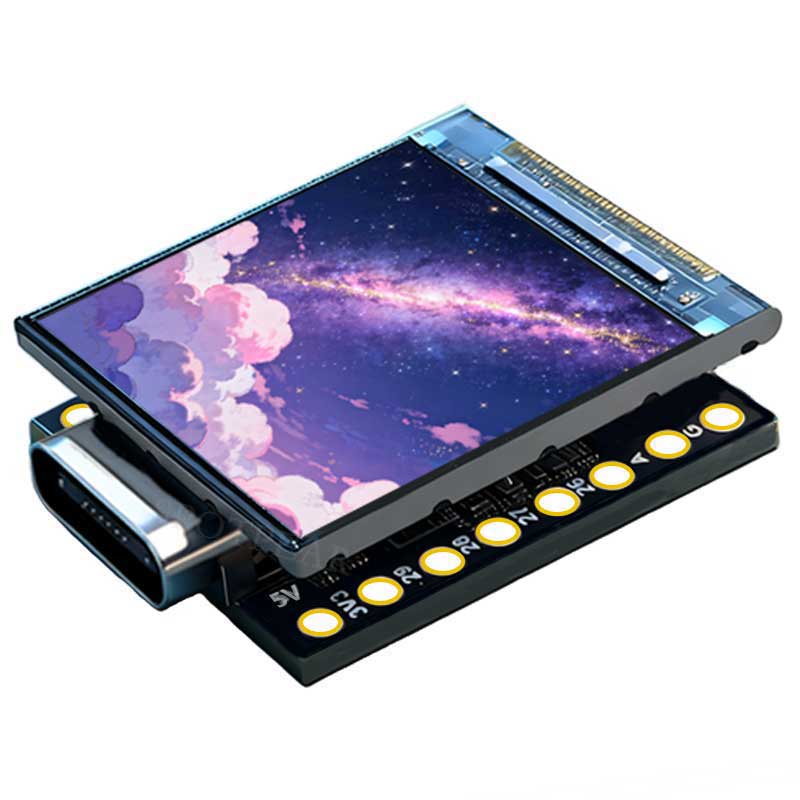

RP2350 LCD Development Board
Designed based on the Raspberry Pi RP2350A

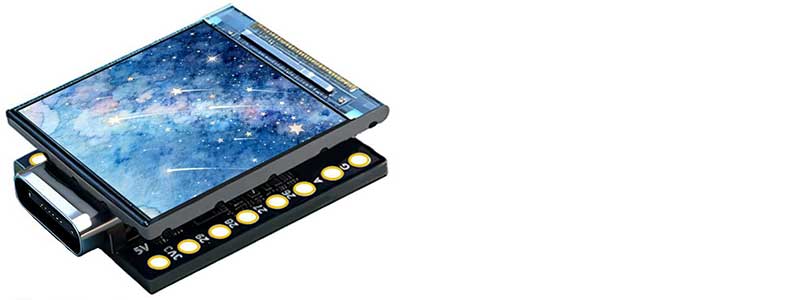

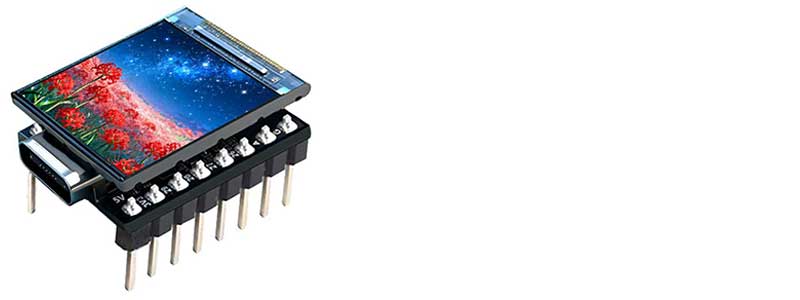

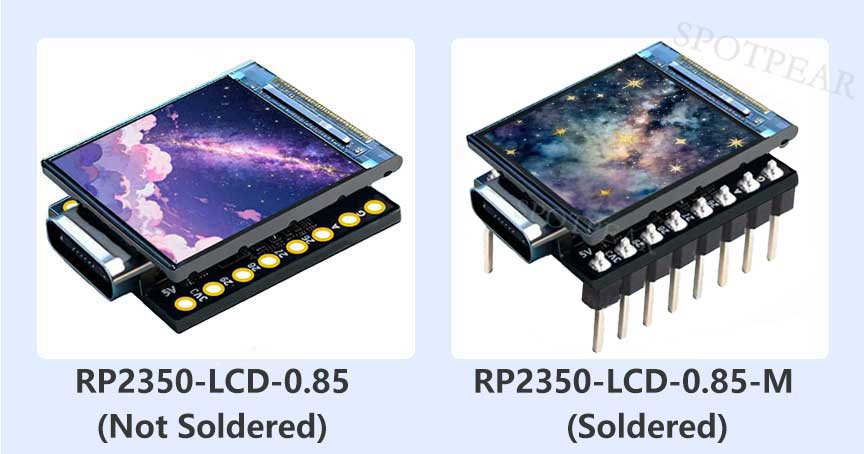

Version selection

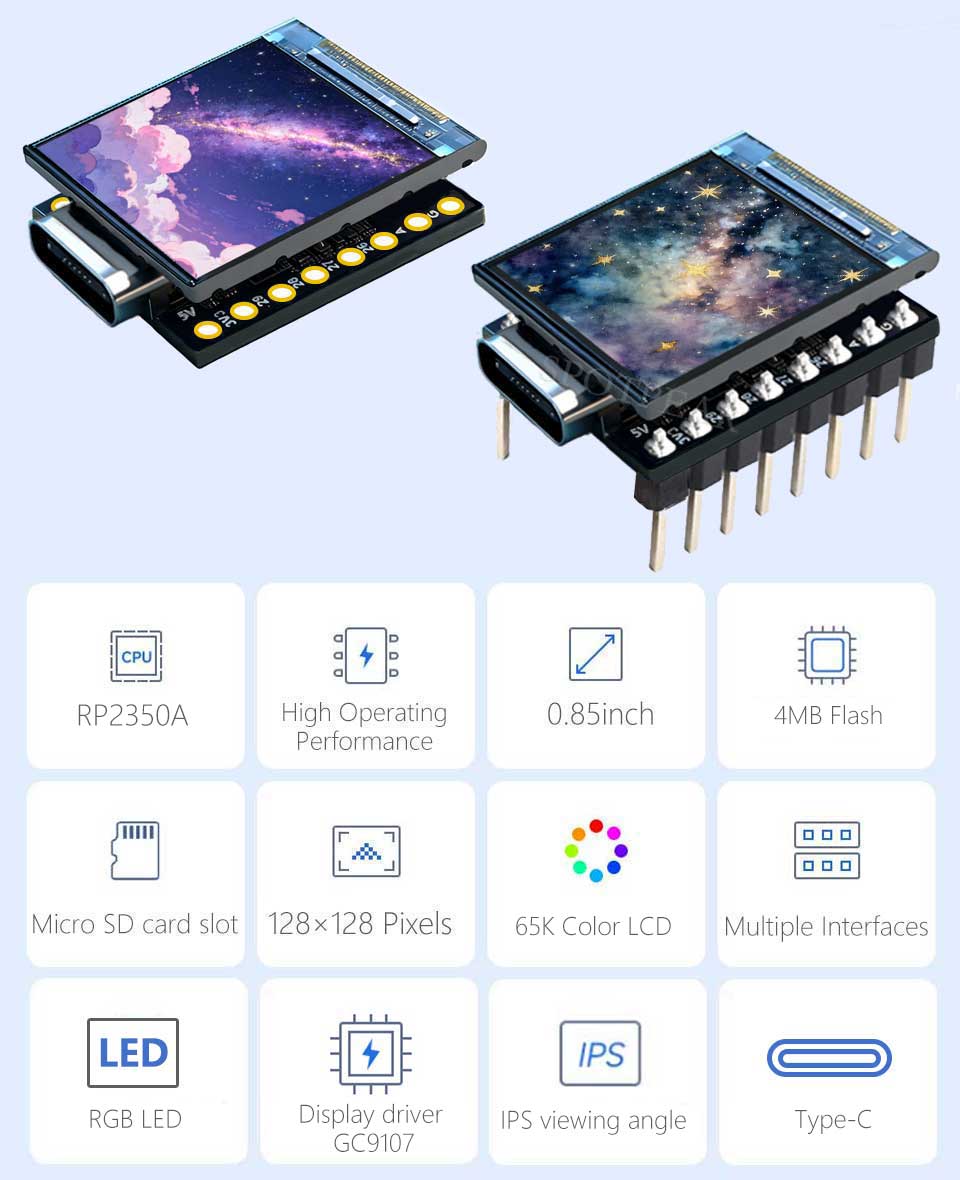

Product Features
This product is a low-cost, high-performance microcontroller development board designed by Banli. Despite its compact size, it features a 0.85-inch LCD, a Micro SD card slot, and RGB lighting, making it easy to develop and integrate into products.
The main features are：
- RP2350A microcontroller chip designed with Raspberry Pi
- Unique dual-core, dual-architecture, equipped with a dual-core ARM Cortex-M33 processor and a dual-core Hazard3 RISC-V processor, both running at clock frequencies up to 150MHz
- Built-in 520KB SRAM and 4MB on-board Flash
- Uses Type-C port, no need to worry about plugging it in the right or wrong direction (Type-C port version only)
- Onboard 0.85-inch LCD screen, 128 × 128 resolution, 65 colors
- USB 1.1 host and device support
- Supports low-power sleep and hibernation modes
- USB can be recognized as mass storage for drag-and-drop downloading
- Precise on-chip clock and timer
- Onboard temperature sensor
- Onboard RGB colored lamp beads, combined with transparent acrylic interlayer, can achieve cool lighting effects
Supports C/C++, MicroPython

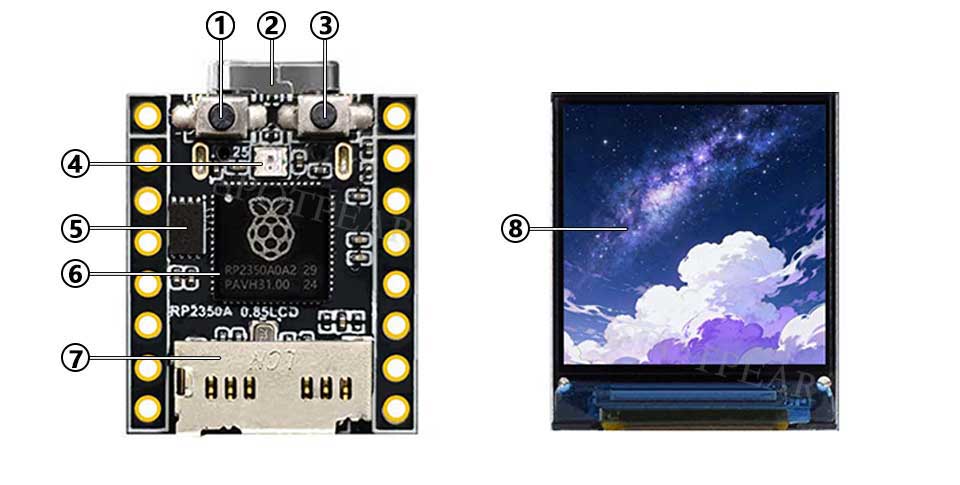

Resource Introduction
- BOOT button
- Type-C port
- RESET button
- RGB color lamp beads
- 4MB Falsh
- RP2350A
- SD card slot
- 0.85-inch screen

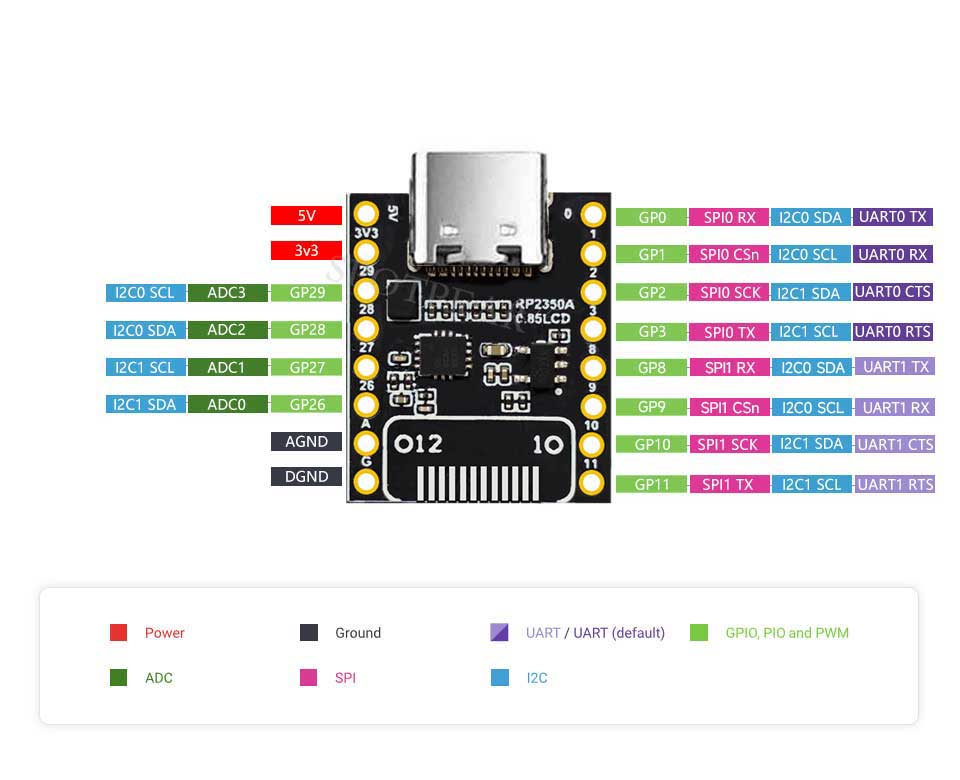

Pin Definition

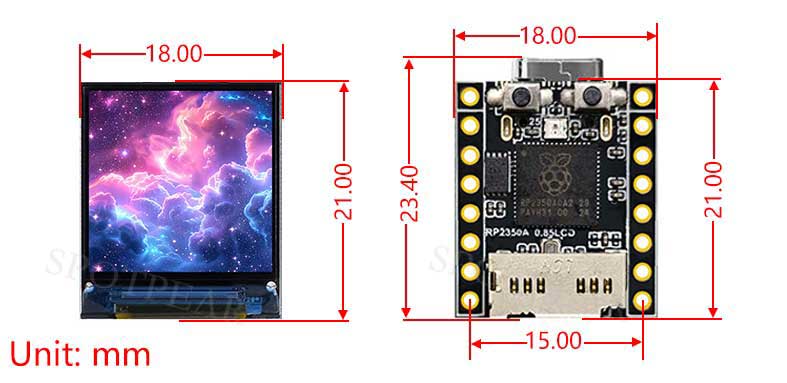

Product size
