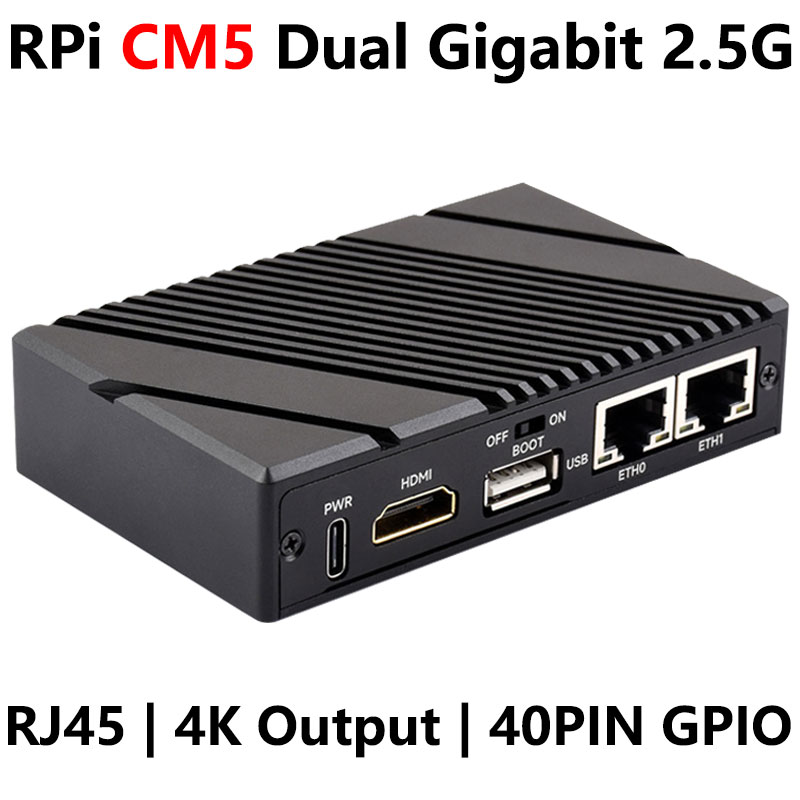

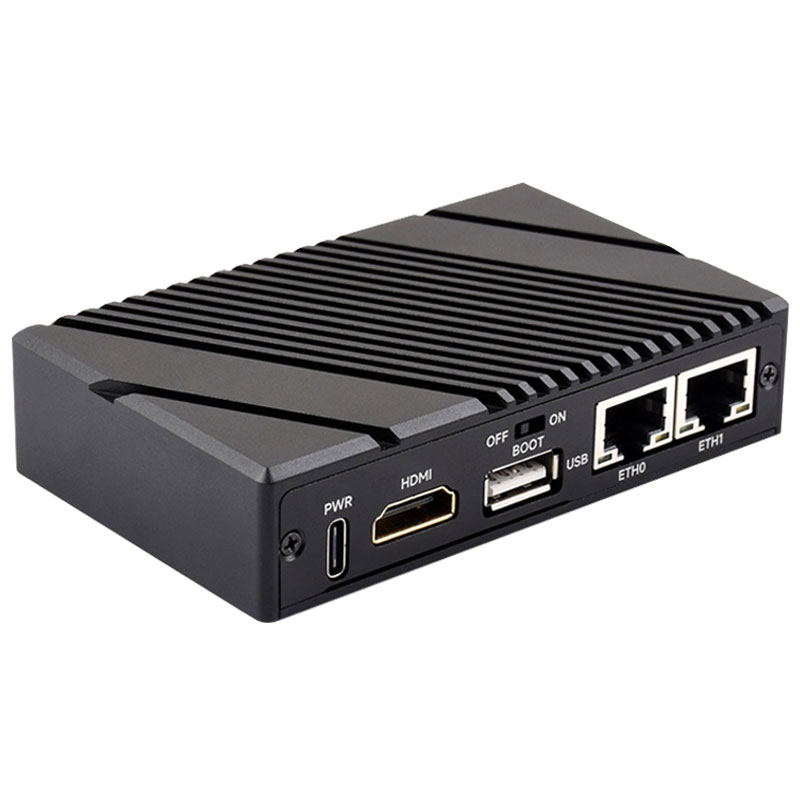

Raspberry Pi CM5 Gigabit 2.5G Dual Ethernet Ports Expansion Board RJ45 4K Output

Raspberry Pi CM5 Gigabit 2.5G Dual Ethernet Ports Expansion Board RJ45 4K Output

$72.9

Brand：SpotPear

SKU：010148300000

Date：2026-03-12 13:48

Part Number：

CM5-DUAL-ETH-BOX-B

No：

- +

In Stock

Buy It Now

Add to cart

Ask a Question

Copy Link

Gigabit / 2.5G Dual Ethernet Mini-Computer (B) Based On Raspberry Pi CM5 (NOT included), Dual RJ45 Ethernet Ports, Supports 4K Display Output And Dual MIPI Interfaces

Dual Ethernet Mini-Computer For CM5

Designed For Raspberry Pi Compute Module 5

* the Compute Module 5 is NOT included.

Specifications

CM5 SOCKET	Suitable for all variants of Compute Module 5
NETWORKING	1000M Ethernet RJ45 port 2500M Ethernet RJ45 port
CONNECTOR	Raspberry Pi 40PIN GPIO Header
USB	USB 3.2 Gen1 × 1 USB 2.0 × 1 Type-C（USB2.0）× 1
MIPI	4-lane MIPI interface × 2 (22PIN 0.5mm FFC connector)
VIDEO	HDMI port × 1, supports 4K display output
M.2	M.2 M KEY (PCIe Gen2/3 x 1)
STORAGE	TF card socket for Compute Module 5 Lite (without eMMC) variants
FAN HEADER	5V, 4PIN JST-SH PWM fan connector
POWER INPUT	DC 5V 5A
DIMENSIONS	101 × 62 × 23.4 (mm)

Check the Compute Module 5 variants

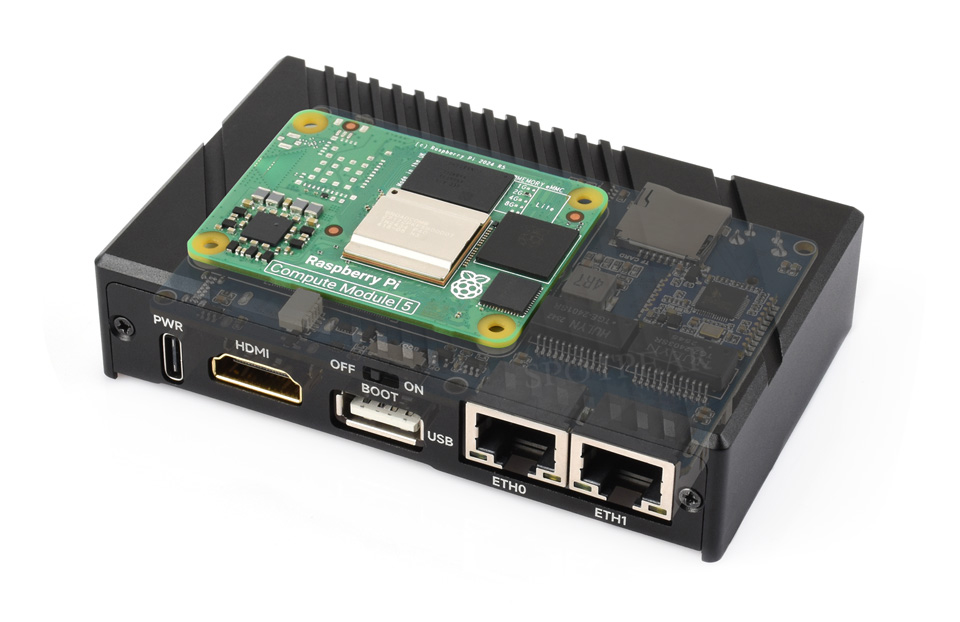

Connecting With Compute Module 5

Standard CM5 Socket And Raspberry Pi 40PIN GPIO Header, Suitable For Compute Module 5 Lite / EMMC Series Module

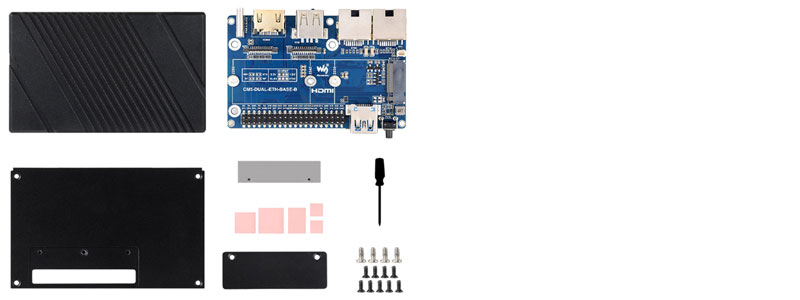

* for reference only, please refer to the package content for detailed part list

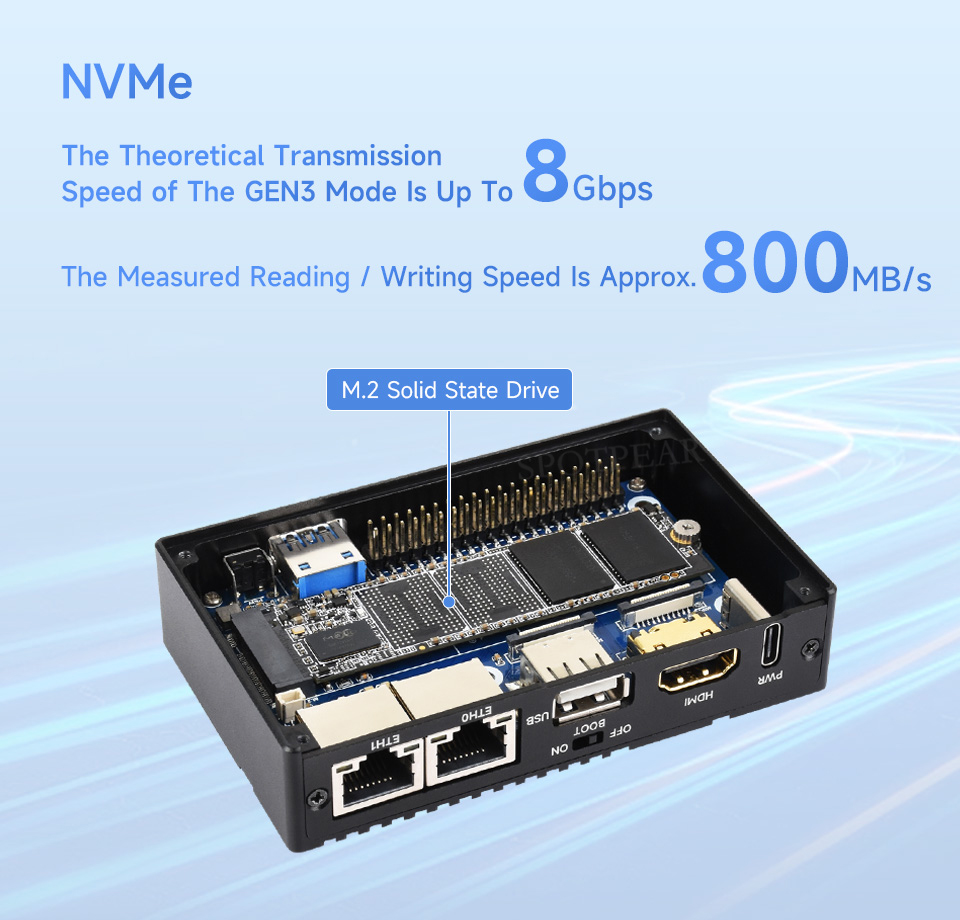

Supports Connecting To M.2 NVMe Drive

Faster Reading/Writing Speed Compared To The TF Card Slot Of Raspberry Pi, Greatly Improving Reading/Writing Efficiency Of The System Or Files, Supports Booting Pi5 From NVME Solid State Drive

* for reference only, please refer to the package content for detailed part list.

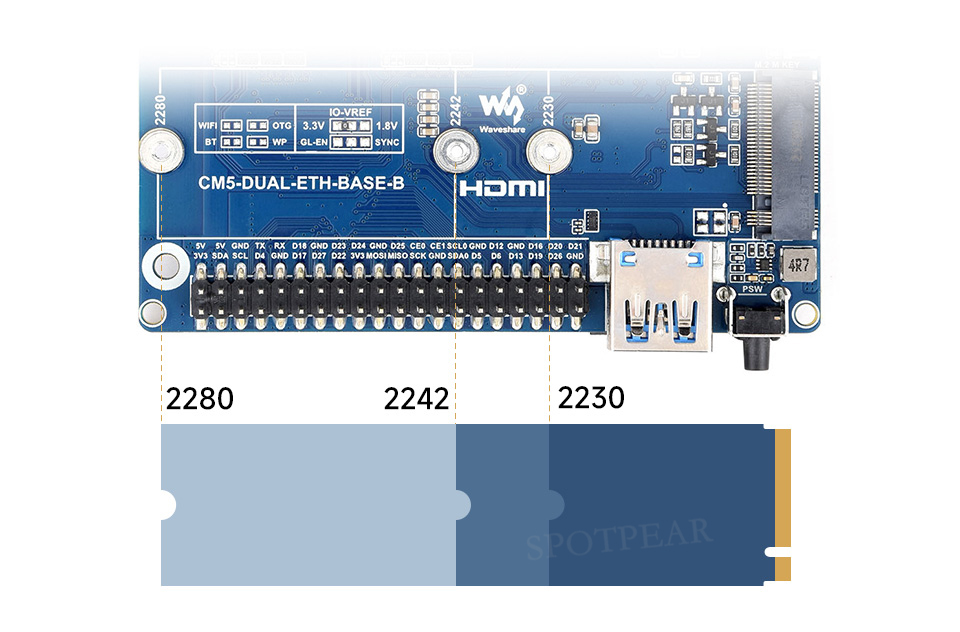

Applicable M.2 Drive Sizes

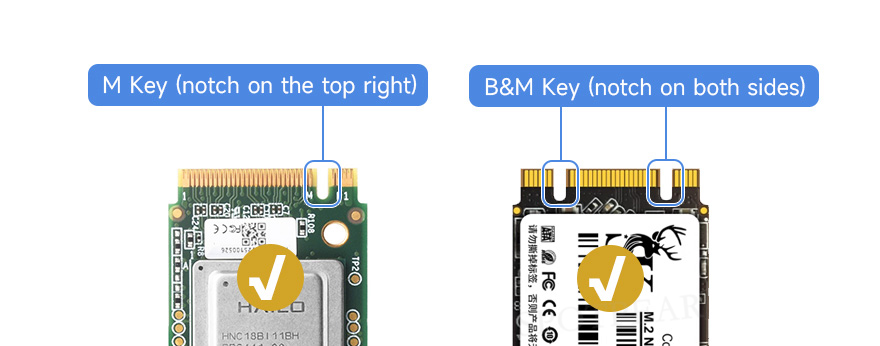

NVMe Drive Slot Support

* Only supports the NVMe Protocol Solid State Drives.

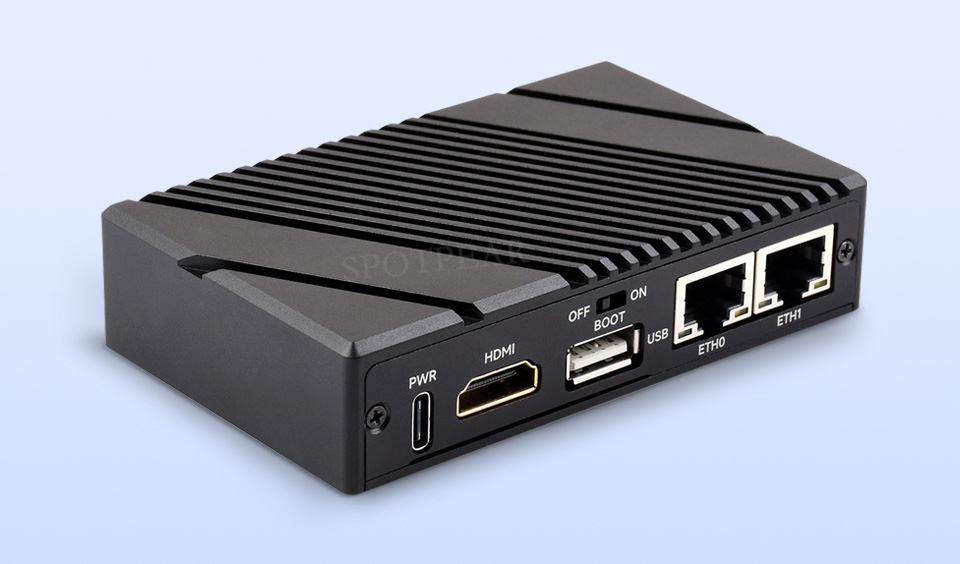

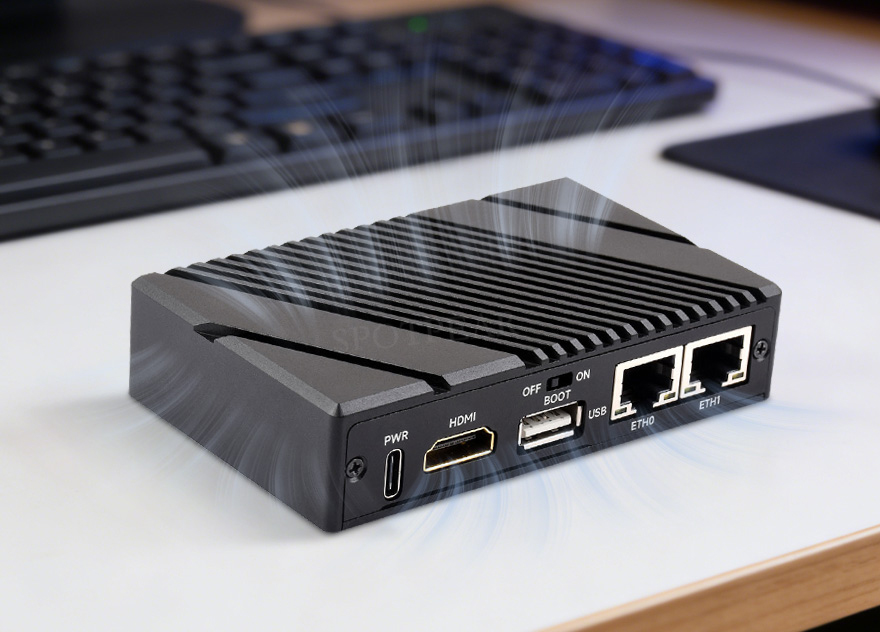

Passive Heat Dissipation Design

Aluminum Alloy Case Enables Passive Cooling, Fanless Operation

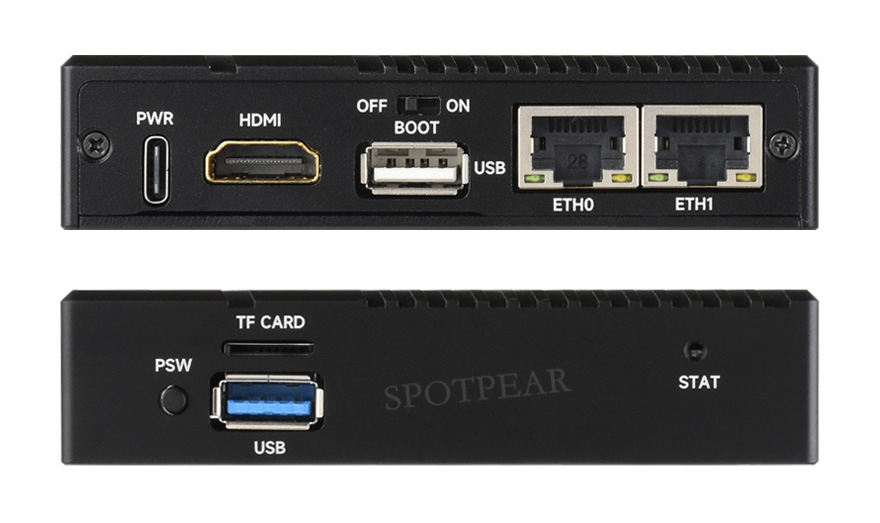

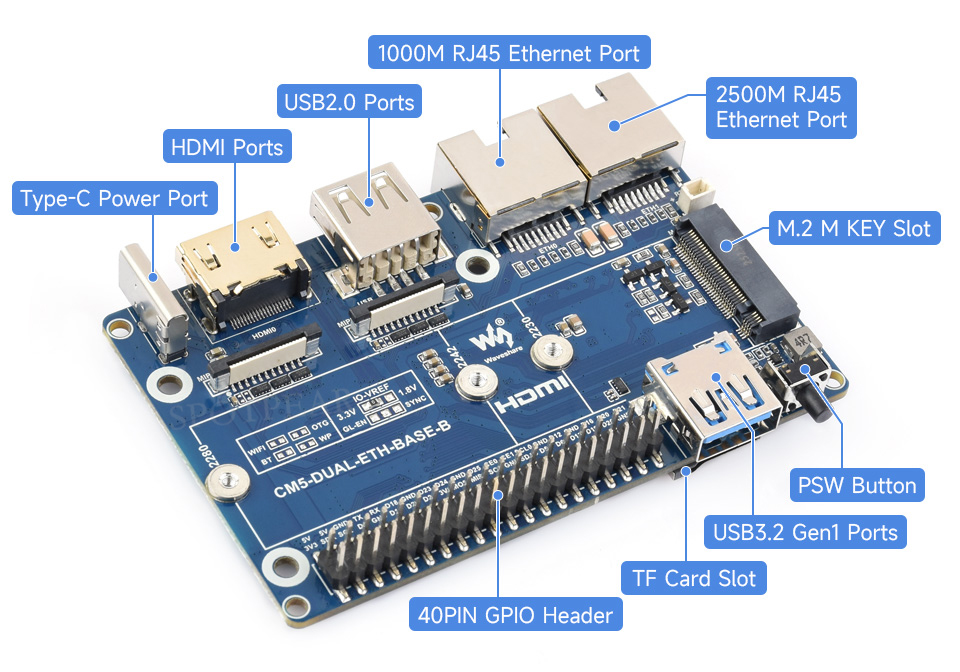

More Rich Interfaces

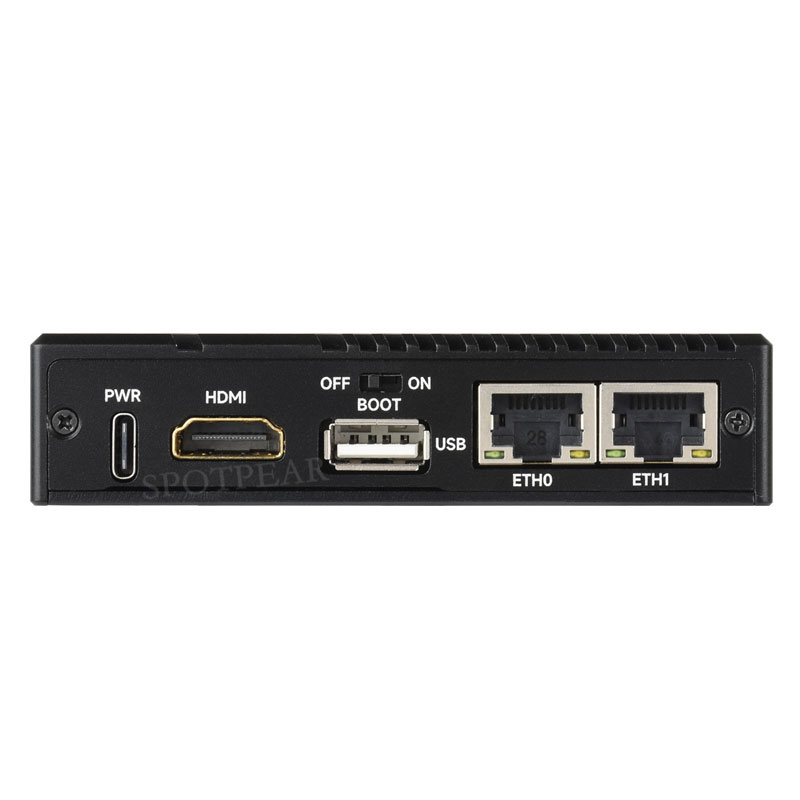

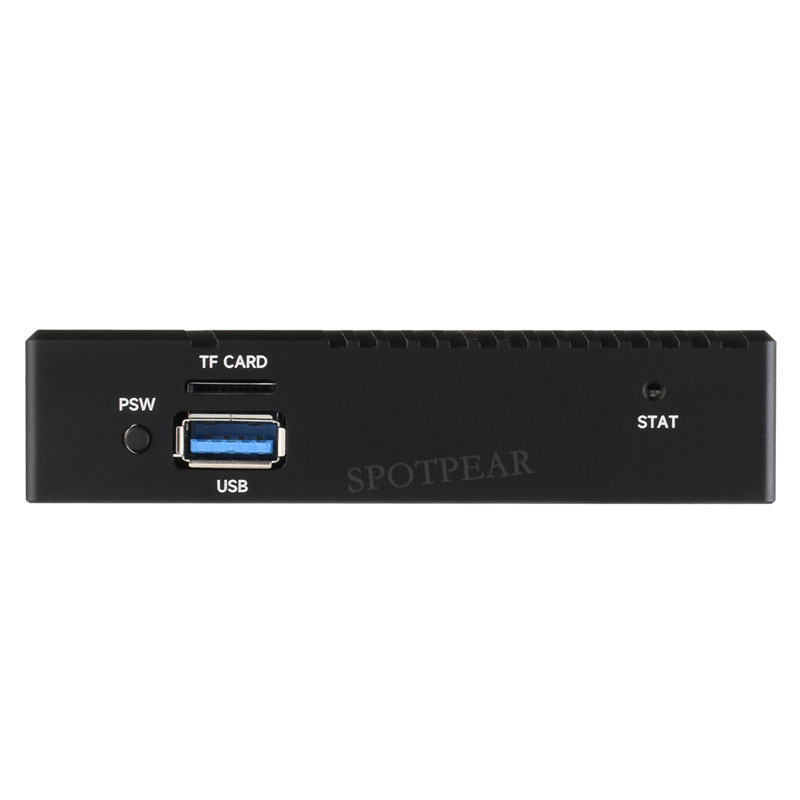

Features Multiple Interfaces Including ETH / MIPI / HDMI / TF Card Slot / USB / M.2 M KEY, For Easy To Use

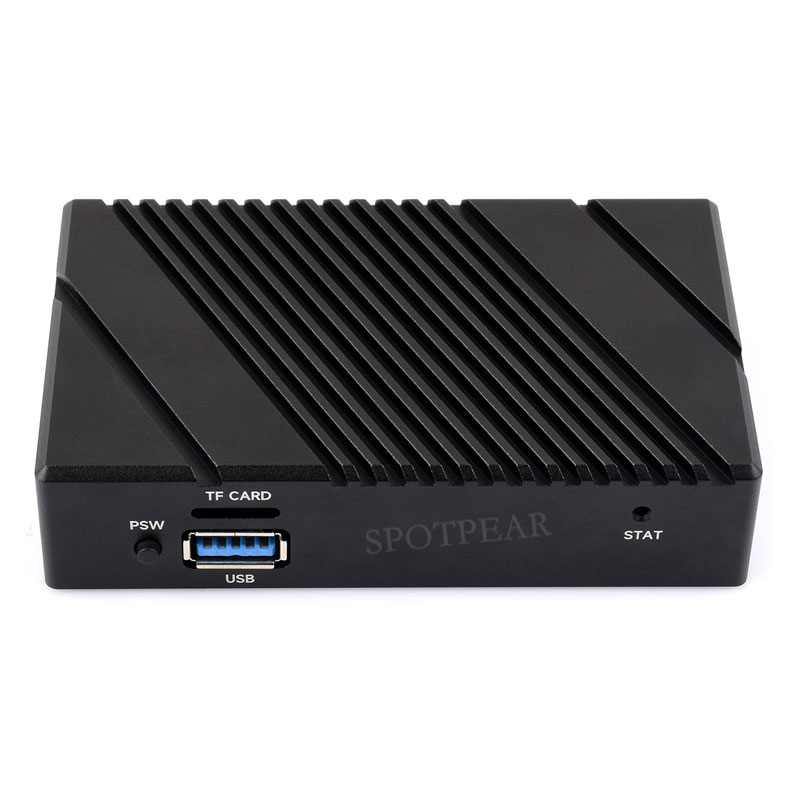

Precise Cut-Out With Clear Label

Each Cut-Out Is Completely Aligned With The Connector

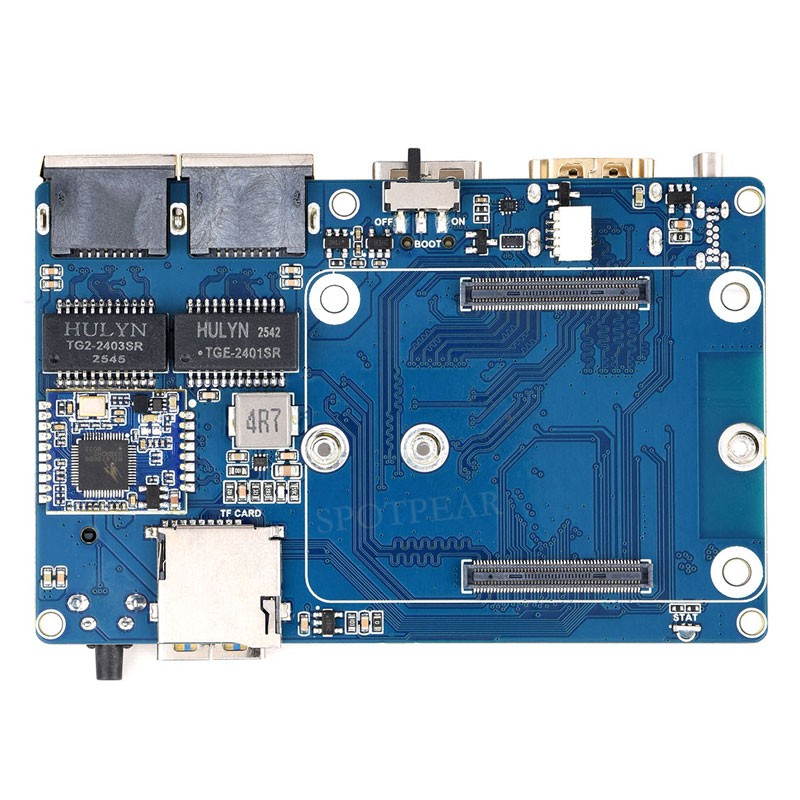

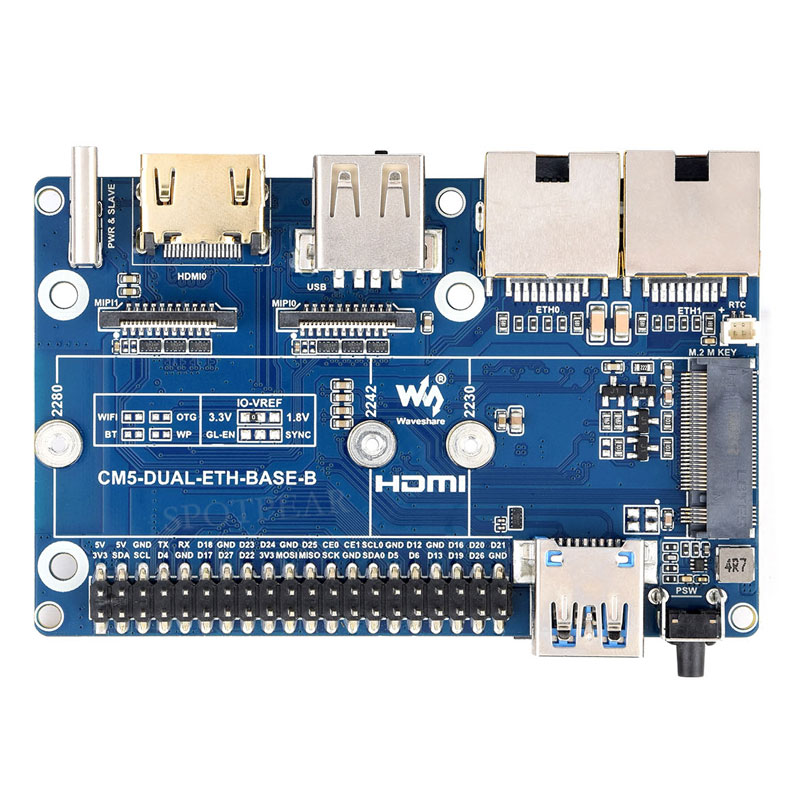

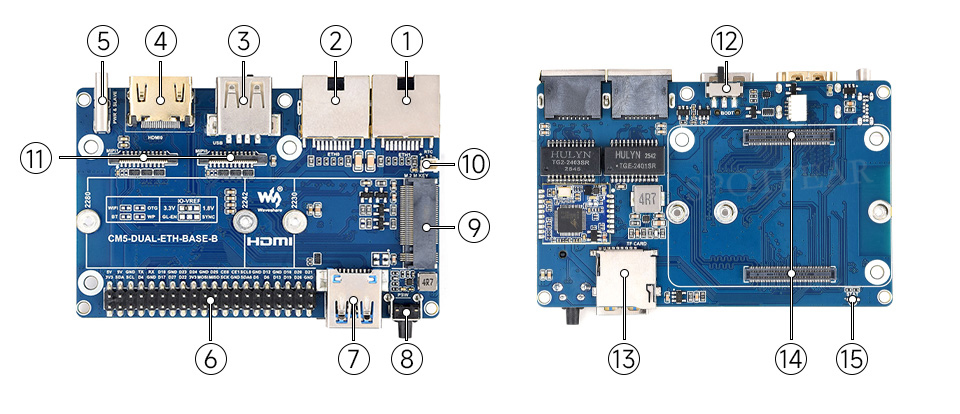

What's On Board

2500M Ethernet RJ45 port
supporting 10M / 100M / 1000M / 2500M network connections
1000M Ethernet RJ45 port
supporting 10M / 100M / 1000M network connections
USB 2.0 port
HDMI port
Supports 4K output
Type-C power port
DC 5V power input, or used for eMMC burning
40PIN GPIO header
Suitable for connecting to various HAT / HAT+ modules
USB 3.2 Gen1 port
supports up to 5 Gbps reading / writing speed
PSW power button
Long press to force power off, short press to soft power off or on

M.2 M KEY
Supports 2230 / 2242 / 2280 NVMe Solid State Drives or AI modules
RTC SH1.0 batt header
for connecting an external RTC batt to maintain real-time clock operation
MIPI Interfaces
for connecting to DSI displays or CSI cameras
BOOT button
used to enter burning mode
TF card slot
for connecting a TF card with pre-burnt image (Lite variant ONLY)
CM5 socket
Suitable for all variants of Compute Module 5
STAT LED
Dual-color status LED

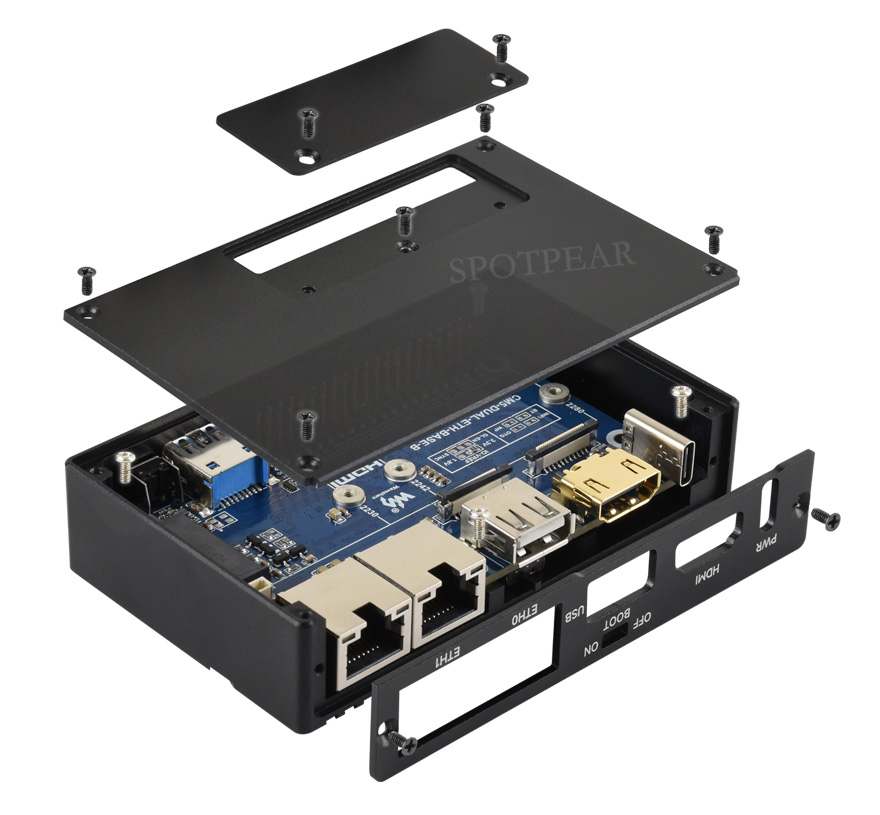

Assembly Instructions

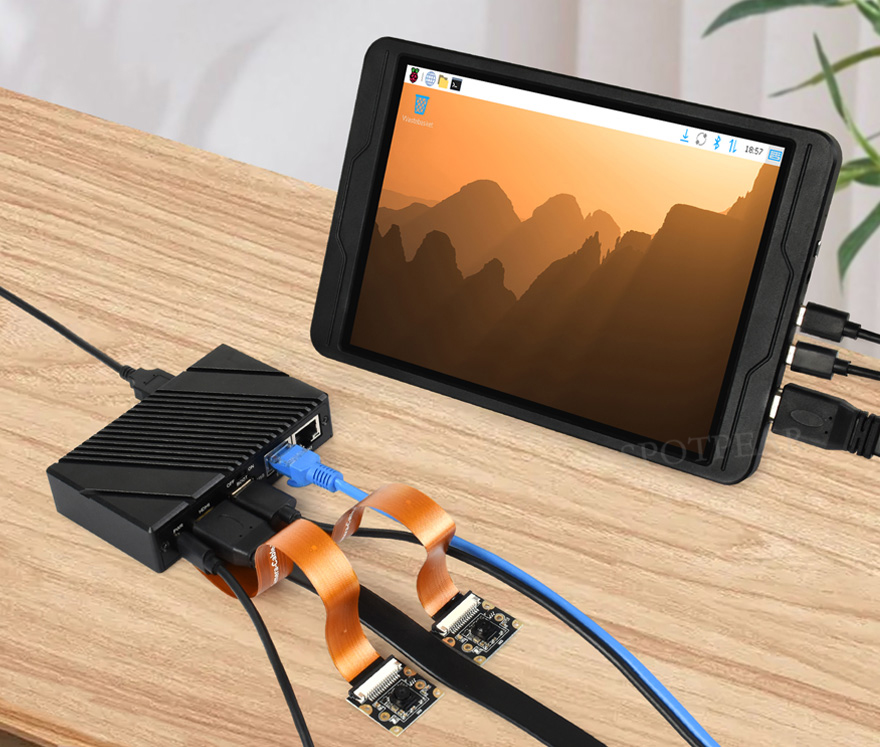

Application Example

Suitable For Raspberry Pi Applications In Remote Communications Or Other Industrial Situations

* for reference only, the display and camera module are not included, please purchase separately if needed

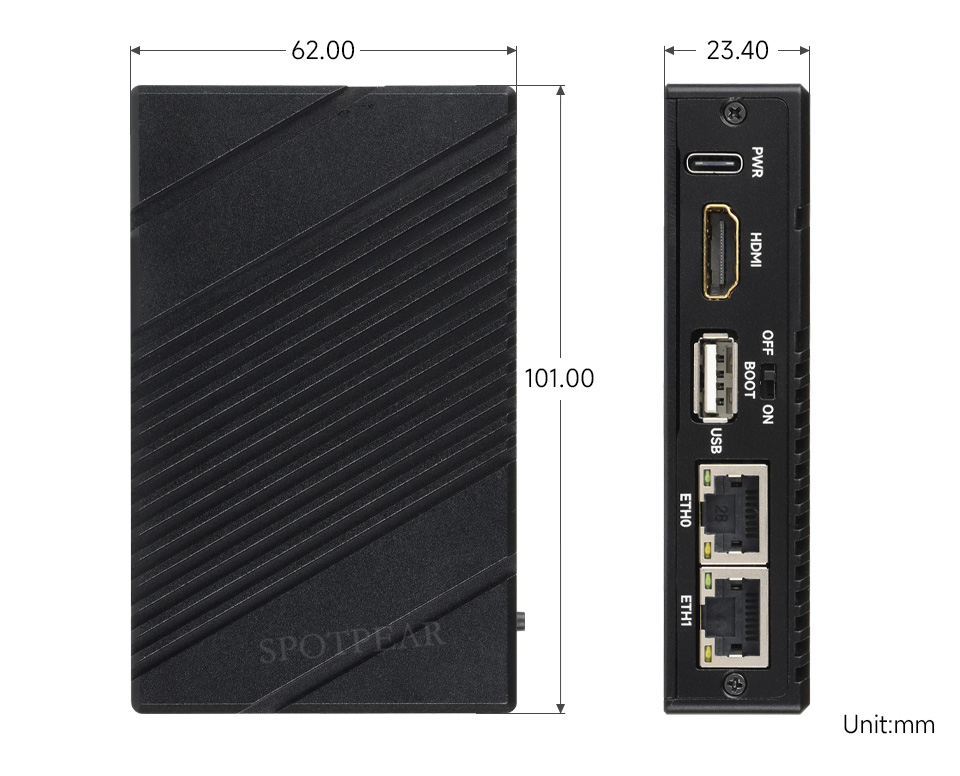

Outline Dimensions

[] CM5-DUAL-ETH-BOX-B
