Raspberry Pi 500+ plus Personal computer Mechanical Keyboard With official SSD and Programmable RGB

Raspberry Pi 500+ plus Personal computer Mechanical Keyboard With official SSD and Programmable RGB

$372

Brand：Raspberry Pi

SKU：010179000000

Date：2025-10-09 16:43

Part Number：

Raspberry Pi 500+ Raspberry Pi 500+ Desktop Kit ORD CN

No：

- +

In Stock

Buy It Now

Add to cart

Ask a Question

Copy Link

Raspberry Pi 500+ Mechanical Keyboard PC with Wi-Fi, Bluetooth, Dual 4K Displays, Built-in Raspberry Pi Official 256GB NVMe SSD, and Programmable RGB Backlighting

Raspberry Pi 500+

Keyboard-type Raspberry Pi host - mechanical keyboard

Combines the power of a Raspberry Pi 5 with a mechanical keyboard. Portable design, powerful features

It is a keyboard
Also a Raspberry Pi host

The Raspberry Pi 500+ combines the power of the Raspberry Pi 5's quad-core 64-bit Arm processor and RP1 I/O controller into an ergonomic mechanical keyboard. Built-in 16GB of RAM and a 256GB NVMe SSD provide efficient storage and lightning-fast responsiveness, delivering a high-end desktop computing experience.

Mechanical switches for ultimate feel

Each key features Gateron KS-33 blue mechanical switches, delivering a crisp, responsive feel. Custom RAL 7001 silver-gray key stems provide a premium typing experience. A key puller is included for easily replacing keycaps, compatible with most commercially available keycap sets, ensuring a personalized experience.

Ultra-fast solid-state storage, flexible expansion

Equipped with a 256GB NVMe SSD pre-installed with Raspberry Pi OS, it delivers fast boot times and stable data transfers. An internal bay supports 2280-inch M.2 expansion slots, allowing users to flexibly upgrade to larger storage capacities or install other PCIe peripherals. The chassis is easily opened, and dedicated tools are included for convenient SSD replacement or expansion. The Raspberry Pi 500+ also retains support for booting from SD cards and USB SSDs, providing flexible adaptation to diverse application scenarios.

Programmable RGB backlighting for personalized customization

The keyboard features built-in, individually addressable RGB LED backlighting, allowing for personalized lighting effects. Driven by the RP2040 controller running QMK firmware, it offers extensive functionality. Custom low-profile keycaps feature a paint and laser etching process, allowing light to clearly shine through the keycaps.

Product parameter comparison

model	Raspberry Pi 500	Raspberry Pi 500+
processor	Broadcom BCM2712 Quad-core 64-bit Arm Cortex-A76 CPU 2.4GHz clock speed L1 cache:64KB data + 64KB instructionper core L2 cache: 512KB per-core L3 cache: 2MB shared
Memory	8GB LPDDR4X-4267 SDRAM	16GB LPDDR4X-4267 SDRAM
storage	32GB Raspberry Pi A2-Class Micro SD 卡	256GB Raspberry Pi SSD (Raspberry Pi OS pre-installed) Supports M.2 NVMe SSD (2280 specification) With Micro SD card slot
Wi-Fi	Dual-band (2.4GHz and 5.0GHz) IEEE 802.11b/g/n/ac
Bluetooth	Bluetooth 5.0 BLE
Ethernet	Gigabit Ethernet × 1
USB	USB 3.0 port × 2, USB 2.0 port × 1
GPIO	Horizontal 40-pin GPIO interface
Video / Audio	Micro HDMI port × 2 (supports up to 4Kp60 output)
multimedia	H.265 (4Kp60 decoding), OpenGL ES 3.0 graphics
SD card support	Micro SD card slot (for operating system and data storage)
keyboard	78 / 79 / 83-key mechanical keyboard (varies by region)	84 / 85 / 88-key mechanical keyboard (varies by region)， Gateron KS-33 Blue Low Axis
power supply	5V5A DC USB-C power adapter (supports PD)
Operating temperature	0°C ~ 50°C
Dimensions	286.00 × 122.00 × 23.00 (mm)	312.00 × 123.06 × 35.76 (mm)

Interface Introduction

Product size

[] Raspberry Pi 500+

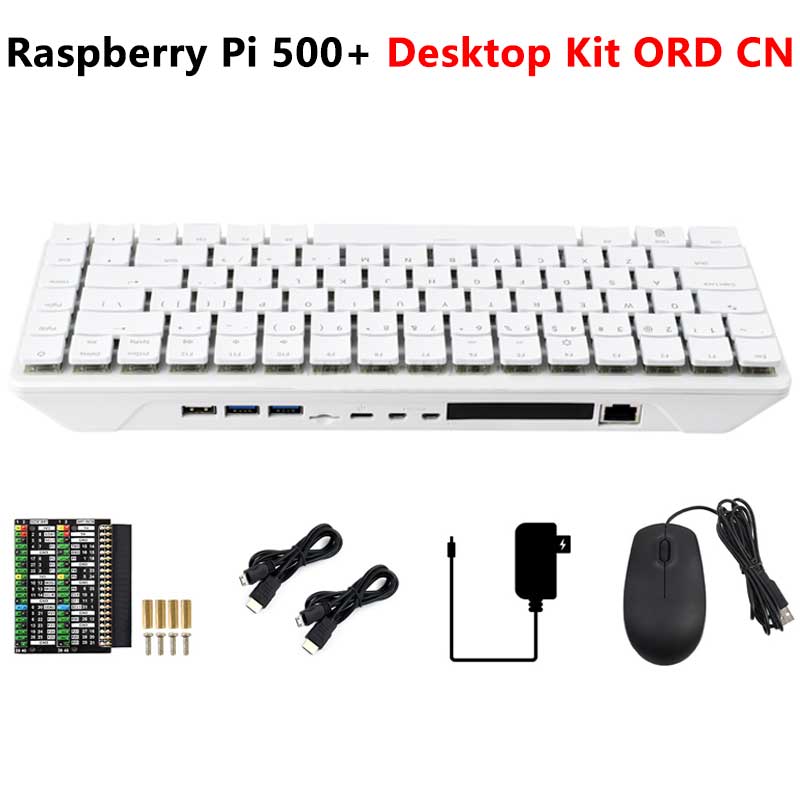

[] Raspberry Pi 500+ Desktop Kit ORD CN
