Raspberry Pi 500+ plus Personal computer Mechanical Keyboard With official SSD and Programmable RGB

$352

Brand:Raspberry Pi
SKU:010179000000
Date:2025-10-09 16:43
No:
In Stock

Raspberry Pi 500+ Mechanical Keyboard PC with Wi-Fi, Bluetooth, Dual 4K Displays, Built-in Raspberry Pi Official 256GB NVMe SSD, and Programmable RGB Backlighting

Raspberry Pi 500+

Keyboard-type Raspberry Pi host - mechanical keyboard

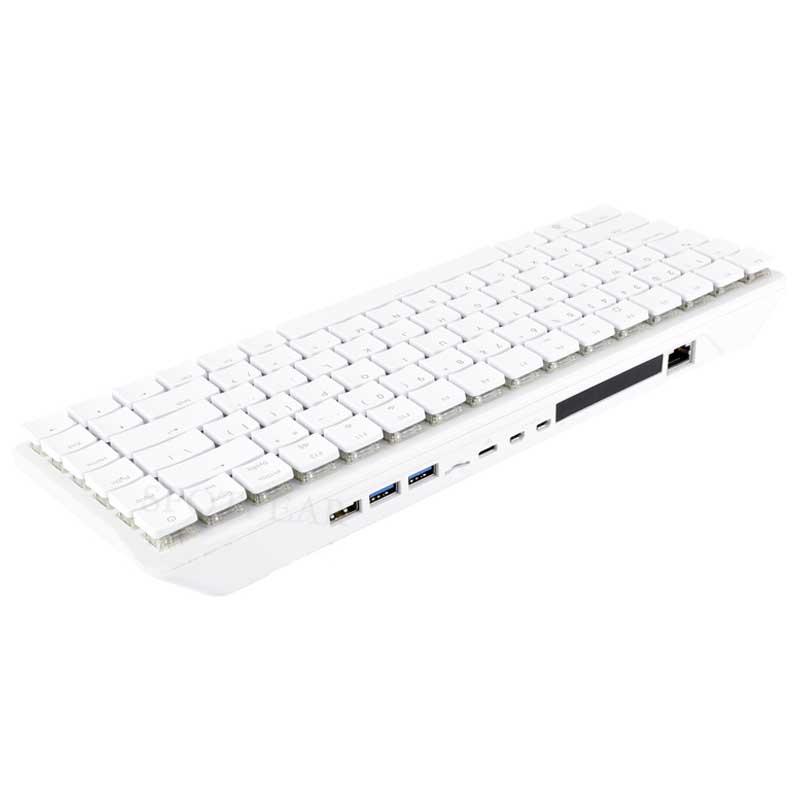

Combines the power of a Raspberry Pi 5 with a mechanical keyboard. Portable design, powerful features


It is a keyboard
Also a Raspberry Pi host

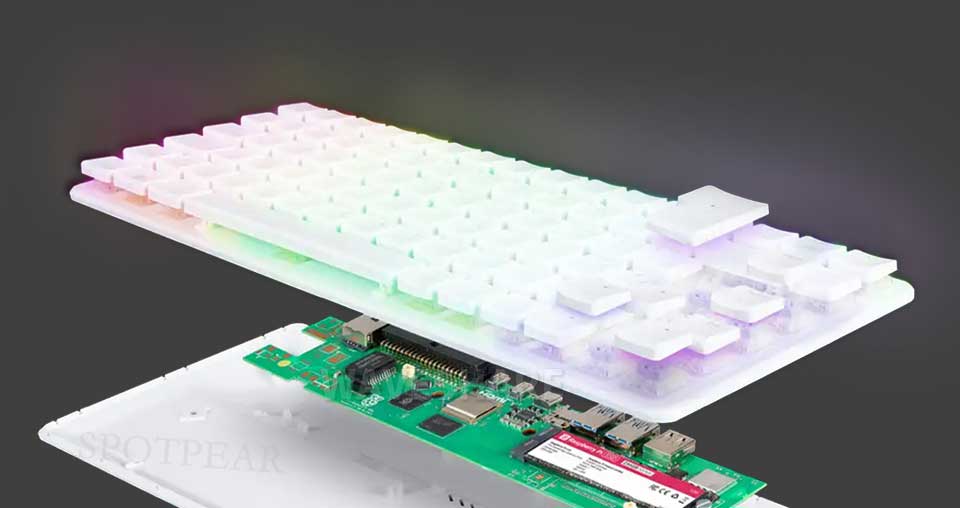

The Raspberry Pi 500+ combines the power of the Raspberry Pi 5's quad-core 64-bit Arm processor and RP1 I/O controller into an ergonomic mechanical keyboard. Built-in 16GB of RAM and a 256GB NVMe SSD provide efficient storage and lightning-fast responsiveness, delivering a high-end desktop computing experience.

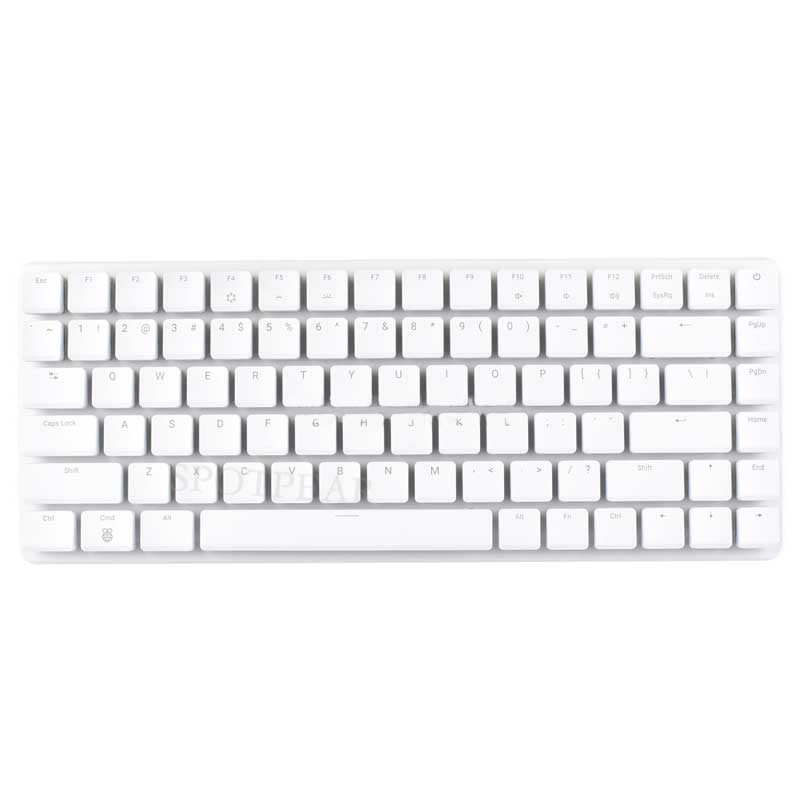

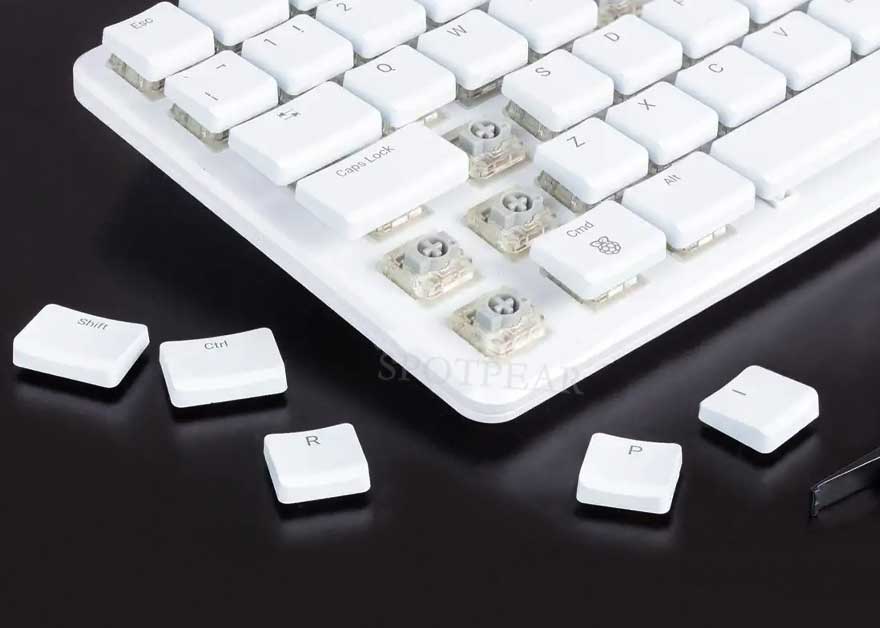

Mechanical switches for ultimate feel

Each key features Gateron KS-33 blue mechanical switches, delivering a crisp, responsive feel. Custom RAL 7001 silver-gray key stems provide a premium typing experience. A key puller is included for easily replacing keycaps, compatible with most commercially available keycap sets, ensuring a personalized experience.

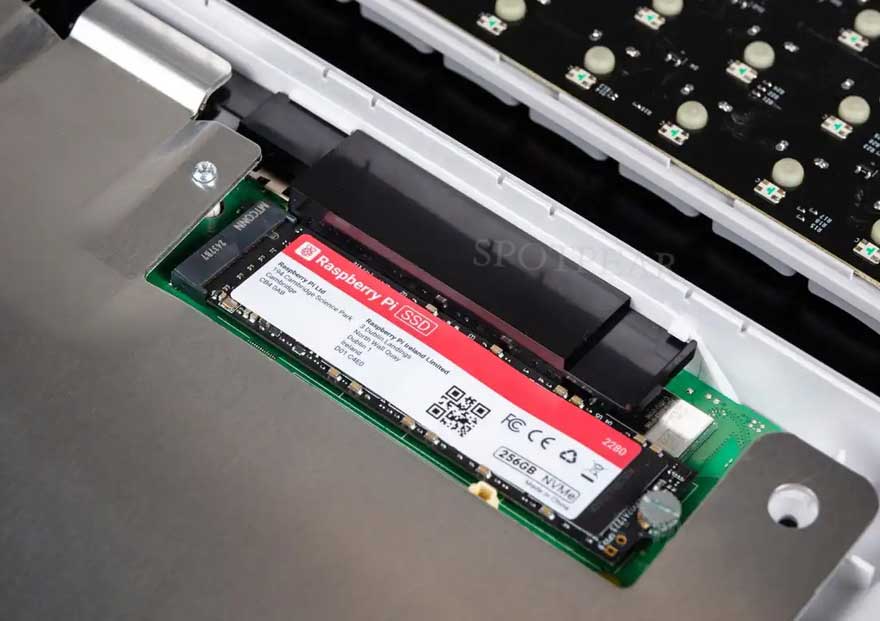

Ultra-fast solid-state storage, flexible expansion

Equipped with a 256GB NVMe SSD pre-installed with Raspberry Pi OS, it delivers fast boot times and stable data transfers. An internal bay supports 2280-inch M.2 expansion slots, allowing users to flexibly upgrade to larger storage capacities or install other PCIe peripherals. The chassis is easily opened, and dedicated tools are included for convenient SSD replacement or expansion. The Raspberry Pi 500+ also retains support for booting from SD cards and USB SSDs, providing flexible adaptation to diverse application scenarios.

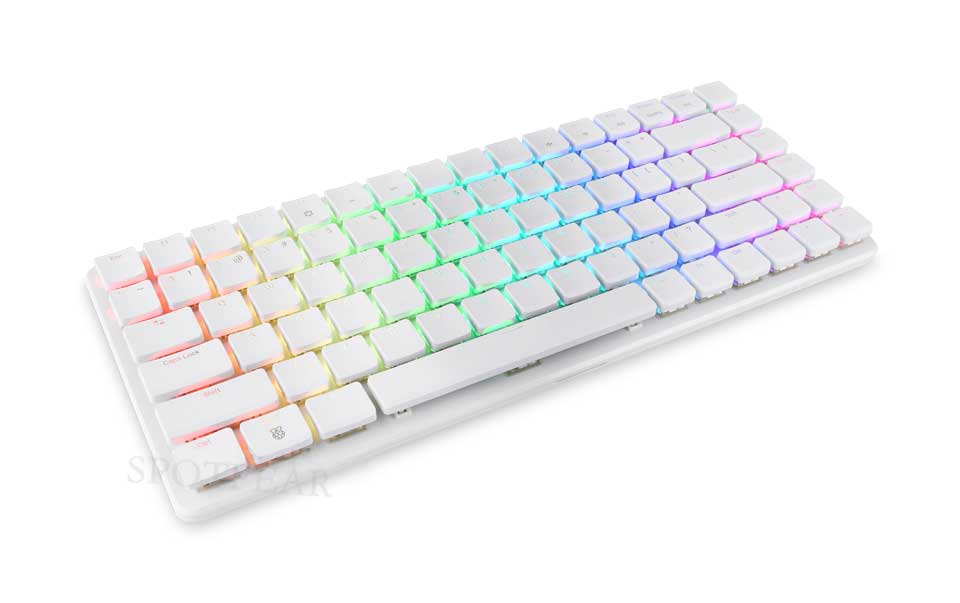

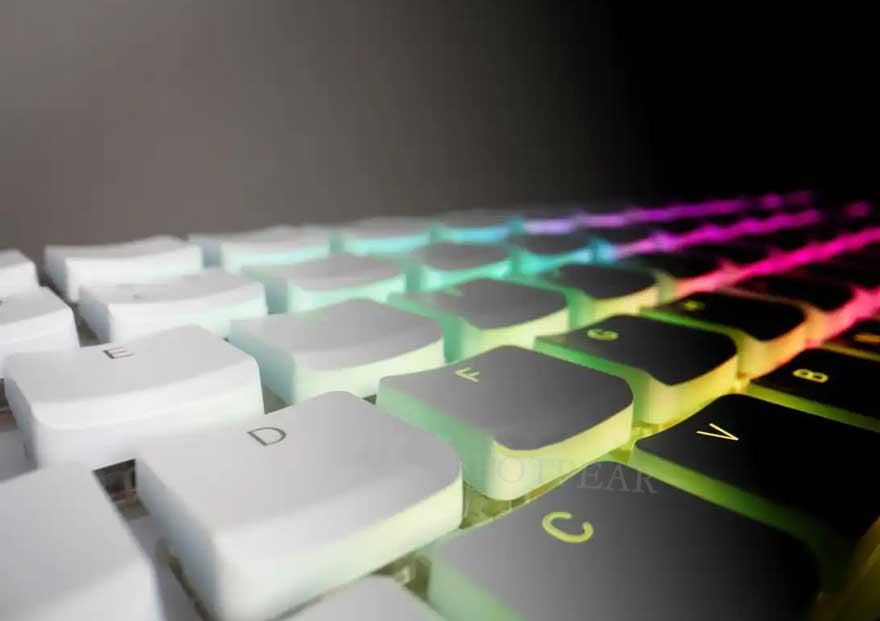

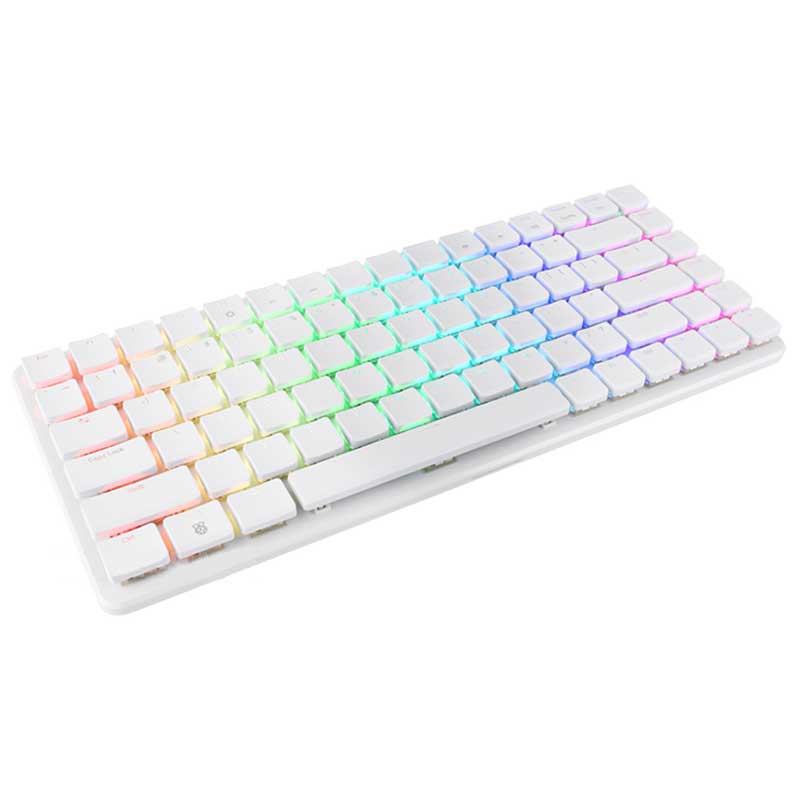

Programmable RGB backlighting for personalized customization

The keyboard features built-in, individually addressable RGB LED backlighting, allowing for personalized lighting effects. Driven by the RP2040 controller running QMK firmware, it offers extensive functionality. Custom low-profile keycaps feature a paint and laser etching process, allowing light to clearly shine through the keycaps.


Product parameter comparison

modelRaspberry Pi 500Raspberry Pi 500+
processorBroadcom BCM2712
Quad-core 64-bit Arm Cortex-A76 CPU
2.4GHz clock speed
L1 cache:64KB data + 64KB instructionper core
L2 cache: 512KB per-core
L3 cache: 2MB shared
Memory8GB LPDDR4X-4267 SDRAM16GB LPDDR4X-4267 SDRAM
storage32GB Raspberry Pi A2-Class Micro SD 卡256GB Raspberry Pi SSD
(Raspberry Pi OS pre-installed)
Supports M.2 NVMe SSD (2280 specification)
With Micro SD card slot
Wi-FiDual-band (2.4GHz and 5.0GHz) IEEE 802.11b/g/n/ac
BluetoothBluetooth 5.0 BLE
EthernetGigabit Ethernet × 1
USBUSB 3.0 port × 2, USB 2.0 port × 1
GPIOHorizontal 40-pin GPIO interface
Video / AudioMicro HDMI port × 2 (supports up to 4Kp60 output)
multimediaH.265 (4Kp60 decoding), OpenGL ES 3.0 graphics
SD card supportMicro SD card slot (for operating system and data storage)
keyboard78 / 79 / 83-key mechanical keyboard (varies by region)84 / 85 / 88-key mechanical keyboard (varies by region),
Gateron KS-33 Blue Low Axis
power supply5V5A DC USB-C power adapter (supports PD)
Operating temperature0°C ~ 50°C
Dimensions286.00 × 122.00 × 23.00 (mm)312.00 × 123.06 × 35.76 (mm)

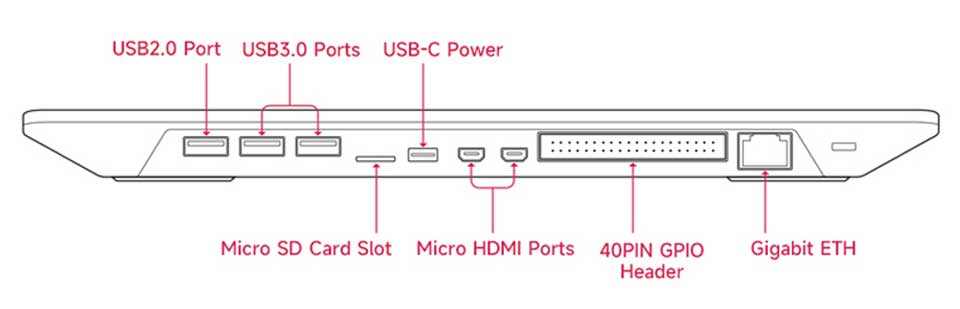

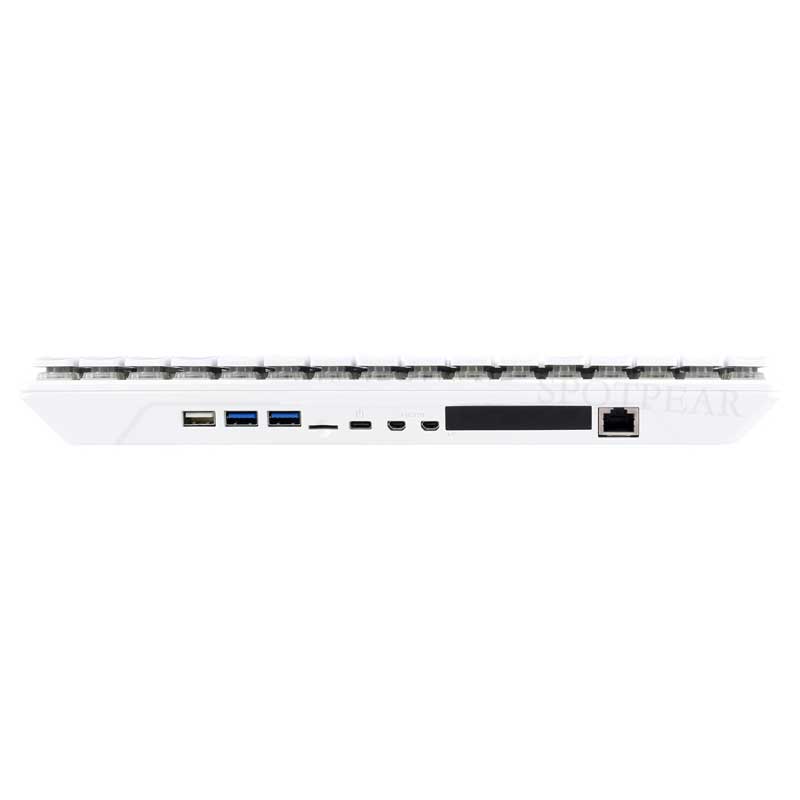

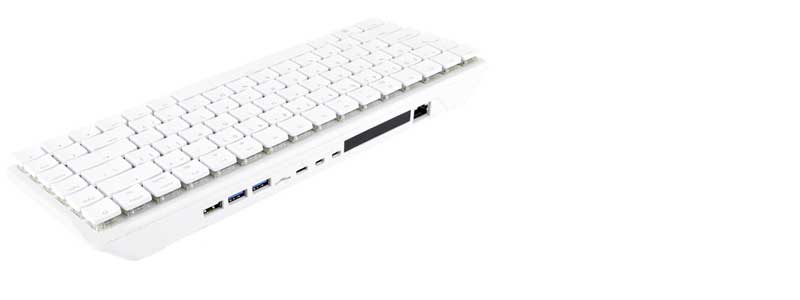

Interface Introduction

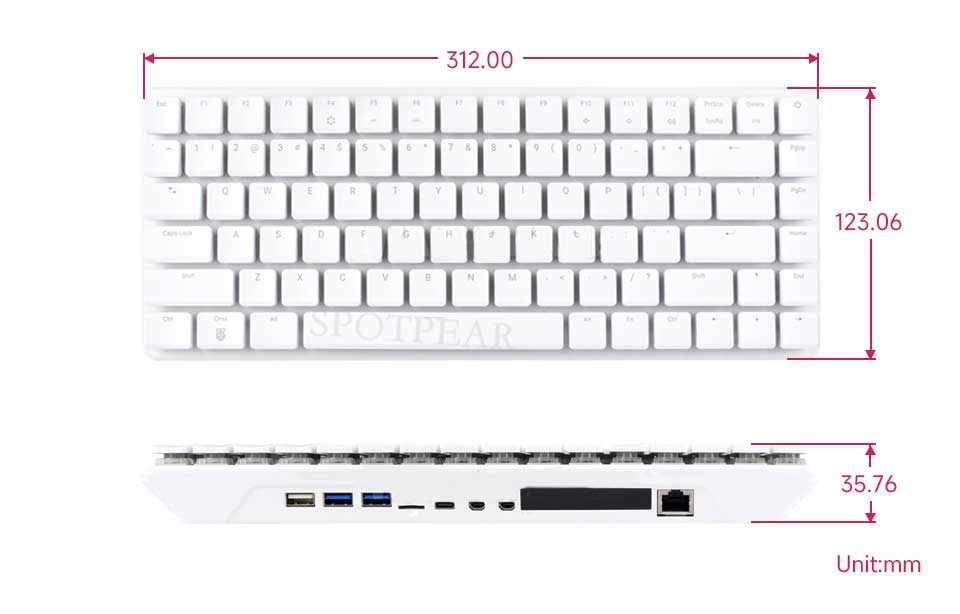

Product size
