ESP32 P4 Development Board 7-inch LCD Display 1024×600 7inch Touchscreen ESP32-C6 WiFi6 AI Deepseek
$54.9
ESP32-P4-WIFI6 7-inch five-point touchscreen development board with 1024×600 resolution. Based on ESP32-P4 and ESP32-C6, it supports Wi-Fi 6, BLE 5, and Xiaozhi AI DeepSeek.
ESP32-P4 Recommend
EPS32 DeepSeek AI Recommend
ESP32-P4-WIFI6
7-inch touch screen development board
High-performance development board based on ESP32-P4 and ESP32-C6
Rich human-computer interaction interface

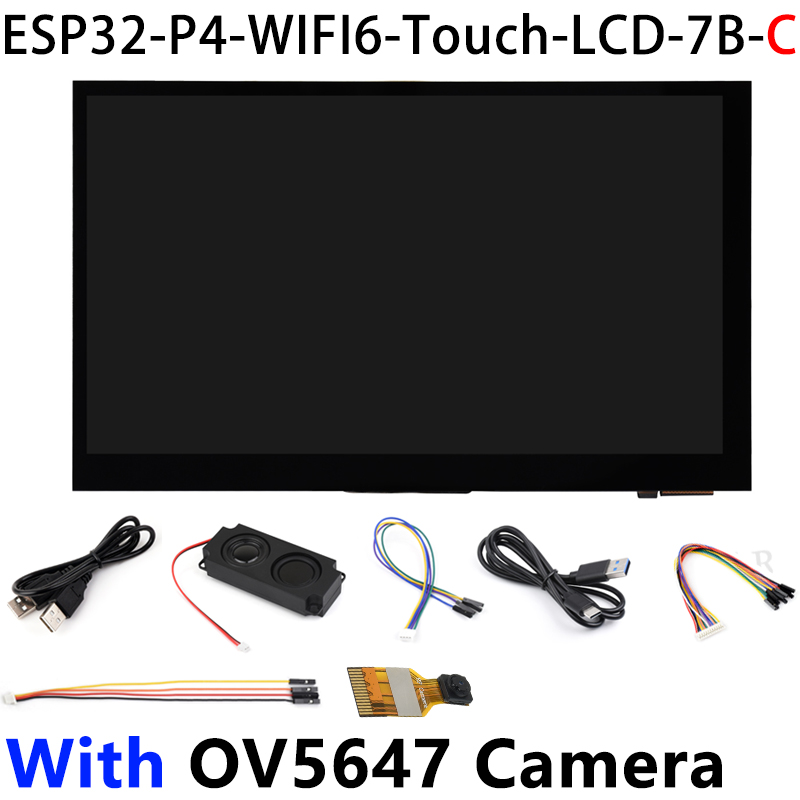

Version selection
Product Features
This product is a high-performance RISC-V development board based on the ESP32-P4 chip, featuring a dual-core and a single-core processor. It features a 7-inch, 1024 × 600 horizontal touchscreen display and supports a rich set of human-machine interface interfaces, including MIPI-CSI (integrated image signal processor). It also supports USB On-The-Go 2.0 High Speed (HS) for high-speed connectivity, enabling a wider range of applications. The ESP32-P4 chip integrates a digital signature peripheral and a dedicated key management unit to ensure data and operational security. Designed for high-performance and high-security applications, it fully meets the demands of embedded applications for advanced human-machine interface support, edge computing capabilities, and I/O connectivity.
- High-performance MCUs with RISC-V 32-bit dual-core and single-core processors
- 128 KB HP ROM、16 KB LP ROM、768 KB HP L2MEM、32 KB LP SRAM、8 KB TCM
- Powerful image and voice processing capabilities, including image and voice processing interfaces such as JPEG codec, pixel processing accelerator (PPA), image signal processor (ISP), and H264 video encoder
- 32MB PSRAM is stacked inside the chip package, and 32MB Nor Flash is integrated outside the package
- The board leads out common peripheral interfaces such as MIPI-CSI, MIPI-DSI, USB 2.0 OTG HS, SDIO 3.0 SD card slot, dual microphones with echo cancellation support, speaker terminals and RTC battery holder.
- The board leads out 2*12 terminal blocks, leading out 17 remaining programmable GPIOs
- Onboard RS485, CAN, I2C, and UART terminal blocks for easy communication with industrial equipment
- Security mechanisms: secure boot, Flash encryption, hardware encryption accelerator, and hardware random number generator. Hardware access protection is also supported to implement access rights management (APM) and privilege separation.
Screen parameters
| name | 7-inch IPS touch screen |
|---|---|
| Resolution | 1024 × 600 |
| Communication interface | support RGB565、RGB666、RGB888 |
| Display panel | IPS |
| Touch Type | capacitance |
| touch chip | GT911 |
| brightness | 350cd/m² |
| Contrast | 600:1 |
| Viewing angle | 160° |
| Overall dimensions (H × V) | 99.17 × 164.28 (mm) |
| Display size (H × V) | 86.42 × 154.58 (mm) |
| Display Color | 16.7M colors |
7-inch IPS touchscreen
160° wide viewing angle, excellent display performance, high contrast
Capacitive 5-point touch screen
Supports 5-point sensitive touch, deeply integrating intuitive operation and fast response, making development more efficient and convenient
Support expansion of multiple peripherals
More expansion devices can be connected through interfaces such as CAN, RS485 and I2C
Audio input and output
Onboard ES8311 audio codec chip and ES7210 echo cancellation circuit meet daily audio application scenarios
Support AI voice interaction
Supports mainstream AI platforms and can be connected to large online model platforms such as Doubao and DeepSeek.
Highly integrated, powerful performance
Adopts ESP32-P4-Core module integrated design, built-in ESP32-P4, 32MB Nor Flash
Supports Wi-Fi 6 and Bluetooth modules
The onboard ESP32-C6-MINI module expands 2.4GHz Wi-Fi 6 and Bluetooth 5 (LE) capabilities for the ESP32-P4, using the SDIO interface protocol for stable connection and efficient transmission.
Resource Introduction
- ESP32-P4-Core
Integrated ESP32-P4NRW32, 32MB NOR Flash
- ESP32-C6-MINI-1
SDIO interface protocol, expansion board Wi-Fi 6, Bluetooth 5 (LE)
- ESP32-C6 UART terminal
- ES8311 low-power audio codec chip
Used to process audio encoding and decoding
- ES7210 echo cancellation algorithm chip
Echo cancellation algorithm chip, which can be used to eliminate echo and improve audio acquisition accuracy
- MIPI DSI LCD interface
Connecting to a MIPI 7-inch screen
- Touch interface
- MIPI-CSI (2-lane) interface
spacing, supports MIPI-CSI (2-lane), can be connected to RPi FPC Camera (B) / RPi Camera (B) and other cameras
- MX1.25 positive battery port
- PH 2.0 speaker jack (polarity insensitive)
- RTC battery holder
CR1220 size, supports rechargeable 3V~3.3V batteries.
- Main power switch
- LED operating status indicator
- Type-A port
USB OTG 2.0 High Speed interface
- Type-C port USB 1.1 FS direct output
Can be used for power supply, program burning and debugging
- Type-C USB to UART
Can be used for power supply, program burning and debugging
- RESET button
- BOOT button
Press when powering on or resetting to enter download mode
- PH2.0 4-pin terminal block
Supports access to I2C devices
- PH2.0 4-pin terminal block
Support access to UART devices
- PH2.0 4-pin terminal block
Support access to CAN devices
- PH2.0 4-pin terminal block
Supports access to RS485 devices
- Chip Microphone Matrix
Microphone input and echo cancellation
- PH2.0 12-pin terminal block
Expand 17 customizable GPIOs and common power supplies
- Micro SD card slot
SDIO 3.0 interface protocol
- Reserved area
Can be used to store rechargeable batteries
Product size
