ESP32-C6 1.28inch Touch LCD Display
Development Board

Integrated GC9A01 Display Driver And CST816S Capacitive Touch Driver

Version Options

Features

The ESP32-C6-Touch-LCD-1.28 is a low-cost, high-performance microcontroller development board designed by Waveshare. With a compact form factor, it integrates 1.28inch touch LCD display, Lithium Batt charging management chip, 6-axis IMU (3-axis accelerometer and 3-axis gyroscope), and other peripherals, making it easy to develop and integrate into end products.

Key features:

Equipped with high-performance ESP32-C6 32-bit RISC-V processor, up to 160MHz main frequency
Supports Wi-Fi 6, Bluetooth 5, and IEEE 802.15.4 (Zigbee 3.0 and Thread) wireless communications, with outstanding RF performance
Built-in 512KB HP Static RAM, 16KB LP Static RAM, 320KB ROM, and external 16MB Flash
Type-C port, easier to use
Onboard 1.28inch touch LCD display for clear color picture display, 240 × 240 resolution, 65K color
Optional CNC metal case, featuring a CNC metal top case with an acrylic dull-polish bottom plate on the back
Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope)
Onboard PCF85063 RTC chip for convenient RTC functionality
Onboard 3.7V MX1.25 Lithium Batt recharge/discharge header
Onboard SH1.0 12PIN expansion connector, adapting 4 × GPIO, 1 × UART, and 1 × I2C
Onboard TF card slot, supporting storage expansion and high-speed data transfer for greater flexibility

LCD Parameters

DISPLAY PANEL	IPS	DISPLAY SIZE	1.28inch
DISPLAY RESOLUTION	240 × 240 resolution	DISPLAY COLOR	65K
BRIGHTNESS	400cd/㎡	CONTRAST RATIO	1100 : 1
COMMUNICATION INTERFACE	SPI	DRIVER IC	GC9A01A
TOUCH	supported	TOUCH DRIVER	CST816S

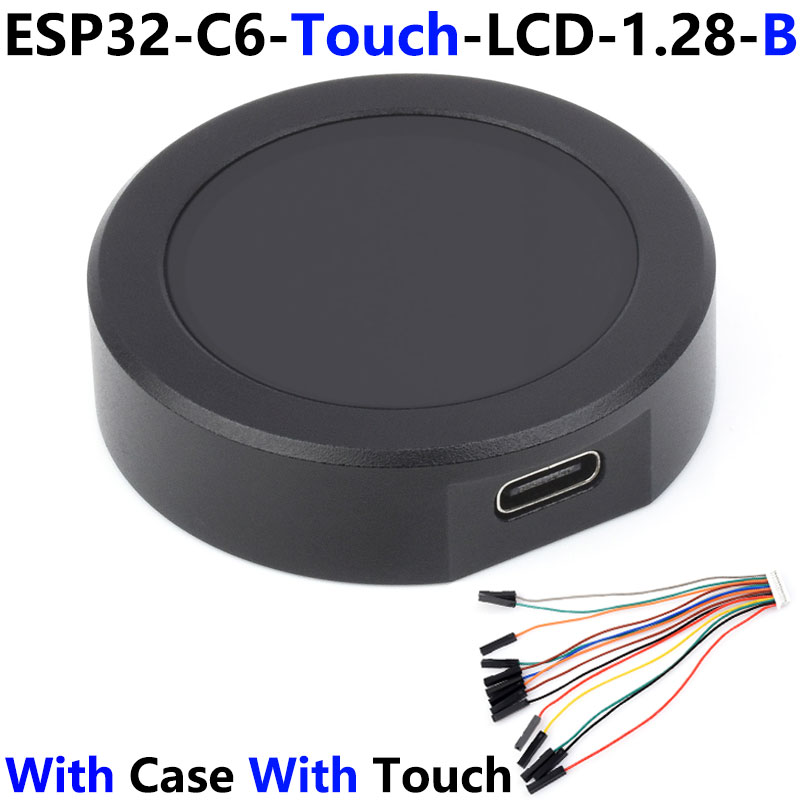

Optional CNC Metal Case

Adopts CNC Metal Case With Acrylic Dull-Polish Bottom Plate

Small Size, Touch More Possibilities

Suitable For Various Smart Device Development, And Can Realize Human-Computer Interaction Function

ESP32-C6 Suitable For AIoT Applications

Equipped With A High-Performance 32-Bit RISC-V Processor And A Low-Power 32-Bit RISC-V Processor, The Main Frequency Is Up To 160 MHz, Powerful AI Computing Capability & Reliable Security Features

Wi-Fi 6 And BLE 5 Support

ESP32-C6 Integrates 2.4GHz Wi-Fi 6 (802.11 ax/b/g/n) With 40MHz Of Bandwidth Support, Its Bluetooth Low Energy Subsystem Supports Bluetooth 5 (LE) And Bluetooth Mesh

Supports ESP-IDF, Arduino IDE

Comprehensive SDK, Dev Resources, Tutorials To Help You Easily Get Started

What's On Board

ESP32-C6
Integrated RISC-V single-core processor, up to 160MHz operating frequency, supports 2.4GHz Wi-Fi 6 and BLE 5
SH1.0 RTC Batt header
for connecting rechargeable RTC Batt
16MB NOR Flash
BOOT button
Press it when resetting to enter download mode
TF card slot
RESET button
QMI8658
6-axis IMU includes a 3-axis gyroscope and a 3-axis accelerometer

MX1.25 Lithium Batt header
MX1.25 2PIN connector, for 3.7V Lithium Batt, supports charging and discharging
ETA6096
high-efficiency Lithium Batt charging chip
Charging indicator
When a Batt is connected, lights up when charging, off when fully charged (the light status is uncertain when the battery is not connected)
USB Type-C port
USB to UART, for programming and log printing
PCF85063 RTC chip
2.4GHz ceramic antenna

Pin Definitions

Outline Dimensions
