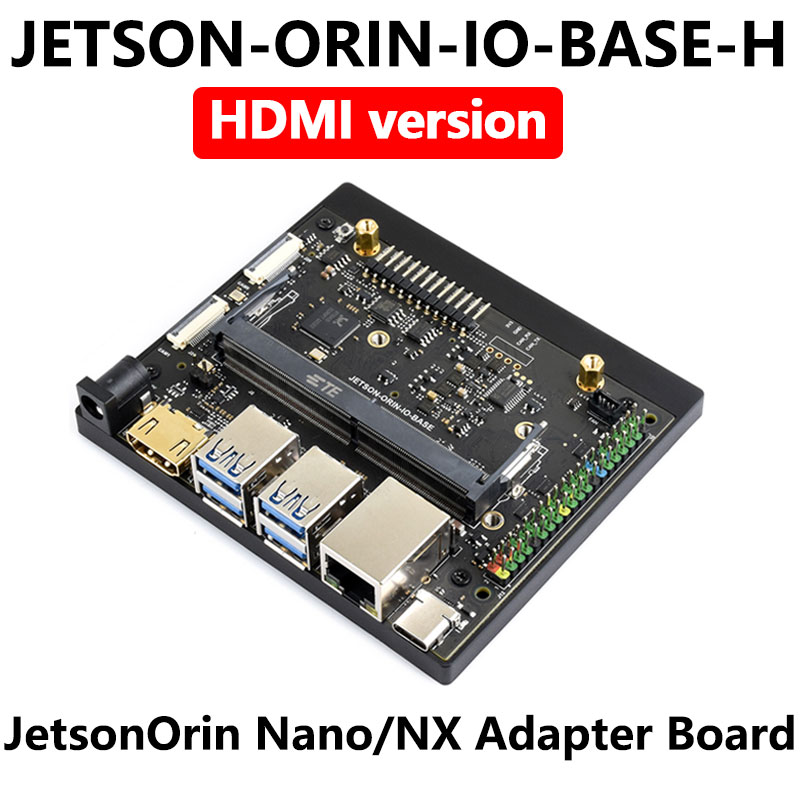

JETSON-ORIN-IO-BASE-H

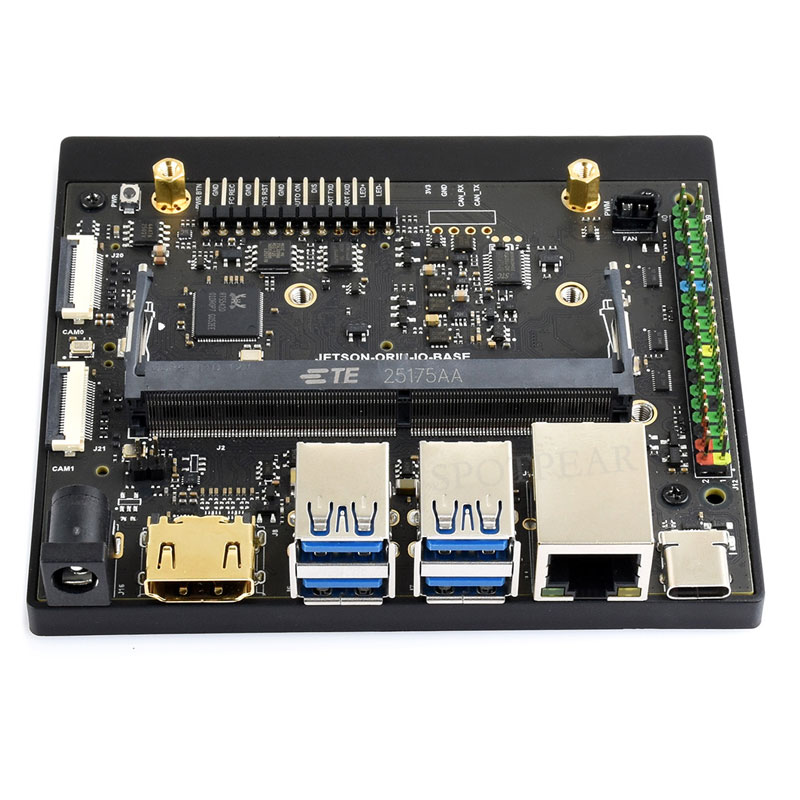

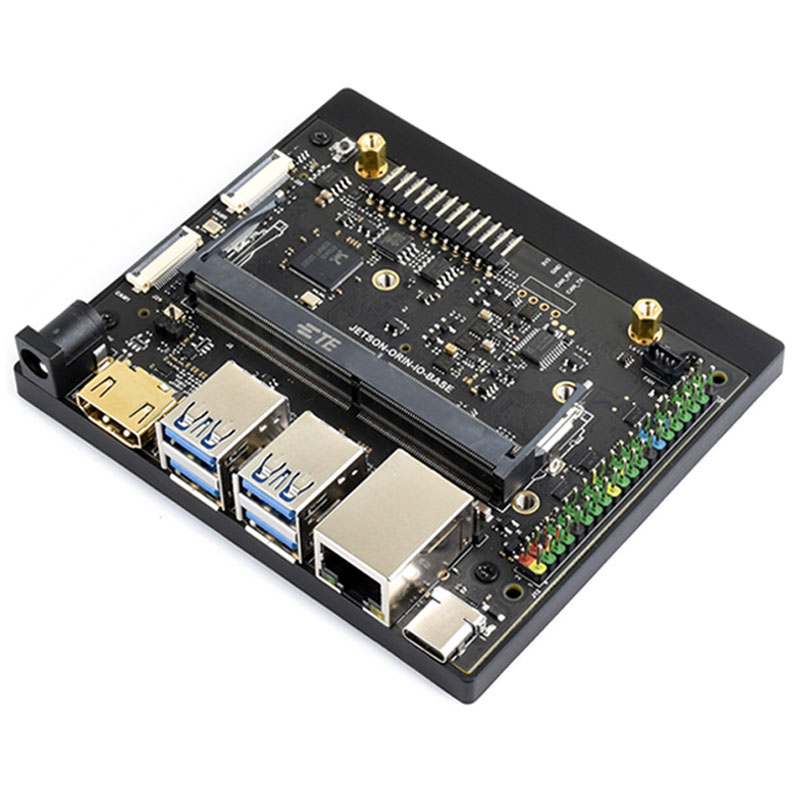

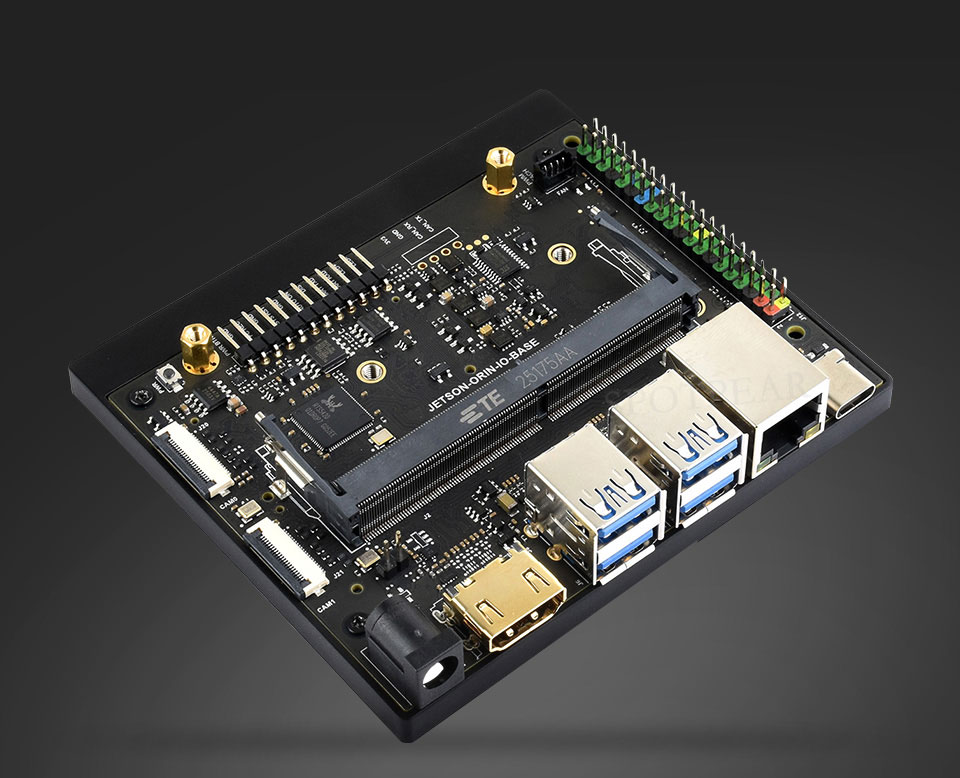

Jetson Orin Nano/NX Base Board, HDMI Version

Based on Jetson Orin Nano and Jetson Orin NX module, with HDMI video output port. Except for the video output interface, it provides almost the same peripheral interfaces, size and thickness as the Jetson Orin Nano Developer Kit (Official Orin Nano kit), which is suitable for users to develop their applications and apply into various AI projects.

Compatible With Orin Module

Supports Connecting To N-VIDIA Jetson Orin Nano Module And Jetson Orin NX Module

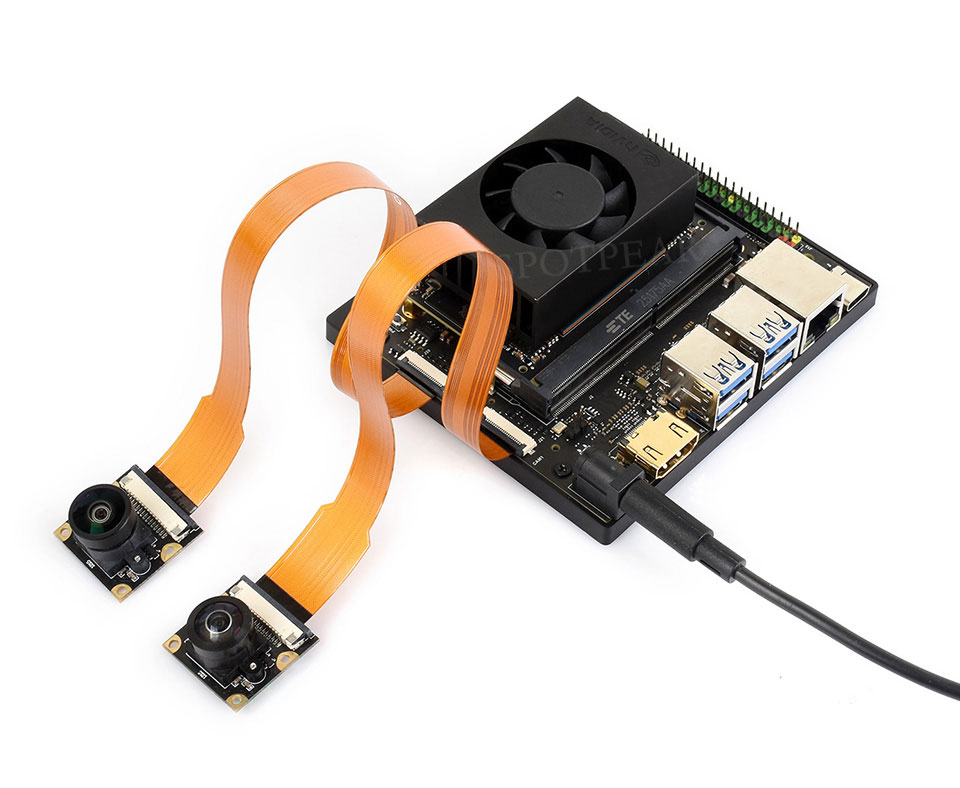

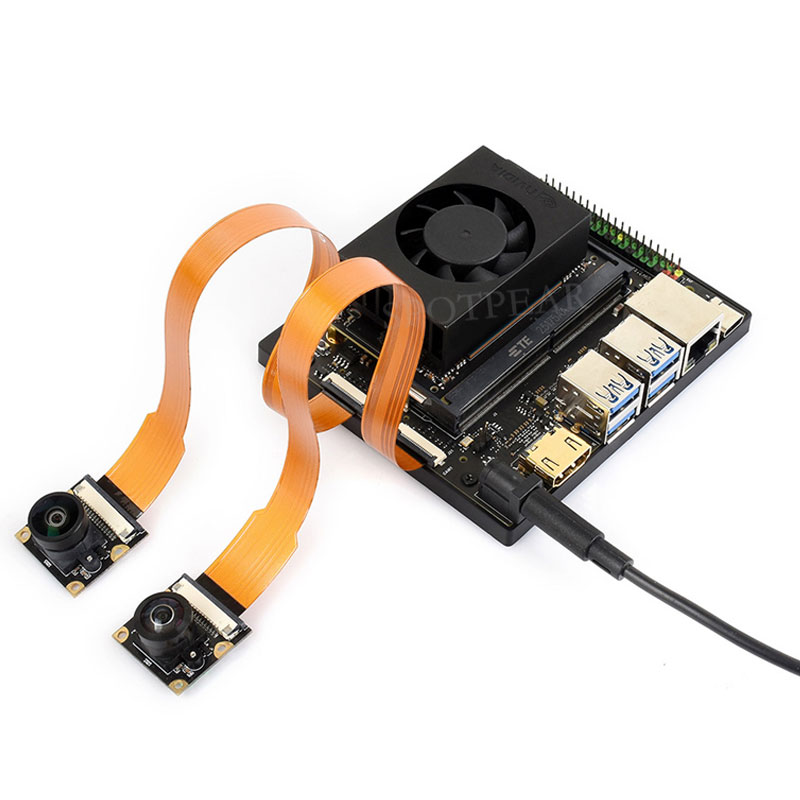

Connects To CSI Cameras

Onboard 2-Ch CSI Camera Ports For AI Applications Such As Face Recognition, Road Sign Recognition And License Plate Recognition

* Note: the adapter cables are required for connecting the cameras.

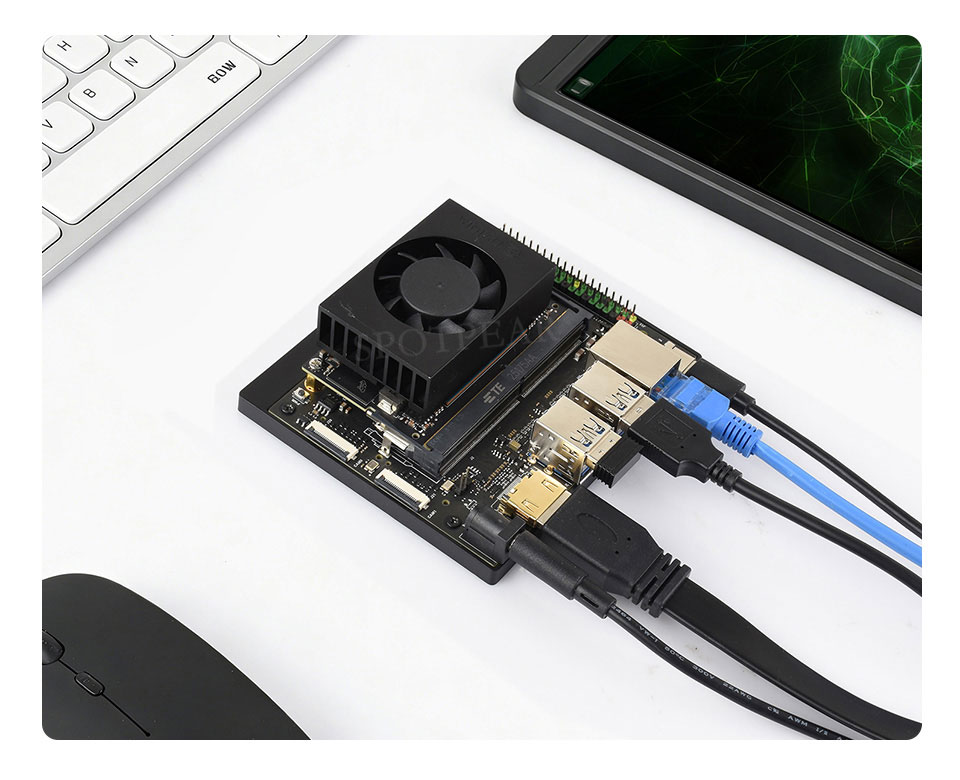

5 × USB Ports

4 × Type-A + 1 × Type-C

Supports Connecting To More Peripherals, USB 3.2 Gen 2 Ports For Data Transmission
Up To 10Gbps, And The Type-C Port Can Be Used For System Burning

* for reference only, the Orin module and the cooling fan are NOT included.

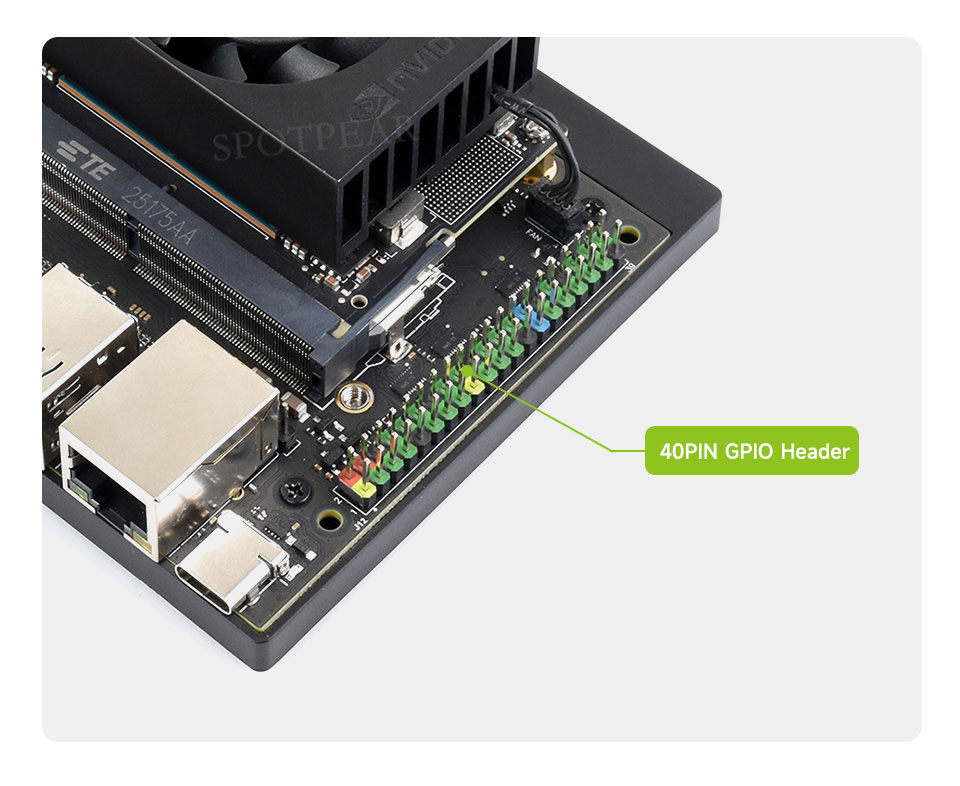

Color-Coded 40PIN GPIO Header

Color-Coded Header Pins To Differentiate IO Resources Such As I2C, SPI, I2S, UART, GPIO, Etc.

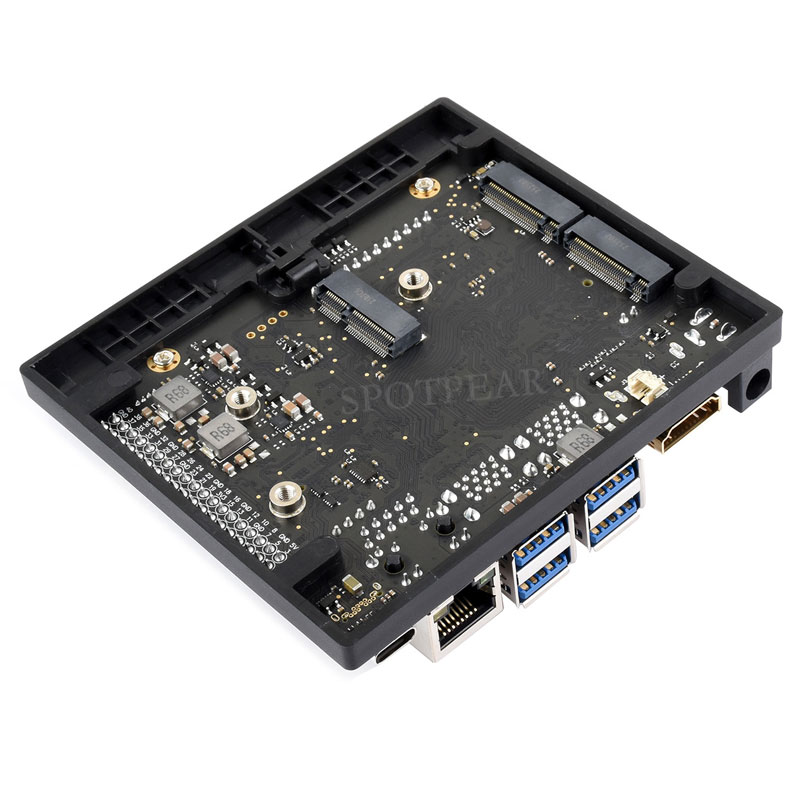

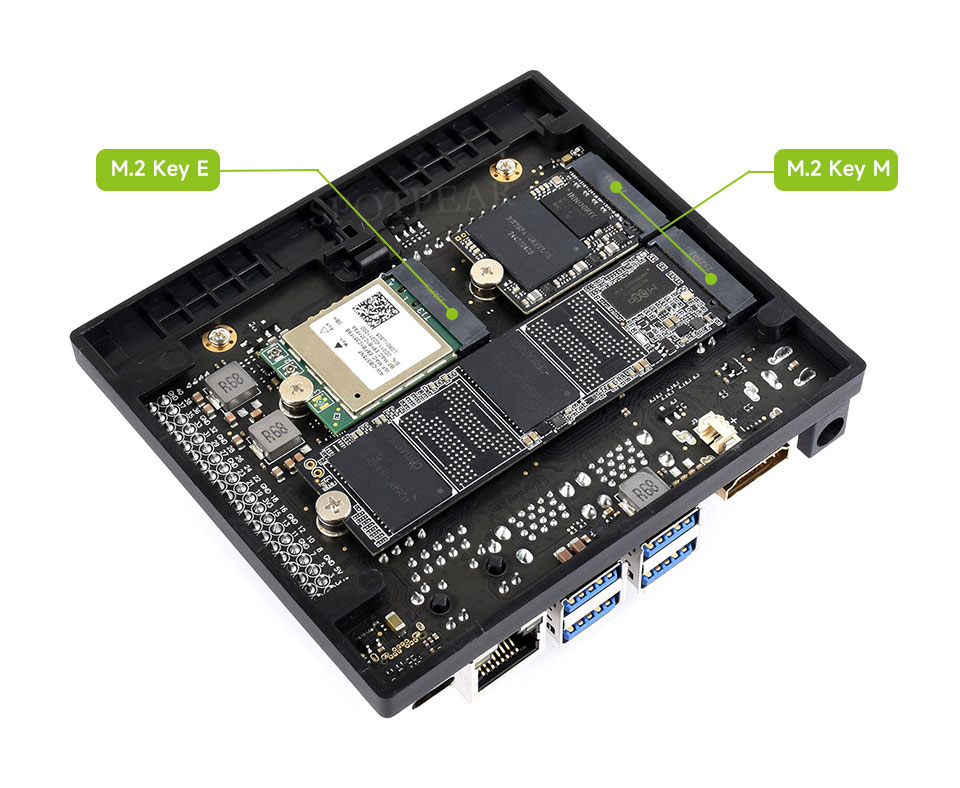

Flexible Storage And Wireless Expansion

Onboard 2 × M.2 Key M Ports For Easy Connecting Solid State Drives And 1 × M.2 Key E Interface For Connecting Wireless NIC, Which Can Reduce Cable Connection

* for reference only, the Solid State Drive and wireless network card are NOT included.

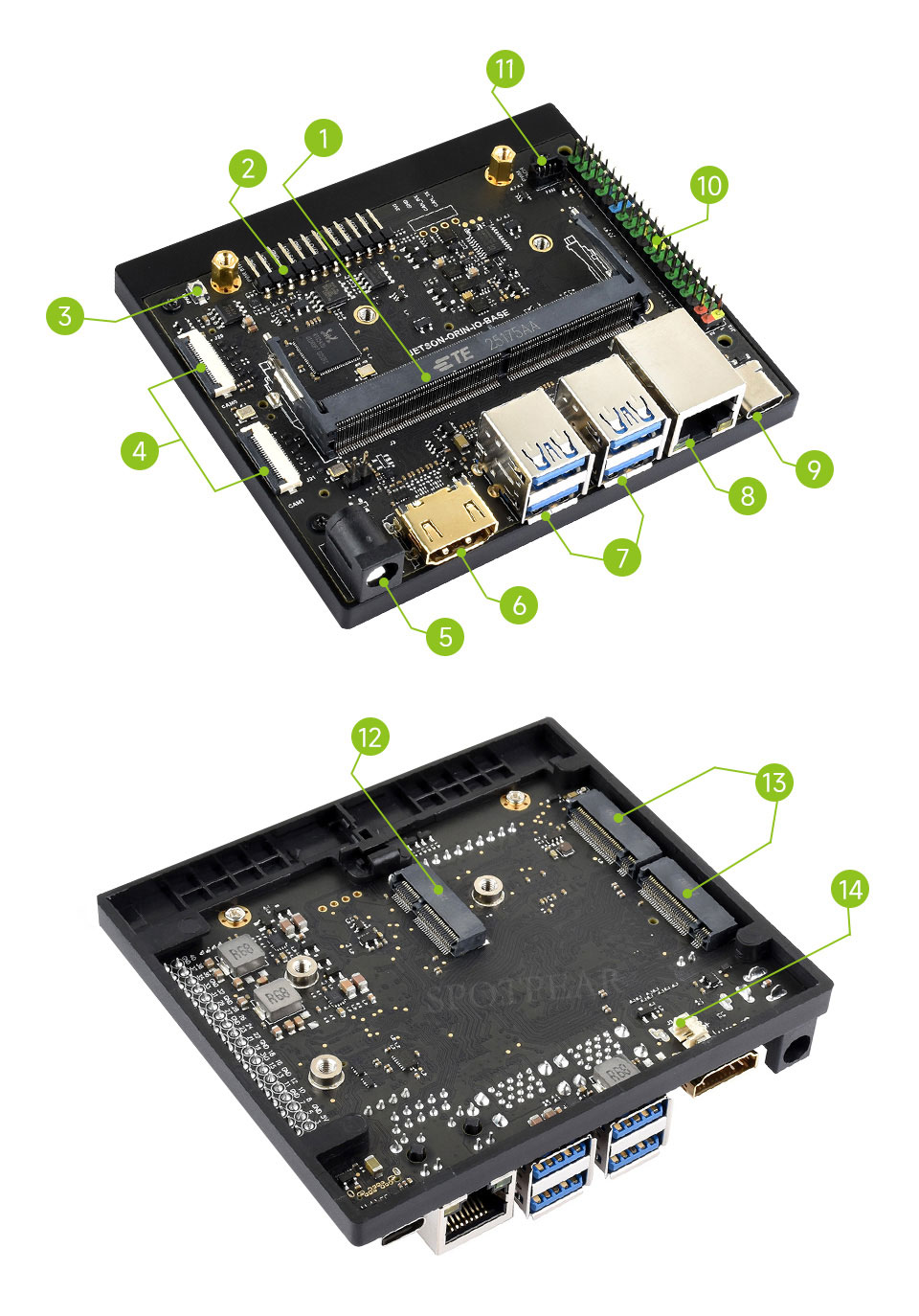

Onboard Resources

260PIN DO-DIMM socket
for connecting Jetson Orin Nano/NX module
12PIN header
Adapting pins for power supply, reset button, force recovery setting, serial port debug, auto power-up enable and power indicator functions
Power button
2 × 22PIN CSI camera interfaces
2 × MIPI CSI 4-lane camera interfaces
DC Power jack
Supports wide range 9V~19V power supply, compatible with 5.5 × 2.5mm male plug
HDMI display interface
HDMI output

4 × USB 3.2 Gen2 Type-A ports
Supports up to 10Gbps data transmission
RJ45 Gigabit Ethernet port
USB Type-C port
for system burning and data communication
40PIN header
4PIN PWM fan header
M.2 Key E
for connecting wireless NIC
2 × M.2 Key M
for connecting NVME solid state drives
RTC backup battery header
PH1.25 2PIN

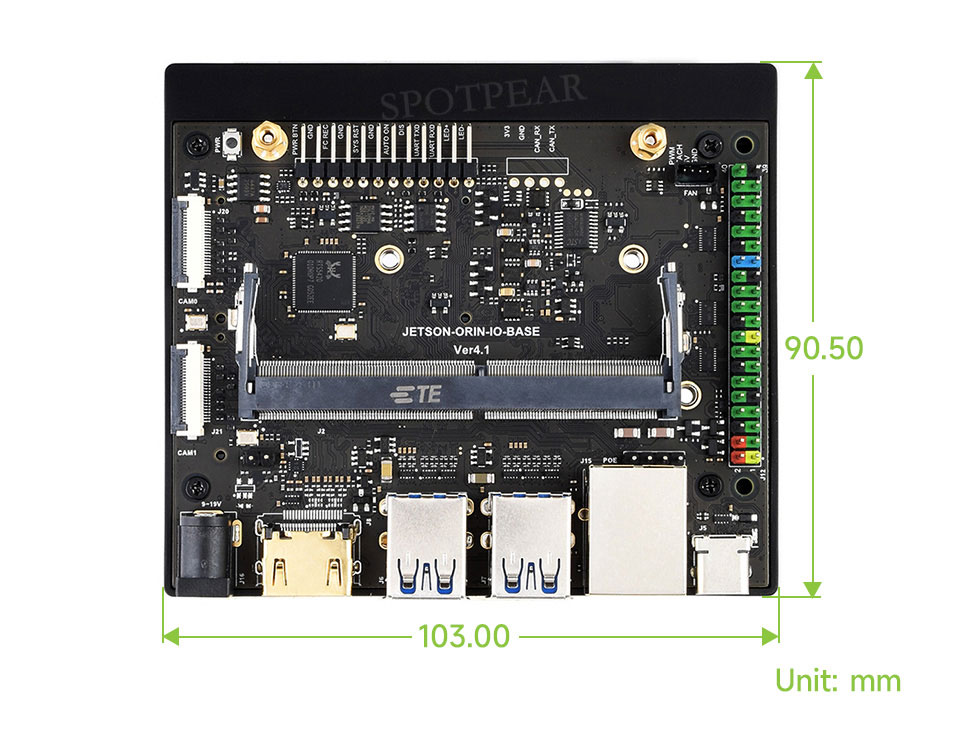

Outline Dimensions

[] JETSON-ORIN-IO-BASE-H
