PCIe-TO-4-CH-PCIe-HAT User Giode

Overview

Introduction

PCIe to 4-ch PCIe FFC adapter board designed for Raspberry Pi 5, PCIe 2.0 Version (PCIe Gen2)

Features

PCI-E×1 only supports Gen2
Only supports PI5B
Onboard working indicator, PWR stays on when powered on
Flexible combination, easy stacking of multiple PCIe HAT modules

Usage Instructions

Hardware Connection

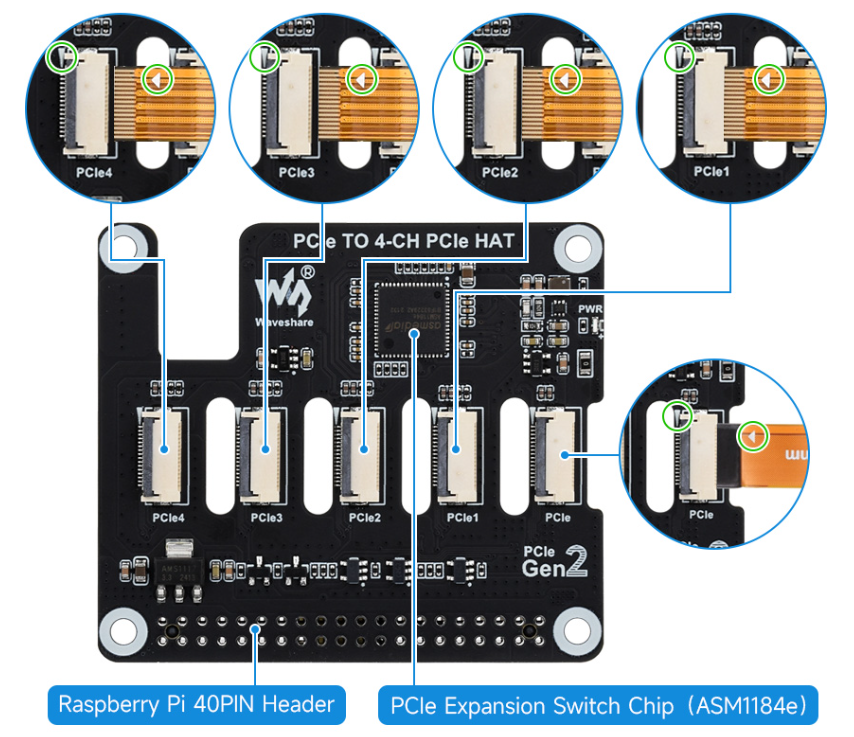

Pay attention to the direction of the cable, and the connection is shown in the figure:

Boot PCIe

1. Enable PCIE interface

PI5B defaults to enabling the PCIE interface.
If it fails to boot, add the following to /boot/firmware/config.txt:
dtparam=pciex1

2. The module only supports PCIE Gen2 x1

Resources

FAQ

Question: Does it support Hailo-8?

Answer:

It's okay to use, but the rate can only support GEN2 mode, and the other channel also consumes the rate, which will result in being unable to fully utilize the performance
