Raspberry Pi 5 PCIe to 4-CH PCIe FFC HAT Board Pi5 4 Channels
$15.9
Brand：SpotPear
SKU：010314100000
Date：2025-06-25 11:19
Part Number：
Raspberry Pi 5 four-channel PCIe FFC expansion board is specially designed for Raspberry Pi 5 and can stack a variety of PCIe HAT modules

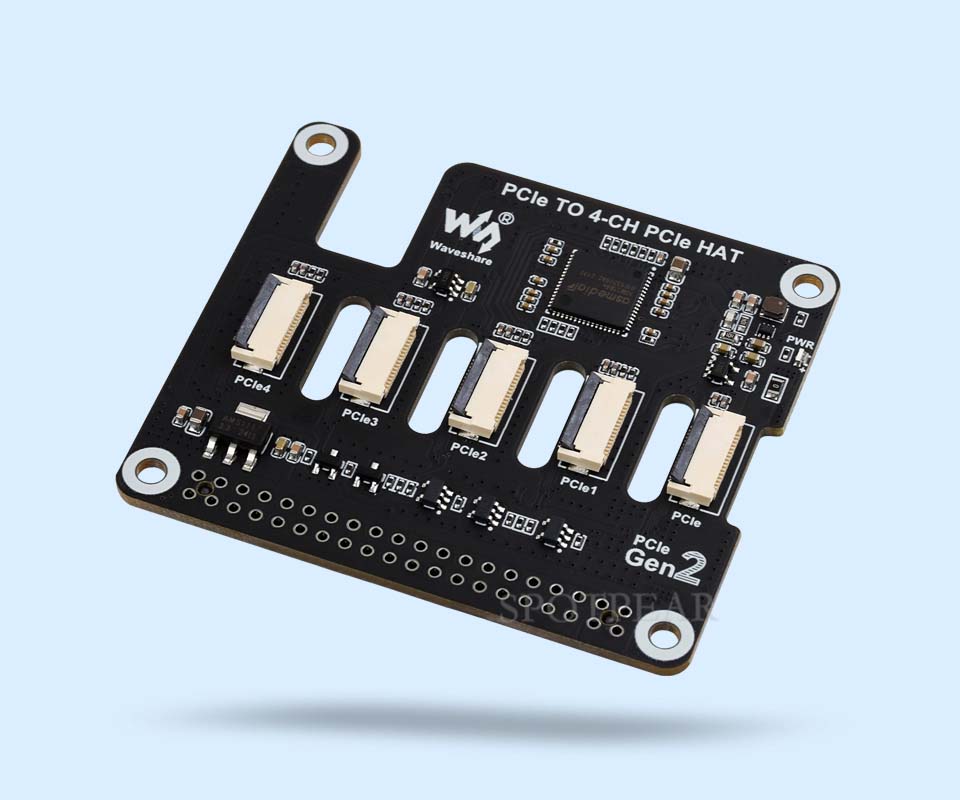

Raspberry Pi 5 Quad-Lane PCIe
FFC Expansion Board
Designed for Raspberry Pi 5

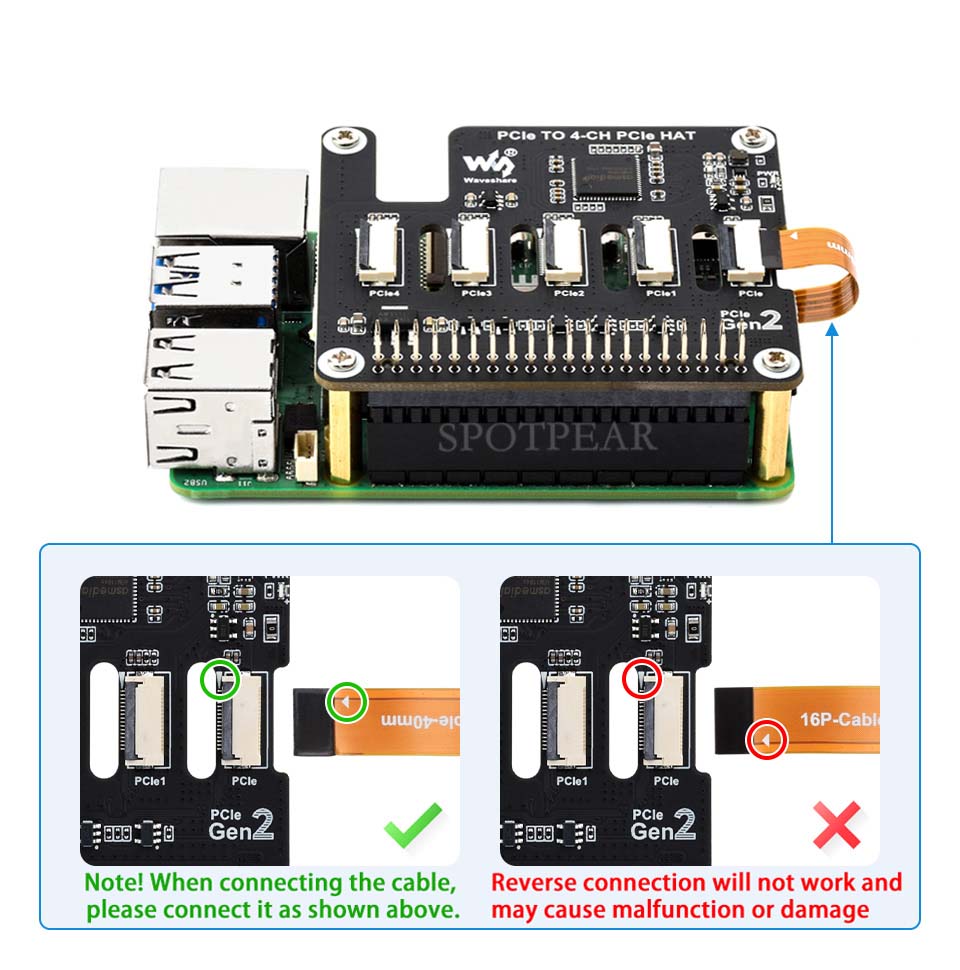

Can be connected to Raspberry Pi 5 via 16-pin cable

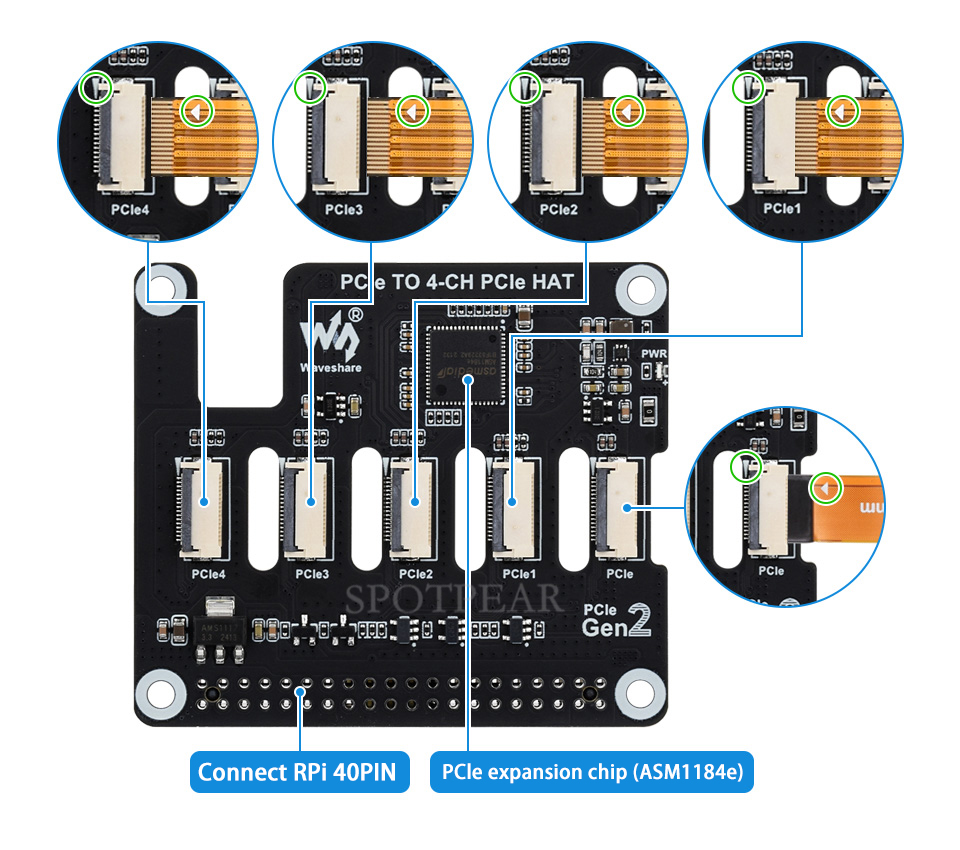

16PIN PCIe interface design based on Raspberry Pi 5
The pictures are for display only. Please refer to the configuration list for detailed configuration.

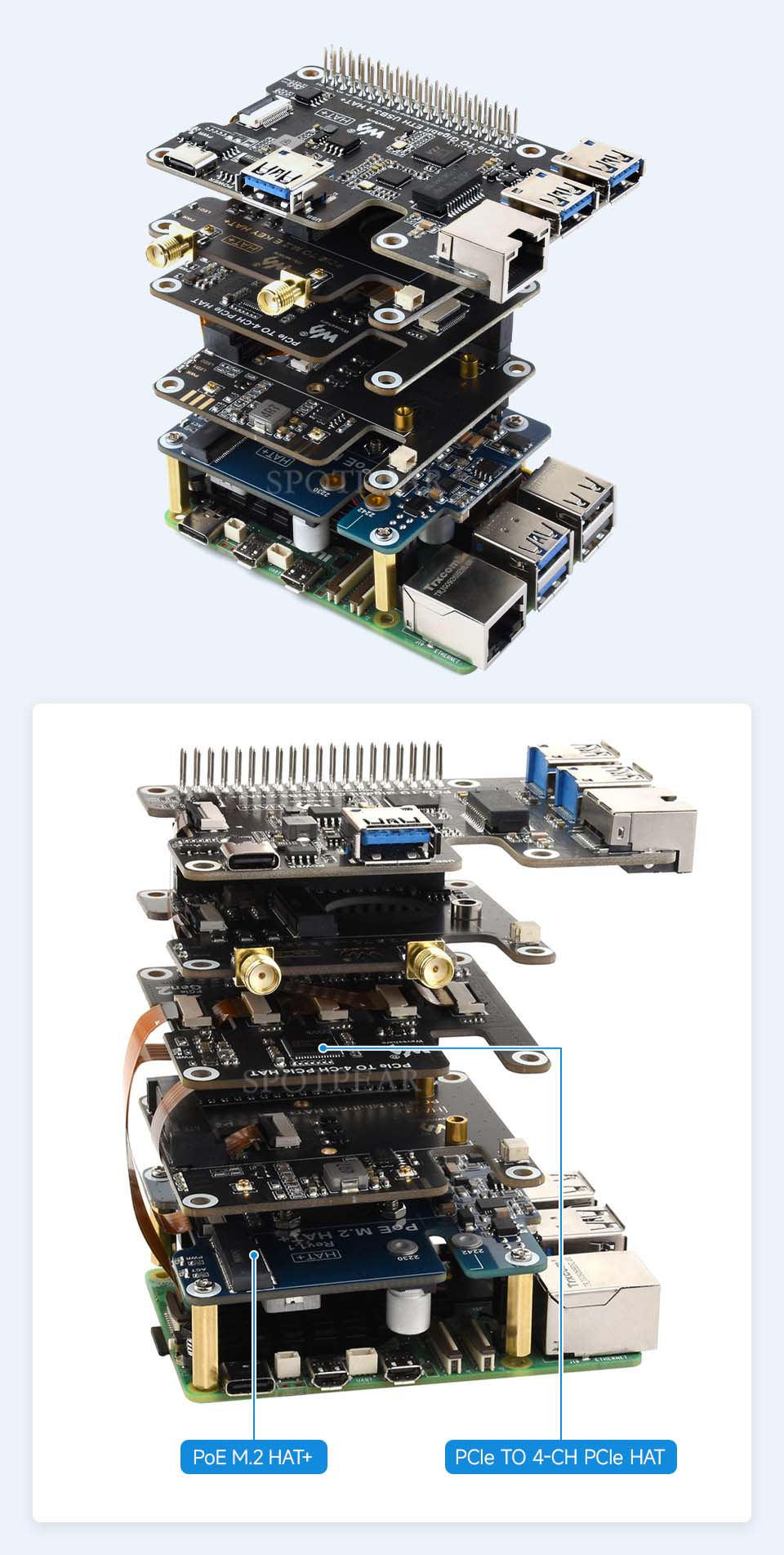

PCIe interface expansion
Flexible combination, easy to stack multiple PCIe HAT modules
HAT extension / with PoE extension
The pictures are for display only. Please refer to the configuration list for detailed configuration.

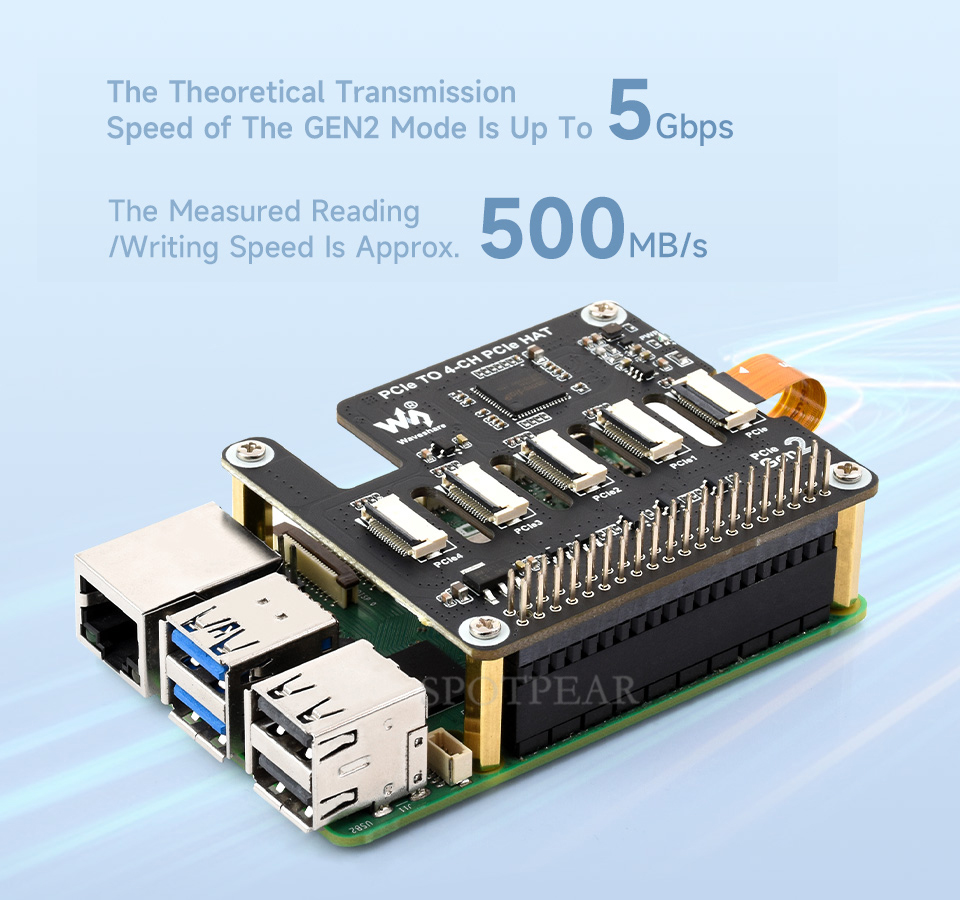

PCIe Gen2 speeds
Supports PCIe Gen2 (PCIe 2.0) only
Resources

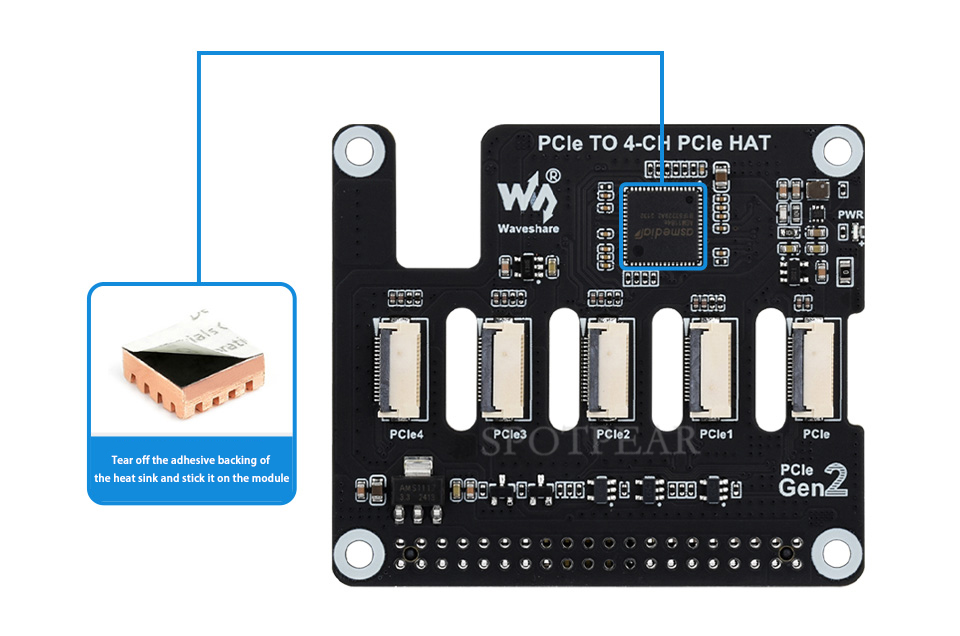

Heat sink installation diagram

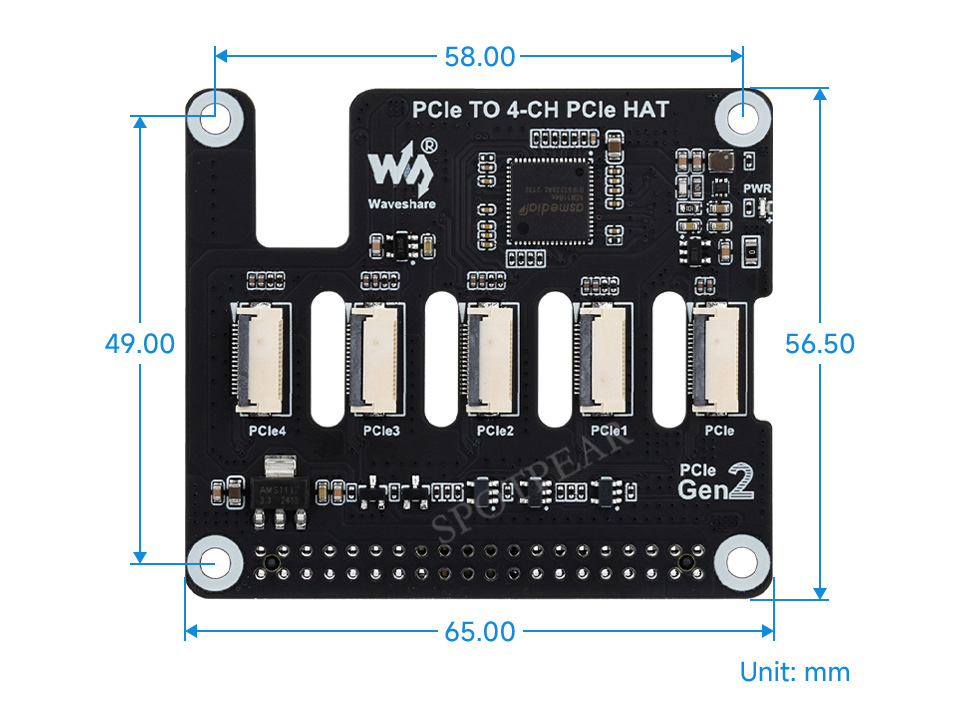

Product size
