ESP32-S3-Touch-AMOLED-1.75 User Guide

Overview

Introduction

ESP32-S3-Touch-AMOLED-1.75 is a high-performance MCU board designed by Waveshare. Despite its compact size, it integrates a 1.75inch capacitive touch AMOLED, power management chip, 6-axis IMU sensor (3-axis accelerometer and 3-axis gyroscope), RTC, TF slot, microphone, speaker and various other peripherals on board for easy development and embedding into the product.

Features

  • Equipped with high-performance Xtensa® 32-bit LX7 dual-core processor, up to 240 MHz main frequency
  • Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth® 5 (BLE), with onboard antenna
  • Built in 512KB SRAM and 384KB ROM, with onboard 8MB PSRAM and an external 16MB Flash
  • Built-in 1.75inch capacitive touch AMOLED screen with a resolution of 466×466, 16.7M colors for clear color pictures

Hardware Description

  • Built-in 1.75inch high-definition capacitive touch AMOLED screen with a resolution of 466×466, 16.7M colors for clear color pictures
  • Embedded with CO5300 driver chip and CST9217 capacitive touch chip, communicating through QSPI and I2C interfaces respectively, minimizes required IO pins
  • Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gesture, step counting, etc.
  • Onboard PCF85063 RTC chip connected to the battery via the AXP2101 for uninterrupted power supply
  • Onboard PWR and BOOT two side buttons with customizable functions, allowing for custom function development
  • Onboard 3.7V MX1.25 lithium battery recharge/discharge header
  • Onboard 8Pin header, providing 3 GPIOs and 1 UART, for external device connection and debugging, with flexible peripheral function configuration
  • Onboard TF card slot for extended storage and fast data transfer, flexible for data recording and media playback, simplifying circuit design
  • The benefits of using AXP2101 include efficient power management, support for multiple output voltages, charging and battery management functions, and optimization for battery life
  • The AMOLED screen has the advantages of higher contrast, wider viewing angles, richer colors, faster response, thinner design, lower power consumption, and flexibility

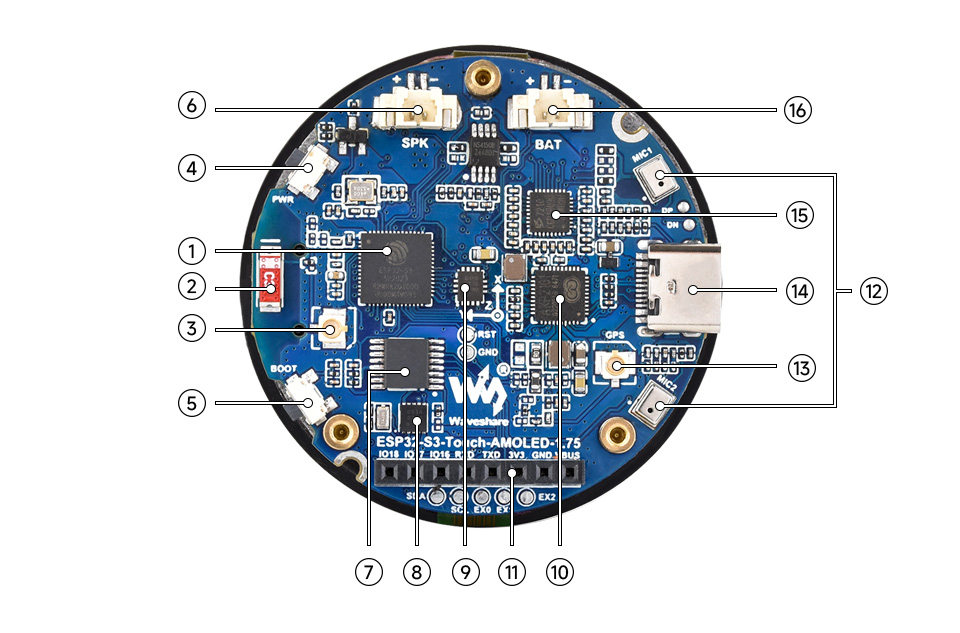

1. ESP32-S3R8
   WiFi and Bluetooth SoC, up to 240MHz operating frequency, with onboard 8MB PSRAM

2. Onboard SMD antenna
   Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE)

3. Onboard IPEX Gen 1 antenna holder
   External antenna selectable by switching resistors

4. PWR power button
   Controllable power on/off, supports custom function

5. BOOT button
   For device startup and functional debugging

6. MX1.25 2P speaker interface
   MX1.25 2P connector for speaker access

7. TCA9554
   IO expansion chip for expanding IO

8. PCF85063
    RTC clock chip

9. QMI8658
   6-axis IMU includes a 3-axis gyroscope and a 3-axis accelerometer

10. AXP2101
   Highly integrated power management chip

11. 2.54mm pitch 8PIN header
   For external debugging or connecting sensors

12. Dual-microphone design
   Higher quality audio capture with echo cancellation circuit

13. IPEX Gen 1 GPS antenna holder

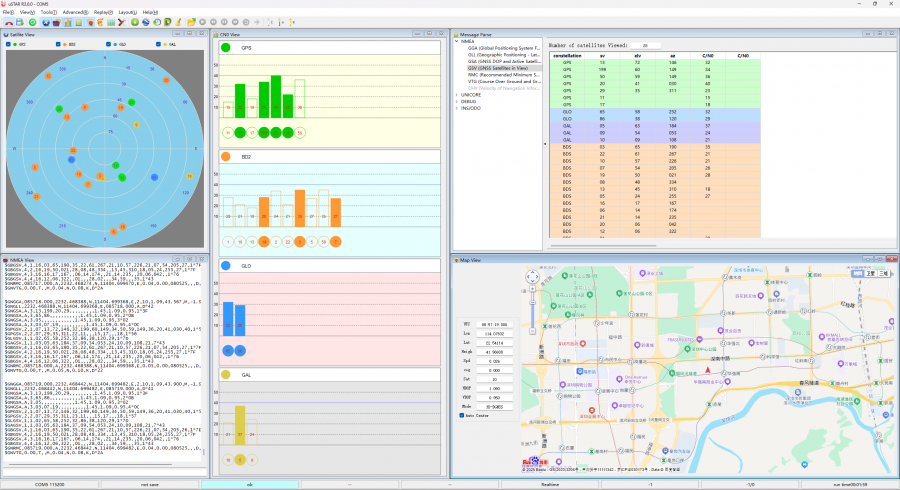

   Built-in LC76G module with GPS version, external GPS ceramic antenna

14. Type-C interface
   ESP32-S3 USB Interface for program flashing and log printing

15. ES7210 echo cancellation algorithm chip
   Echo cancellation algorithm chip for eliminating echo and improving audio acquisition accuracy

16. MX1.25 Lithium battery interface
   MX1.25 2P connector, for 3.7V Lithium battery, supports charging and discharging

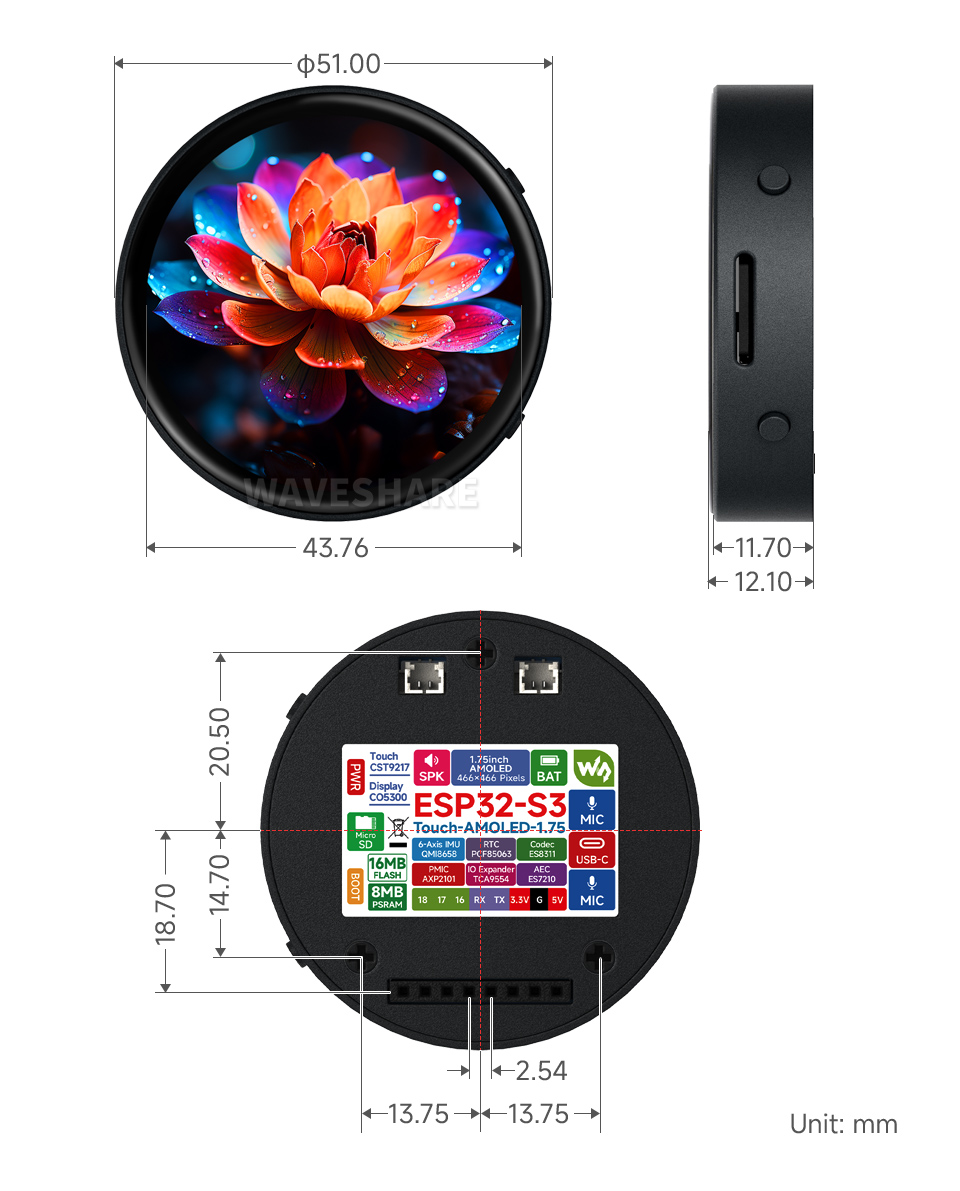

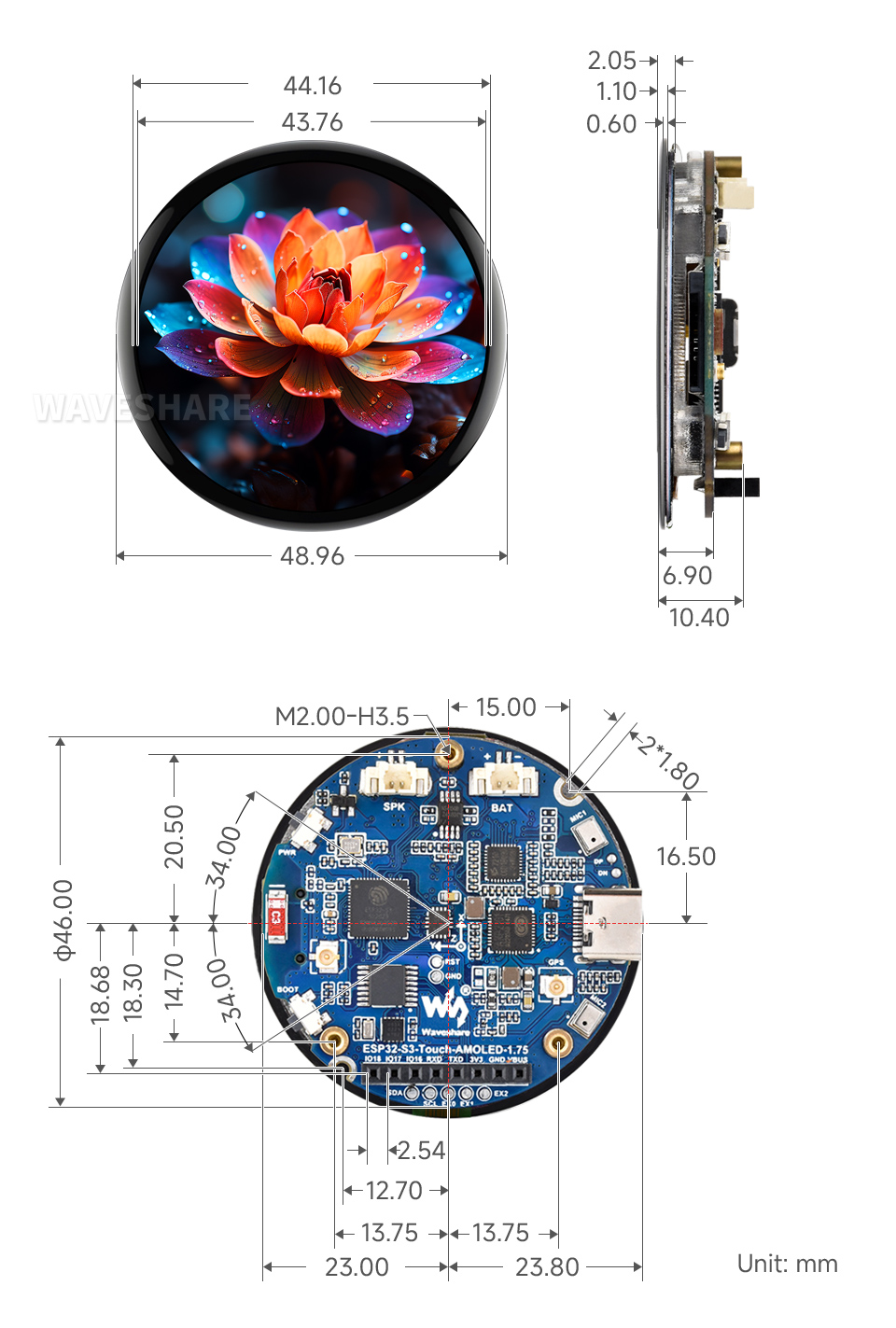

Dimensions



Screen Description

Touch and its Controller

  • This touch screen is composed of surface toughened glass + thin film material, which has high strength, high hardness, and good light transmittance. It is equipped with FT3168 self-capacitance touch chip as the driver chip, which supports the I2C communication protocol standard and can realize a 10Khz~400Khz configurable communication rate.

Usage Instructions

ESP32-S3-Touch-AMOLED-1.75 currently provides two development tools and frameworks, Arduino IDE and ESP-IDF, providing flexible development options, you can choose the right development tool according to your project needs and personal habits.

Development Tools


Arduino IDE

Arduino IDE is an open source electronic prototyping platform, convenient and flexible, easy to get started. After a simple learning, you can start to develop quickly. At the same time, Arduino has a large global user community, providing an abundance of open source code, project examples and tutorials, as well as rich library resources, encapsulating complex functions, allowing developers to quickly implement various functions.

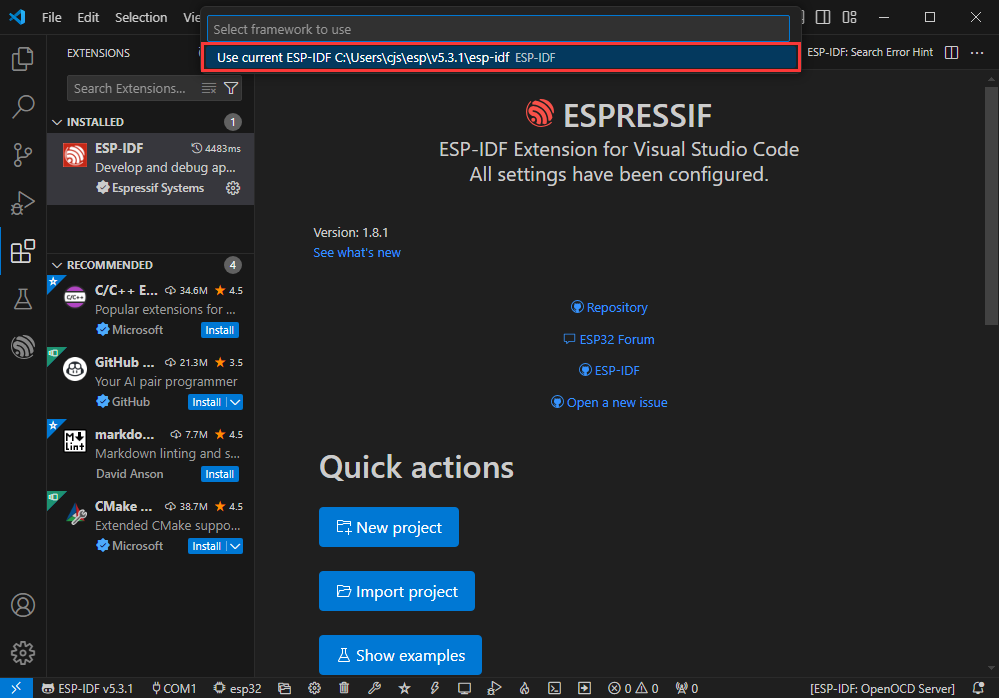

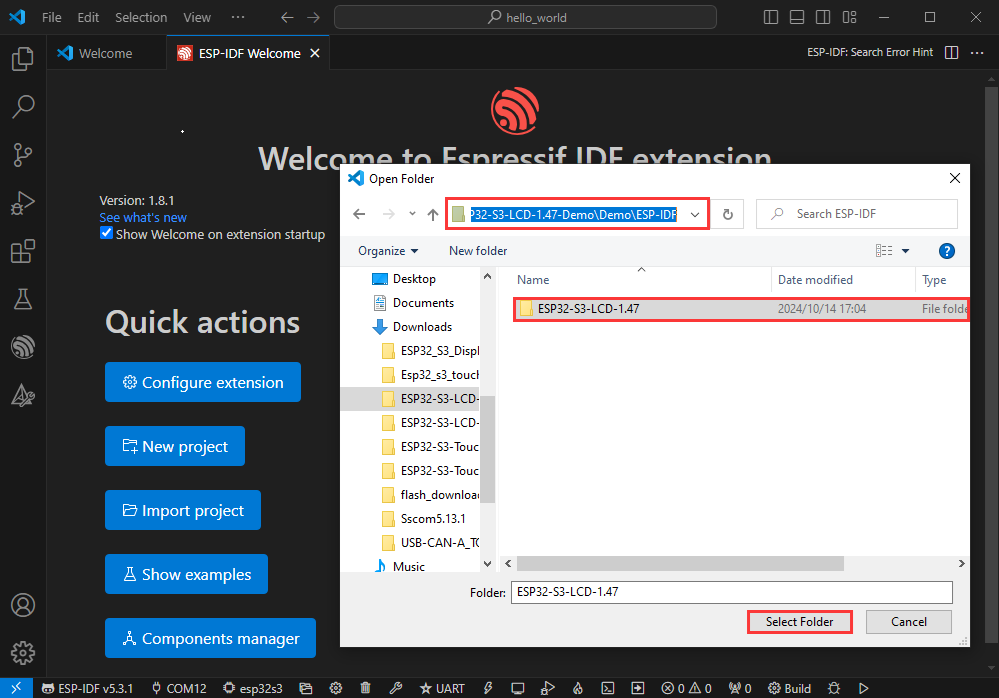

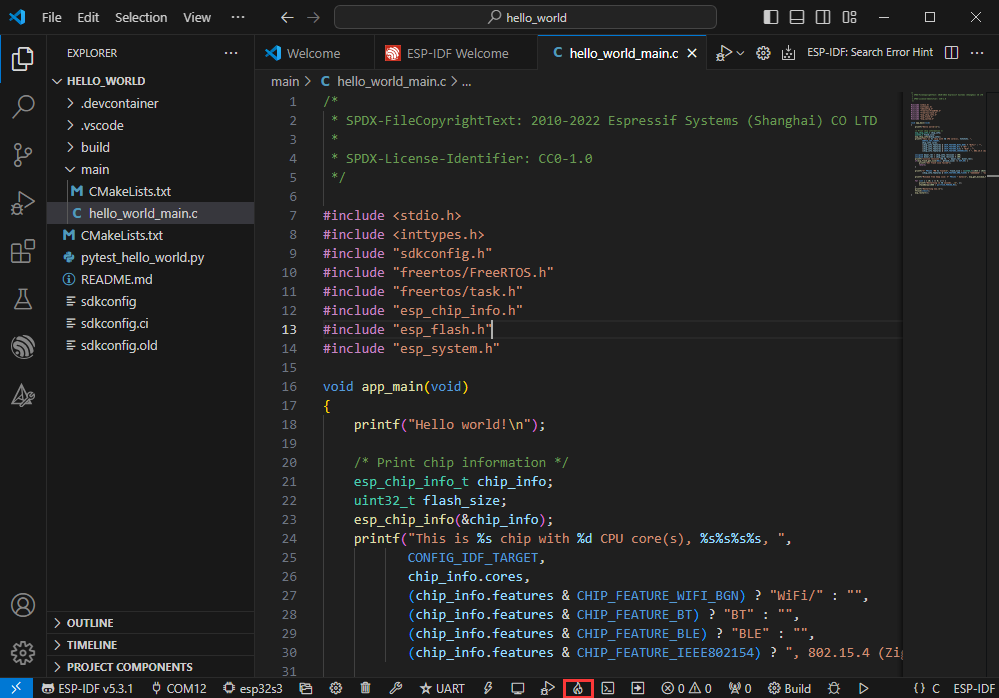

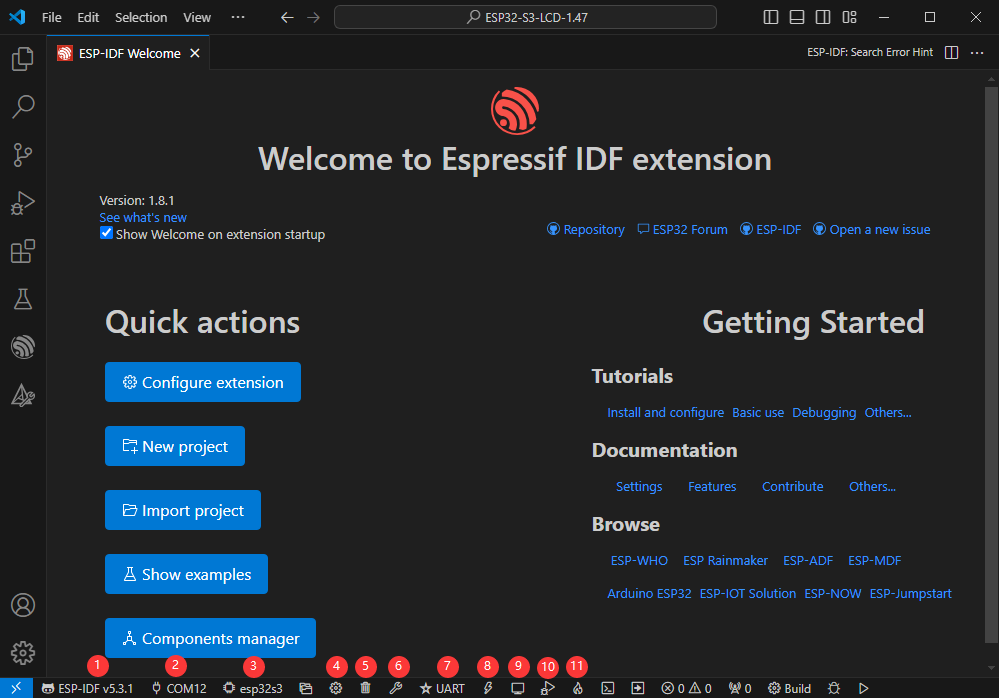

ESP-IDF

ESP-IDF, or full name Espressif IDE, is a professional development framework introduced by Espressif Technology for the ESP series chips. It is developed using the C language, including a compiler, debugger, and flashing tool, etc., and can be developed via the command lines or through an integrated development environment (such as Visual Studio Code with the Espressif IDF plugin). The plugin offers features such as code navigation, project management, and debugging, etc.


Each of these two development approaches has its own advantages, and developers can choose according to their needs and skill levels. Arduino are suitable for beginners and non-professionals because they are easy to learn and quick to get started. ESP-IDF is a better choice for developers with a professional background or high performance requirements, as it provides more advanced development tools and greater control capabilities for the development of complex projects.


Components Preparation

  • ESP32-S3-Touch-AMOLED-1.75 x1
  • Speaker (not required) x1
  • Lithium polymer batteries (not required) x1
  • TF card (not required) x1
  • USB cable (Type A male to Type C male) x1
If it is used with a lithium battery, the necessary protective measures must be taken. The plastic casing of the product is used only for basic isolation of the circuit board and battery, and is generally safe under normal usage conditions. However, in the actual use and storage process, users still need to pay attention to moisture, high temperature, drop and bump, and avoid overcharging or overdischarging. It is recommended to remove the battery for storage when not in use for a long time, and make sure that the lithium battery does not stay in a low state of power for a long time. If you choose to select the battery yourself, be sure to choose a lithium battery product that is safe and compliant, has protective functions, and can withstand high temperatures. Do not use a cheap and low-quality product.

Precautions for the use of lithium batteries

  • Lithium polymer and lithium-ion batteries are very unstable. They may cause fire, personal injury, or property damage, if they're not properly recharged or used.
  • When charging and discharging the battery pack, never connect the electrodes incorrectly. Do not use inferior charger/charging panel to recharge the battery.
  • Do not mix and use old batteries with new ones, and avoid using batteries from other brands.
  • If you need to purchase additional lithium-ion battery products, ensure that the battery parameters are compatible with the lithium-ion battery expansion board. It is recommended to choose batteries from legitimate manufacturers and perform your own aging tests to ensure that the lithium-ion battery can operate stably and safely.
  • Lithium batteries have a cycle life, please replace the old batteries with new ones when it reaches the end of its useful life or uses it for two years, whichever comes first.
  • Please handle battery products properly, keep them away from flammable and explosive items, and keep them out of reach of children to avoid accidents due to improper storage.
Before operating, it is recommended to browse the table of contents to quickly understand the document structure. For smooth operation, please read the FAQ carefully to understand possible problems in advance. All resources in the document are provided with hyperlinks for easy download.

Working with Arduino

This chapter introduces setting up the Arduino environment, including the Arduino IDE, management of ESP32 boards, installation of related libraries, program compilation and downloading, as well as testing demos. It aims to help users master the development board and facilitate secondary development.


Environment Setup

Download and Install Arduino IDE

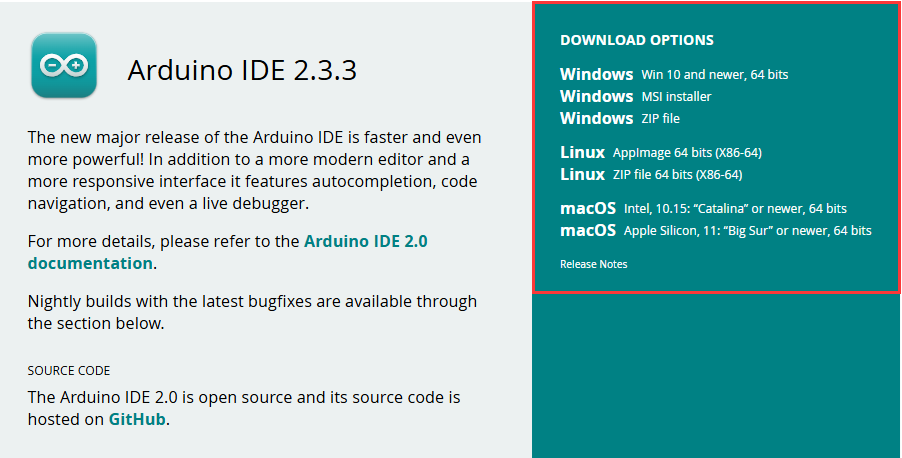

  • Click to visit the Arduino official website, select the corresponding system and system bit to download

  • Run the installer and install all by default
The environment setup is carried out on the Windows 10 system, Linux and Mac users can access Arduino-esp32 environment setup for reference

Install ESP32 Development Board

  • Before using ESP32-related motherboards with the Arduino IDE, you must first install the software package for the esp32 by Espressif Systems development board
  • According to board installation requirement, it is generally recommended to use Install Online. If online installation fails, use Install Offline.
  • For the installation tutorial, please refer to Arduino board manager tutorial
  • ESP32-S3-Touch-AMOLED-1.75 required development board installation description
Board nameBoard installation requirementVersion number requirement
esp32 by Espressif Systems"Install Offline" / "Install Online"3.1.0

Install Library

  • When installing Arduino libraries, there are usually two ways to choose from: Install online and Install offline. If the library installation requires offline installation, you must use the provided library file
    For most libraries, users can easily search and install them through the online library manager of the Arduino software. However, some open-source libraries or custom libraries are not synchronized to the Arduino Library Manager, so they cannot be acquired through online searches. In this case, users can only manually install these libraries offline.
  • ESP32-S3-Touch-AMOLED-1.75 library file is stored in the sample program, click here to jump: ESP32-S3-Touch-AMOLED-1.75 Demo
  • For library installation tutorial, please refer to Arduino library manager tutorial
ESP32-S3-Touch-AMOLED-1.75 Library file instructions
Library NameDescriptionVersionLibrary Installation Requirement
GFX_Library_for_ArduinoGFX graphical library for CO5300——"Install Offline"
ESP32_IO_ExpanderTCA9554 expansion chip driver libraryv0.0.3"Install Online" or "Install Offline"
lvglLVGL graphical libraryv8.4.0"Install Online" requires copying the demos folder to src after installation. "Install Offline" is recommended
SensorLibPCF85063, QMI8658 and CST9217 sensor driver libraryv0.3.1"Install Online" or "Install Offline"
XPowersLibXP2101 power management chip driver libraryv0.2.6"Install Online" or "Install Offline"
MylibraryDevelopment board pin macro definition——"Install Offline"
lv_conf.hLVGL configuration file——"Install Offline"

Run the First Arduino Demo


If you are just getting started with ESP32 and Arduino, and you don't know how to create, compile, flash, and run Arduino ESP32 programs, then please expand and take a look. Hope it can help you!

New Project

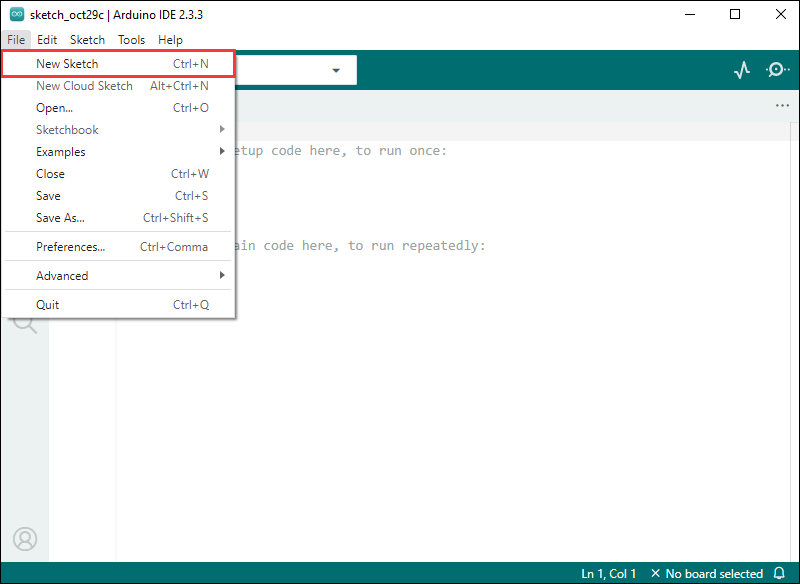

  • Run the Arduino IDE and select File -> New Sketch

  • Enter the code:
void setup() {
  // put your setup code here, to run once:
  Serial.begin(115200);
}

void loop() {
  // put your main code here, to run repeatedly:
  Serial.println("Hello, World!");
  delay(2000);
}

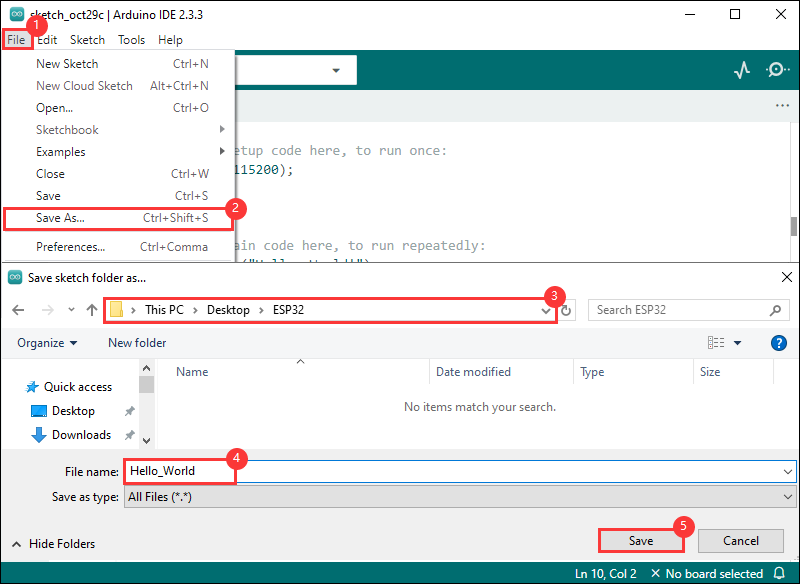

  • Save the project and select File -> Save As.... In the pop-up menu, select the path to save the project, and enter a project name, such as Hello_World, click Save

Compile and Flash Demos

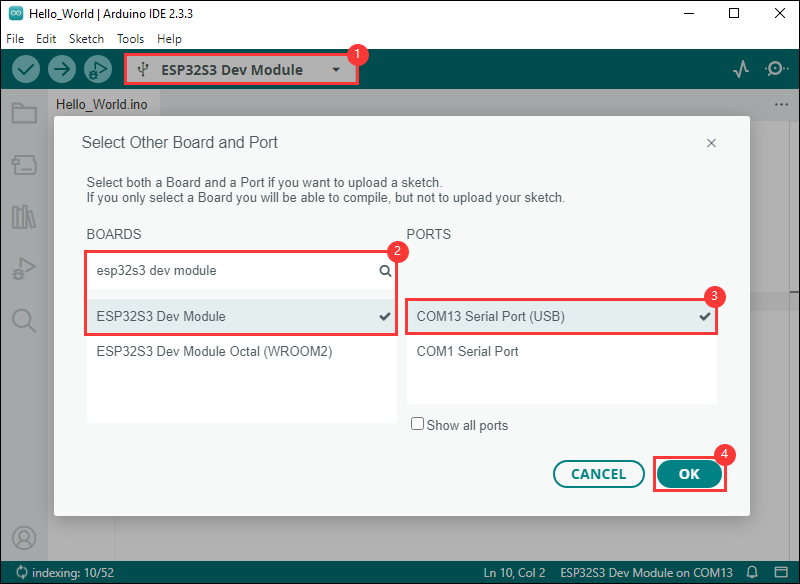

  • Select the corresponding development board, take the ESP32S3 motherboard as an example:

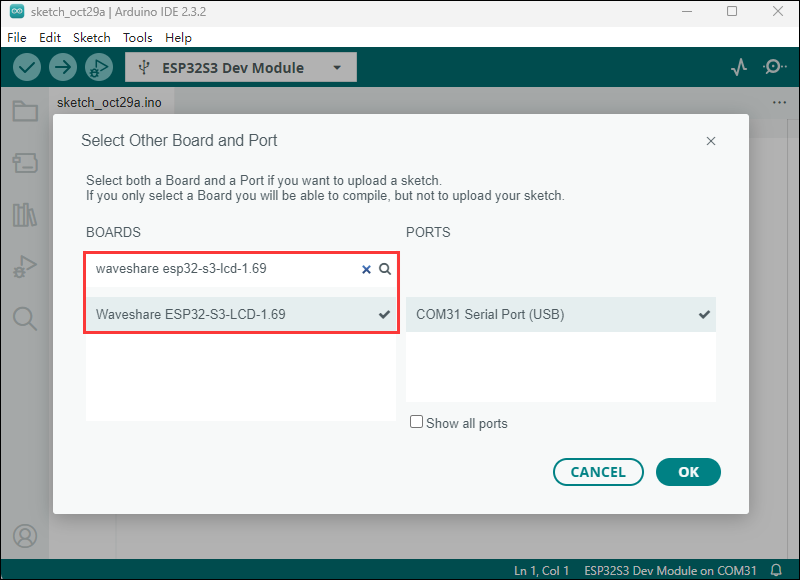

①. Click to select the dropdown menu option Select Other Board and Port;
②. Search for the required development board model esp32s3 dev module and select;
③. Select COM Port;
④. Save the selection.

  • Some development boards with specified version numbers support direct model selection, for example, "Waveshare ESP32-S3-LCD-1.69":

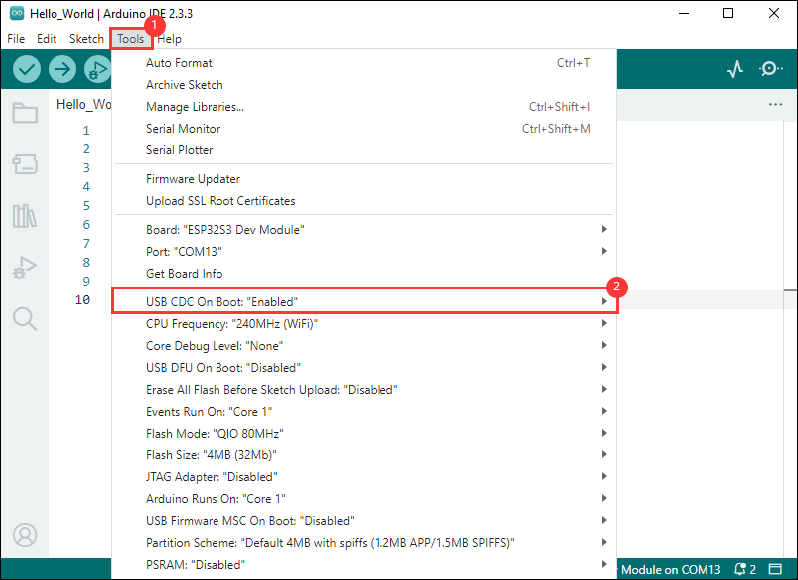

  • If the ESP32S3 mainboard only has a USB port, you need to enable USB CDC, as shown in the following diagram:

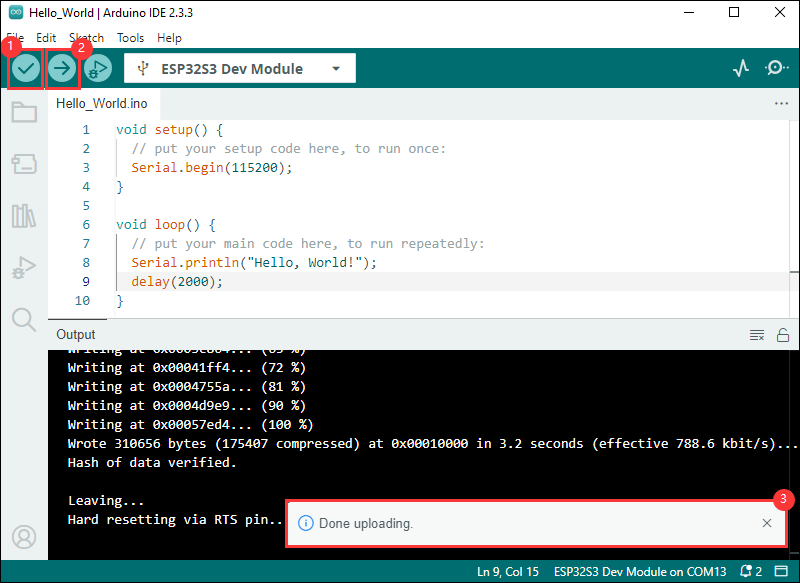

  • Compile and upload the program:

①. Compile the program; ②. Compile and download the program; ③. Download successful.

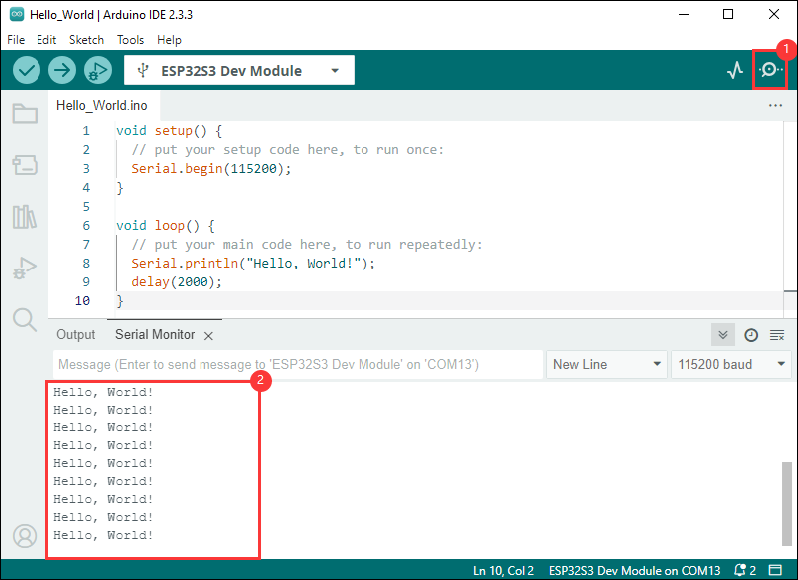

  • Open the Serial Monitor window, and the demo will print "Hello World!" every 2 seconds, and the operation is as follows:


Demo

01_HelloWorld

Demo description

  • This demo demonstrates how to control the CO5300 display using the Arduino GFX library, demonstrating basic graphics library functionality with dynamically changing text. This code can also be used to test the basic performance of the display and the effect of displaying random text

Hardware connection

  • Connect the development board to the computer

Code analysis

  • Initialize the display:
if (!gfx->begin()) {
  USBSerial.println("gfx->begin() failed!");
}
  • Clear the screen and display text:
gfx->fillScreen(BLACK);
gfx->setCursor(10, 10);
gfx->setTextColor(RED);
gfx->println("Hello World!");
  • GIF display:
gfx->setCursor(random(gfx->width()), random(gfx->height()));
gfx->setTextColor(random(0xffff), random(0xffff));
gfx->setTextSize(random(6), random(6), random(2));
gfx->println("Hello World!");

Result demonstration


03_LVGL_PCF85063_simpleTime

Demo description

  • This demo demonstrates how to use the PCF85063 RTC module under LVGL to display the current time on a CO5300 display screen, retrieving the time every second and only updating the display when the time changes, which is better than time refresh

Hardware connection

  • Connect the development board to the computer

Code analysis

  • setup: Responsible for initializing various hardware devices and LVGL graphics library environment
    • Serial port initialization: USBSerial.begin(115200) prepares for serial port debugging
    • Real-time clock initialization: Try to initialize the real-time clock rtc, enter a loop if it fails. Set the date and time
    • Touch controller initialization: Keep trying to initialize the touch controller CST9217, if initialization fails, print an error message and wait with a delay, and print a success message if successful
    • Graphical display initialization: Initialize the graphical display device gfx, set the brightness, and print the version information of LVGL and Arduino. Next, initialize the LVGL, including registering the print callback function for debugging, initializing the display driver and the input device driver. Create and start the LVGL timer, finally create a label and set the initial text to "Initializing..."
  • loop
    • lv_timer_handler(): This is an important function in the LVGL graphics library, which is used to handle various timer events, animation updates, input processing and other tasks of the graphical interface. Calling this function in each loop ensures smooth operation of the graphical interface and timely response to interactions
    • Time update and display: Get the time of the real-time clock every second and print it out through the serial port. Then format the time as a string and update the text of the label to display the current time. At the same time, set the font of the label to a specific font. Finally add a small delay

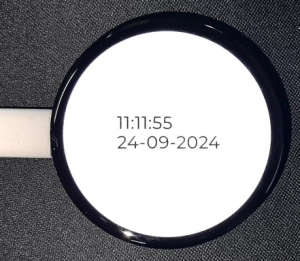

Result demonstration


04_LVGL_QMI8658_ui

Demo description

  • This demo demonstrates the use of LVGL for graphical display, communicating with the QMI8658 IMU to obtain accelerometer and gyroscope data

Hardware connection

  • Connect the development board to the computer

Code analysis

  • setup: Responsible for initializing various hardware devices and LVGL graphics library environment
    • Serial port initialization: USBSerial.begin(115200) prepares for serial port debugging
    • Touch controller initialization: Keep trying to initialize the touch controller CST9217, if initialization fails, print an error message and wait with a delay, and print a success message if successful
    • Graphical display initialization: Initialize the graphical display device gfx, set the brightness, and print the version information of LVGL and Arduino. Next, initialize the LVGL, including registering the print callback function for debugging, initializing the display driver and the input device driver. Create and start the LVGL timer, finally create a label and set the initial text to "Initializing..."
    • Create a chart: Create a chart object chart, set the chart type, range, number of data points and other properties of the chart, and add data series for the three axes of acceleration
    • Acceleration sensor initialization: Initialize acceleration sensor qmi, configure accelerometer and gyroscope parameters, enable them, and print chip ID and control register information
  • loop
    • lv_timer_handler(): This is an important function in the LVGL graphics library, which is used to handle various timer events, animation updates, input processing and other tasks of the graphical interface. Calling this function in each loop ensures smooth operation of the graphical interface and timely response to interactions
    • Read acceleration sensor data: If the acceleration sensor data is ready, read the acceleration data and print it via the serial port, while updating the chart to display the acceleration data. If the gyroscope data is ready, read the gyroscope data and print it via the serial port. Finally add a small delay and increase the frequency of data polling

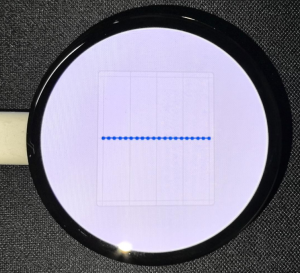

Result demonstration


05_LVGL_AXP2101_ADC_Data

Demo description

  • This demo demonstrates power management using the XPowers library under LVGL, and provides PWR custom button control for screen on and off actions

Hardware connection

  • Connect the development board to the computer

Code analysis

  • Screen on/off implementation function
void toggleBacklight() {
  USBSerial.println(backlight_on);
  if (backlight_on) {
    for (int i = 255; i >= 0; i--) {
      gfx->Display_Brightness(i);
      delay(3);
    }
  } else {
    for (int i = 0; i <= 255; i++) {
      gfx->Display_Brightness(i);
      delay(3);
    }
  }
  backlight_on = !backlight_on;
}

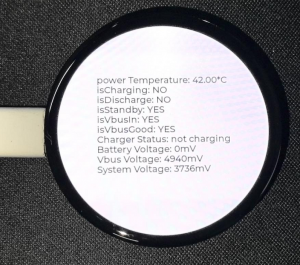

Result demonstration

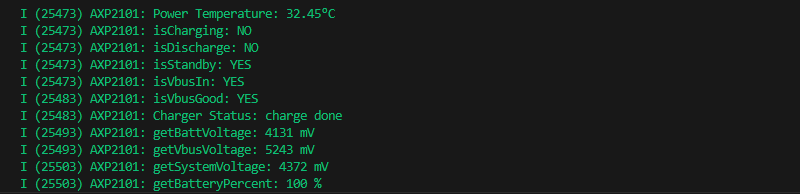

  • Display parameters: chip temperature, charging state, discharging state, standby state, Vbus connected, Vbus condition, charger status, battery voltage, Vbus voltage, system voltage, battery percentage


06_LVGL_Widgets

Demo description

    • This demo demonstrates the LVGL Widgets example, the frame rate can reach 50~60 frames in the dynamic state. By optimizing the SH8601 display library to achieve a better and smoother frame rate, which can actually be compared to the scenario with dual buffering and dual acceleration enabled in ESP-IDF environment

Hardware connection

  • Connect the development board to the computer

Code analysis

  • setup: Responsible for initializing various hardware devices and LVGL graphics library environment
    • Serial port initialization: USBSerial.begin(115200) prepares for serial port debugging
    • I2C bus Initialization: Wire.begin(IIC_SDA, IIC_SCL); initializes I2C bus for communication with other I2C devices
    • Expansion chip initialization: Create and initialize the expansion chip expander, set the pin mode as the output, and make some initial pin state settings
    • Touch controller initialization: Keep trying to initialize the touch controller CST9217, if initialization fails, print an error message and wait with a delay, and print a success message if successful
    • Graphical display initialization: Initialize the graphical display device gfx, set the brightness, and get the width and height of the screen. Then initialize the LVGL, including registering the print callback function for debugging, setting the touch controller's power mode to monitor mode, initializing the display driver and the input device driver. Create and start the LVGL timer, create a label and set the text, and finally call lv_demo_widgets() to display the LVGL sample widget
  • loop
    • lv_timer_handler(): This is an important function in the LVGL graphics library, which is used to handle various timer events, animation updates, input processing and other tasks of the graphical interface. Calling this function in each loop ensures smooth operation of the graphical interface and timely response to interactions
    • delay(5);: Add a small delay to avoid overoccupying CPU resources

Result demonstration


07_LVGL_SD_Test

Demo description

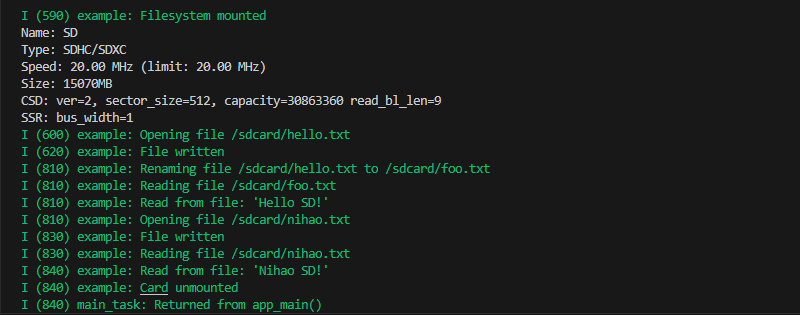

  • This demo demonstrates using SDMMC to drive a TF card and output its contents to the display

Hardware connection

  • Connect the development board to the computer
  • Insert the TF card into the board

Code analysis

  • setup: Responsible for initializing various hardware devices and LVGL graphics library environment
    • Serial port initialization: USBSerial.begin(115200) prepares for serial port debugging
    • I2C bus and expansion chip initialization: Initialize the I2C bus, create and initialize the expansion chip, set its pin mode to output, and print the initial and new states
    • Graphics display initialization: Initialize graphics display device, set brightness, initialize LVGL, set display driver and input device driver, create and start LVGL timer
    • TF card Initialization and information display: Set the pins of the TF card and attempt to mount the TF card. If the mount fails, an error message is displayed on the serial port and the screen. If the mount is successful, detect the TF card type and display it, get the TF card size and display it. Then call the listDir function to list the contents of the TF card root directory, and display the TF card type, size, and directory list information in the label on the screen
  • listDir: Recursively lists the files and subdirectories in the specified directory
    • First print the name of the directory being listed. Then open the specified directory, and if the opening fails, an error message will be returned. If it is not a directory that is opened, an error message is also returned. If it is a directory, then traverse the files and subdirectories in it. For subdirectories, recursively call the listDir function to list their contents. For files, print the file name and file size. Finally, return all collected information as a string

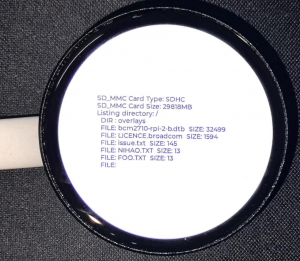

Result demonstration

TF card control pin description
SPI interfaceESP32-S3
CS (SS)GPIO41
DI (MOSI)GPIO1
DO (MISO)GPIO3
SCK (SCLK)GPIO2




08_ES8311

Demo description

  • This demo demonstrates using I2S to drive the ES8311 chip to play the converted binary audio file

Hardware connection

  • Connect the development board to the computer

Code analysis

  • es8311_codec_init: Initializes the ES8311 audio codec
    • Create a handle es_handle for the ES8311 codec
    • Configure the clock parameters of ES8311, including the main clock and sampling clock frequency, as well as the clock polarity, etc.
    • Initialize the codec and set the audio resolution to 16 bits
    • Configure sampling frequency
    • Configure microphone-related parameters, such as turning off the microphone, setting volume, and microphone gain
  • setup: Perform overall initialization settings, including serial port, pins, I2S, and ES8311 codec
    • Initialize serial port for debugging output
    • Set a specific pin as output and set it high
    • Configure I2S bus, set pins, operating mode, sampling rate, data bit width, channel mode, etc.
    • Initialize the I2C bus
    • Call the es8311_codec_init function to initialize the ES8311 codec
    • Play a predefined piece of audio data (canon_pcm) through the I2S bus

Result demonstration

  • Nothing will be shown on the screen if you play the audio file

09_ESP32-S3-LCD76G-I2C

Demo description

  • This example demonstrates using I2C to actively query the NMEA data from the LC76G, and by transmitting and printing it to the serial port, you can directly use NMEA parsing tools to obtain latitude and longitude information, etc
  • "USB CDC On Boot" needs to be enabled when using

Hardware connection

  • Connect the development board to the computer
  • Connect the 2.4G ceramic antenna

Result demonstration


Working with ESP-IDF

This chapter introduces setting up the ESP-IDF environment setup, including the installation of Visual Studio and the Espressif IDF plugin, program compilation, downloading, and testing of demos, to assist users in mastering the development board and facilitating secondary development.

Environment Setup

Download and Install Visual Studio

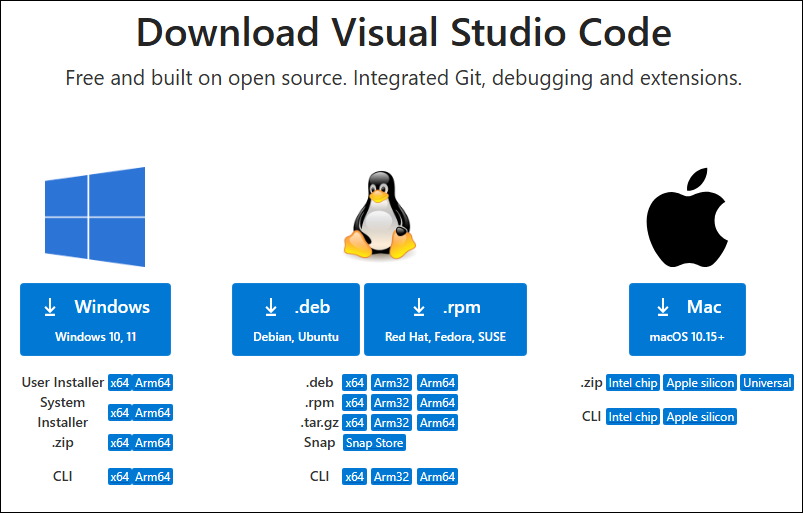

  • Open the download page of VScode official website, choose the corresponding system and system bit to download

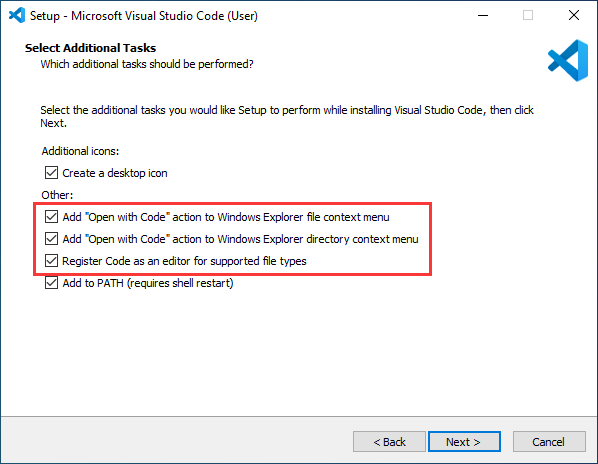

  • After running the installation package, the rest can be installed by default, but here for the subsequent experience, it is recommended to check boxes 1, 2, and 3

    • After the first two items are enabled, you can open VSCode directly by right-clicking files or directories, which can improve the subsequent user experience.
    • After the third item is enabled, you can select VSCode directly when you choose how to open it
The environment setup is carried out on the Windows 10 system, Linux and Mac users can access ESP-IDF environment setup for reference

Install Espressif IDF Plugin

  • It is generally recommended to use Install Online. If online installation fails due to network factor, use Install Offline.
  • For more information about how to install the Espressif IDF plugin, see Install Espressif IDF Plugin

Run the First ESP-IDF Demo


If you are just getting started with ESP32 and ESP-IDF, and you don't know how to create, compile, flash, and run ESP-IDF ESP32 programs, then please expand and take a look. Hope it can help you!

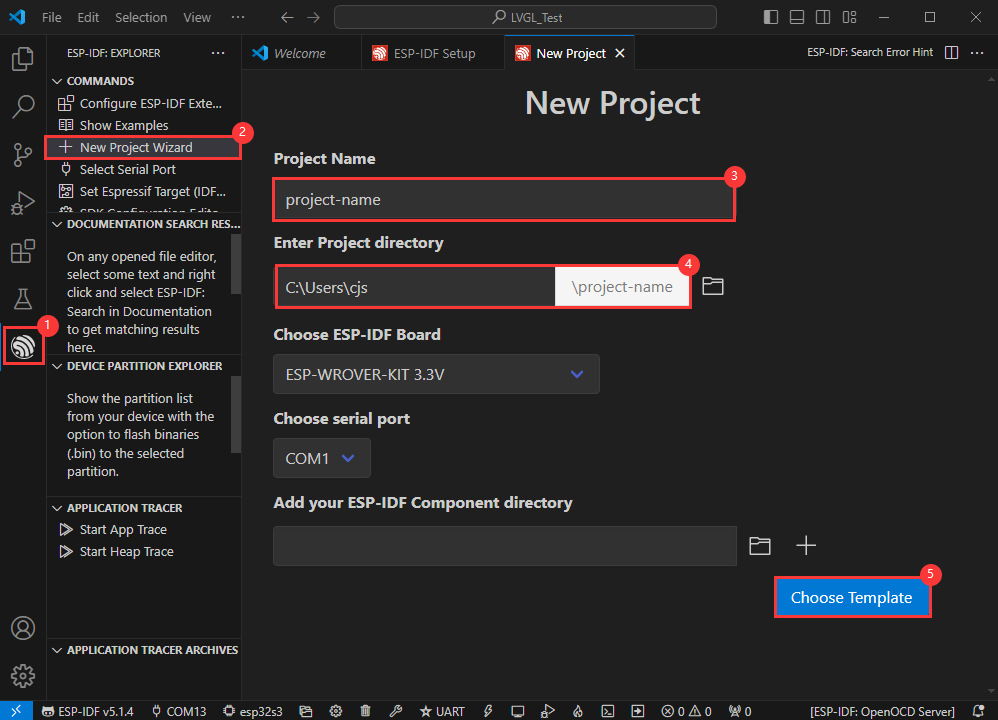

New Project




Create Demo

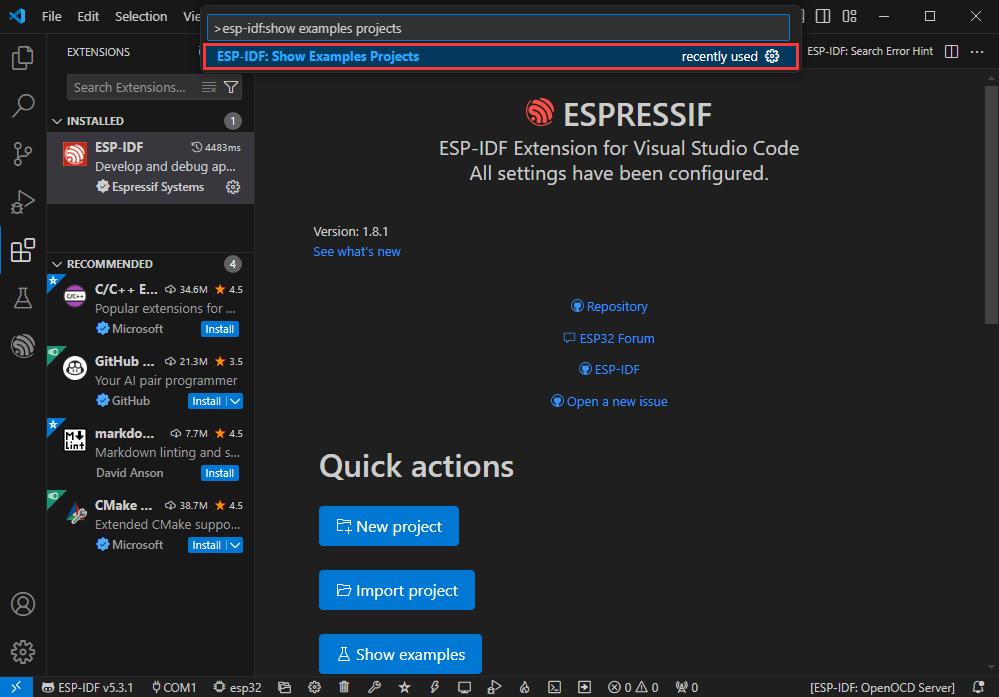

  • Using the shortcut F1, enter esp-idf:show examples projects


  • Select your current IDF version


  • Take the Hello world demo as an example

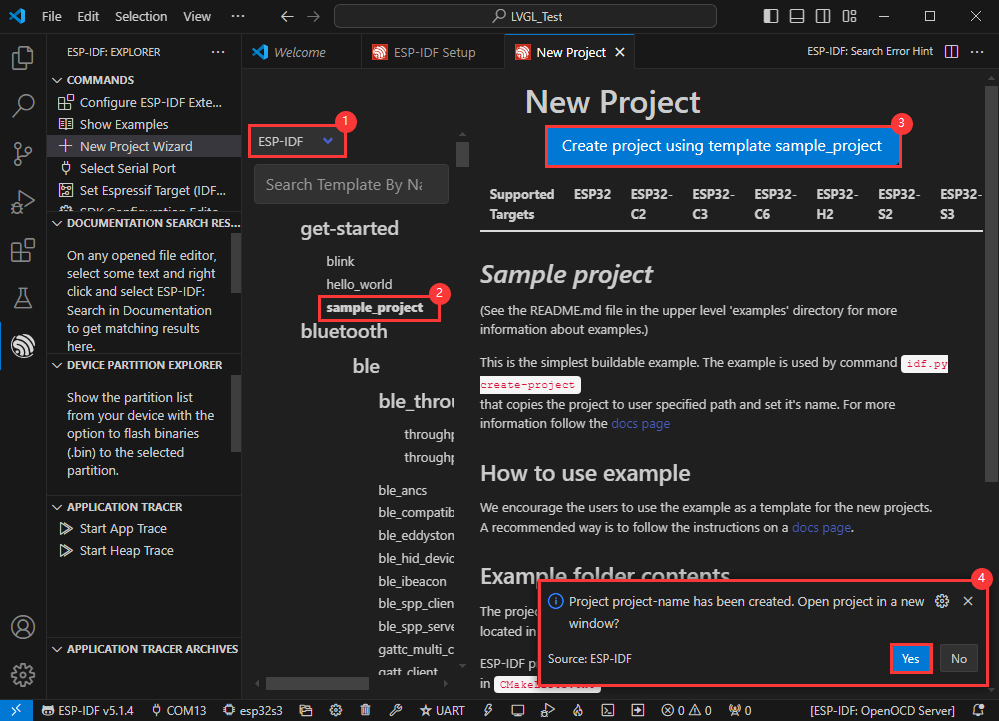

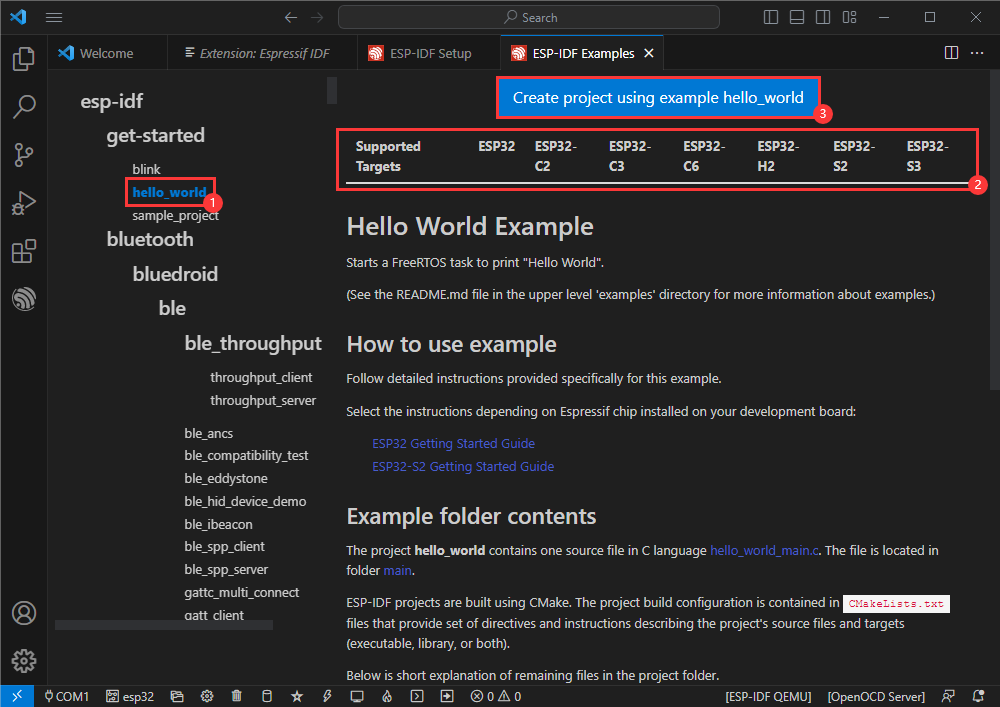

①Select the corresponding demo
②Its readme will state what chip the demo applies to (how to use the demo and the file structure are described below, omitted here)
③Click to create the demo

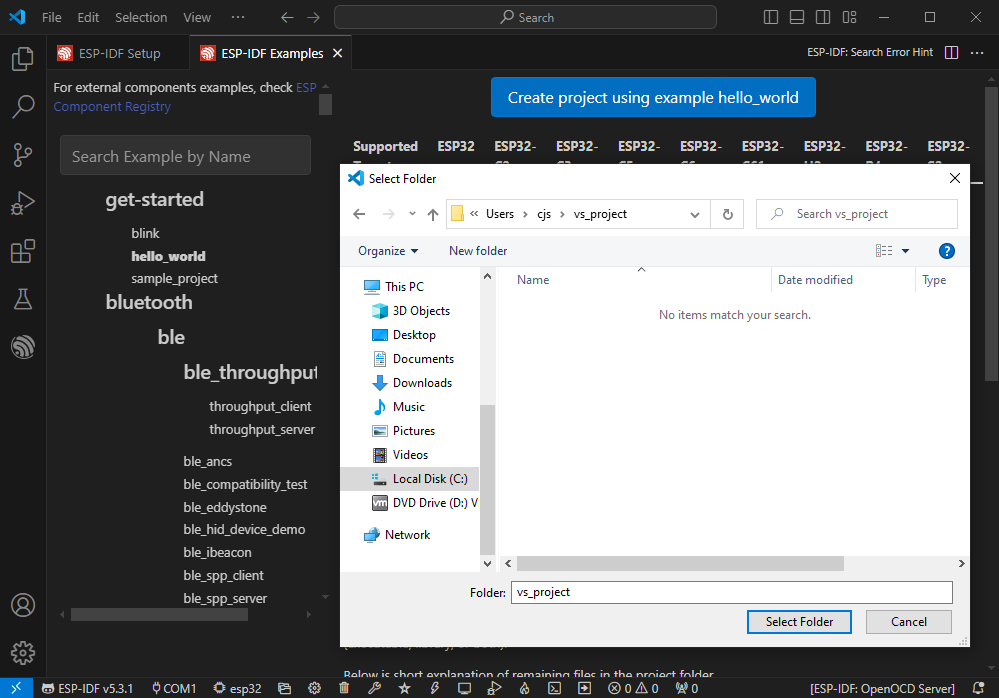

  • Select the path to save the demo, and require that the demos cannot use folders with the same name


Modify COM Port

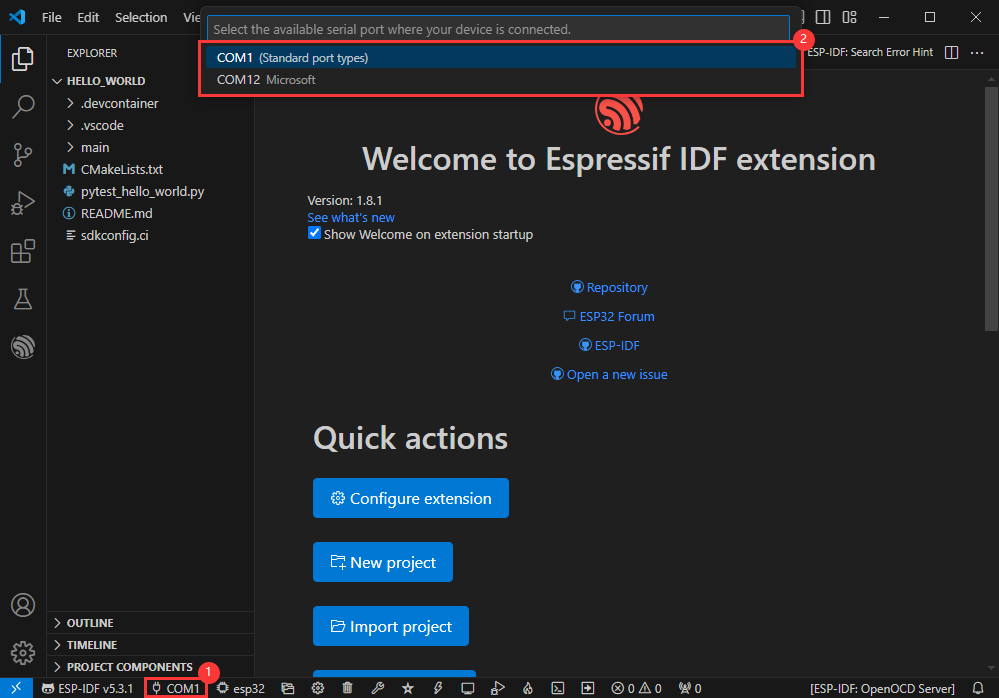

  • The corresponding COM ports are shown here, click to modify them
  • Please select the COM ports according to your device (You can view it from the device manager)
  • In case of a download failure, please press the Reset button for more than 1 second or enter download mode, and wait for the PC to recognize the device again before downloading once more


Modify Driver Object

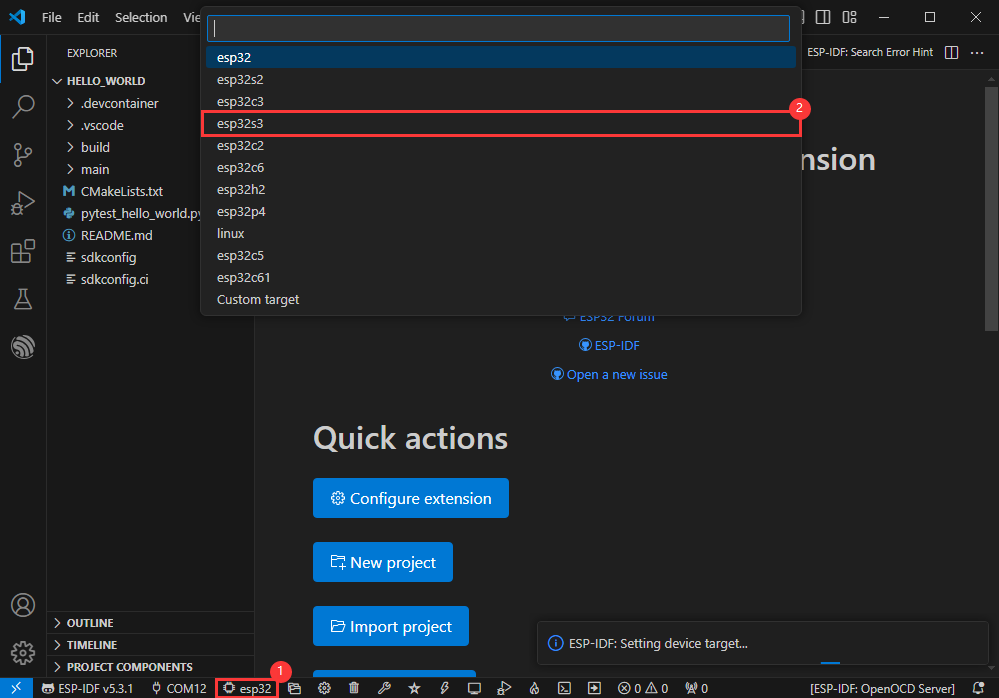

  • Select the object we need to drive, which is our main chip ESP32S3

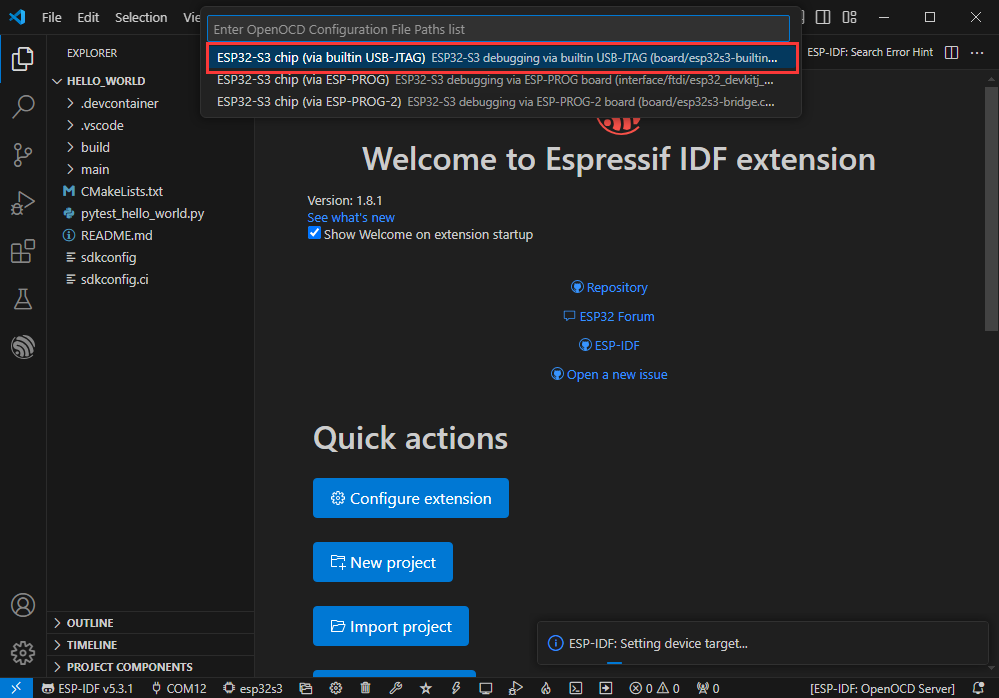

  • Choose the path to openocd, it doesn't affect us here, so let's just choose one


Other Status Bar Functions

①.ESP-IDF Development Environment Version Manager, when our project requires differentiation of development environment versions, it can be managed by installing different versions of ESP-IDF. When the project uses a specific version, it can be switched to by utilizing it
②.Device flashing COM port, select to flash the compiled program into the chip
③.Select set-target chip model, select the corresponding chip model, for example, ESP32-P4-NANO needs to choose esp32p4 as the target chip
④.menuconfig, click it to Modify sdkconfig configuration file Project configuration details
⑤.fullclean button, when the project compilation error or other operations pollute the compiled content, you can clean up all the compiled content by clicking it
⑥.Build project, when a project satisfies the build, click this button to compile

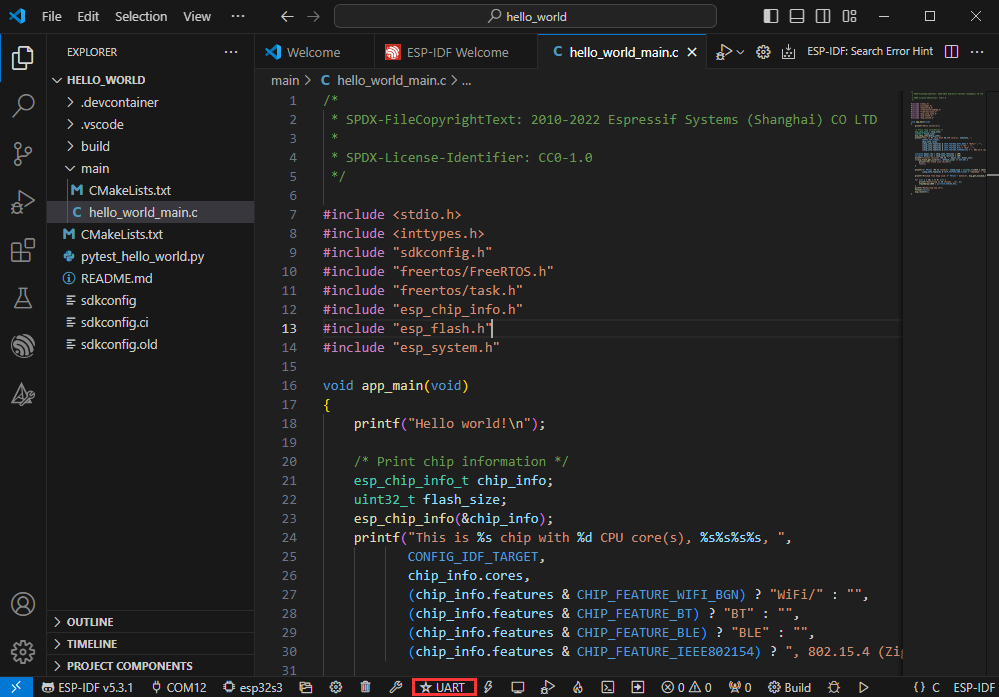

⑦.Current download mode, the default is UART
⑧.flash button, when a project build is completed, select the COM port of the corresponding development board, and click this button to flash the compiled firmware to the chip
⑨.monitor enable flashing port monitoring, when a project passes through Build --> Flash, click this button to view the log of output from flashing port and debugging port, so as to observe whether the application works normally
⑩.Debug
⑪.Build Flash Monitor one-click button, which is used to continuously execute Build --> Flash --> Monitor, often referred to as "little flame"


Compile, Flash and Serial Port Monitor

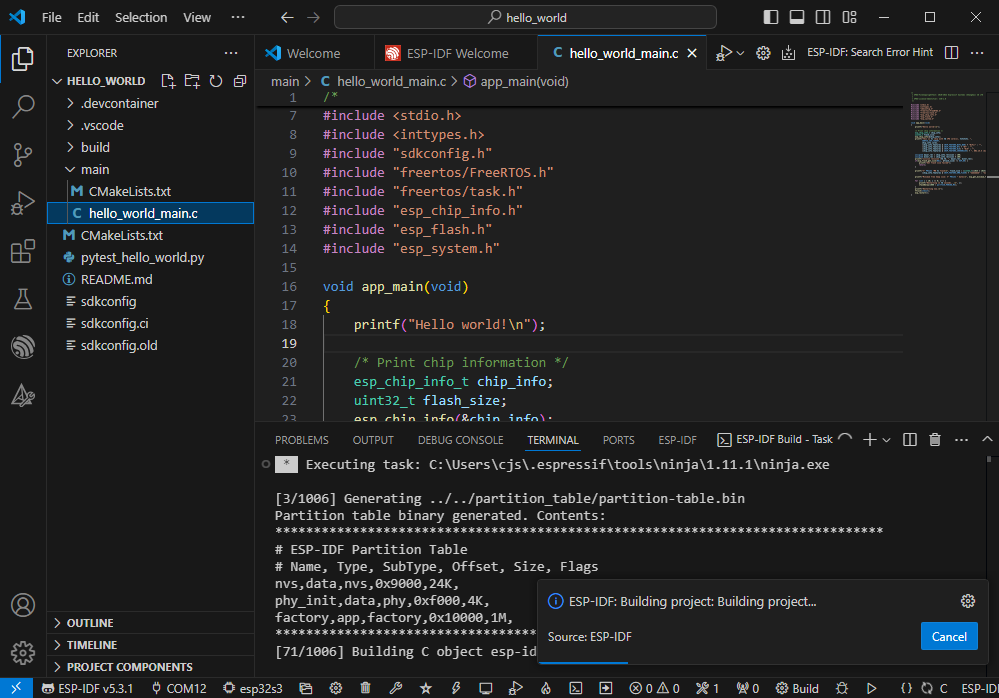

  • Click on the all-in-one button we described before to compile, flash and open the serial port monitor


  • It may take a long time to compile especially for the first time


  • During this process, the ESP-IDF may take up a lot of CPU resources, so it may cause the system to lag

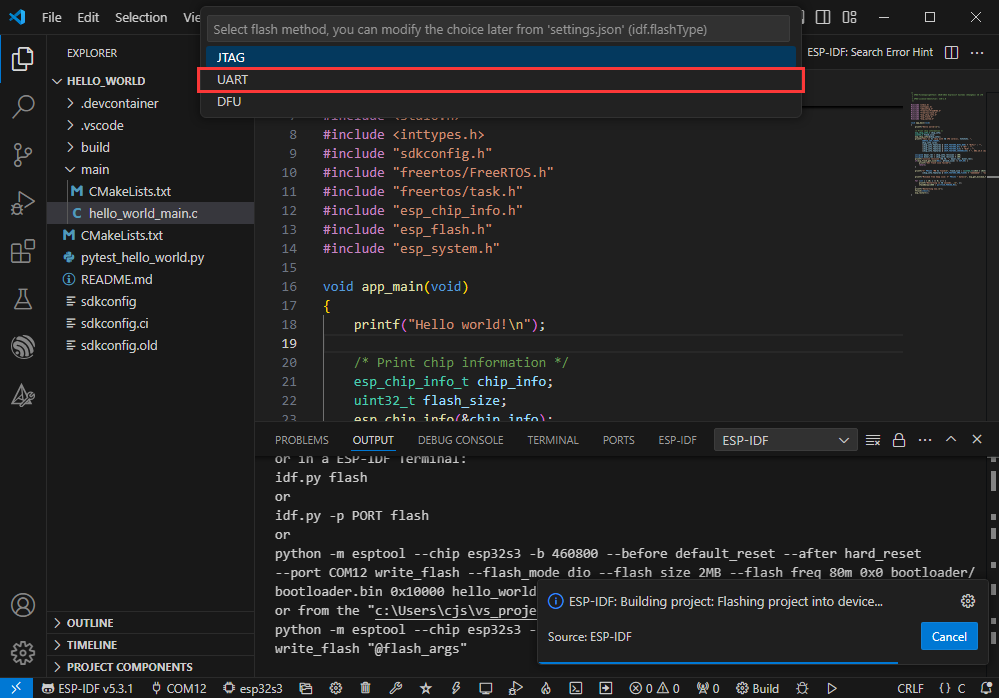

  • If it is the first time to flash the program for a new project, you will need to select the download method, and select UART


  • This can also be changed later in the Download methods section (click on it to pop up the options)


  • As it comes with the onboard automatic download circuit, it can be downloaded automatically without manual operation

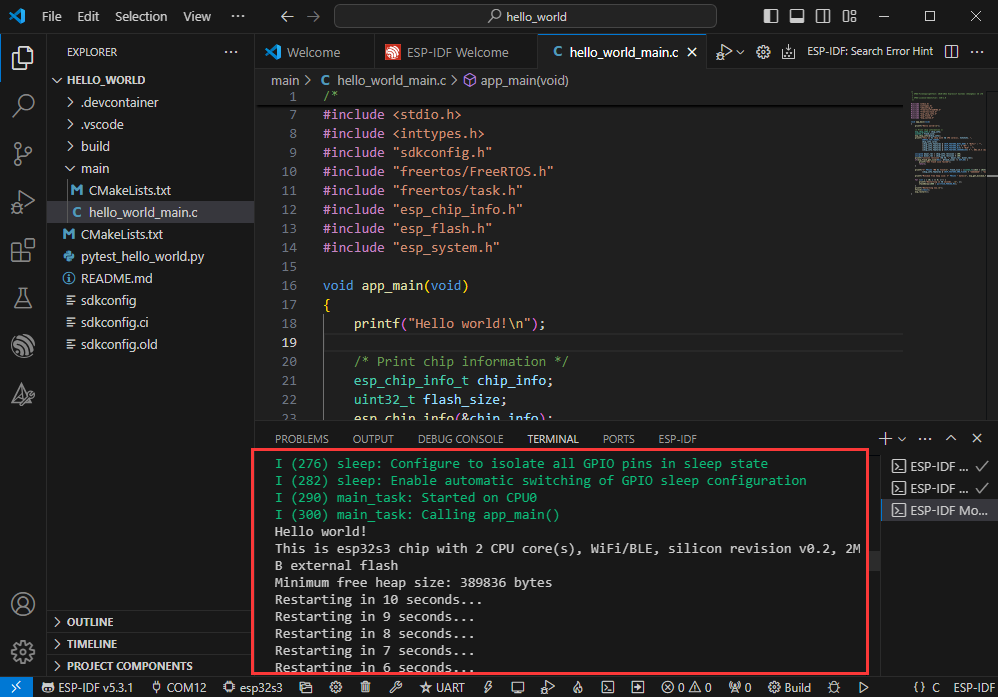

  • After successful download, it will automatically enter the serial monitor, you can see the chip output the corresponding information and be prompted to restart after 10S


Use the IDF Demos

The following takes ESP32-S3-LCD-1.47-Demo as an example to introduce the two opening methods of the project and the general steps of use, and the detailed explanation of the ESP-IDF project. If you use other projects, the operation steps can be applied similarly.

Open In the Software

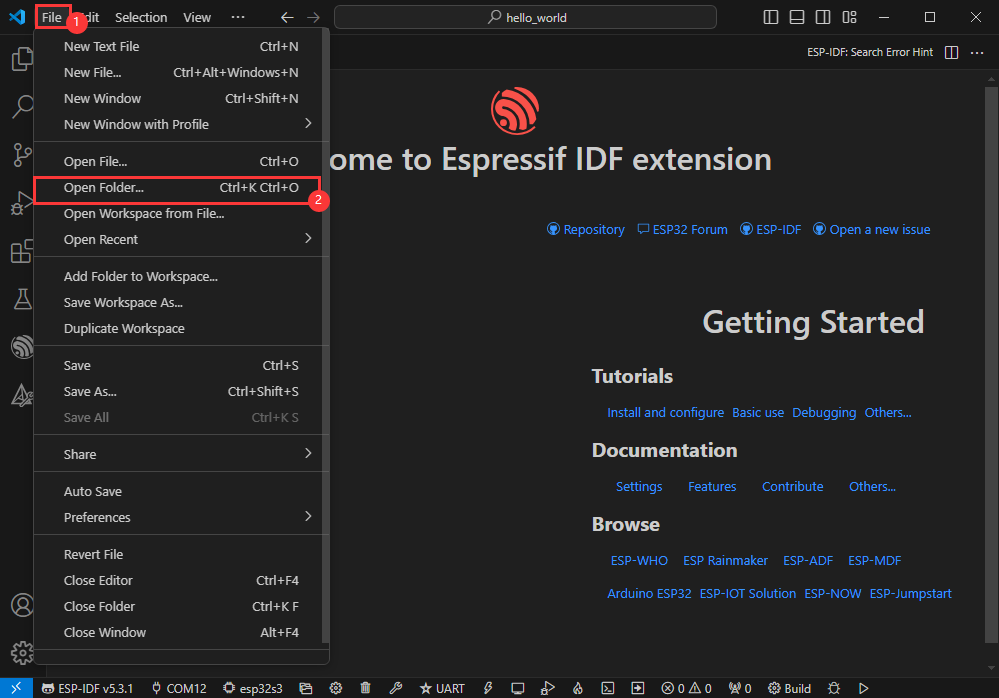

  • Open VScode software and select the folder to open the demo


  • Select the provided ESP-IDF example and click to select the file (located in the /Demo/ESP-IDF path under demo)

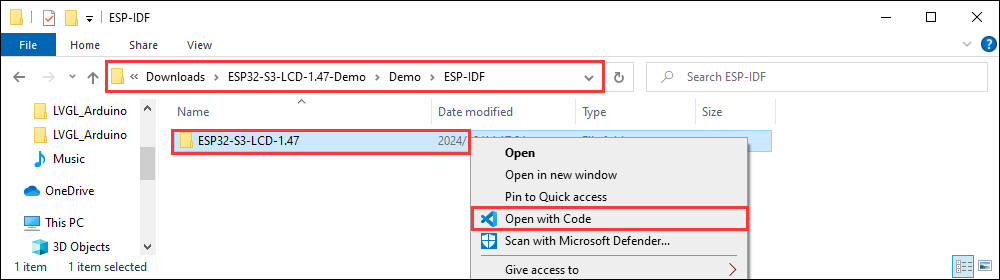

Open from Outside the Software

  • Select the project directory correctly and open the project, otherwise it will affect the compilation and flashing of subsequent programs

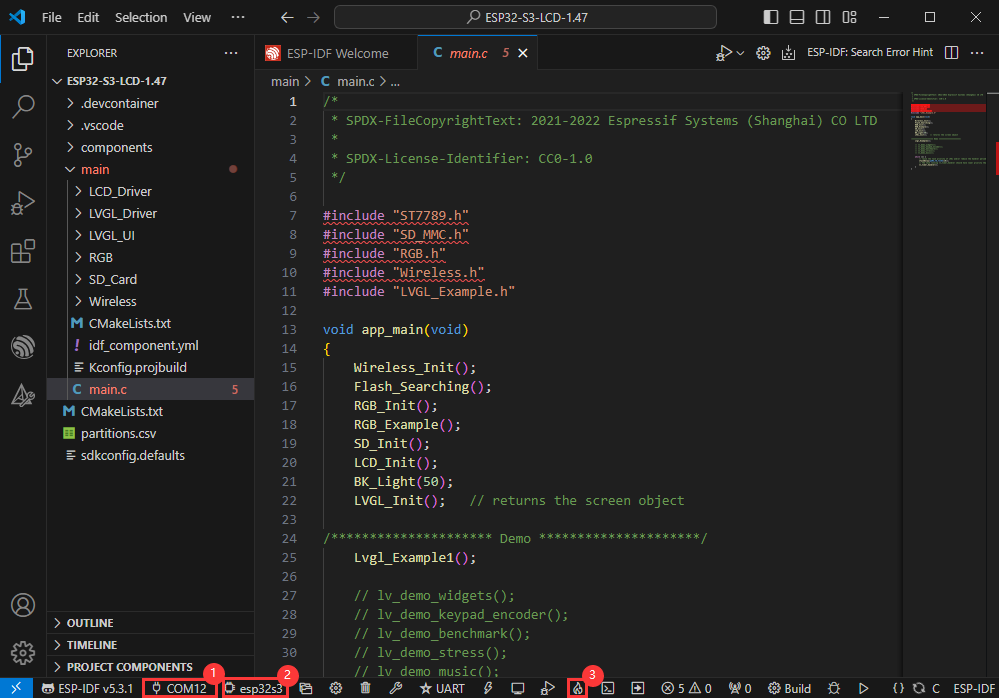

  • After connecting the device, select the COM port and model, click below to compile and flash to achieve program control


ESP-IDF Project Details

  • Component: The components in ESP-IDF are the basic modules for building applications, each component is usually a relatively independent code base or library, which can implement specific functions or services, and can be reused by applications or other components, similar to the definition of libraries in Python development.
    • Component reference: The import of libraries in the Python development environment only requires to "import library name or path", while ESP-IDF is based on the C language, and the importing of libraries is configured and defined through CMakeLists.txt.

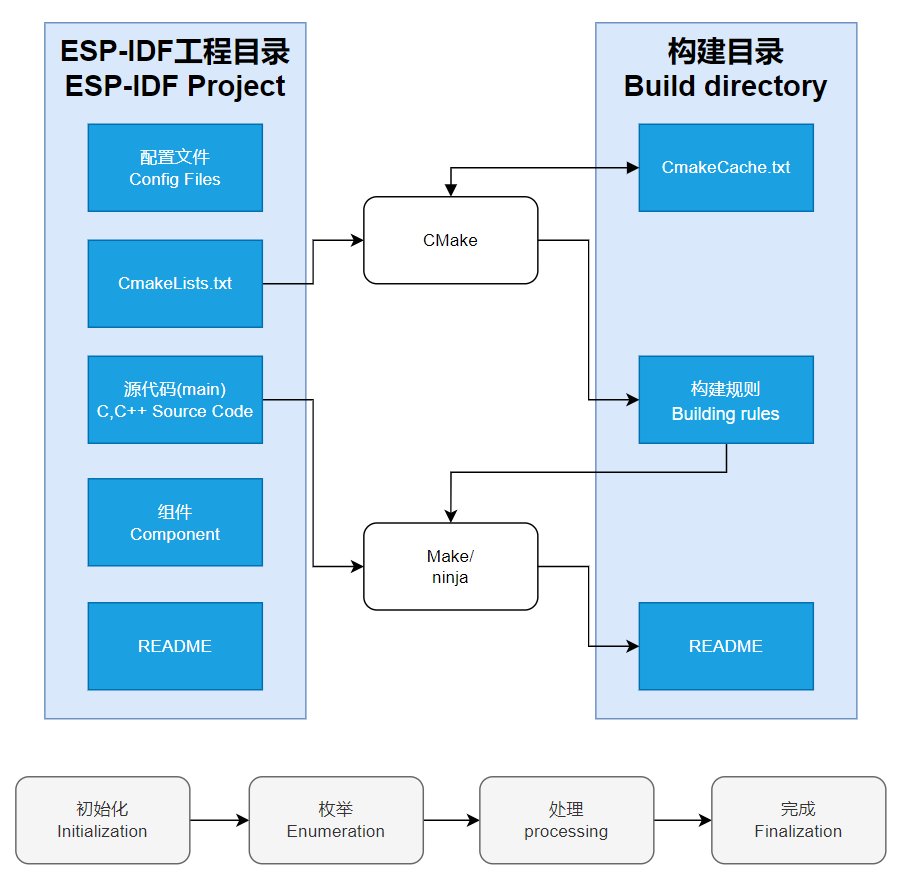

    • The purpose of CmakeLists.txt: When compiling ESP-IDF, the build tool CMake first reads the content of the top-level CMakeLists.txt in the project directory to read the build rules and identify the content to be compiled. When the required components and demos are imported into the CMakeLists.txt, the compilation tool CMake will import each content that needs to be compiled according to the index. The compilation process is as follows:


Demo


  • ESP32-S3-Touch-AMOLED-1.75 Demo
DemoBasic Description
01_AXP2101Obtain power-related data through the ported XPowersLib to drive AXP2101
02_PCF85063Drive pcf85063 for time storage and reading function
03_QMI8658Use the ported SensorLib to drive qmi8658 to obtain gyroscope-related data
04_SD_MMCInitialize TF card using sdmmc and read/write the content
05_LVGL_WITH_RAMRun the LVGL demo by enabling dual caching and DMA acceleration anti-tearing, etc.
06_I2SCodecUse I2S to drive ES8311 Codec chip to record or play audio

01_AXP2101

Demo description

  • This demo demonstrates using ESP-IDF to port XPowersLib, and driving AXP2101 to obtain power-related data through the ported XPowersLib

Hardware connection

  • Connect the development board to the computer

Code analysis

  • i2c_init: Initializes the I2C master in preparation for communication with other devices, such as the PMU
    • Configure I2C parameters, including setting the master device mode, specifying the SDA and SCL pins, enabling the pull-up resistor, and determining the clock frequency
    • Install the I2C driver and apply the configuration to the actual hardware
  • pmu_register_read: Reads a series of bytes of data from a specific register of the PMU
    • Perform parameter checks to ensure the incoming parameters are valid and avoid invalid read operations
    • Perform I2C operations in two steps, first send the register address to read, then read the data. During the reading process, different processing is carried out according to the length of bytes to be read to ensure accurate reading of the data. At the same time, handle error cases in the I2C communication process and return the corresponding status code so that the upper-layer code can determine if the read operation is successful

Result demonstration

  • This demo will not light up the screen
  • The serial port monitor displays the parameters: chip temperature, charging state, discharging state, standby state, Vbus connected, Vbus condition, charger status, battery voltage, Vbus voltage, system voltage, battery percentage


02_PCF85063

Demo description

  • This demo uses a simple way to drive the PCF85063 for time storage and reading functionality

Hardware connection

  • Connect the development board to the computer

Code analysis

  • i2c_master_init
    • Define the I2C configuration structure conf, set the master device mode, SDA and SCL pins, pull-up resistor, and clock frequency
    • Use the i2c_param_config function to configure I2C parameters. If the configuration fails, an error log is recorded and an error code is returned
    • Use the i2c_driver_install function to install the I2C driver, apply the configuration to the actual hardware, and return the result
  • rtc_get_time
    • Define a byte array named data with a length of 7 for storing read time data
    • Call the rtc_read_reg function to read 7 bytes of time data starting from the specific register address (0x04) of the RTC chip. If the reading fails, an error log is recorded and an error code is returned
    • Process the time data read, separately extract the seconds, minutes, hours, days, weeks, months, and years, and convert BCD to decimal
    • Use ESP_LOGI to output the formatted current time

Result demonstration

  • This demo will not light up the screen

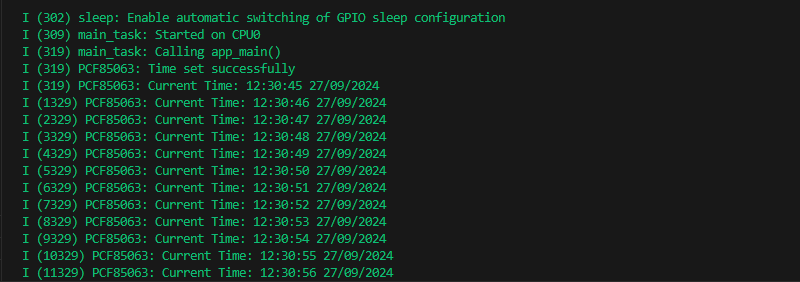

  • The serial port monitor prints time information


03_QMI8658

Demo description

This demo demonstrates using ESP-IDF to port SensorLib, then use the ported SensorLib to drive qmi8658 to obtain gyroscope-related data

Hardware connection

  • Connect the development board to the computer

Code analysis

  • setup_sensor: Set and initialize the environment and parameters required to communicate with the QMI8658 sensor
    • Initialize I2C communication to ensure that the connection channel to the sensor is established
    • Initialize the sensor, check if the sensor is properly connected
    • Configure the sensor's accelerometer and gyroscope parameters to meet specific application needs
    • Enable the sensor to start collecting data
  • read_sensor_data: Read and process data from the QMI8658 sensor in a continuous loop and output the results
    • In the loop, continuously check if the sensor data is ready
    • When the data is ready, the accelerometer, gyroscope, timestamp, and temperature data are read and logged out
    • Handle the failure of data reading by recording an error log for troubleshooting
    • Control the execution speed of the loop through delay to avoid excessive consumption of system resources

Result demonstration

  • This demo will not light up the screen

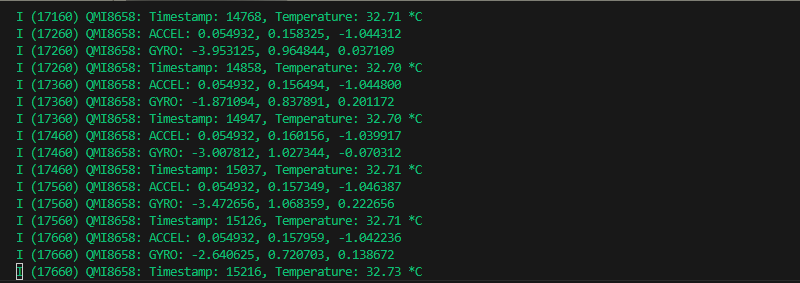

  • The serial port monitor prints sensor data


04_SD_MMC

Demo description

This demo demonstrates initializing TF card using sdmmc and read/write the content

Hardware connection

  • Connect the development board to the computer

Code analysis

  • esp_vfs_fat_sdmmc_mount: Mount the FAT file system of the TF card to the specified mount point and establish a file access interface for the TF card
    • Prepare the mount configuration, determine whether to format and other parameters when the mount fails
    • Initialize the SDMMC host configuration, including settings such as frequency. For specific chips, power control initialization may also be required
    • Configure SDMMC card slot parameters such as bus width and GPIO pin settings
    • Call the function to perform the mounting operation, try to initialize the TF card and mount the file system. If successful, you can get the TF card information; if it fails, an error code is returned for error handling
  • s_example_write_file: Write data to a file in a specified path to create and update file contents on the TF card
    • Open the file at the specified path in write mode, and if it fails to open, log the error and return the error code
    • Use the standard C library function fprintf to write data to a file
    • Close the file and record a log indicating that the file has been written. If there are issues while opening or writing, it will affect the creation of the file and the saving of data

Result demonstration

  • This demo will not light up the screen
  • The serial port monitor prints the TF card information


05_LVGL_WITH_RAM

Demo description

  • This example shows LVGL demo, which can run LVGL demo by enabling dual caching, enabling DMA acceleration and anti-tearing, etc., and run dynamic graphics and texts smoothly, the frame rate can reach 200~300 frames

Hardware connection

  • Connect the development board to the computer

Code analysis

  • app_main: The initialization and startup process of the entire application
    • Hardware initialization: Configure and initialize hardware devices related to LCD display and touch input (if available), such as GPIO pins, SPI bus, I2C bus, LCD panel driver, and touch controller driver, etc.
    • LVGL initialization: Initialize the LVGL library, allocate drawing buffers, register display driver and touch input device driver (if available), install timers, and create mutexes and start LVGL tasks
    • Example display: Finally show LVGL examples, such as widget examples, etc.
  • example_lvgl_port_task: LVGL task function, responsible for handling LVGL regular updates and task delay control, ensuring the smooth operation of the LVGL interface
    • Timed update: The lv_timer_handler is called to handle the timer event of LVGL to update the interface state
    • Delay control: Determine the task's delay time based on the results of timer processing to avoid excessive CPU resource usage and ensure timely response to LVGL events

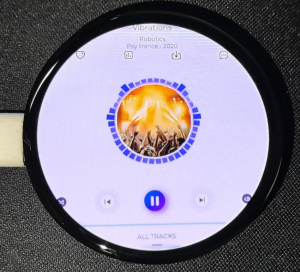

Result demonstration


06_I2SCodec

Demo description

This demo demonstrates using the I2S to drive the ES8311 Codec chip to capture or play audio

Hardware connection

  • Connect the development board to the computer

Code analysis

  • app_main: The initialization and startup process of the entire application
    • Initialize the GPIO, set a specific pin to output mode and control its level state
    • Print startup information, provide initial status feedback of program running LVGL task
    • Initialize I2S peripherals, configure I2S channels and related hardware parameters, and ensure the transmission of audio data
    • Initialize ES8311 codec, configure the I2C bus and set the codec parameters to prepare for audio processing
    • Create corresponding tasks according to different operating modes to realize music playback or microphone echo function
  • es8311_codec_init: Responsible for initializing I2C peripherals and configuring the ES8311 audio codec to ensure that the codec can work normally
    • Initialize the I2C bus, including setting parameters such as pins, modes, clock speed, etc., and install an I2C driver to establish the foundation for communication with the ES8311
    • Create a handle to the ES8311 codec for subsequent configuration operations
    • Configure the clock parameters of the ES8311, such as the reversal state of the host and slave clocks, the host clock source, frequency, and sampling frequency
    • Initialize the ES8311 codec and set parameters such as audio resolution
    • Set the sampling frequency, volume, and microphone parameters (as needed) to meet specific audio processing needs

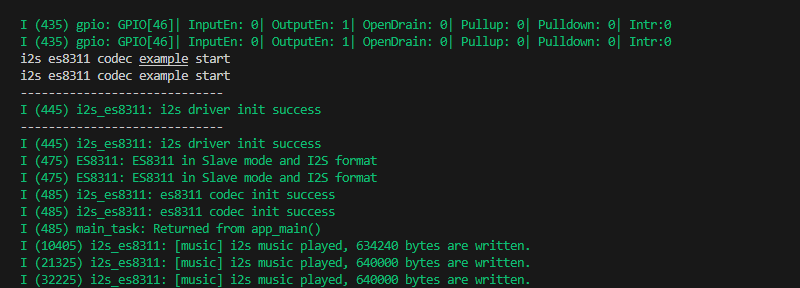

Result demonstration

  • This demo will not light up the screen, only play the audio
  • The serial port monitor can view the serial port information


Custom audio

Users can customize audio playback segments by following the steps below (some programming knowledge is required)

  • Select any format of music you want to play (e.g. a.mp3)
  • Install ffmpeg tool
  • Use the command line to view the details of an audio file, including the file's encoding format, duration, bitrate, audio stream details, etc.
    • ffprobe a.mp3
  • Cut your music because there isn't enough room for the whole piece of music
    • ffmpeg -i a.mp3 -ss 00:00:00 -t 00:00:20 a_cut.mp3
  • Convert music format to .pcm
    • ffmpeg -i a_cut.mp3 -f s16le -ar 16000 -ac 1 -acodec pcm_s16le a_cut.pcm
  • Move the cropped a_cut.pcm audio file to main directory
  • Replace canon.pcm in main\CMakeList.txt with a_cut.pcm
  • Replace _binary_canon_pcm_start and _binary_canon_pcm_end in main\i2s_es8311_example.c with _binary_a_cut_pcm_start and _binary_a_cut_pcm_end
  • Compile and flash

Flash Firmware Flashing and Erasing

  • The current demo provides test firmware, which can be used to test whether the onboard device functions properly by directly flashing the test firmware
  • bin file path:
    ..\ESP32-S3-Touch-AMOLED-1.75-Demo\Firmware
Flash firmware flashing and erasing for reference

Resources

Schematic Diagram

Project Diagram

Demo

Datasheets

ESP32-S3

Other Components

Software

FAQ

Support


TAG： 0.85inch LCD EPS32S3 1.8inch Round LCD Display WIFI-AIDA64-Secondary-TouchScreen/Wireless-Power/Video-Player LVGL AI Machine Vision Kit OAK-D-POE JPEG Encoder 12MP IP67 Waterproof 4TOPS OpenCV Camera 7inch Monitor LCD Raspberry Pi display Core3566102032 DeepSeek XiaoZhi AI Chat Robot ESP32-S3 1.54 inch LCD N16R8 MUMA Development Board Display Screen Wifi Weather Station TimeClock ESP32 S3 LCD Development Board 1.3 inch Display 1.3inch Screen ST7789 240x240 Mini TV SD-Port QST QMI8658 Gyro Sensor LVGL For Arduino Jetson Nano PWM Fan Pi 5 PCIe to M.2 Font-Modulation-Tutorial User Guide Raspberry-Pi-1.54inch-LCD-Display-Touchscreen-configuration-Bookworm-Lite For Pi5 ESP32-S3 ETH Camera Development Board PoE RJ45 / OV2640 OV5640 Port / W5500 / Micro-SD Compatible With Raspberry Pi Pico Size DDSM400 Direct Drive Servo Motor All-In-One Design Hub Serial -LIN Bus Motor Raspberry Pi AI Camera Official Original 12MP IMX500 Intelligent visual Sensor On-Board RP2040 Raspberry Pi 5 RTC Box Raspberry Pi 5 Raspberry Pi Refractive Prism Raspberry Pi 5 DSI display Raspberry Pi HQ Camera Official Original High Quality For M12 Lenses 12.3MP IMX477 Sensor
Price：
$30.99-39.99
Model：
ESP32-S3-Touch-AMOLED-1.75
Brand：
SpotPear
SKU：
020804700000

ESP32 S3 Development Board 1.75 inch AMOLED Display TouchScreen SD slot 6-axis sensor Xiaozhi AI Deepseek

[Tutorial Navigation]

©Copyright 2015 Berlinger Haus | All Rights Reserved
Address：Rm401, building 4, Enlai industrial city, Nankang Road, Danzhutou community, Nanwan street, Longgang District, Shenzhen
Email：services01@spotpear.com (Only tech support .Order see 'CONTACT US' at our web )
