LuckFox Pico SDK1.4 configure RTL8723BS WIFI User Guide

【Basic information】

[] Only the following models are supported：Luckfox Pico Mini B /Luckfox Pico Plus /Luckfox Pico Pro /Luckfox Pico Max

[] Not supported：Luckfox PicoOther models in the series

[] Module model: LF-WIFI (A) module developed by Banli Electronics based on RTL8723BS

[] SDK used: Luckfox SDK V1.4

[] Source code address：https://github.com/LuckfoxTECH/luckfox-pico.git

】Hardware Introduction

[] RTL8723BS is a module that integrates Bluetooth and WIFI.

[]LF-WIFI (A) module: It is a module based on RTL8723BS for secondary development. It has a TF card slot shape and is driven by the SDIO interface. Due to the interface limitations of SDIO, this module only uses the RTL8723BS WIFI function and does not use the Bluetooth function.

】TF card interface hardware schematic diagram

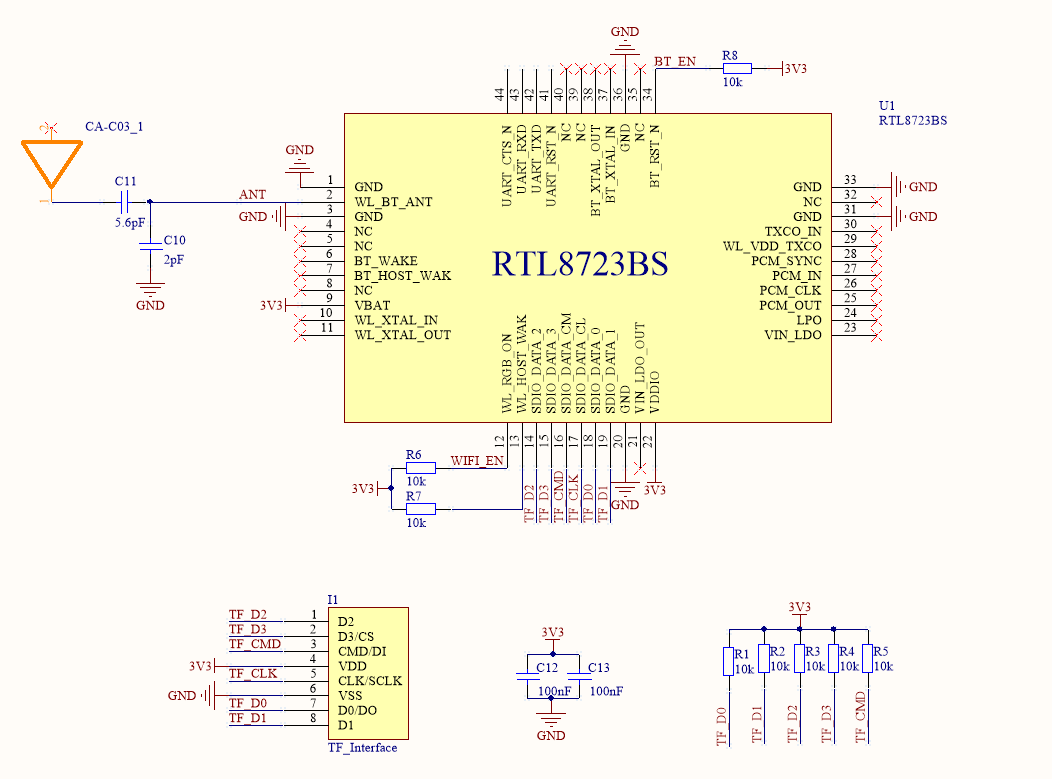

】LF-WIFI (A) schematic diagram

Pin 12 (WL_DSI/WL_REG) is pulled high.

Pin 13 (WL_HOST_WAKE) is pulled high.

【Pre-configured images】

【Install the driver yourself (based on SDK1.4)】

Note: This tutorial uses the Luckfox Pico Max as an example!

】Step 1 Modify the kernel

Content that needs to be modified

Type ：Kernel WiFi Driver Support

File Path:<SDK Directory>/sysdrv/source/kernel/arch/arm/configs/luckfox_rv1106_linux_defconfig

Configuring WIFI requires modifying the kernel. Rockchip can directly modify the kernel to support WIFI function. You can directly open the kernel configuration interface through the command ./build.sh kernelconfig in the SDK root directory.

[] Notice

"M" Indicates that it is loaded into the system kernel as a module

" * " Indicates direct compilation into the kernel

(kernelconfig Tutorial：https://wiki.luckfox.com/zh/Luckfox-Pico/Luckfox-Pico-SDK/)

[] kernelconfig Instructions to configure the kernel

cd <sdk>/path

sudo ./build.sh kernelconfig

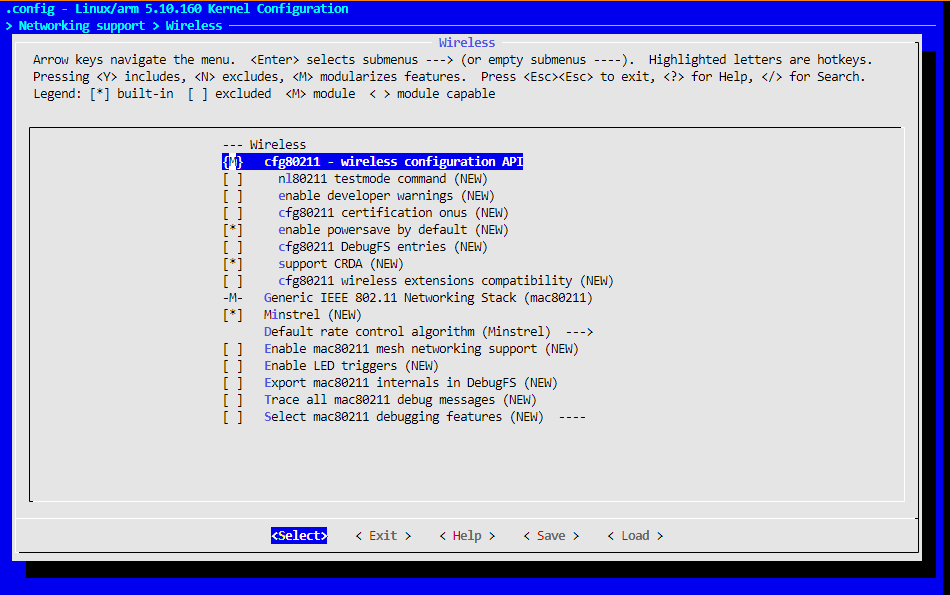

[] Kernel configuration turns on cfg80211

Select：Networking support > Wireless >{M} cfg80211 - wireless configuration API

[] Kernel configuration enabled build wifi ko modules

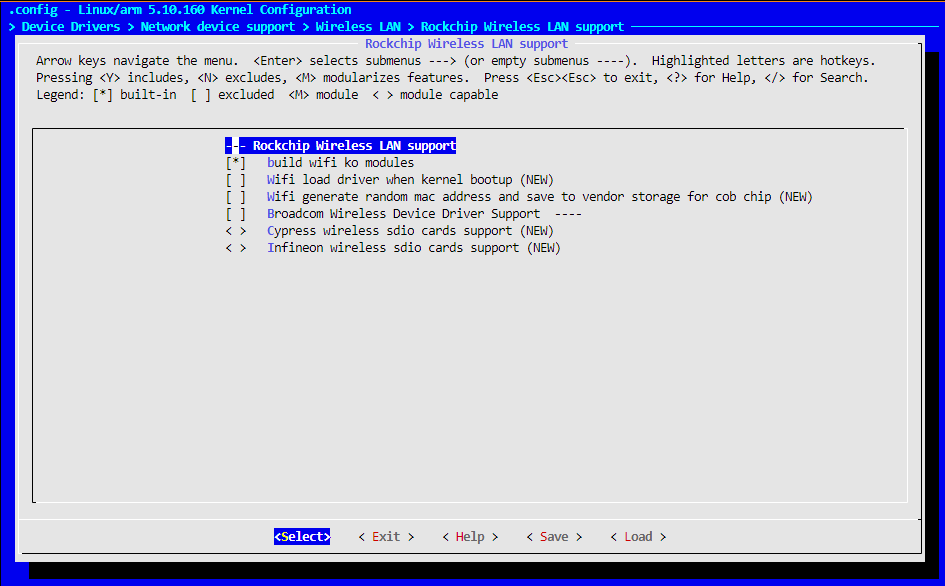

Select：Device Drivers > Network device support > Wireless LAN > Rockchip Wireless LAN support > [*] build wifi ko modules

[] Kernel configuration to enable RTL8723BS SDIO driver

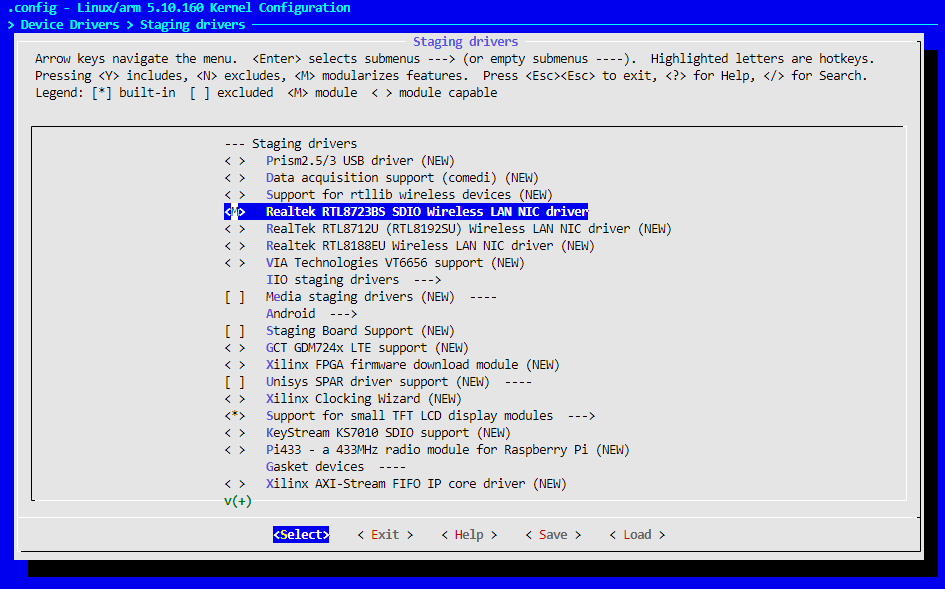

Select：Device Drivers > Staging drivers > <M>Realtek RTL8723BS SDIO Wireless LAN NIC driver

】Step 2 Add buildroot package

To modify buildroot, you can use the command ./build.sh buildrootconfig, which is newly added to the 1.3 version of the SDK. Its goal is to simplify the build process of embedded Linux systems. By configuring Buildroot, you can customize the software packages and libraries included in the embedded system to meet specific needs.

(buildrootconfig Tutorial：SDK environment deployment (X86_64 platform) | LUCKFOX WIKI)

Add iw (optional) software package

Select：Target packages > Networking applications > [*] iw

[] Add wpa_supplicant package

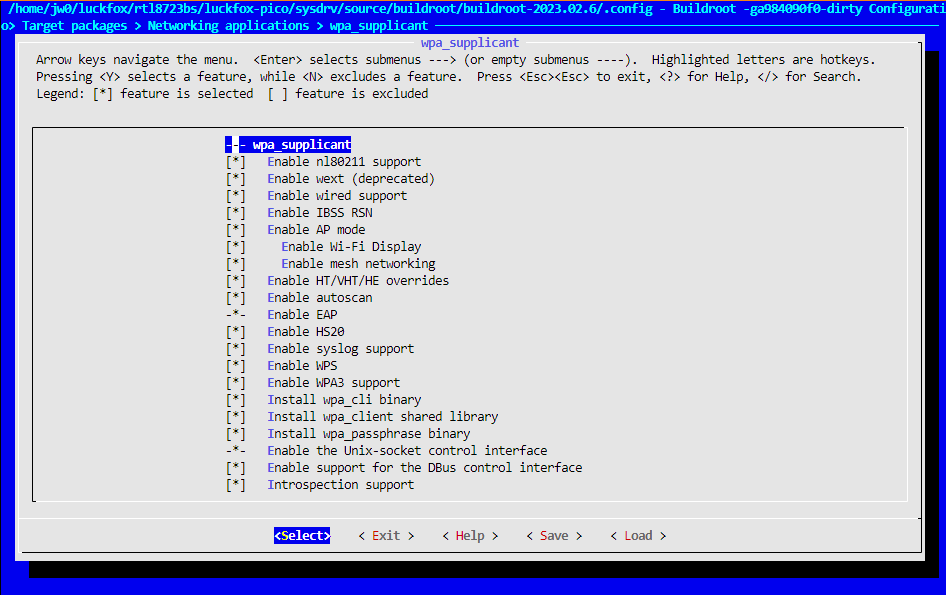

Select: Target packages > Networking applications > wpa_supplicant > check all options under wpa_supplicant

The compiled wpa_supplicant source program mainly includes two executable tools: wpa_supplicant and wpa_cli.

explain：

wpa_supplicant：It runs in the background as a core service program, handling tasks such as authentication and encryption of network connections.

wpa_cli：As a client tool of wpa_supplicant, users can send commands to wpa_supplicant through wpa_cli to implement network configuration, scanning, connection and other operations.

[] Add wireless tools package

Select：Target packages > Networking applications > [*] wireless tools

explain：

Wireless Tools: It is a wireless management software tool set for Linux. It helps users configure and manage wireless devices that support Wireless Extension by providing a set of simple and easy-to-use command line tools.

Notice：

Do not clean after configuring buildroot, otherwise the above configuration will be cleared.

If you use the command ./build.sh buildrootconfig, it will be saved automatically. Then, go to the buildroot folder and make all the software packages to download. After downloading, it will also speed up the compilation of the SDK.

】Step 3 Modify the device tree

Content that needs to be modified

Device	Type	File Path
Luckfox Pico Max	Main Device Tree	<SDK Directory>/sysdrv/source/kernel/arch/arm/boot/dts/rv1106g-luckfox-pico-max.dts
Luckfox Pico Pro		<SDK Directory>/sysdrv/source/kernel/arch/arm/boot/dts/rv1106g-luckfox-pico-pro.dts
Luckfox Pico Plus		<SDK Directory>/sysdrv/source/kernel/arch/arm/boot/dts/rv1103g-luckfox-pico-plus.dts
Luckfox Pico Mini B		<SDK Directory>./sysdrv/source/kernel/arch/arm/boot/dts/rv1103g-luckfox-pico-mini.dts

Device	Type	File Path
Luckfox Pico Max	Include Device Tree	<SDK Directory>/sysdrv/source/kernel/arch/arm/boot/dts/rv1106-luckfox-pico-pro-max-ipc.dtsi
Luckfox Pico Pro
Luckfox Pico Plus		<SDK Directory>/sysdrv/source/kernel/arch/arm/boot/dts/rv1103-luckfox-pico-ipc.dtsi
Luckfox Pico Mini B

Modify the device tree

Edit rv1106g-luckfox-pico-max.dts device tree

sudo nano <SDK>/sysdrv/source/kernel/arch/arm/boot/dts/rv1106g-luckfox-pico-max.dts

Add code

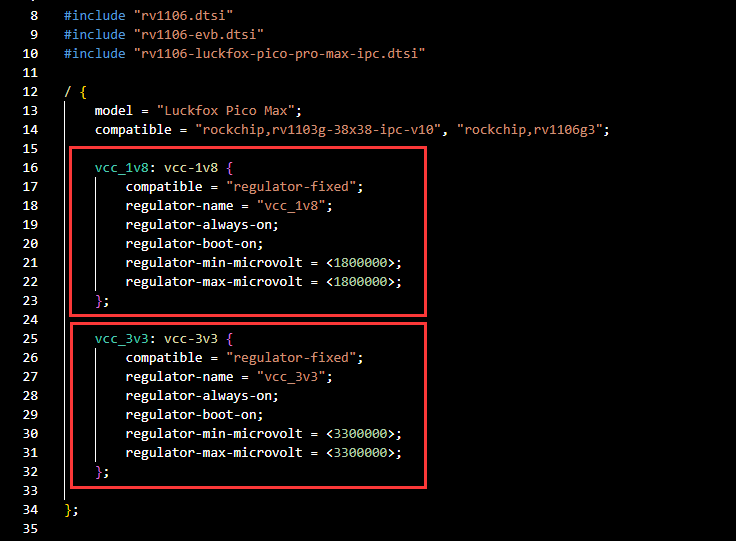

vcc_1v8: vcc-1v8 {

compatible = "regulator-fixed";

regulator-name = "vcc_1v8";

regulator-always-on;

regulator-boot-on;

regulator-min-microvolt = <1800000>;

regulator-max-microvolt = <1800000>;

};

vcc_3v3: vcc-3v3 {

compatible = "regulator-fixed";

regulator-name = "vcc_3v3";

regulator-always-on;

regulator-boot-on;

regulator-min-microvolt = <3300000>;

regulator-max-microvolt = <3300000>;

};

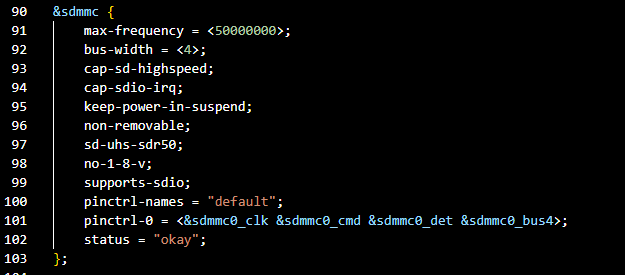

Change "&sdmmc" to

&sdmmc {

max-frequency = <50000000>;

bus-width = <4>;

cap-sd-highspeed;

cap-sdio-irq;

keep-power-in-suspend;

non-removable;

sd-uhs-sdr50;

no-1-8-v;

supports-sdio;

pinctrl-names = "default";

pinctrl-0 = <&sdmmc0_clk &sdmmc0_cmd &sdmmc0_det &sdmmc0_bus4>;

status = "okay";

};

Change "&gmac" to

&gmac {

status = "disabled";

};

Edit rv1106-luckfox-pico-pro-max-ipc.dtsi device tree

sudo nano <SDK>/sysdrv/source/kernel/arch/arm/boot/dts/rv1106-luckfox-pico-pro-max-ipc.dtsi

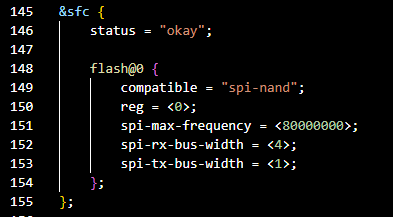

Add "&sfc" code

&sfc {

status = "okay";

flash@0 {

compatible = "spi-nand";

reg = <0>;

spi-max-frequency = <80000000>;

spi-rx-bus-width = <4>;

spi-tx-bus-width = <1>;

};

】Step 4 Enable WIFI

[] Content that needs to be modified

	Type	File Path
Luckfox Pico Max	SDK Global Configuration	<SDK Directory>/project/cfg/BoardConfig_IPC/BoardConfig-SPI_NAND-Buildroot-RV1106_Luckfox_Pico_Max-IPC.mk
Luckfox Pico Pro		<SDK Directory>/project/cfg/BoardConfig_IPC/BoardConfig-SPI_NAND-Buildroot-RV1106_Luckfox_Pico_Pro-IPC.mk
Luckfox Pico Plus		<SDK Directory>/project/cfg/BoardConfig_IPC/BoardConfig-SPI_NAND-Buildroot-RV1103_Luckfox_Pico_Plus-IPC.mk
Luckfox Pico Mini B		<SDK Directory>/project/cfg/BoardConfig_IPC/BoardConfig-SPI_NAND-Buildroot-RV1103_Luckfox_Pico_Mini_B-IPC.mk

Edit rv1106-luckfox-pico-pro-max-ipc.dtsi device tree

sudo nano <SDK>/project/cfg/BoardConfig_IPC/BoardConfig-SPI_NAND-Buildroot-RV1106_Luckfox_Pico_Max-IPC.mk

Add the following content

#enable wifi

export RK_ENABLE_WIFI=y

】Step 5 Modify the global build script

Content that needs to be modified

Type	File Path
Global Build Script	<SDK Directory>/project/build.sh

Generate firmware configuration for WiFi driver (rtl8723bs)

sudo nano <SDK>/project/build.sh

Add (or uncomment) the following to the function build_app()

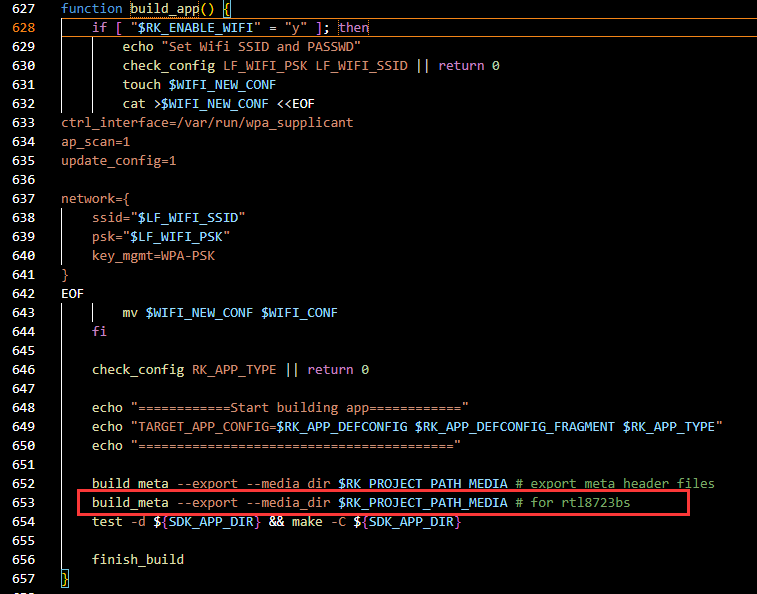

build_meta --export --media_dir $RK_PROJECT_PATH_MEDIA # for rtl8723bs

Copy the contents of the external directory in the SDK to the build directory of the root file system (rootfs)

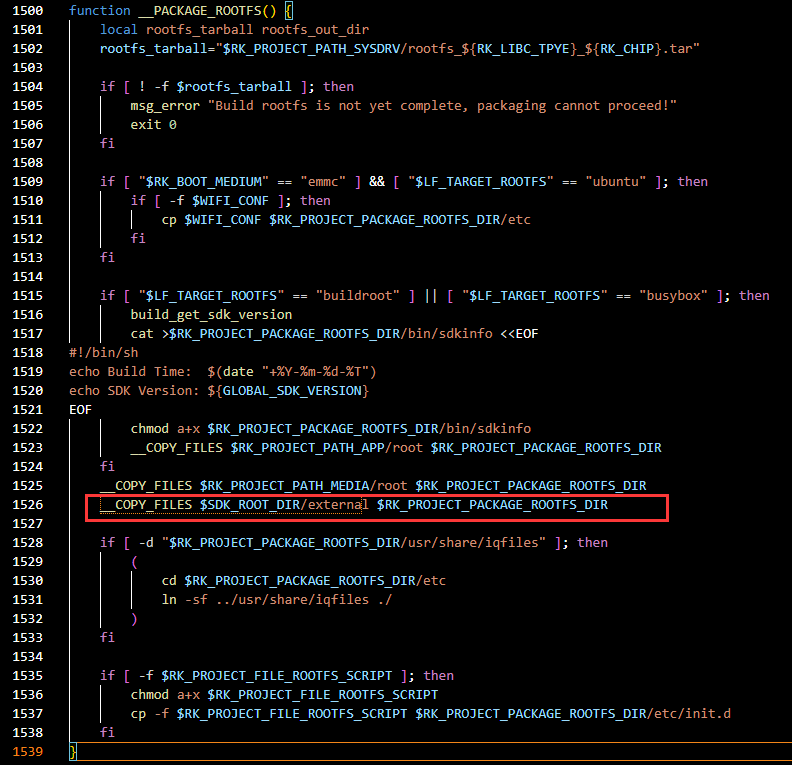

Add (or uncomment) the following to function __PACKAGE_ROOTFS()

__COPY_FILES $SDK_ROOT_DIR/external $RK_PROJECT_PACKAGE_ROOTFS_DIR

】Step6 Add rtl8723bs firmware to SDK

Create a folder in the SDK root directory

mkdir -p external/lib/firmware/rtlwifi/

Download rtl8723bs wifi firmware

wge thttps://raw.githubusercontent.com/wkennington/linux-firmware/master/rtlwifi/rtl8723bs_nic.bin

Copy the rtl8723bs firmware to the sdk/external/lib/firmware/rtlwifi/ directory

cp rtl8723bs_nic.bin sdk/external/lib/firmware/rtlwifi/

】Step7 Compile SDK

Specified development board

luckfox@luckfox:~/luckfox-pico$ ./build.sh lunch

Execute Compilation

luckfox@luckfox:~/Luckfox-Pico/luckfox-pico$ ./build.sh

【Step8 WiFi Test】

】Manually test wifi

[] Install the driver module

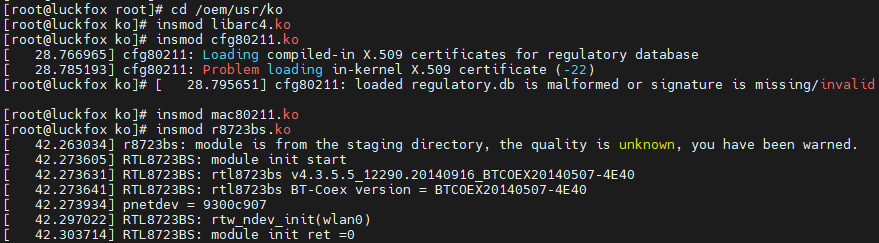

cd /oem/usr/ko

insmod libarc4.ko

insmod cfg80211.ko

insmod mac80211.ko

insmod r8723bs.ko

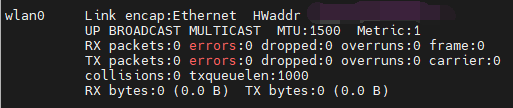

Under normal circumstances, ifconfig -a can be used to see the wlan0 device

ifconfig -a

】Turn on Wi-Fi

ifconfig wlan0 up

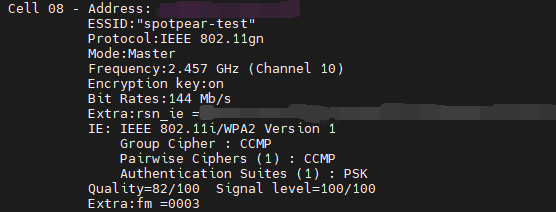

View surrounding networks

iwlist wlan0 scan

The surrounding network information will be displayed in turn.

Notice：Here we take the wifi with ESSID spotpear-test as an example!

】Configure Wi-Fi file

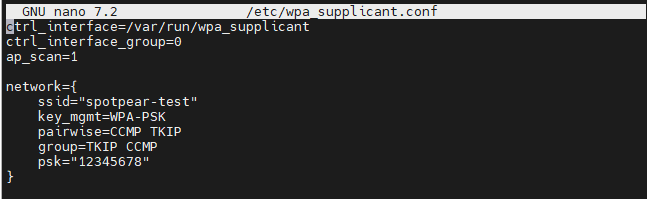

Edit wpa_supplicant.conf file

vi /etc/wpa_supplicant.conf

Modify to your own wifi settings as needed

ctrl_interface=/var/run/wpa_supplicant

ctrl_interface_group=0

ap_scan=1

network={

ssid="YOUR_SSID"

key_mgmt=WPA-PSK

pairwise=CCMP TKIP

group=TKIP CCMP

psk="YOUR_PWD"

}

explain：

ssid="YOUR_SSID" is the user's WIFI name

psk="YOUR_PWD" is the user's WiFi password

】Create a socket file

mkdir -p /var/run/wpa_supplicant

This file is created to allow wpa_supplicant (Wi-Fi authentication client) to work properly.

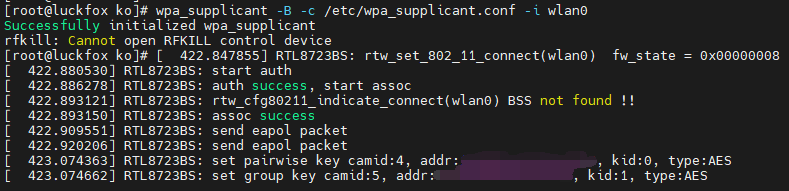

】Connect to WIFI

wpa_supplicant -B -c /etc/wpa_supplicant.conf -i wlan0

】Configuring Dynamic IP

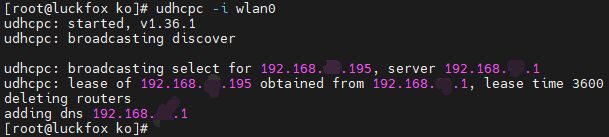

udhcpc -i wlan0

】Configuring Static IP

Or you can choose to configure a static IP

ifconfig wlan0 192.168.xxx.xxx netmask 255.255.255.0 up

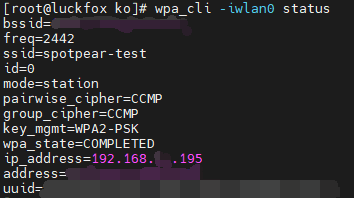

】View connection status

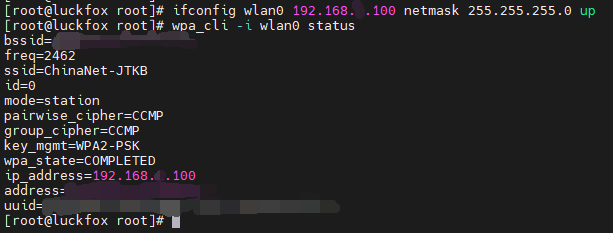

wpa_cli -iwlan0 status

You can see above that wpa_state=COMPLETED, which means the connection is successful and the IP address is output.

【Automatically test Wi-Fi】

】Method 1: Add a new auto-start script in the firmware

Add the S98wifi_auto_connect script file in the /etc/init.d/ directory of the firmware

nano /etc/init.d/S98wifi_auto_connect

Add the following content：

#!/bin/sh

### BEGIN INIT INFO

# Provides: wifi_auto_connect

# Required-Start: $network

# Default-Start: S

# Default-Stop: 0 6

### END INIT INFO

WLAN_IF="wlan0"

load_wifi_modules() {

echo "Loading Wi-Fi driver modules..."

cd /oem/usr/ko || exit 1

insmod libarc4.ko

insmod cfg80211.ko

insmod mac80211.ko

insmod r8723bs.ko

}

start_wifi() {

sleep 4

echo "Bringing up Wi-Fi interface..."

ifconfig $WLAN_IF up

mkdir -p /var/run/wpa_supplicant

wpa_supplicant -B -c /etc/wpa_supplicant.conf -i $WLAN_IF

}

get_ip_address() {

echo "Requesting IP address via DHCP..."

#udhcpc -i $WLAN_IF

#ifconfig $WLAN_IF 192.168.xxx.xxx netmask 255.255.255.0 up

}

case "$1" in

start)

echo "Starting Wi-Fi auto-connect..."

load_wifi_modules

# 检查 wlan0 是否存在

if ip link show $WLAN_IF >/dev/null 2>&1; then

start_wifi

sleep 5 # 给 wpa_supplicant 时间连接

get_ip_address

else

echo "Error: $WLAN_IF not found"

;;

stop)

echo "Stopping Wi-Fi..."

killall wpa_supplicant

ifconfig $WLAN_IF down

;;

echo "Usage: $0 {start|stop}"

exit 1

;;

esac

Ctrl+O to save, Ctrl+X to exit

Grant permissions to the S98wifi_auto_connect script

chmod 775 /etc/init.d/S98wifi_auto_connect

Restart to take effect

】Method 2: Add a new auto-start script in SDK

sudo nano <SDK>project/cfg/BoardConfig_IPC/overlay/overlay-luckfox-buildroot-init/etc/init.d/S98wifi_auto_connect

Add the following content：

#!/bin/sh

### BEGIN INIT INFO

# Provides: wifi_auto_connect

# Required-Start: $network

# Default-Start: S

# Default-Stop: 0 6

### END INIT INFO

WLAN_IF="wlan0"

load_wifi_modules() {

echo "Loading Wi-Fi driver modules..."

cd /oem/usr/ko || exit 1

insmod libarc4.ko

insmod cfg80211.ko

insmod mac80211.ko

insmod r8723bs.ko

}

start_wifi() {

sleep 4

echo "Bringing up Wi-Fi interface..."

ifconfig $WLAN_IF up

mkdir -p /var/run/wpa_supplicant

wpa_supplicant -B -c /etc/wpa_supplicant.conf -i $WLAN_IF

}

get_ip_address() {

echo "Requesting IP address via DHCP..."

#udhcpc -i $WLAN_IF

#ifconfig $WLAN_IF 192.168.xxx.xxx netmask 255.255.255.0 up

}

case "$1" in

start)

echo "Starting Wi-Fi auto-connect..."

load_wifi_modules

# 检查 wlan0 是否存在

if ip link show $WLAN_IF >/dev/null 2>&1; then

start_wifi

sleep 5 # 给 wpa_supplicant 时间连接

get_ip_address

else

echo "Error: $WLAN_IF not found"

;;

stop)

echo "Stopping Wi-Fi..."

killall wpa_supplicant

ifconfig $WLAN_IF down

;;

echo "Usage: $0 {start|stop}"

exit 1

;;

esac

Restart compiling SDK

sudo <SDK>/build.sh lunch

sudo <SDK>/build.sh

Notice：

Since the dynamic IP is configured in the S98wifi_auto_connect script, the user will not be able to enter the system through the serial terminal if the network is abnormal after restart. Therefore, the function of configuring dynamic IP is blocked in the S98wifi_auto_connect script.

Since the user's gateway address is not clear, the function of configuring a static IP is also blocked. Users need to configure a dynamic IP or a static IP by themselves.

【WIFI connection SSH and camera】

Refer to the luckfox official ssh and camera tutorial. After ifconfig finds the corresponding WIFI IP, except that you need to change the WIFI corresponding IP, the other steps are exactly the same as the official tutorial.

https://wiki.luckfox.com/zh/Luckfox-Pico/Luckfox-Pico-RV1103/Luckfox-Pico-Plus-Mini/Luckfox-Pico-pinout/CSI-Camera/

https://wiki.luckfox.com/zh/Luckfox-Pico/Luckfox-Pico-RV1103/Luckfox-Pico-Plus-Mini/SSH-Telnet-Login/

TAG： Raspberry Pi 0.96inch RGB OLED Luckfox Pico Max GC2083 Raspberry Pi DSI Scr Raspberry Pi OpenWrt Tutorial 1 EoAT Setting Raspberry Pi 5 27W Power ESP32-S3 1.14inch LCD Raspberry Pi 3 LCD HAT Milk-V Duo Banana Pi Argon ONE V3 Case with FAN IR For Raspberry Pi 5 Raspberry Pi DSI 800×480 i5-1135G7 Raspberry Pi Transparent Screen Wiki Raspberry Pi PICO Raspberry Pi Autofocus Camera Lichee-Tang-Primer-20K-FPGA-Unboxing Retail electronic Labe
