Tuya T5-E1 1.75inch AMOLED
Development Board

Embedded With CO5300 Display Driver And CST9217 Capacitive Touch Chip

Version Options

All Versions Come With Touch Function

AMOLED Specifications

DISPLAY PANEL	AMOLED	DISPLAY SIZE	1.75inch
RESOLUTION	466 × 466 pixels	COLOR	16.7M
BRIGHTNESS	700cd/㎡	CONTRAST RATIO	100000:1
COMMUNICATION INTERFACE	QSPI	DISPLAY DRIVER	CO5300
TOUCH	Supported	TOUCH IC	CST9217

Features

The T5-E1-Touch-AMOLED-1.75 a high-performance, highly integrated microcontroller development board designed by Waveshare. Tiny size with onboard 1.75inch capacitive AMOLED display, 6-axis IMU (3-axis accelerometer and 3-axis gyroscope), RTC, dual audio ADC chips, audio DAC chip, and so on, which makes it easy for you to develop and integrate it into products quickly.

Equipped with Armv8-M STAR-MC1 MCU, up to 480MHz frequency
Supports 2.4GHz Wi-Fi (802.11 b/g/n/ax) and Bluetooth 5.4 (Bluetooth LE), with onboard antenna
Built-in 640KB Static RAM and 64KB ROM, with onboard 16MB PSRAM and external 8MB Flash memory
Onboard 1.75inch AMOLED capacitive touch display for clear color picture display, 466 × 466 resolution, 16.7M color
Built-in CO5300 display driver and CST9217 capacitive touch chip, using QSPI and I2C communication respectively, effectively saving the IO resources
Type-C port, easier to use
Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion posture, step counting, and other functions
Onboard PCF85063 RTC chip for precise timekeeping and automatic leap year handling
Onboard PWR and KEY programmable buttons for easy custom function development
Onboard 3.7V MX1.25 Lithium Batt recharge/discharge header
Onboard 8PIN 2.54mm pitch female header, adapting 5 × GPIO pins with reserved pads for connecting external devices and debugging, flexible peripheral configuration
Onboard TF card slot for expanded storage, fast data transfer, and transfer flexibility, suitable for applications such as data recording and media playback, simplifying circuit design
Adopts AMOLED screen, featuring advantages of high contrast, wide viewing angle, rich colors, fast response, thinner design, and low power consumption, etc.

Small Size, Touch More Possibilities

Suitable For Various Smart Device Development, And Can Realize Human-Machine Interaction Function. Supports Connecting To A Batt For Independent Operation

Adopts AMOLED Screen

The Next-Generation Display Technology, Compared To Traditional LCD Displays, The AMOLED Screen Features Precise Light-Control Capability, Representing More Delicate Colors, More Picture Details, And More Vivid Videos And Images

178° Wide Viewing Angle

Excellent Display Performance, 16.7M Color, Wide Viewing Angle

Onboard Audio Codec Chip

Supports High-Quality Audio Processing, Providing Clear And High-Quality
Audio Input And Output

Supports AI Speech Interaction

Supports Tuya AI Agent, Allows Access To Online Large Model Platforms
Such As DeepSeek, Doubao, Etc.

Supports TuyaOpen

Comprehensive SDK, Dev Resources, Tutorials To Help You Easily Get Started

Wi-Fi And BLE 5.4 Support

T5-E1 Integrates 2.4GHz Wi-Fi (802.11 B/G/N/Ax) With 20MHz And 40MHz Bandwidths, Its Bluetooth Low Energy Subsystem Supports Bluetooth 5 (Bluetooth LE)

What's On Board

T5-E1 module
The SoC with WiFi and Bluetooth, 480MHz operating frequency, with onboard 16MB PSRAM and external 8MB Flash memory
PWR button
for power supply ON/OFF, supports custom functions
KEY button
User button for customizable functions
Reset button
PCF85063
RTC chip
IPEX 1 GPS antenna connector
for external GNSS ceramic antenna connection
CH342F
USB to dual serial port chip
Type-C port
T5-E1 USB Type-C port, for programming burning and log printing

Microphone
Batt charging and discharging chip
MX1.25 Lithium Batt header
MX1.25 2PIN connector, for 3.7V Lithium Batt, supports charging and discharging
MX1.25 2PIN speaker header
MX1.25 2PIN connector, for speaker connection
8PIN 2.54mm pitch female header
for easy external debugging or sensor connection
Display cable interface
LC76G Module
GPS positioning module (only included in the T5-E1-Touch-AMOLED-1.75-G version)
TF card slot
QMI8658
6-axis IMU includes a 3-axis gyroscope and a 3-axis accelerometer

Outline Dimensions

[] T5-E1-Touch-AMOLED-1.75

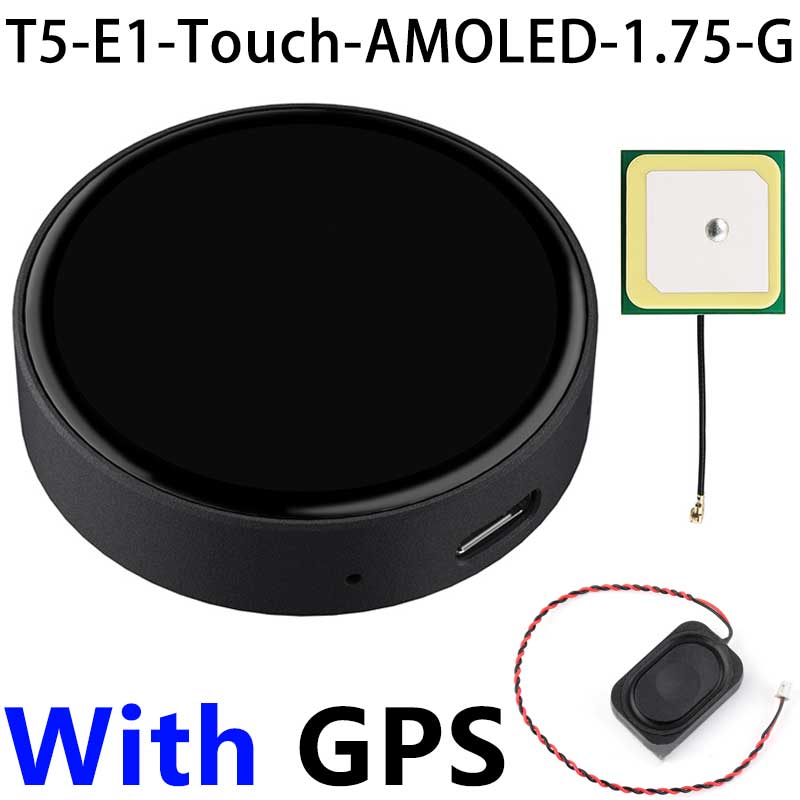

[] T5-E1-Touch-AMOLED-1.75-G
