SIM8230G M2 3G/4G/5G/GNSS/GPS Sub-6G PCIe M.2 Moudle For LTE-A/NSA/SA For DFOTA /VoLTE For SIMCOM
$97
SIM8230G-M2, a SIMCom RedCap module based on Qualcomm Snapdragon X35, uses 3GPP 5G Release 17 technology. Authentic SIMCOM

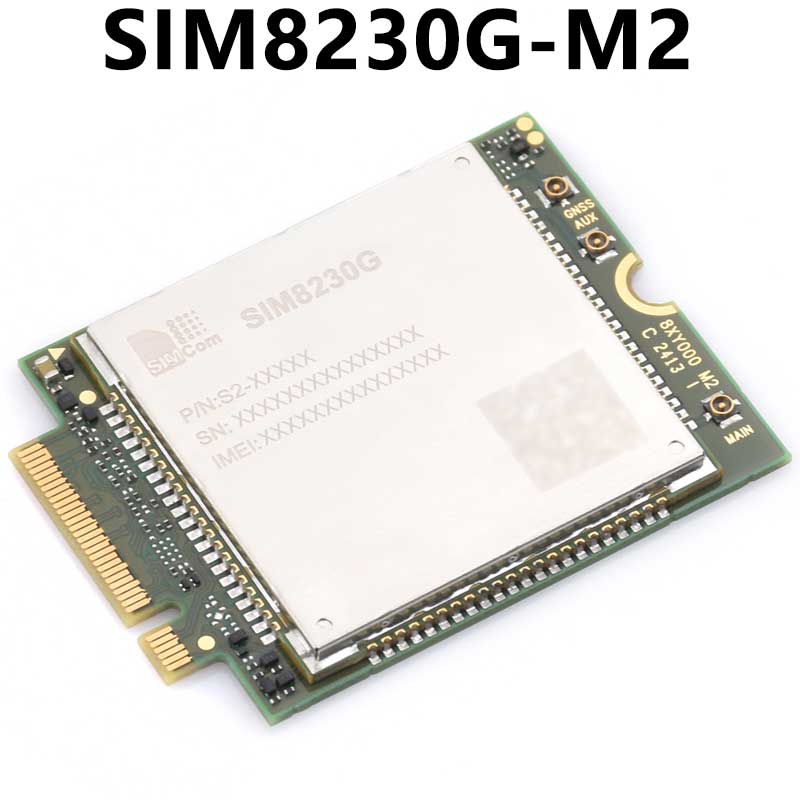

SIM8230G-M2
SIMCom RedCap module based on Qualcomm Snapdragon X35
Adopting 3GPP 5G Release 17 technology
The SIM8230G-M2 is a multi-band 5G NR/LTE-FDD/LTE-TDD module that supports 5G Standalone (SA) mode and achieves download speeds of up to 220Mbps. The module offers robust expansion capabilities, a rich set of interfaces, including USB 2.0 and GPIO, and supports multiple network protocols, providing exceptional flexibility and easy integration for customer applications.
The SIM8230G-M2 utilizes an M.2 form factor and is AT command compatible with the SIM7600 / SIM8200 / SIM8260 series modules, significantly reducing customer costs and accelerating time to market.
The SIM8230G-M2 module is designed for efficient and reliable data communication in various radio propagation environments. Its unique combination of performance, security, and flexibility makes it suitable for a wide range of application scenarios.
Product Features
- Standard M.2 B-KEY interface
- Low-power and lightweight 5G RedCap module
- AT commands compatible with SIM7600 / SIM8200 / SIM8260 series modules
Module parameter comparison
| SIM8262E-M2 | SIM8262A-M2 | SIM8260G-M2 | SIM8230G-M2 | |
|---|---|---|---|---|
| 5G Standards | 3GPP R16 | 3GPP R17 | ||
| Chip Solutions | Qualcomm Snapdragon X62 | Qualcomm Snapdragon X35 | ||
| Operating frequency band | ||||
| Sub-6G | n1, n3, n5, n7, n8, n20, n28, n38, n40, n41, n77, n78, n79 | n2, n5, n7, n12, n13, n14, n25, n30, n41, n48, n66, n71, n77, n78, n79 | n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n71, n75, n76, n77, n78, n79 | n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n30, n38, n40, n41, n48, n66, n70, n71, n77, n78 |
| LTE-FDD | B1, B3, B5, B7, B8, B18, B19, B20, B26, B28, B32 | B2, B4, B5, B7, B12, B13, B14, B25, B26, B29, B30, B66, B71 | B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B66, B71 | B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B30, B66, B71 |
| LTE-TDD | B38, B39, B40, B41, B42, B43 | B41, B46, B48 | B34, B38, B39, B40, B41, B42, B43, B46, B48 | B34, B38, B39, B40, B41, B42, B43, B48 |
| WCDMA | B1, B5, B8 | B2, B4, B5 | B1, B2, B4, B5, B8, B19 | - |
| GNSS | GPS, GLONASS, BeiDou, Galileo, and QZSS | GPS, GLONASS, BeiDou, Galileo, and NavIC | ||
| Data transmission | ||||
| Sub-6G | 2.4 Gbps (DL) / 500 Mbps (UL) | 3.47Gbps (DL) / 460Mbps (UL) | 220Mbps (DL) / 100Mbps (UL) | |
| LTE | 1Gbps (DL) / 200Mbps (UL) | 1.6Gbps (DL) / 200Mbps (UL) | 200Mbps (DL) / 50Mbps (UL) | |
| HSPA+ | 42Mbps (DL) / 5.76Mbps (UL) | - | ||
| Software Features | ||||
| operating system | Windows / Linux / Android | |||
| Communication Protocol | TCP/IP, IPv4, IPv6, Multi-PDP, FTP, FTPS, HTTP, HTTPS, MQTTS, DNS, SSL3.0 | |||
| Dial-up Internet access | RNDIS、NDIS、PPP、MBIM | RNDIS、ECM、PPP | ||
| Text messages (SMS) | Supports MT, MO, CB, Text, and PDU | |||
| Firmware Upgrade | Supports firmware upgrade via USB interface | |||
| Hardware Description | ||||
| SIM | 1.8V / 2.95V | |||
| Antenna interface | 3G / 4G / 5G / GNSS | |||
| 6 × IPEX-4 interfaces | 4 × IPEX-4 interfaces | 3 × IPEX-4 interfaces | ||
| Supply voltage | 3.135V ~ 4.4V | 3.4V ~ 4.4V | ||
| Package | M.2 | |||
| Product size | 42.0 × 30.0 × 2.3 (mm) | 52.0 × 30.0 × 2.3 (mm) | 42.0 × 31.4 × 3.4 (mm) | |
| Operating temperature | -30℃ ~ +70℃ | |||
| Application Scenario | ||||
| Applicable areas | Other regions except America | America | global | |
| Applicable areas are for reference only. Please select the appropriate module based on the local operator's network coverage and supported frequency bands. | ||||
| Typical Applications | CPE, smart gateway, live video streaming, telemedicine, and smart security | |||
