SIM8230G-M2, a SIMCom RedCap module based on Qualcomm Snapdragon X35, uses 3GPP 5G Release 17 technology. Authentic SIMCOM

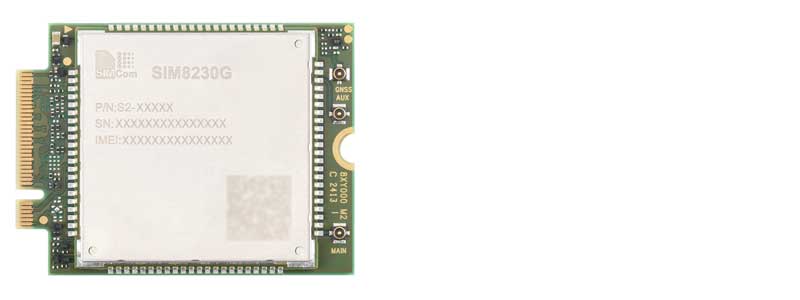

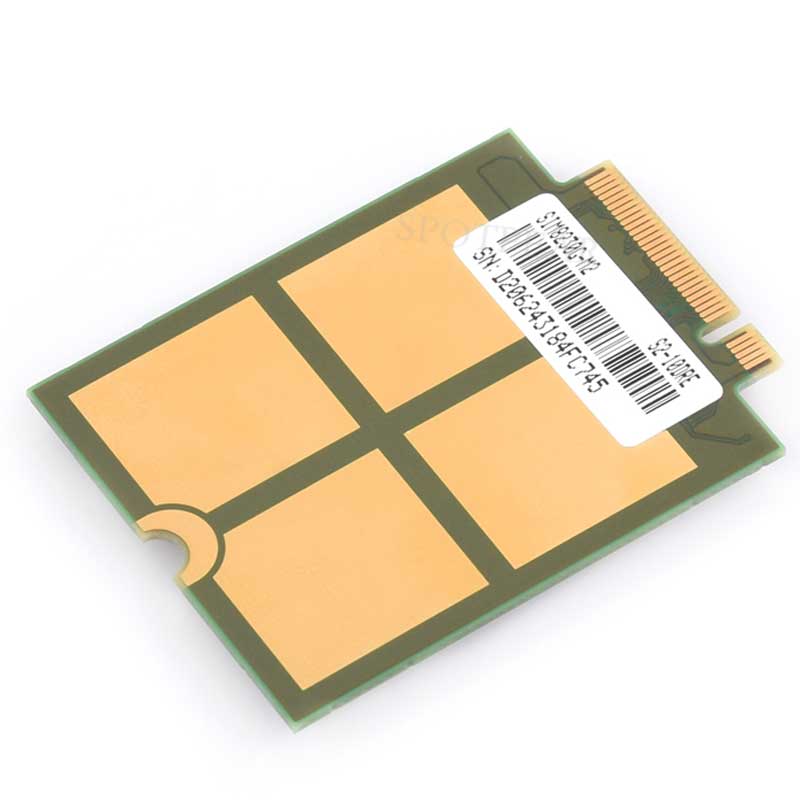

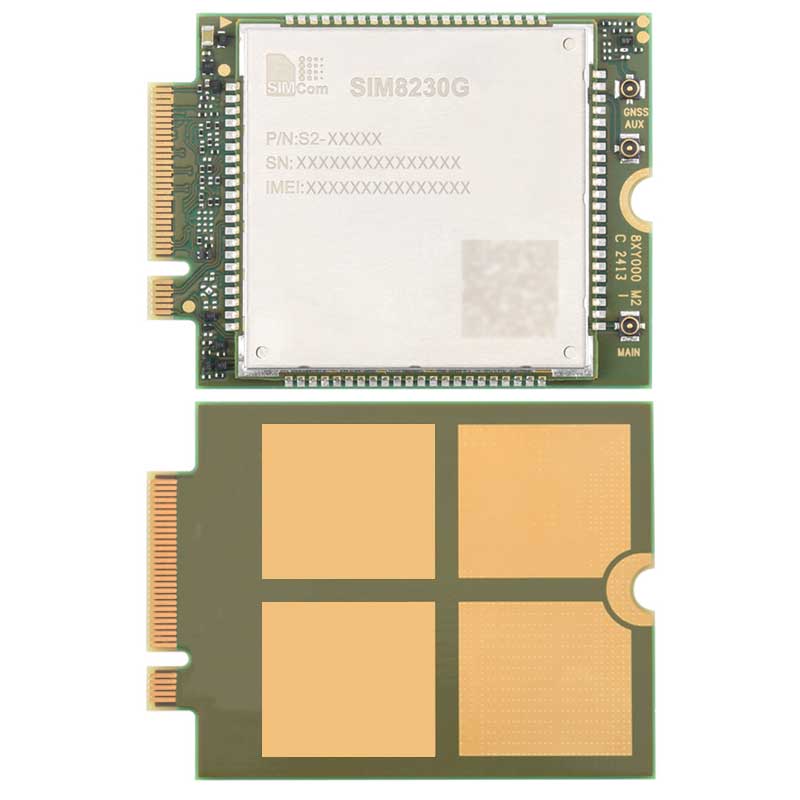

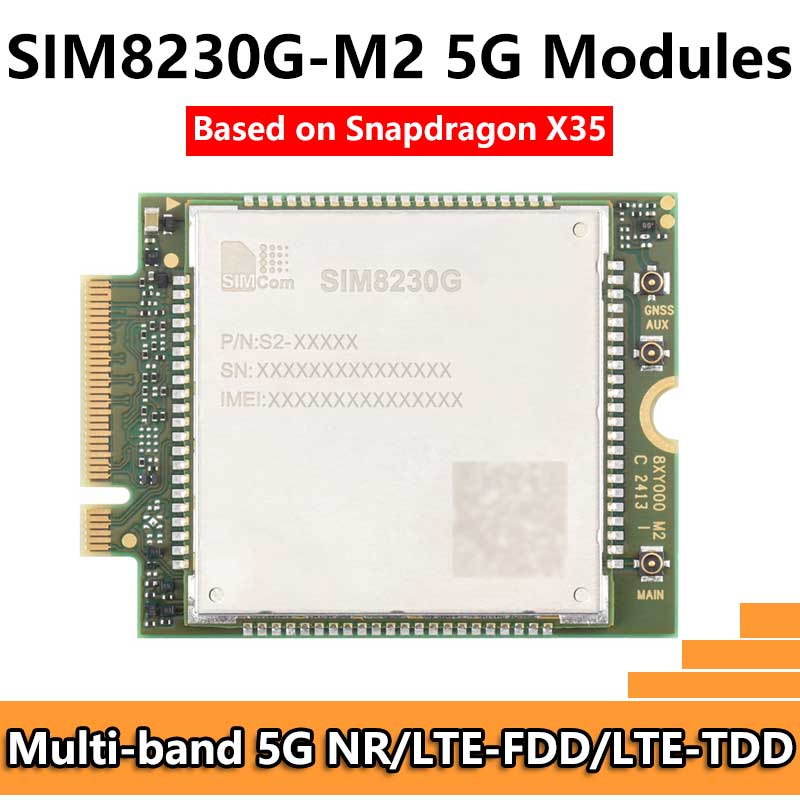

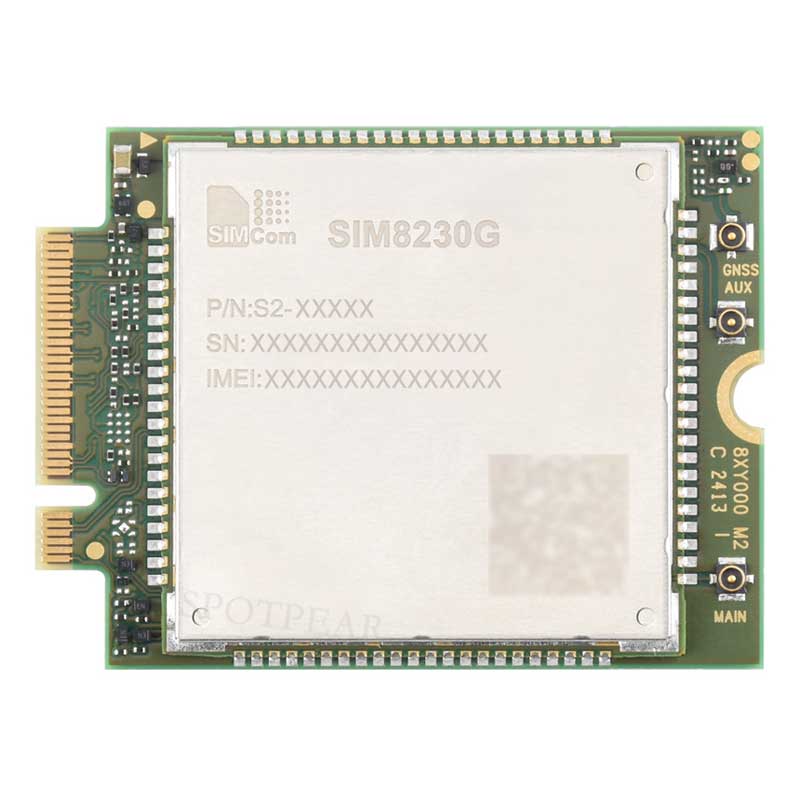

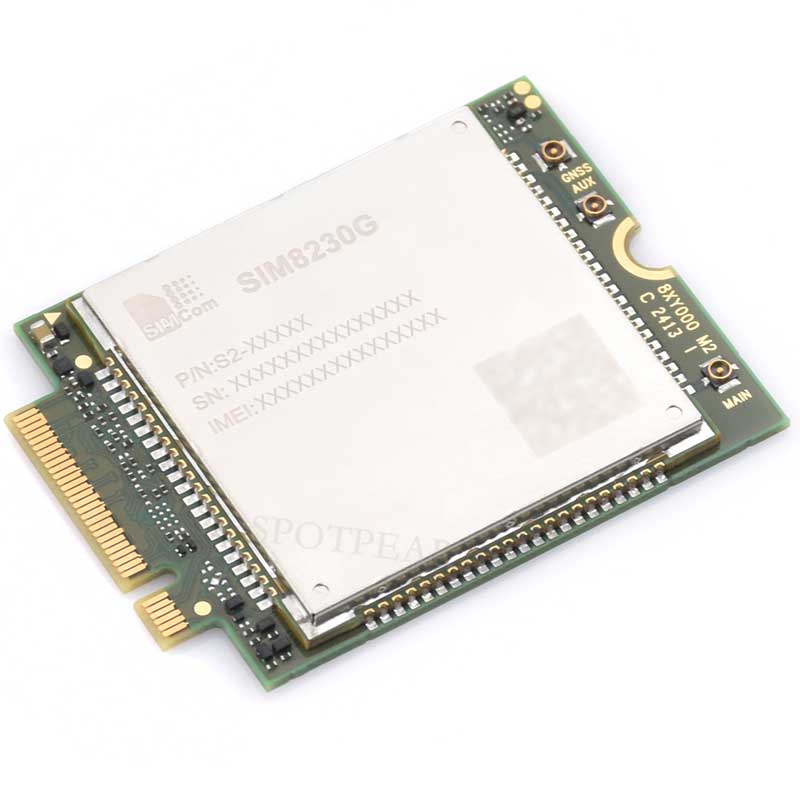

SIM8230G-M2

SIMCom RedCap module based on Qualcomm Snapdragon X35
Adopting 3GPP 5G Release 17 technology

The SIM8230G-M2 is a multi-band 5G NR/LTE-FDD/LTE-TDD module that supports 5G Standalone (SA) mode and achieves download speeds of up to 220Mbps. The module offers robust expansion capabilities, a rich set of interfaces, including USB 2.0 and GPIO, and supports multiple network protocols, providing exceptional flexibility and easy integration for customer applications.

The SIM8230G-M2 utilizes an M.2 form factor and is AT command compatible with the SIM7600 / SIM8200 / SIM8260 series modules, significantly reducing customer costs and accelerating time to market.

The SIM8230G-M2 module is designed for efficient and reliable data communication in various radio propagation environments. Its unique combination of performance, security, and flexibility makes it suitable for a wide range of application scenarios.

Product Features

Standard M.2 B-KEY interface
Low-power and lightweight 5G RedCap module
AT commands compatible with SIM7600 / SIM8200 / SIM8260 series modules

Module parameter comparison

	SIM8262E-M2	SIM8262A-M2	SIM8260G-M2	SIM8230G-M2
5G Standards	3GPP R16			3GPP R17
Chip Solutions	Qualcomm Snapdragon X62			Qualcomm Snapdragon X35
Operating frequency band
Sub-6G	n1, n3, n5, n7, n8, n20, n28, n38, n40, n41, n77, n78, n79	n2, n5, n7, n12, n13, n14, n25, n30, n41, n48, n66, n71, n77, n78, n79	n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n71, n75, n76, n77, n78, n79	n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n30, n38, n40, n41, n48, n66, n70, n71, n77, n78
LTE-FDD	B1, B3, B5, B7, B8, B18, B19, B20, B26, B28, B32	B2, B4, B5, B7, B12, B13, B14, B25, B26, B29, B30, B66, B71	B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B66, B71	B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B30, B66, B71
LTE-TDD	B38, B39, B40, B41, B42, B43	B41, B46, B48	B34, B38, B39, B40, B41, B42, B43, B46, B48	B34, B38, B39, B40, B41, B42, B43, B48
WCDMA	B1, B5, B8	B2, B4, B5	B1, B2, B4, B5, B8, B19	-
GNSS	GPS, GLONASS, BeiDou, Galileo, and QZSS			GPS, GLONASS, BeiDou, Galileo, and NavIC
Data transmission
Sub-6G	2.4 Gbps (DL) / 500 Mbps (UL)		3.47Gbps (DL) / 460Mbps (UL)	220Mbps (DL) / 100Mbps (UL)
LTE	1Gbps (DL) / 200Mbps (UL)		1.6Gbps (DL) / 200Mbps (UL)	200Mbps (DL) / 50Mbps (UL)
HSPA+	42Mbps (DL) / 5.76Mbps (UL)			-
Software Features
operating system	Windows / Linux / Android
Communication Protocol	TCP/IP, IPv4, IPv6, Multi-PDP, FTP, FTPS, HTTP, HTTPS, MQTTS, DNS, SSL3.0
Dial-up Internet access	RNDIS、NDIS、PPP、MBIM			RNDIS、ECM、PPP
Text messages (SMS)	Supports MT, MO, CB, Text, and PDU
Firmware Upgrade	Supports firmware upgrade via USB interface
Hardware Description
SIM	1.8V / 2.95V
Antenna interface	3G / 4G / 5G / GNSS
Antenna interface	6 × IPEX-4 interfaces	4 × IPEX-4 interfaces		3 × IPEX-4 interfaces
Supply voltage	3.135V ~ 4.4V			3.4V ~ 4.4V
Package	M.2
Product size	42.0 × 30.0 × 2.3 (mm)		52.0 × 30.0 × 2.3 (mm)	42.0 × 31.4 × 3.4 (mm)
Operating temperature	-30℃ ~ +70℃
Application Scenario
Applicable areas	Other regions except America	America	global
Applicable areas	Applicable areas are for reference only. Please select the appropriate module based on the local operator's network coverage and supported frequency bands.
Typical Applications	CPE, smart gateway, live video streaming, telemedicine, and smart security

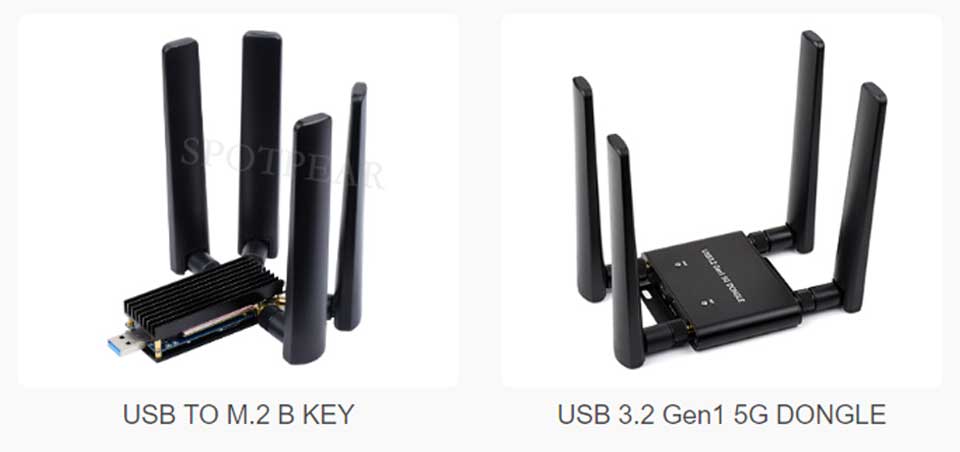

Compatible with multiple expansion modules

Dongle

HAT
