2.41-inch AMOLED screen development board

450 × 600 resolution, AMOLED touch screen, multiple onboard peripheral interfaces

Version selection

Product Features

RP2350-Touch-AMOLED-2.41 is a high-performance, highly integrated microcontroller development board designed by Waveshare. In a small form factor, it is equipped with a 2.41-inch high-definition AMOLED capacitive touch screen, RTC, six-axis sensor (three-axis accelerometer and three-axis gyroscope), Micro SD card slot and other peripherals, making it easy to develop and integrate into products.

RP2350B microcontroller chip based on the official Raspberry Pi design
Unique dual-core, dual-architecture, equipped with dual-core ARM Cortex-M33 processor and dual-core Hazard3 RISC-V processor, clock frequency up to 150MHz, allowing users to flexibly switch between the two architectures
Built-in 520KB SRAM, 16MB on-chip Flash and 2MB PSRAM
Uses Type-C interface, no need to worry about whether to plug it in the right or wrong direction
Onboard 2.41-inch capacitive touch HD AMOLED screen, 450 × 600 resolution, 16.7M colors, can clearly display color pictures
Built-in RM690B0 driver chip and FT6336 capacitive touch chip, using QSPI and I2C interface communication respectively
Onboard lithium battery charging and discharging interface, which is convenient for mobile use
USB1.1 host and slave support
Supports low power sleep and hibernation modes
Drag-and-drop program downloading via USB recognition as mass storage
Bring out 21 multi-function GPIO pins
2 I2C, 2 UART, 6 12-bit ADC, and 15 controllable PWM channels
Precise on-chip clocks and timers
Temperature Sensor
On-chip accelerated floating point library
12 Programmable I/O (PIO) state machines for custom peripheral support

AMOLED screen parameters

Display Panel	AMOLED	Display size	2.41inch
Display resolution	450 × 600	Display Color	16.7M
Display brightness	800cd/㎡	Contrast	100000:1
Communication interface	QSPI	Driver IC	RM690B0
Touch	support	Touch IC	FT6336

AMOLED screen

AMOLED is known as the next generation of display technology. Compared with traditional LCD screens, it has more accurate light control capabilities, presents more delicate colors and more details, and the images are more vivid.

178° wide viewing angle

Excellent display performance, 16.7M colors, wide viewing angle

Unique dual-core, dual-architecture

The RP2350B's unique dual-core, dual-architecture capability allows users to switch between a pair of industry-standard Arm Cortex-M33 cores and a pair of open hardware Hazard3 cores, enabling developers to experiment with the RISC-V architecture in a stable, well-supported environment.

Support C/C++, MicroPython, Arduino

Equipped with a complete SDK and open source tutorials, it is easy to get started and can be quickly embedded into the application

Resource Overview

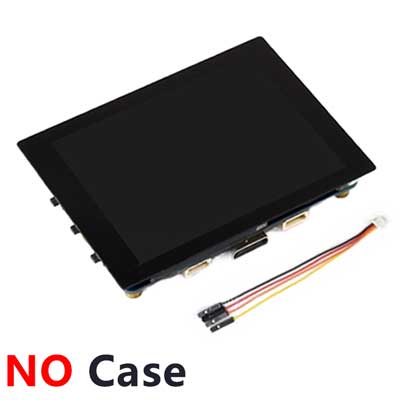

Version without housing

Version with housing

Interface Definition

Bring out a variety of interfaces to facilitate expansion and development, with higher flexibility

Product size

Version without housing

Version with housing
