Raspberry Pi 3.6 inch e-Paper HAT+ (E) E-Ink E6 Full color 600x400 Screen Display For Arduino /STM32 /ESP32

Raspberry Pi 3.6 inch e-Paper HAT+ (E) E-Ink E6 Full color 600x400 Screen Display For Arduino /STM32 /ESP32

$39.9

Brand：SpotPear

SKU：010607800000

Date：2025-12-31 13:43

Part Number：

3.6inch e-Paper (E) 3.6inch e-Paper HAT+ (E)

No：

- +

In Stock

Buy It Now

Add to cart

Ask a Question

Copy Link

Raspberry Pi 3.6 inch e-Paper HAT+ (E) E-Ink E6 Full color 600x400 Screen Display For Arduino /STM32 /ESP32

E6 full-color E-Paper Screen Recommend

3.6inch e-Paper (E)

4inch-e-Paper-(E)

7.3inch-e-Paper-(E)

PhotoPainter (B)

13.3inch e-Paper (E)

3.6″ Full Color E-Paper Display

Low Power, Wide Viewing Angle, Paper-Like Effect Without Electricity

Ideal for price tags, shelf labels, industrial instruments...

Version Options

Features At A Glance

No backlight, keeps displaying last content for a long time even when power down
Ultra low power consumption, basically power is only required for refreshing
Comes with online development resources and manual (driver board circuit diagram, examples for Raspberry Pi / Jetson Nano / Arduino / STM32 / ESP32)
Optional for e-Paper driver board:
- Standard Raspberry Pi 40PIN GPIO header, supports Raspberry Pi series boards and Jetson Nano
- Adopts Raspberry Pi HAT+ standard to improve interoperability, helping the users to design and develop faster, easy to use with other peripherals and extend more functions for Raspberry Pi
- Adapting SPI interface for connecting with controller boards like Raspberry Pi / Arduino / STM32 / ESP32, etc.
- Onboard voltage translator, compatible with 3.3V / 5V MCUs

Specifications

OPERATING VOLTAGE	Raw display: 3.3V	DISPLAY COLOR	E6 full color (E Ink Spectra 6)
OPERATING VOLTAGE	with driver board: 3.3V/5V	DISPLAY COLOR	E6 full color (E Ink Spectra 6)
INTERFACE	3-wire SPI, 4-wire SPI	GREY SCALE	2
OUTLINE DIMENSIONS	Raw display: 86.60 × 56.00 × 0.78 (mm)	FULL REFRESH TIME	15s
OUTLINE DIMENSIONS	with driver board: 89.50 × 59.00 (mm)	FULL REFRESH TIME	15s
DISPLAY SIZE	76.20 × 50.80 (mm)	REFRESH POWER	<100mW
DOT PITCH	0.127 × 0.127 (mm)	STANDBY CURRENT OF RAW DISPLAY	<0.01uA (almost none)
RESOLUTION	600 × 400 pixels	VIEWING ANGLE	>170°

E Ink Spectra 6 Technology

E Ink Spectra 6 is a newly launched full color e-paper technology that brings fresh vitality to the e-paper industry with excellent color performance, high resolution and high contrast.
Adopts red, yellow, and blue as the primary colors, it offers more possibilities for e-paper color display, featuring high contrast and high saturation to make images clearer and colors brighter.

Spectra displays are made of millions of Microcups which suspend the four different colored particles in clear fluid.

More Advanced Performance

The Resolution Is Up To 200ppi, Features A Wider Range Of Operating Temperature And Faster Screen Refresh Time. And It Is More Power-Saving, Aligning With ESG Trends For Energy Efficiency And Carbon Reduction

Innovative Microcup Full Color Technology Platform

Using Blue Charged Particles To Produce Six Primary Colors, And Employing Dithering Technology To Create Vivid And Saturated Full Color Images.

Advantages Of EINK

E-paper display utilizes microcapsule electrophoretic technology for displaying, the principle is: charged particles suspended in clear fluid will move to sides of microcapsule when electric field is applied, making the microcapsule become visible by reflecting ambient light, just as traditional printed paper.
E-paper display will clearly display images/texts under lamplight or natural light, requires no backlight, and features nearly up to 180° viewing angle. It is usually used as e-reader due to its paper-like effect.

Optional For E-Paper Driver Board

Standard Raspberry Pi 40PIN GPIO Header, Compatible With Raspberry Pi Series Boards, Jetson Nano

* for reference only, the Raspberry Pi is NOT included.

Onboard SPI Control Interface

For Use With Controller Boards Like Raspberry Pi / Arduino / STM32 / ESP32

PWR	Power on/off control
BUSY	Busy status output pin
RST	External reset, low active
DC	Data/Command selection (high for data, low for command)
CS	SPI chip selection, low active
CLK	SPI CLK pin
DIN	SPI MOSI pin
GND	Ground
VCC	Power (3.3V / 5V input)

Onboard Voltage Translator

Compatible With 3.3V / 5V MCUs

Application Examples

Suitable For Price Tags, Asset/Equipment Tags, Shelf Labels, Conference Name Tags...

Outline Dimensions

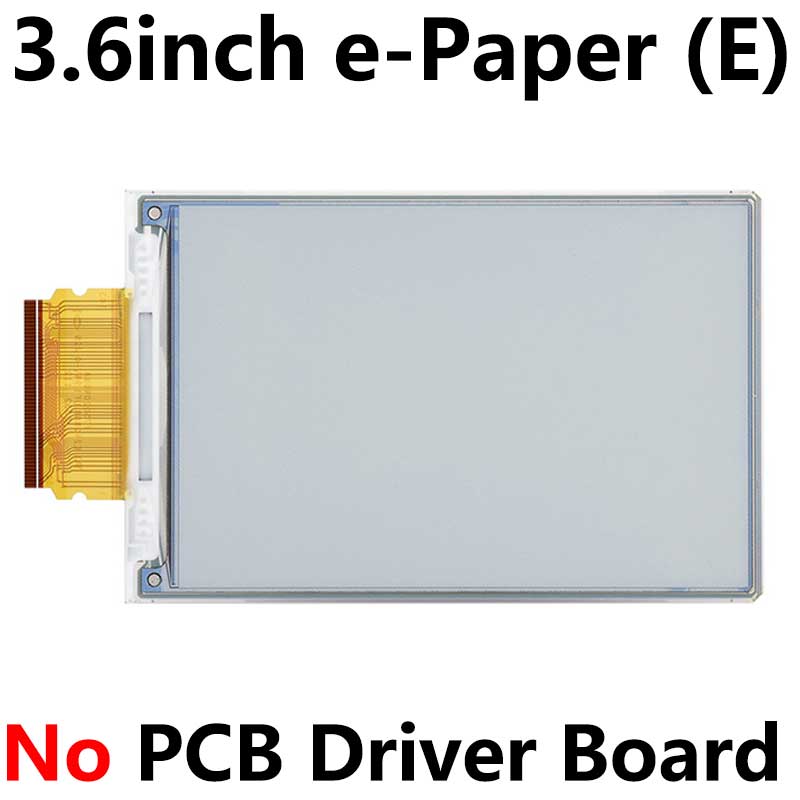

3.6inch e-Paper (E)

3.6inch e-Paper HAT+ (E)

[] 3.6inch e-Paper (E)

[] 3.6inch e-Paper HAT+ (E)
