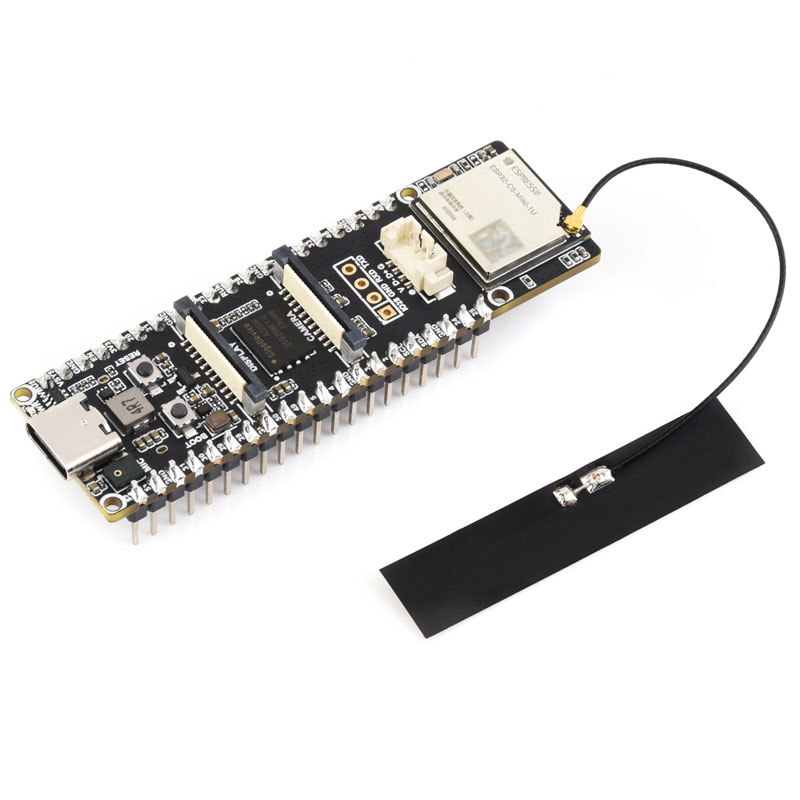

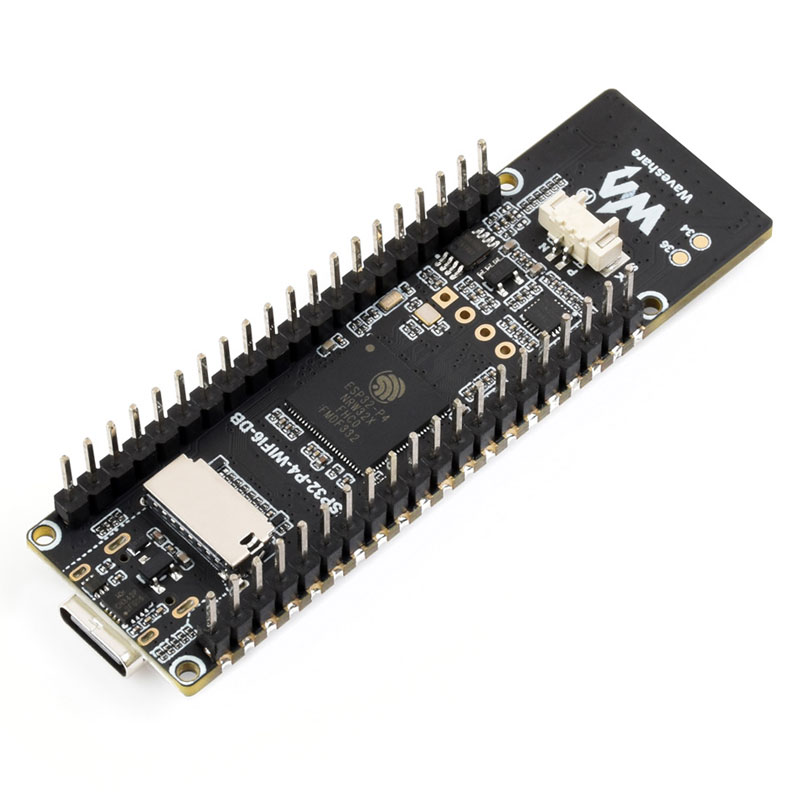

ESP32-P4 Pico Development Board DB C5 MIPI DSI 10.1-inch Display /CSI Camera /Audio Speaker Mic AI Deepseek
$18.9
ESP32-P4 Pico Development Board DB C5 MIPI DSI 10.1-inch Display /CSI Camera /Audio Speaker Mic AI Deepseek

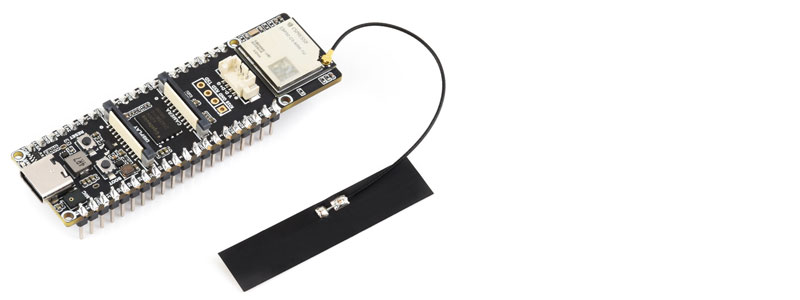

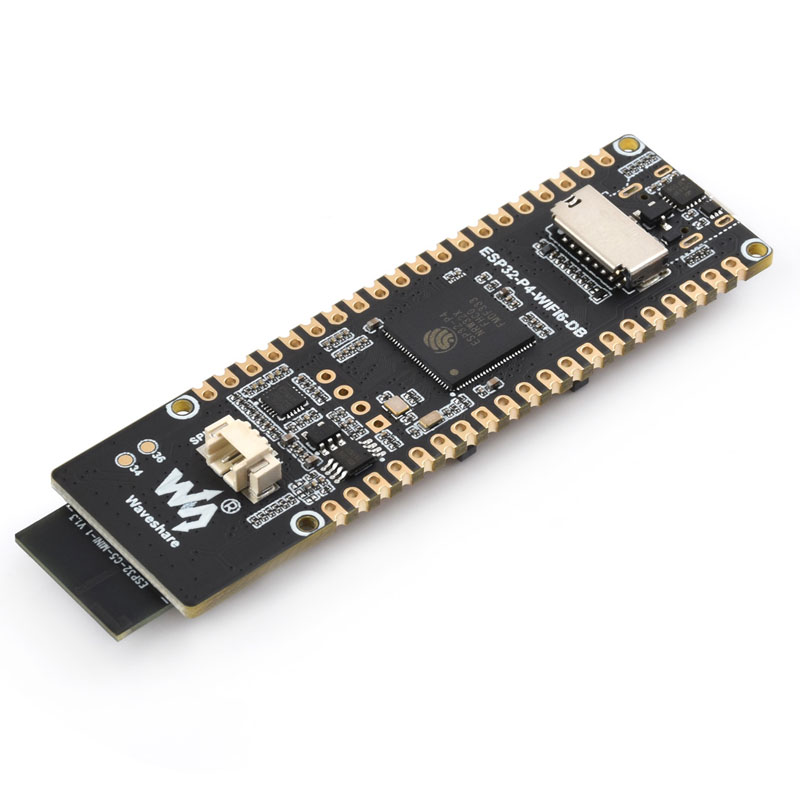

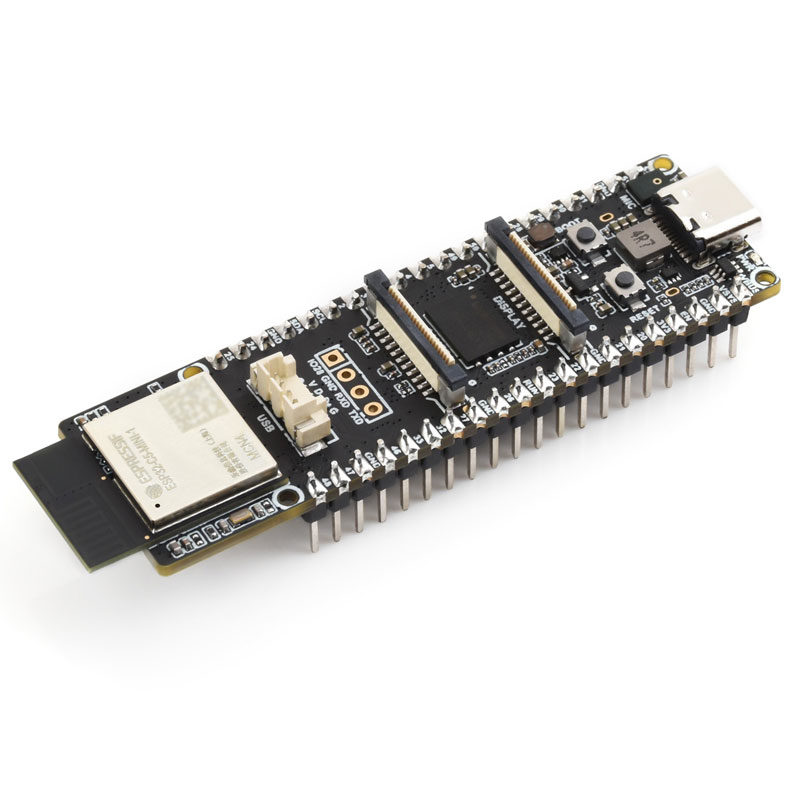

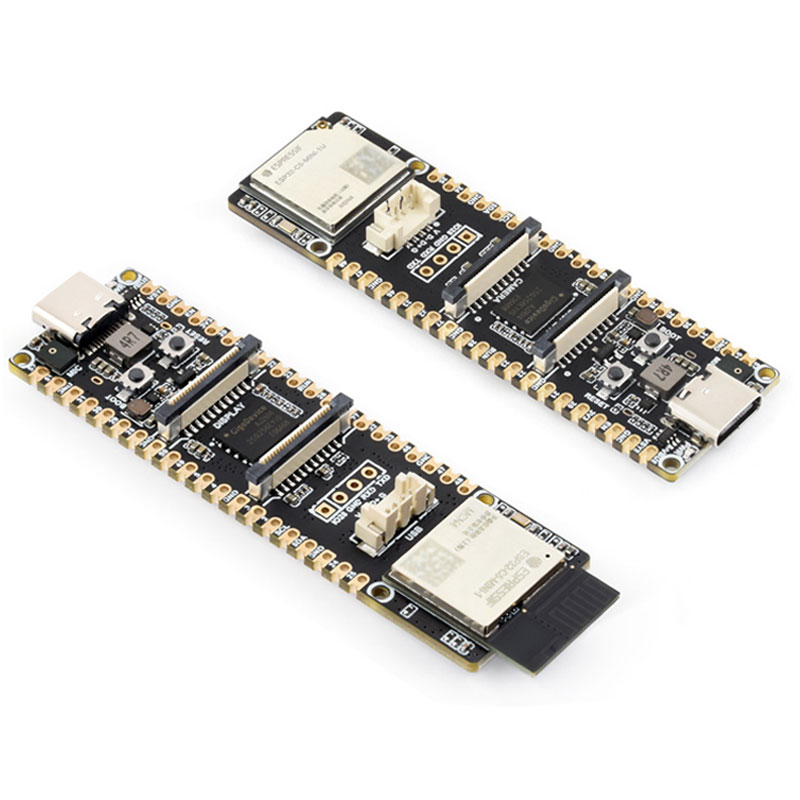

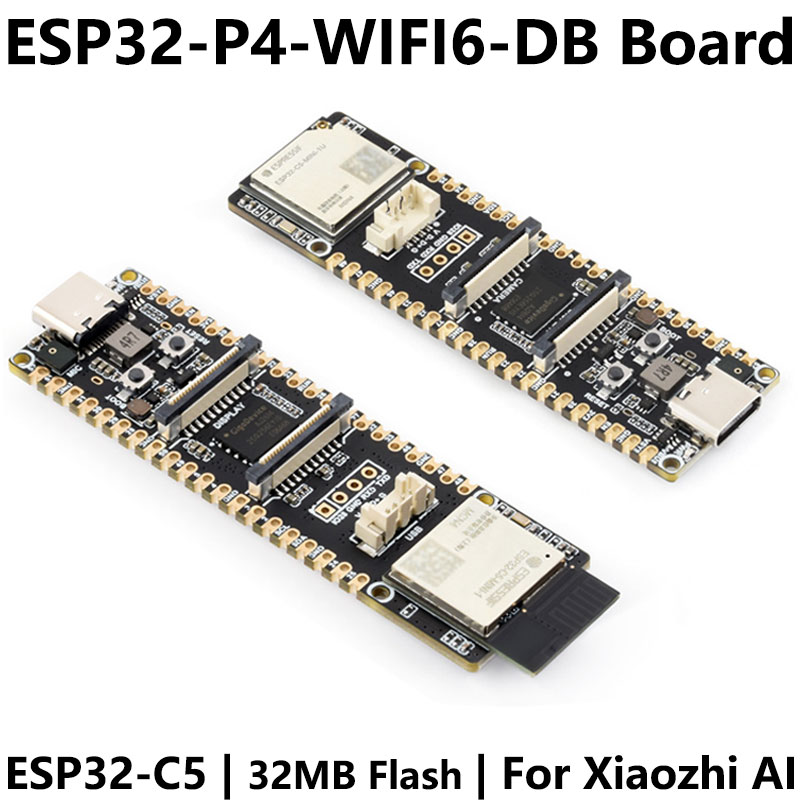

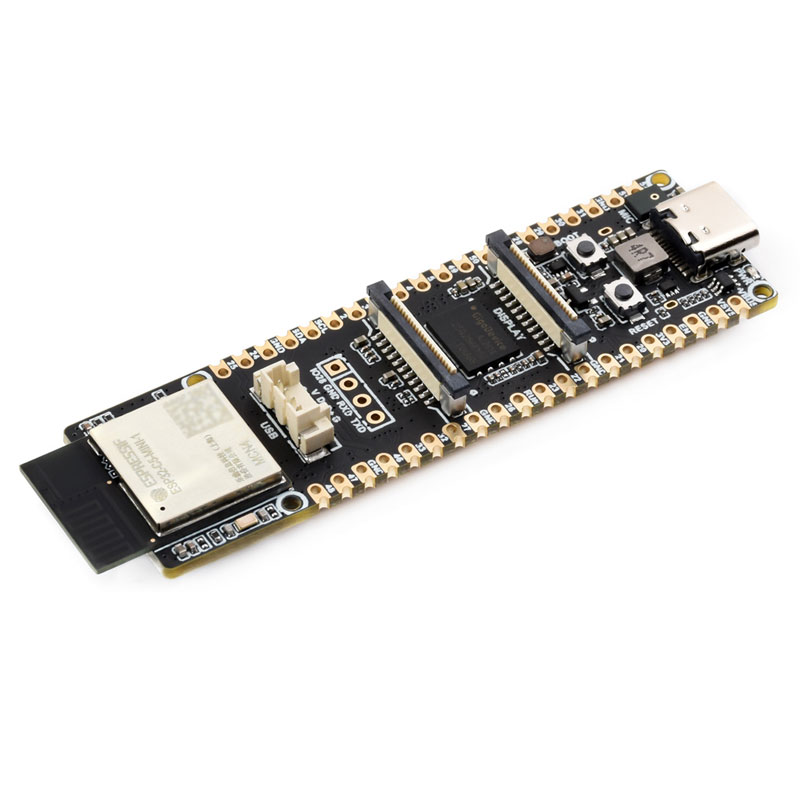

ESP32-P4-WIFI6-DB Board
High-performance development boards based on ESP32-P4NRW32X and ESP32-C5
Extensive human-machine interaction interfaces
introduce
This product is a multimedia development board based on the ESP32-P4NRW32X and integrates the ESP32-C5, supporting 2.4 GHz/5 GHz Wi-Fi 6 (802.11ax) and BLE 5 wireless connectivity. It offers a wide range of human-machine interaction interfaces, including MIPI-CSI (with an integrated Image Signal Processor/ISP), MIPI-DSI, SPI, I2S, I2C, LED PWM, MCPWM, RMT, ADC, UART, and TWAI. Additionally, it supports USB OTG 2.0 HS, enabling broader application compatibility. The ESP32-P4NRW32X features a dual-core RISC-V processor, supports up to 32 MB of PSRAM, and includes peripherals such as USB 2.0, MIPI-CSI/DSI, and H.264 encoding, meeting the requirements for low-cost, high-performance, and low-power multimedia development.。
In addition, the ESP32-P4NRW32X integrates a digital signature peripheral and a dedicated key management unit to ensure data and operational security. Designed for high-performance and high-security applications, the ESP32-P4-WIFI6-DB meets the needs of embedded systems in areas such as human-machine interaction, edge computing, and I/O expansion.
Key Features：
- High-performance MCUs featuring RISC-V 32-bit dual-core and single-core processors.
- 128KB HP ROM, 16KB LP ROM, 768KB HP L2MEM, 32KB LP SRAM, 8KB TCM
- Powerful image and audio processing capabilities; image and audio processing interfaces include a JPEG codec, Pixel Processing Accelerator (PPA), Image Signal Processor (ISP), and H.264 video encoder.
- Features 32MB PSRAM stacked within the chip package and integrates 32MB of external NOR Flash.
- Common peripheral interfaces—such as MIPI-CSI, MIPI-DSI, USB 2.0 OTG, an SDIO 3.0 SD card slot, and terminals for a microphone and speaker—are routed out on the board.
- A 2×20 pin header is brought out from the board, exposing the 27 remaining programmable GPIOs.
- Security mechanisms: Secure Boot, Flash encryption, hardware cryptographic accelerators, and a hardware random number generator. It also supports hardware access protection, enabling access permission management (APM) and privilege separation.

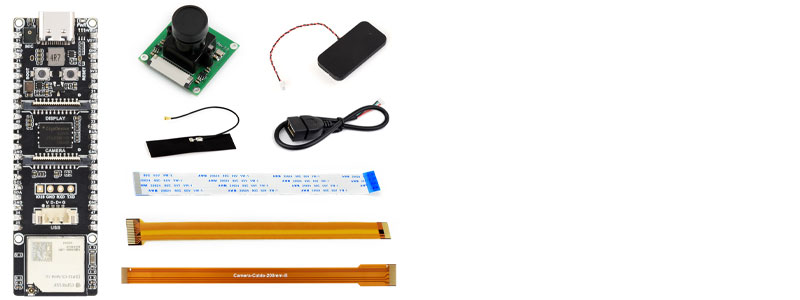

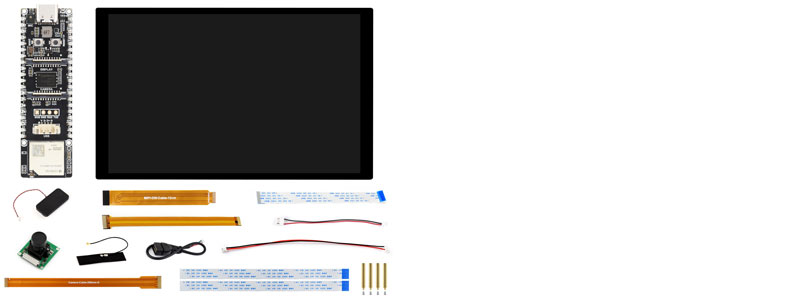

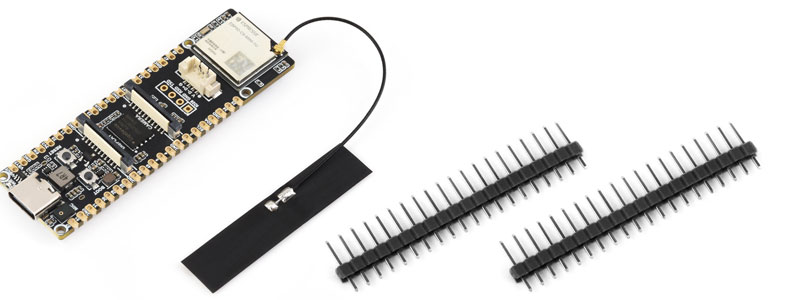

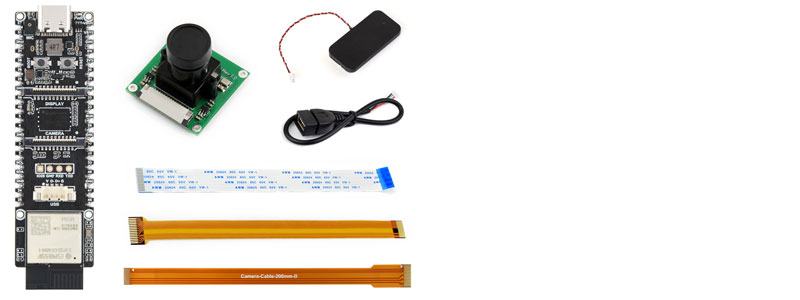

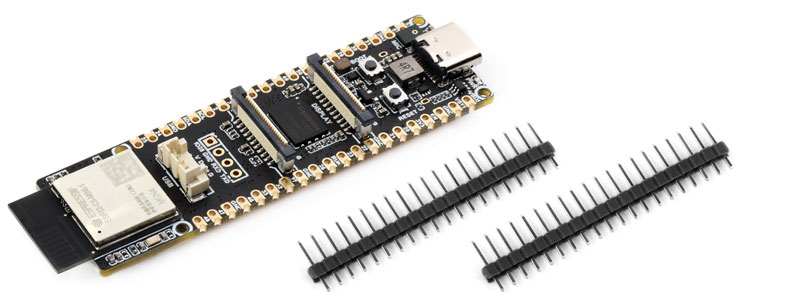

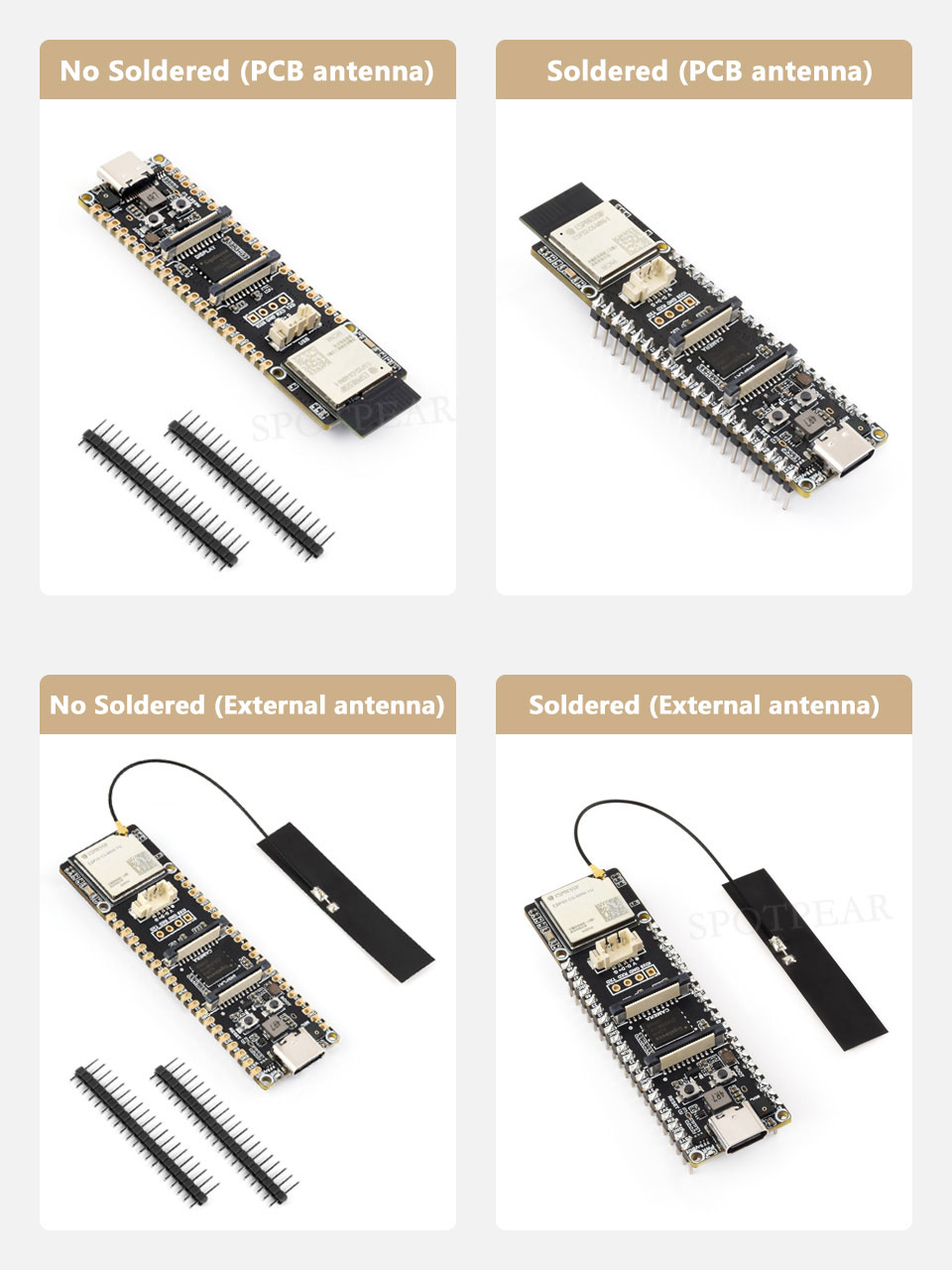

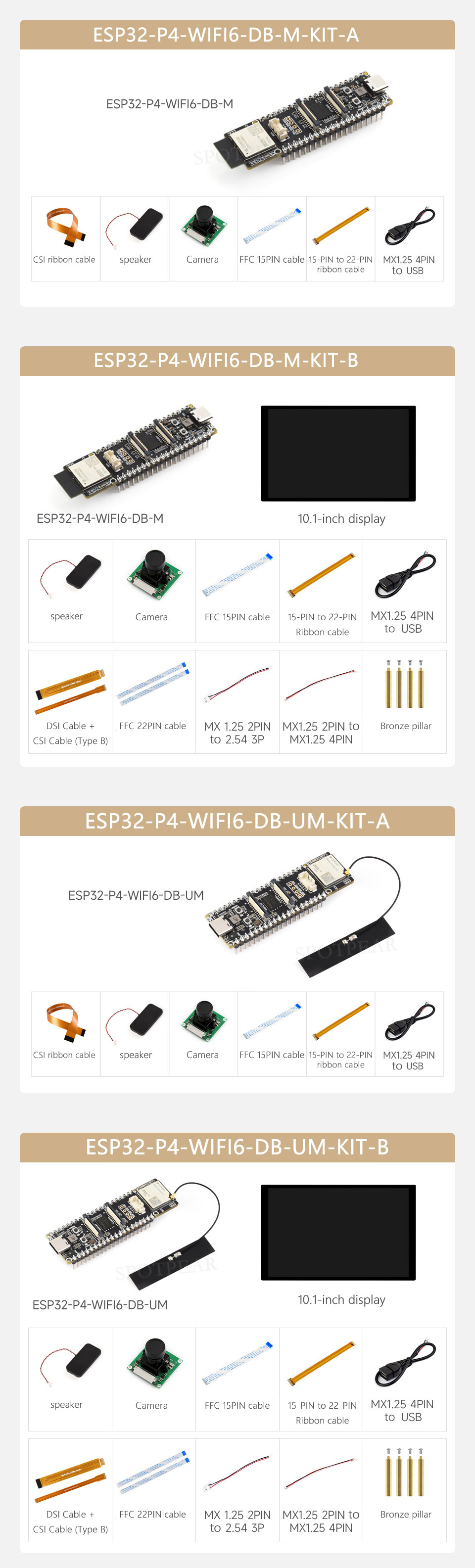

Package Options

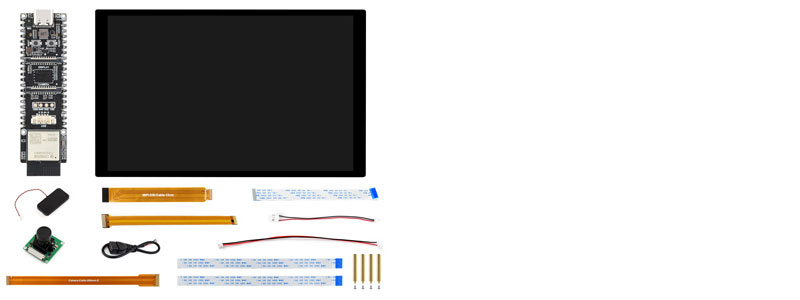

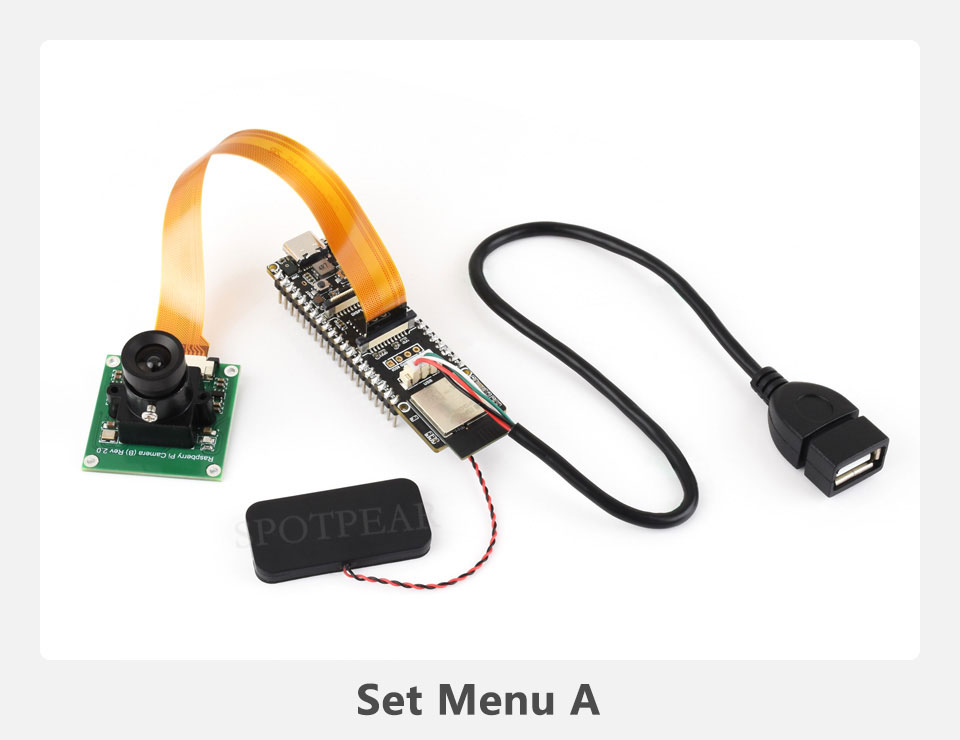

Example of a package combination

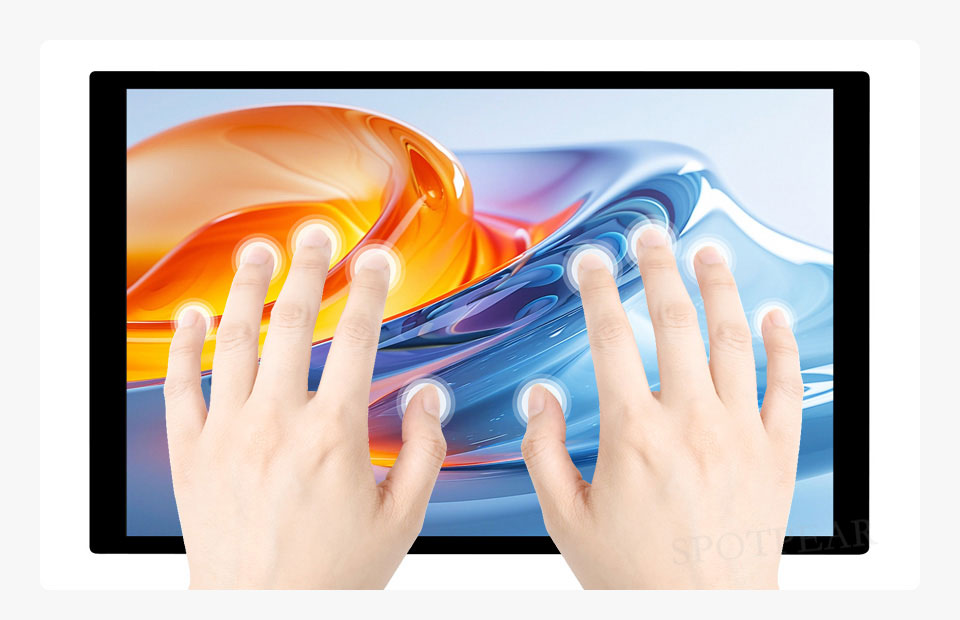

DSI Capacitive Touchscreen
Features a fully laminated IPS tempered glass panel with a wide 178° viewing angle.
Supports 10-point touch, delivers crisp imagery, and offers an excellent visual experience.
| Screen Model | 10.1-DSI-TOUCH-A |
|---|---|
| Resolution | 800 × 1280 (H × V) |
| Communication interface | MIPI-DSI (2-lane) |
| brightness | 400cd/m² |
| Touch controller chip | GT9271 |
| Overall dimensions | 147.0 × 239.0 (mm) |
| Display size | 135.36 × 216.58 (mm) |
| Pixel size | 0.1692 (H) × 0.1692 (V) (mm) |
| Contrast | 800:1 |
| Operating temperature | 0℃ ~ 60℃ |

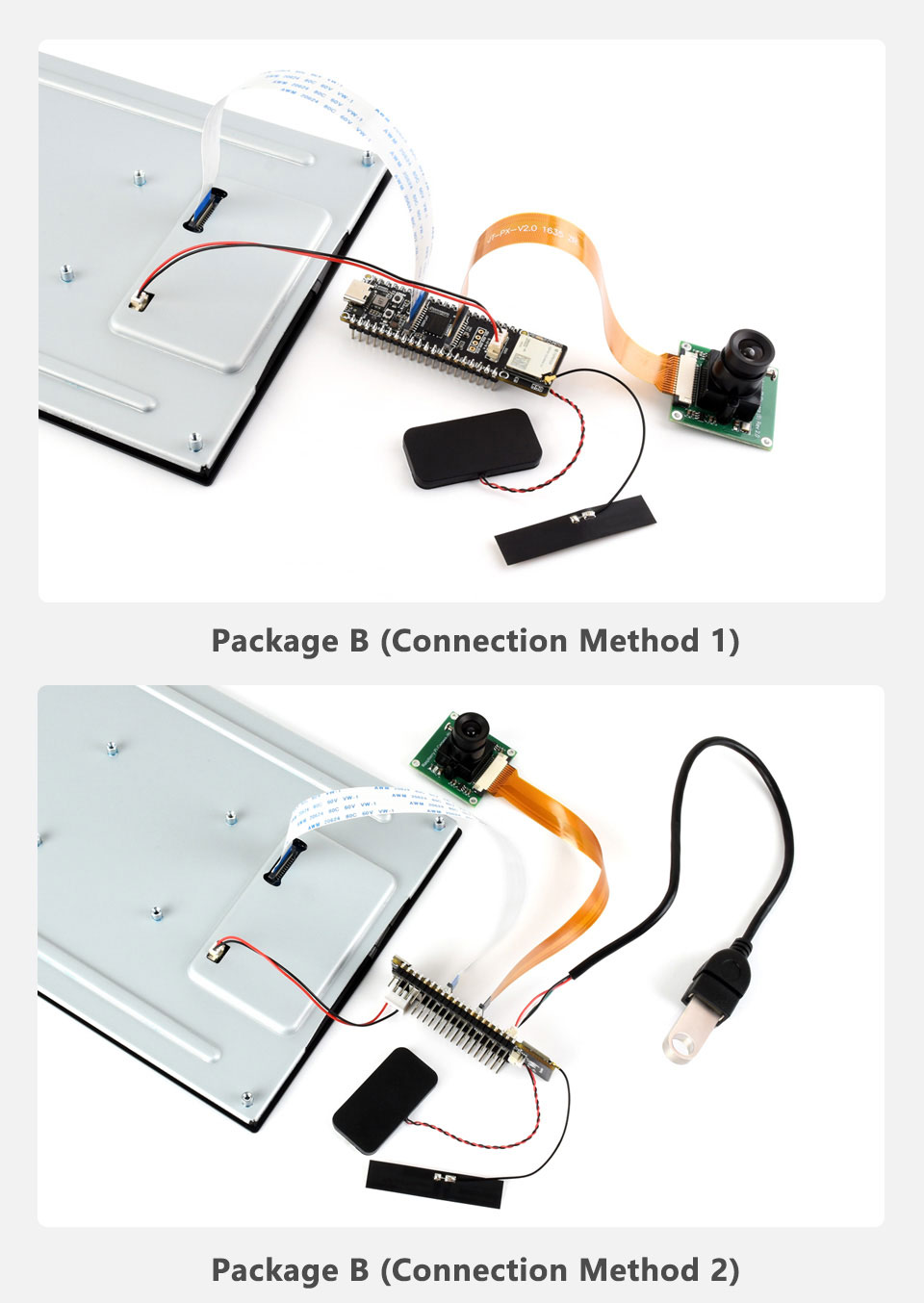

(Only Development Board Package B includes a screen)

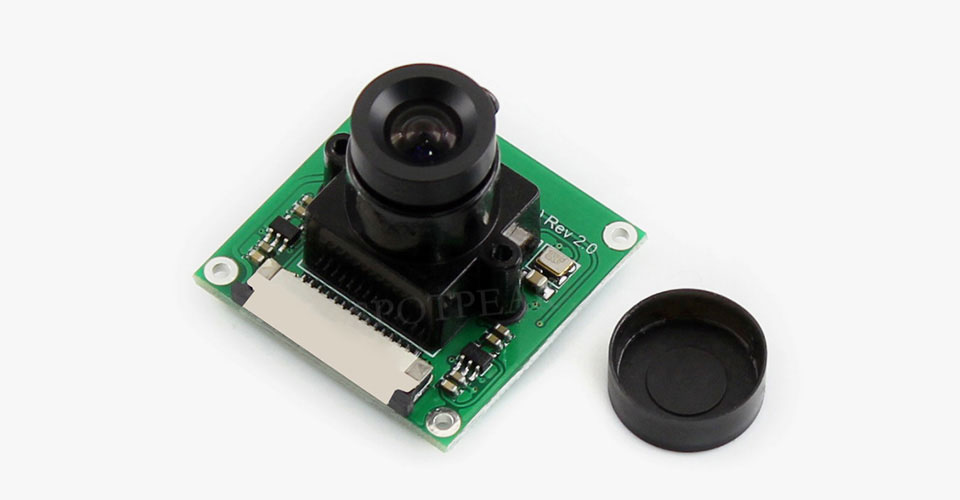

Raspberry Pi Camera Module B
5 Megapixels | Manual Focus
Compatible with the Raspberry Pi series of boards.
| Photosensitive chip | OV5647 | CMOS sensor size | 1/4 inch |
| Pixel | 5MP | aperture | F2.0 |
| focal length | 6mm | Diagonal field of view | 60.6° |
| Infrared Night Vision | Not supported | Focusing method | Manual focus |
Images are for illustrative purposes only; please refer to the specifications list for detailed configuration.

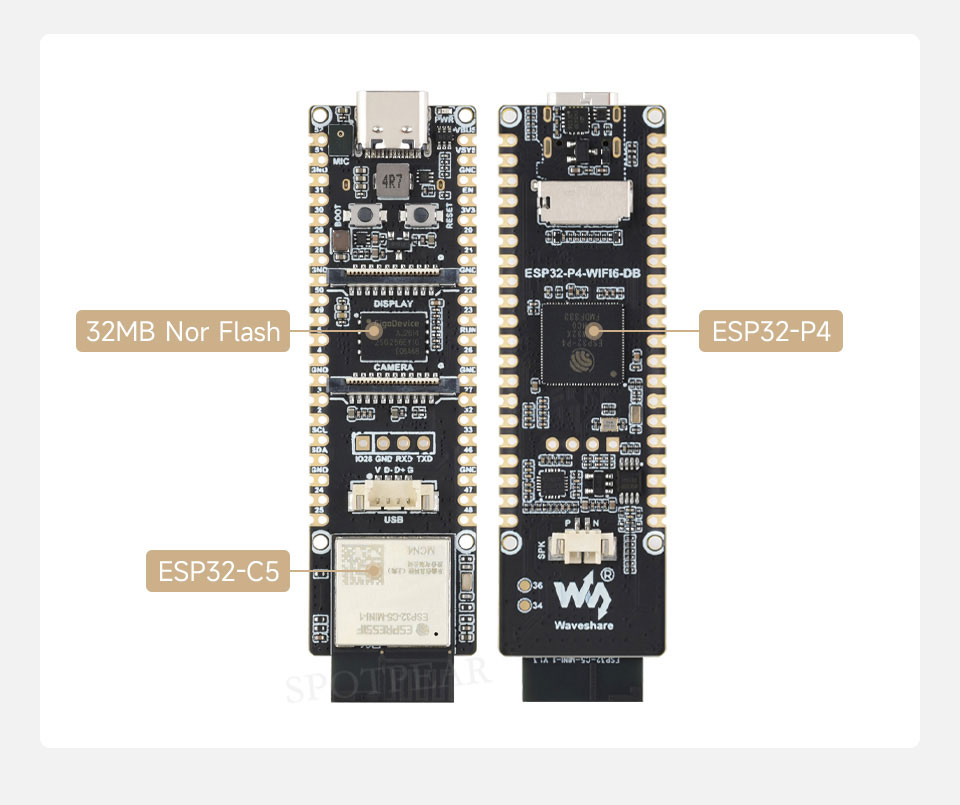

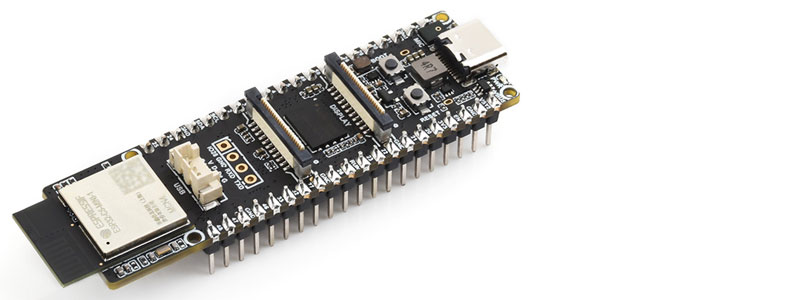

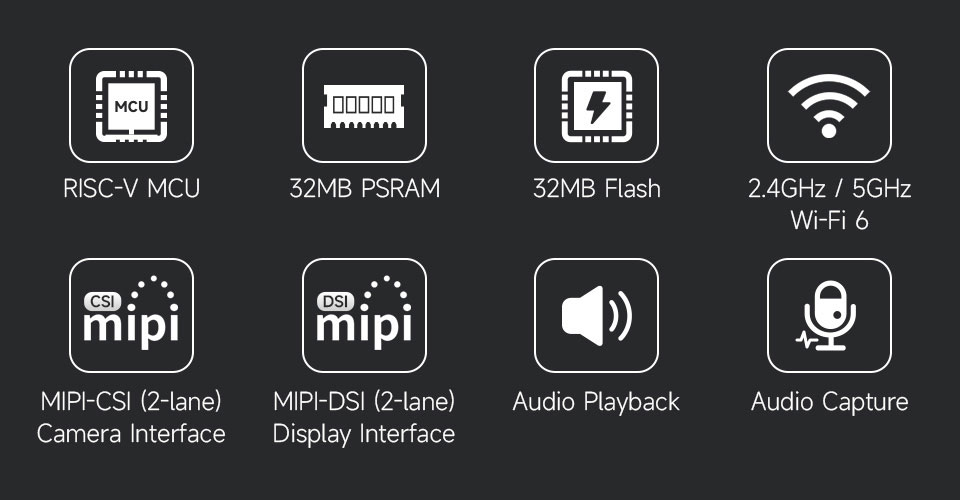

Highly Integrated, Powerful Performance
The development board utilizes the ESP32-P4NRW32X module and features an onboard ESP32-C5 and 32MB of NOR Flash.

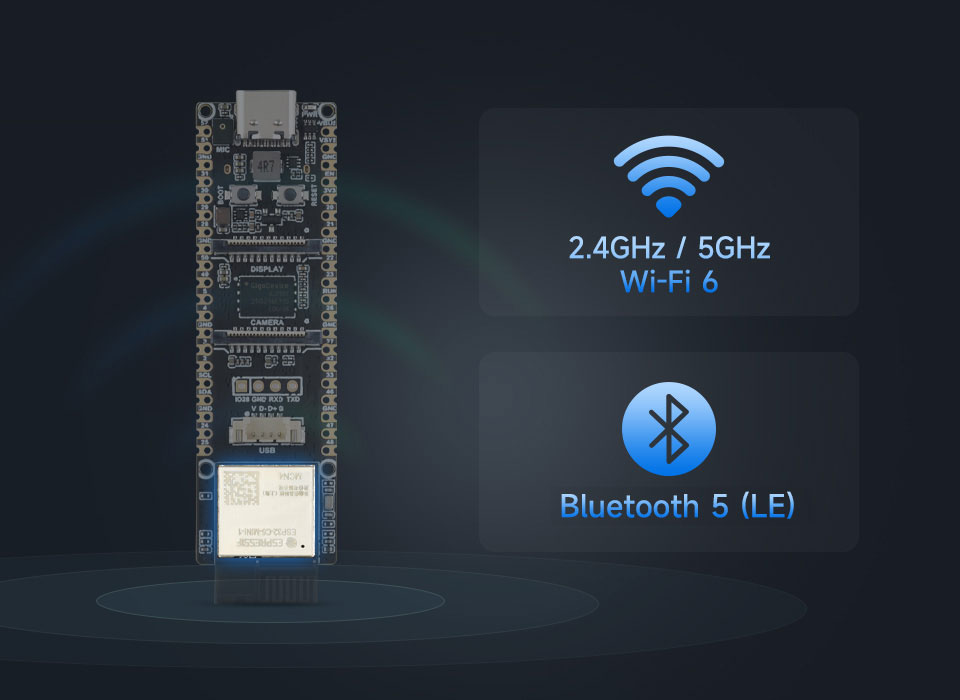

Supports Wi-Fi 6 and Bluetooth modules.
The onboard ESP32-C5 chip adds 2.4GHz/5GHz Wi-Fi 6 (802.11ax) and Bluetooth 5 (LE) capabilities to the ESP32-P4NRW32X, communicating via the SDIO interface protocol to ensure stable connections and efficient data transmission.

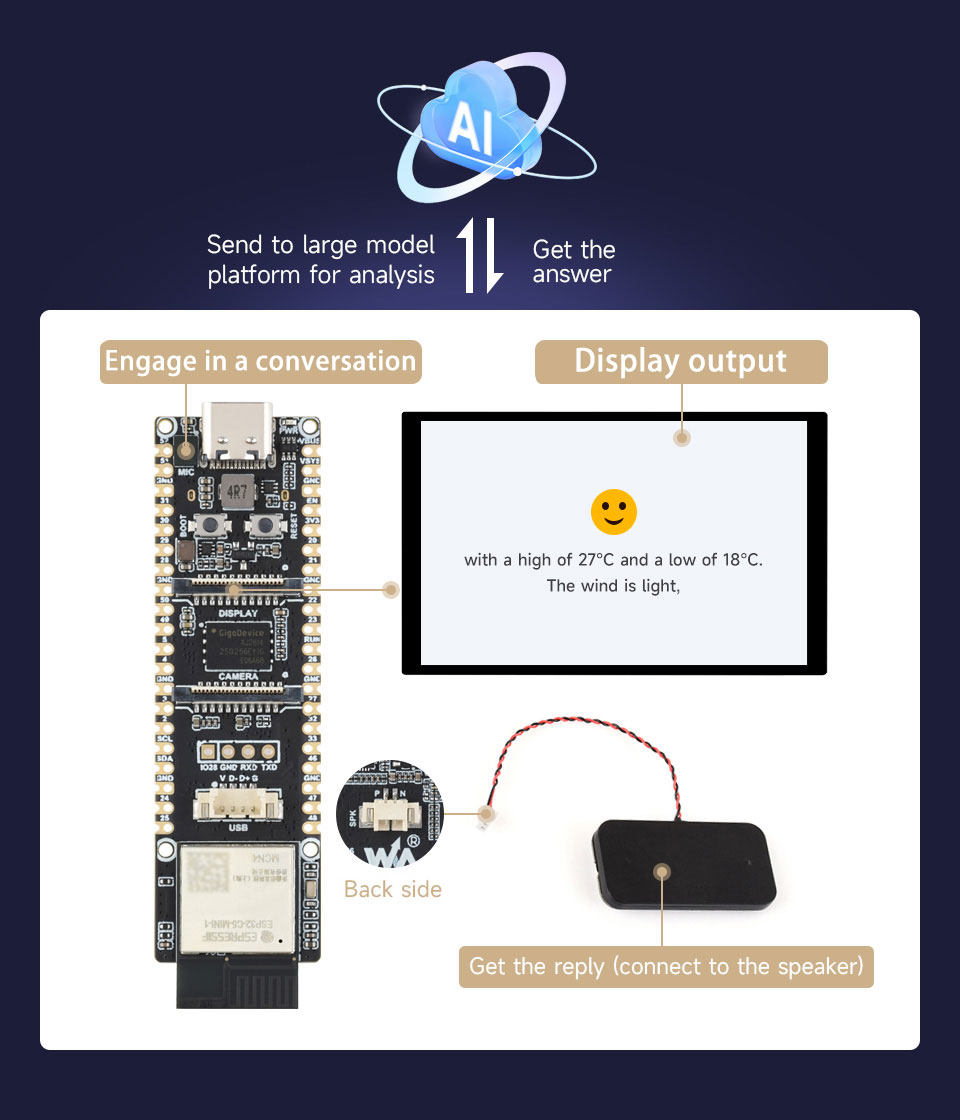

Supports AI voice interaction
Supports mainstream AI platforms and integrates with online large model platforms, such as Doubao and DeepSeek.
(仅开发板套餐 A / B 带扬声器)
(仅开发板套餐 B 带屏幕)

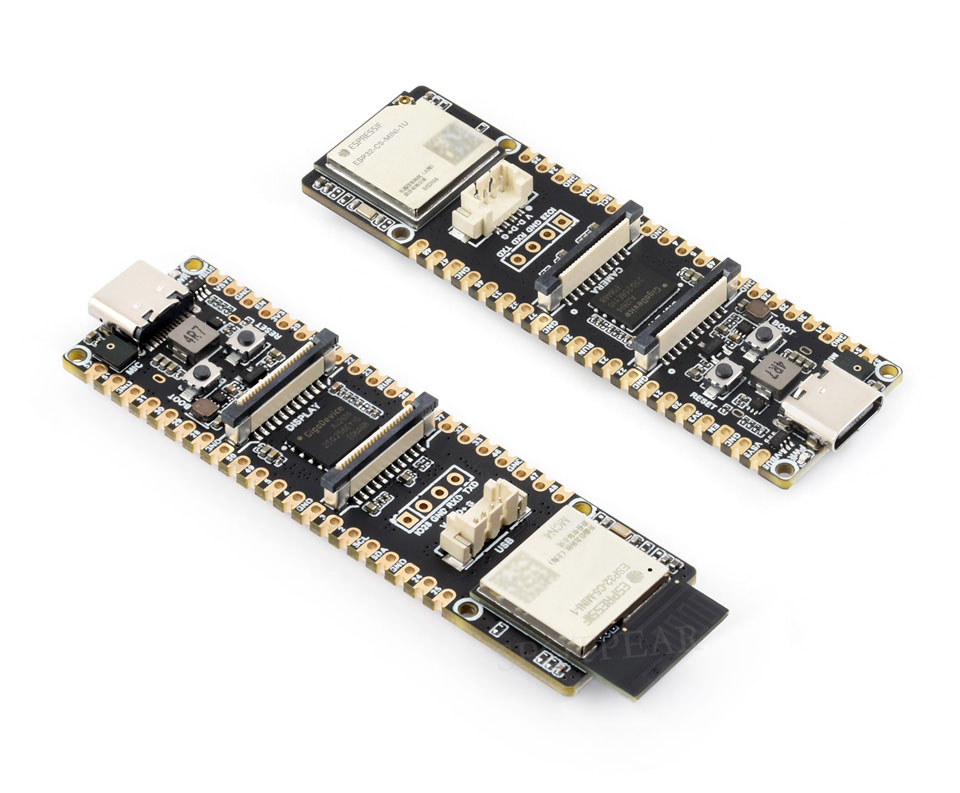

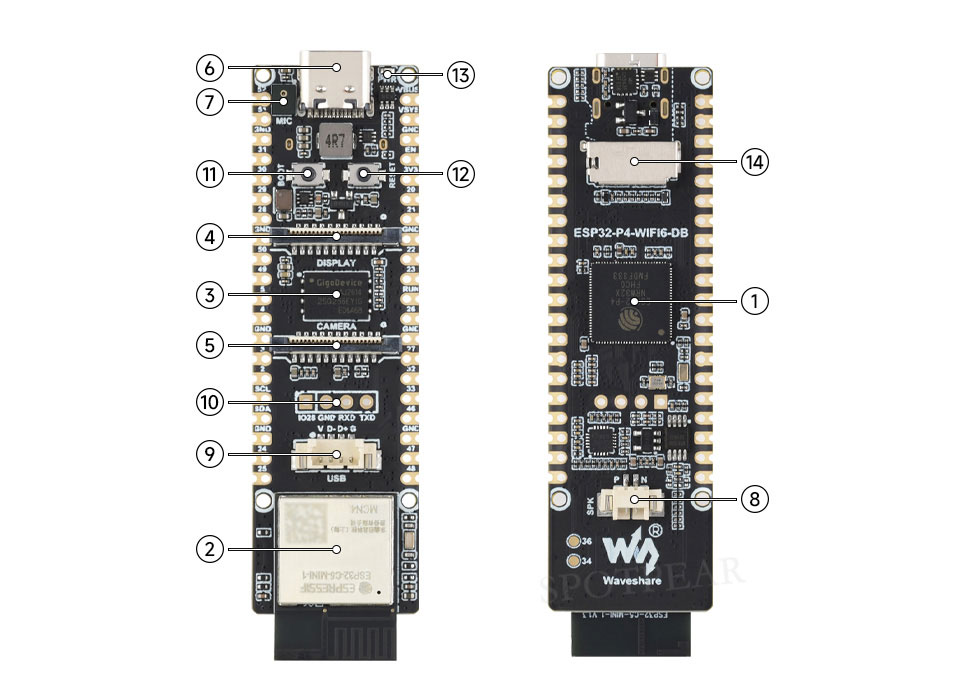

Resource Overview
- ESP32-P4NRW32X
ESP32-P4NRW32X Stacked-Package 32MB PSRAM
- ESP32-C5-MINI-1
SDIO interface protocol, adding 2.4GHz/5GHz Wi-Fi 6 and Bluetooth 5 capabilities to the development board.
- 32MB NOR Flash
- Display interface
MIPI-DSI (2-lane), supports 5 / 7 / 8 / 10.1-inch DSI displays.
- Camera interface
MIPI-CSI (2-lane), supports cameras such as the OV5647.
- Type-C port
Can be used for power supply and program flashing.
- SMD microphone
- Speaker terminal
MX1.25 2-pin connector, supports 8Ω 2W speaker.
- 4-pin USB interface
USB OTG 2.0 High-Speed Interface
- ESP32-C5 UART Pads
- BOOT button
Press and hold while powering on or resetting to enter download mode.
- RESET button
- Power indicator light
- SD card slot
SDIO 3.0 interface protocol

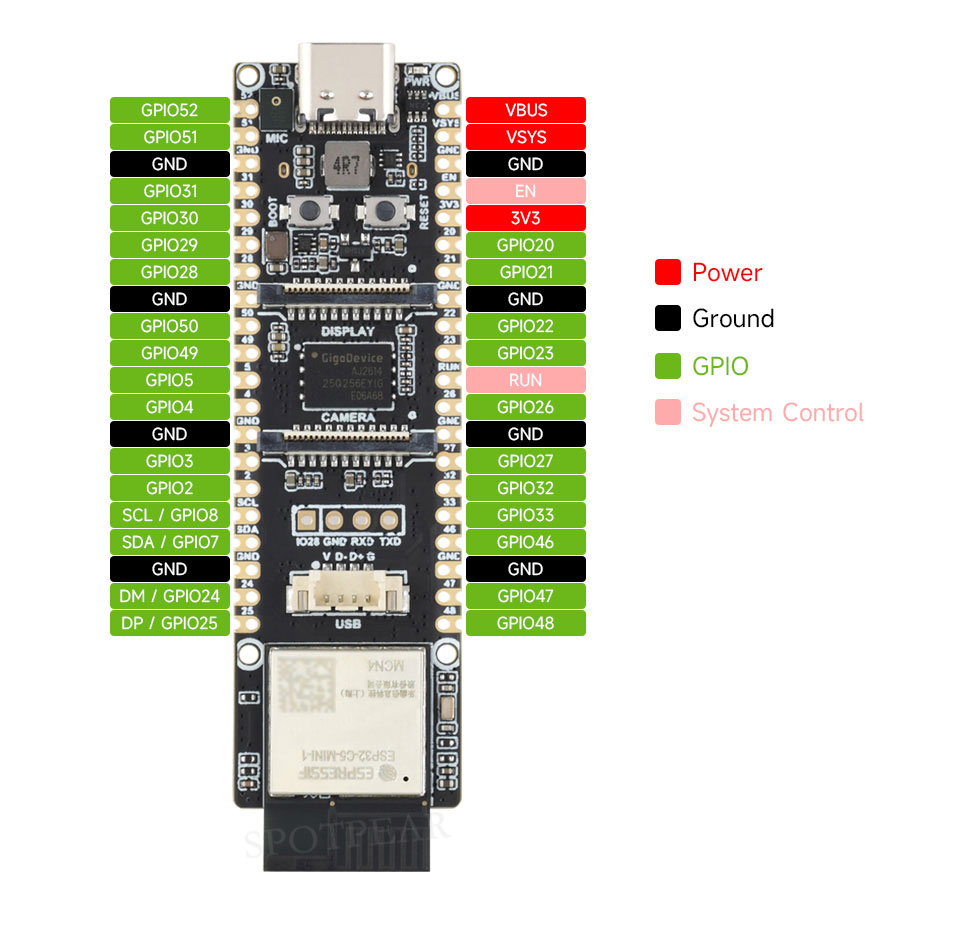

Pin Definitions

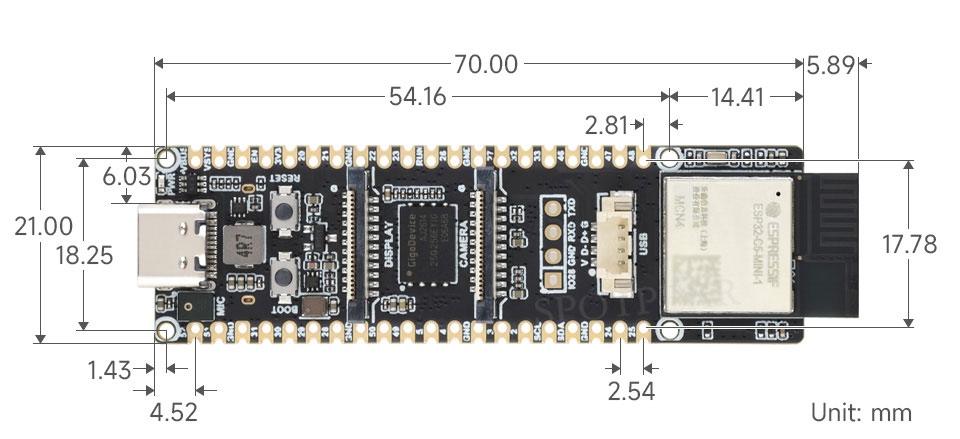

Product Dimensions
