ESP32-P4 Pico Development Board DB C5 MIPI DSI 10.1-inch Display /CSI Camera /Audio Speaker Mic AI Deepseek

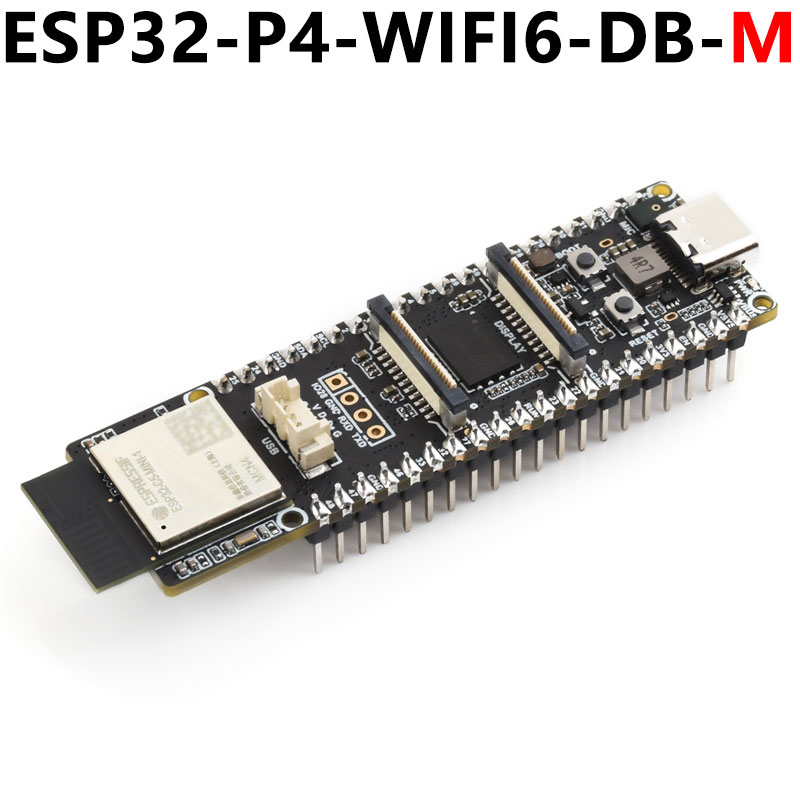

ESP32-P4-WIFI6-DB Board

High-performance development boards based on ESP32-P4NRW32X and ESP32-C5

Extensive human-machine interaction interfaces

introduce

This product is a multimedia development board based on the ESP32-P4NRW32X and integrates the ESP32-C5, supporting 2.4 GHz/5 GHz Wi-Fi 6 (802.11ax) and BLE 5 wireless connectivity. It offers a wide range of human-machine interaction interfaces, including MIPI-CSI (with an integrated Image Signal Processor/ISP), MIPI-DSI, SPI, I2S, I2C, LED PWM, MCPWM, RMT, ADC, UART, and TWAI. Additionally, it supports USB OTG 2.0 HS, enabling broader application compatibility. The ESP32-P4NRW32X features a dual-core RISC-V processor, supports up to 32 MB of PSRAM, and includes peripherals such as USB 2.0, MIPI-CSI/DSI, and H.264 encoding, meeting the requirements for low-cost, high-performance, and low-power multimedia development.。

In addition, the ESP32-P4NRW32X integrates a digital signature peripheral and a dedicated key management unit to ensure data and operational security. Designed for high-performance and high-security applications, the ESP32-P4-WIFI6-DB meets the needs of embedded systems in areas such as human-machine interaction, edge computing, and I/O expansion.

Key Features：

High-performance MCUs featuring RISC-V 32-bit dual-core and single-core processors.
128KB HP ROM, 16KB LP ROM, 768KB HP L2MEM, 32KB LP SRAM, 8KB TCM
Powerful image and audio processing capabilities; image and audio processing interfaces include a JPEG codec, Pixel Processing Accelerator (PPA), Image Signal Processor (ISP), and H.264 video encoder.
Features 32MB PSRAM stacked within the chip package and integrates 32MB of external NOR Flash.
Common peripheral interfaces—such as MIPI-CSI, MIPI-DSI, USB 2.0 OTG, an SDIO 3.0 SD card slot, and terminals for a microphone and speaker—are routed out on the board.
A 2×20 pin header is brought out from the board, exposing the 27 remaining programmable GPIOs.
Security mechanisms: Secure Boot, Flash encryption, hardware cryptographic accelerators, and a hardware random number generator. It also supports hardware access protection, enabling access permission management (APM) and privilege separation.

Package Options

Example of a package combination

DSI Capacitive Touchscreen

Features a fully laminated IPS tempered glass panel with a wide 178° viewing angle.

Supports 10-point touch, delivers crisp imagery, and offers an excellent visual experience.

Screen Model	10.1-DSI-TOUCH-A
Resolution	800 × 1280 (H × V)
Communication interface	MIPI-DSI (2-lane)
brightness	400cd/m²
Touch controller chip	GT9271
Overall dimensions	147.0 × 239.0 (mm)
Display size	135.36 × 216.58 (mm)
Pixel size	0.1692 (H) × 0.1692 (V) (mm)
Contrast	800:1
Operating temperature	0℃ ~ 60℃

(Only Development Board Package B includes a screen)

Raspberry Pi Camera Module B

5 Megapixels | Manual Focus

Compatible with the Raspberry Pi series of boards.

Photosensitive chip	OV5647	CMOS sensor size	1/4 inch
Pixel	5MP	aperture	F2.0
focal length	6mm	Diagonal field of view	60.6°
Infrared Night Vision	Not supported	Focusing method	Manual focus

Images are for illustrative purposes only; please refer to the specifications list for detailed configuration.

Highly Integrated, Powerful Performance

The development board utilizes the ESP32-P4NRW32X module and features an onboard ESP32-C5 and 32MB of NOR Flash.

Supports Wi-Fi 6 and Bluetooth modules.

The onboard ESP32-C5 chip adds 2.4GHz/5GHz Wi-Fi 6 (802.11ax) and Bluetooth 5 (LE) capabilities to the ESP32-P4NRW32X, communicating via the SDIO interface protocol to ensure stable connections and efficient data transmission.

Supports AI voice interaction

Supports mainstream AI platforms and integrates with online large model platforms, such as Doubao and DeepSeek.

(仅开发板套餐 A / B 带扬声器)

(仅开发板套餐 B 带屏幕)

Resource Overview

ESP32-P4NRW32X
ESP32-P4NRW32X Stacked-Package 32MB PSRAM
ESP32-C5-MINI-1
SDIO interface protocol, adding 2.4GHz/5GHz Wi-Fi 6 and Bluetooth 5 capabilities to the development board.
32MB NOR Flash
Display interface
MIPI-DSI (2-lane), supports 5 / 7 / 8 / 10.1-inch DSI displays.
Camera interface
MIPI-CSI (2-lane), supports cameras such as the OV5647.
Type-C port
Can be used for power supply and program flashing.
SMD microphone

Speaker terminal
MX1.25 2-pin connector, supports 8Ω 2W speaker.
4-pin USB interface
USB OTG 2.0 High-Speed Interface
ESP32-C5 UART Pads
BOOT button
Press and hold while powering on or resetting to enter download mode.
RESET button
Power indicator light
SD card slot
SDIO 3.0 interface protocol

Pin Definitions

Product Dimensions
