Raspberry Pi CM5 Gigabit 2.5G Dual Ethernet Port Industrial Computer with RJ45 4K Output

Raspberry Pi CM5 Gigabit 2.5G Dual Ethernet Port Industrial Computer with RJ45 4K Output

$104.9

Brand：SpotPear

SKU：010148200000

Date：2026-03-06 11:46

Part Number：

IPCBOX-CM5-A IPCBOX-CM5-B

No：

- +

In Stock

Buy It Now

Add to cart

Ask a Question

Copy Link

Gigabit/2.5G Dual Ethernet Industrial Computer Based On Raspberry Pi CM5, Supports 4K Display Output And 4G / 5G Module, Suitable For All Variants Of Compute Module 5

Dual Ethernet Industrial Computer
Based On Raspberry Pi CM5

Designed For Raspberry Pi Compute Module 5

Version Options

All versions come with an aluminum alloy case and power supply adapter,
please refer to the package content for the detailed part list.

Specifications

CM5 SOCKET	Suitable for all variants of Compute Module 5
NETWORKING	1000M Ethernet RJ45 port × 1 2500M Ethernet RJ45 port × 1
USB	USB 3.2 Gen1 port × 1
USB	USB 2.0 port × 3
VIDEO	HDMI interface × 1, supports 4K display output
M.2	M.2 M KEY (PCIe Gen2/3 × 1, 2230 / 2242)
M.2	M.2 B KEY, supports connecting 4G / 5G communication module
STORAGE	TF card socket for Compute Module 5 Lite (without eMMC) variants
SERIAL INTERFACE	Options for 2 × RS485 + 2 × RS232 version or 4 × RS485 version
SERIAL INTERFACE	1 × CAN with up to 1Mbps communication rate
DIGITAL INPUT/OUTPUT	2 × digital outputs + 2 × digital inputs
AUDIO	3.5mm audio jack (microphone support), PH2.0 speaker header
FAN HEADER	5V, 4PIN JST-SH PWM fan header
BUZZER	1-ch controllable buzzer
OTHER	Onboard EEPROM and encryption chip
POWER INPUT	7V ~ 36V wide voltage range screw terminal, 5V 5A Type-C port
DIMENSIONS	136.00 × 92.00 × 39.50 (mm)

Connecting With Compute Module 5

Standard CM5 Socket Suitable For Compute Module 5 Lite / EMMC Series Module

* for reference only, please refer to the package content for detailed part list

4G / 5G Module Compatibility

Compatible With Communication Modules With M.2 B KEY Interface

* An additional communication module is required to enable 5G/4G/3G/2G cellular network function, recommended: SIM7600G-H-M.2, SIM8260G-M2, and SIM8262E-M2.

Supports Connecting To M.2 NVMe Drive

Faster Reading/Writing Speed Compared To The TF Card Slot Of Raspberry Pi, Greatly Improving Reading/Writing Efficiency Of The System Or Files, Supports Booting Pi5 From NVME Solid State Drive

* for reference only, please refer to the package content for detailed part list

Applicable M.2 Drive Sizes

NVMe Drive Slot Support

* Only supports the NVMe Protocol Solid State Drives.

More Rich Interfaces

Precise Cut-Out With Clear Label

Each Cut-Out Is Completely Aligned With The Connector

Heat Dissipation Design

Aluminum Alloy Case Enables Large-Area Heat Conduction And Dissipation, Combined With Heat Sink Fins, Better Heat Dissipation

Supports Rail Mounting And VASE Mounting

Reserved Rail-Mount Buckle And VASE Mounting Holes For More Convenient Installations

* for reference only, comes with rail-mount buckle and is compatible with VESA mounting.

What's On Board

CM5 socket
suitable for all variants of Compute Module 5
M.2 M KEY
supports 2242 / 2230 NVMe Solid State Drives or AI modules
Nano SIM card slot
TF card slot
for connecting a TF card with pre-burnt system (Lite variant ONLY)
Dual USB 2.0 ports
standard USB 2.0 ports
BOOT button
press before powering on to enter the burning mode
PSW power button
Long press to force power off, short press to soft power off or on
M.2 B KEY
supports connecting 4G/5G communication module
Buzzer
PH2.0 speaker header
supports connecting to 8Ω 5W speaker
Programming port
used for eMMC burning
3.5mm Jack
supports audio input and output

HDMI interface
supports 4K outputs
USB ports
1 × standard USB 2.0 port, 1 × USB 3.2 Gen1 Type-A port with up to 5Gbps rate
DC power screw terminal
supports DC 7V ~ 36V power supply
Indicators
1000M Ethernet RJ45 port
supports 10M / 100M / 1000M network connections
2500M Ethernet RJ45 port
supports 10M / 100M / 1000M / 2500M network connections
RTC Batt header
for connecting with compatible RTC Batt to power the RTC chip
Multi-function interface
1 × CAN interface with up to 1Mbps and 2 × digital outputs + 2 × digital inputs
RS485 / RS232 interface
Options for 2 × RS485 + 2 × RS232 version or 4 × RS485 version
120R Jumper
RS485 and CAN terminal resistor selection (No function for RS232)

Application Example

Suitable For Raspberry Pi Applications In Remote Communication Or Other Industrial Situations

* for reference only, the display, keyboard, and mouse are NOT included, please purchase separately.

How To Install

Outline Dimensions

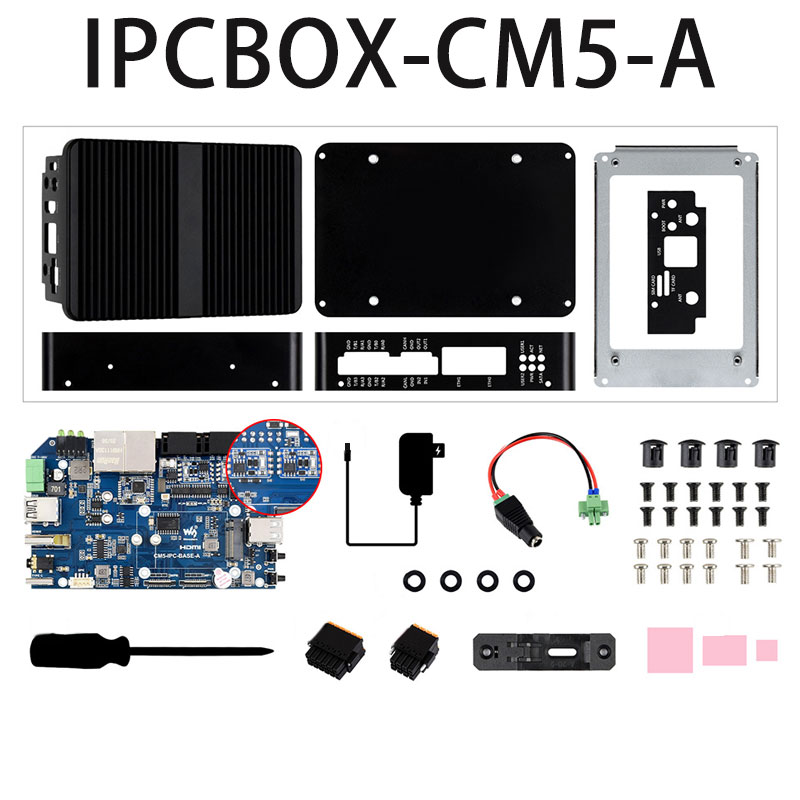

[] IPCBOX-CM5-A

[] IPCBOX-CM5-B
