Jetson Orin 5G/4G/3G expansion board GNSS GPS SIM8260G-M2 SIM8262E-M2

$236.6

Brand:SpotPear
SKU:050114700000
Date:2025-09-05 16:29
No:
In Stock

Jetson Orin 5G/4G/3G expansion board supports 5G NSA and SA networking and GNSS positioning, including the RM520N-GL module

Jetson Orin
5G / 4G / 3G expansion board

Equipped with high-performance 5G Sub-6G module

Supports 5G NSA and SA networking, GNSS positioning

Version selection


Product Features

  • Based on Qualcomm platform, supports 5G NSA and SA networking, and supports multi-mode and multi-band
  • Integrated multi-constellation dual-frequency positioning: GPS, GLONASS, BeiDou, Galileo and QZSS
  • The onboard USB 3.1 interface is backward compatible with USB 2.0 and can be used to connect to the Jetson Orin motherboard, computer or Raspberry Pi for high-speed 5G Internet access.
  • Onboard M.2 B KEY standard interface and pin setting switch, compatible with optional SIM8260X-M2 / SIM8262X-M2 / RM5XX / SIM7600 series modules
  • Onboard 4-way SMA to IPEX antenna conversion interface, making antenna installation more convenient
  • A UART pad interface is reserved to facilitate data transmission and other functions with some modules through this interface
  • Onboard one Nano SIM card slot and one eSIM card slot packaged in QFN-8 (5 × 6), dual-SIM single standby, which can be switched and enabled via AT commands
  • Onboard audio interface and audio decoding chip, can be used for voice operations such as making calls on SIMXXX series modules
  • Onboard power switch, reset button and LED indicator light make it easy to control the module power on and off and check the operating status
  • Onboard high-performance power circuitry capable of delivering up to 3A of current

Multi-mode and multi-band

Based on the Qualcomm platform, it supports 5G NSA and SA networking, multi-mode and multi-band, and is suitable for a variety of application scenarios.

The above figure is a reference map of 4G and 5G network frequency bands in global regions,
Before use, please confirm that the frequency band used by the local operator is within the module support range.

Multi-system compatible, easy to operate

Supports Windows 7/8/10/11, Ubuntu, Raspberry Pi OS, and OpenWRT. Simply plug in the USB port and configure it to achieve high-speed 5G networking.



Enjoy 5G high-speed Internet

Can be connected to the Jetson Orin motherboard, computer or Raspberry Pi for high-speed 5G Internet access

Example of accessing the Internet via Jetson Orin

Example of connecting to the Internet on a Windows computer

Actual speed measurements are affected by factors such as network coverage, network congestion, host performance, and base station deployment.


Cloud platform communication

Supports TCP / IP / IPv4 / IPv6 / Multi-PDP / FTP / FTPS / HTTP / HTTPS / MQTTS / DNS / SSL3.0 and other communication protocols


Support calling and sending text messages

Supports AT commands to make calls and send text messages, and can make calls through the headset interface


Application Examples


Resource Introduction


  1. USB 3.1 interface

    Backward compatible with USB 2.0, can be used to connect to various motherboards

  2. M.2 interface

    Compatible with most SIMCom and QUECTEL M.2 packages for 4G/5G modules

  3. USB Type-C port

    5V 3A input, stable and flexible power supply

  4. Reset switch

    One-button reset

  5. Module fixing hole

    Supports 3042/3052 package modules

  6. Antenna interface

    Onboard four antennas

  7. Module setting switch

    A silkscreen switch turned to ON, can be used for SIM7600X / A7906X / SIM7906X / SIM7912X series 4G M.2 modules

    B. Turn the silkscreen switch to ON and it can be used with SIM8202X / SIM8200EA / SIM8262X / SIM8260X series 5G M.2 modules.

    C silkscreen switch turned to ON, can be used with RM520N-GL / RM530X / EM06X series 5G / LTE-A M.2 modules

  8. Power switch

    If set to USB, the module will be powered by "⑤ USB3.1 port"

    If set to EXT PWR, the module will be powered by the external power supply through the "⑥ USB Type-C port"

  1. indicator light

    Conveniently view the module operation status

  2. Audio Interface

    SIM82XX and SIM7600X series support audio function, but RM5XX series does not support this audio function.

  3. eSIM card slot

    Package QFN-8 (5 × 6), can be configured through AT commands

  4. Nano SIM card slot

    Onboard two SIM card slots, dual SIM single standby

  5. Level conversion circuit
  6. Reserved UART and audio interface pads
  7. Mounting holes

    Mounted to Jetson Orin with screws

  8. Audio driver circuit
  9. Power supply circuit
  10. Fan connector

    Can be used to connect to a 5V cooling fan


Installation Instructions

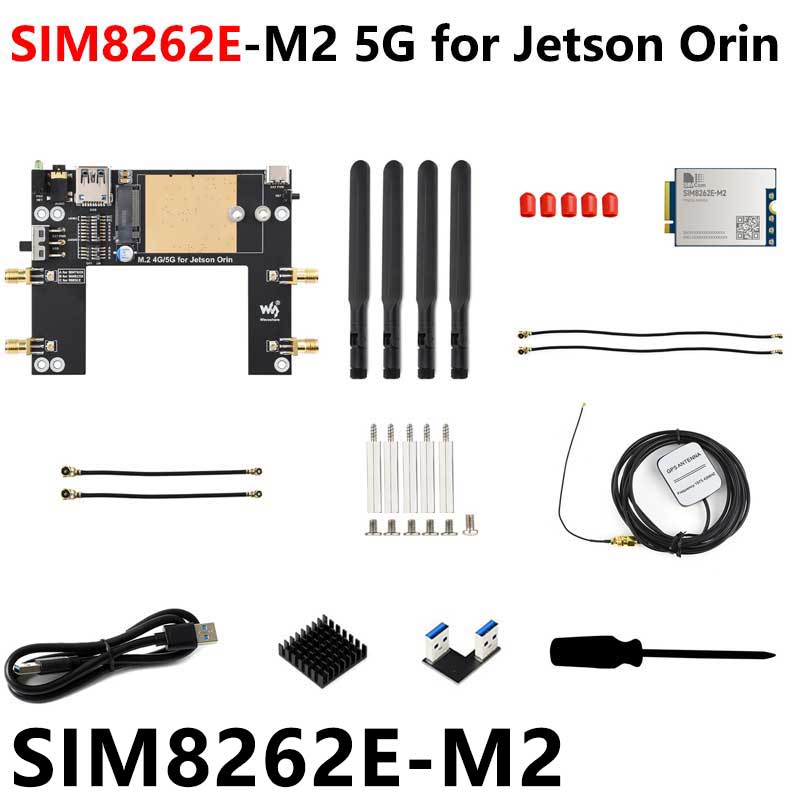

The pictures are for display only. Please refer to the configuration list for detailed configuration.

Product size
