Raspberry Pi Global Shutter Camera 1.6MP Sony IMX296 Monochrome

Raspberry Pi Global Shutter Camera 1.6MP Sony IMX296 Monochrome

$72.9

Brand：SpotPear

SKU：010307500000

Date：2025-11-04 11:08

Part Number：

IMX296-130 BW Camera

No：

- +

In Stock

Buy It Now

Add to cart

Ask a Question

Copy Link

1.6-megapixel M12 Global Global Shutter Monochrome Camera Module with IMX296 Sensor

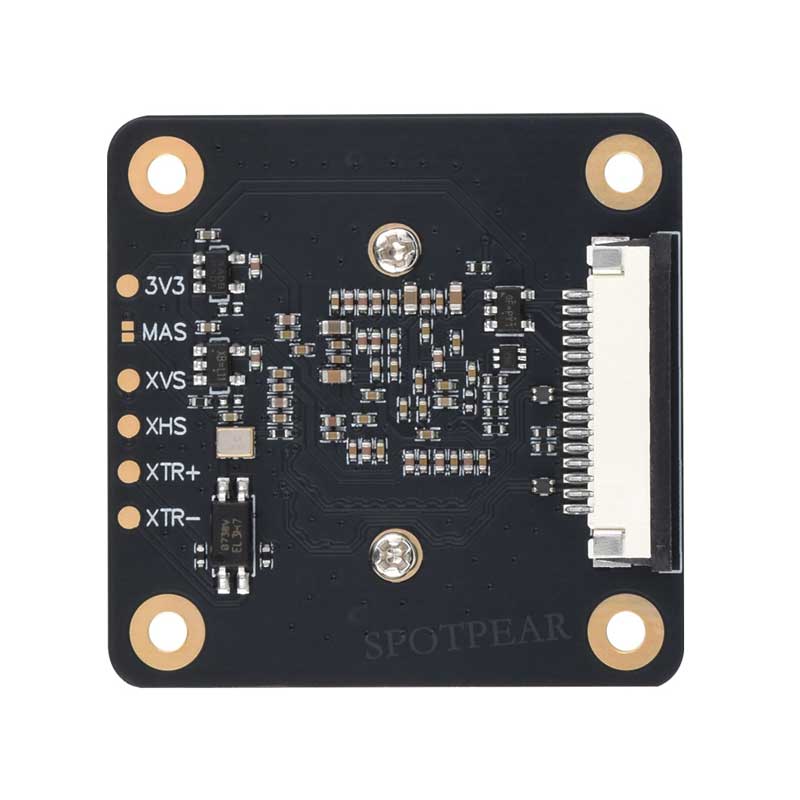

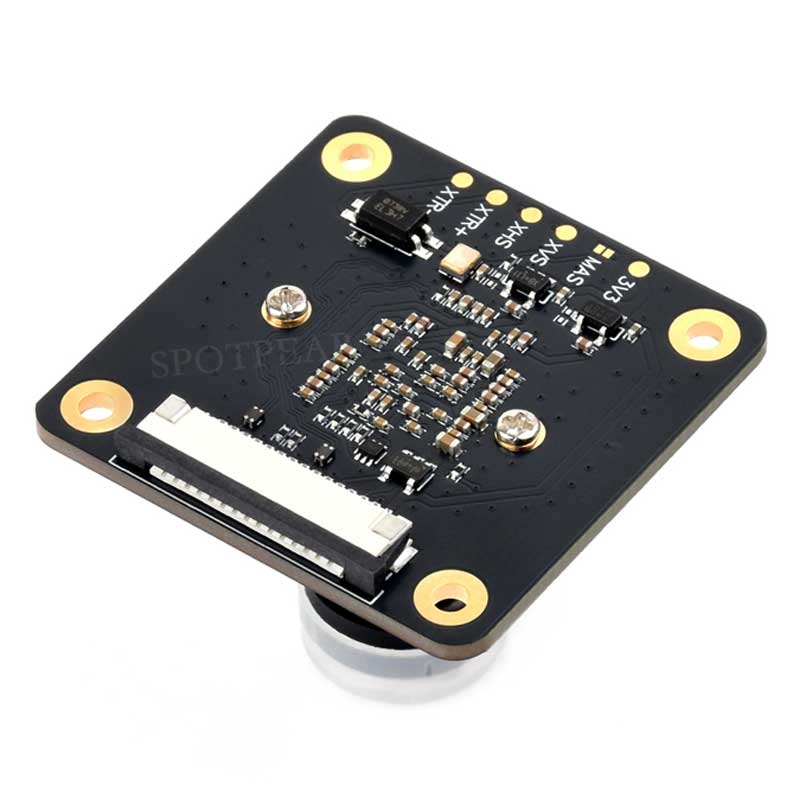

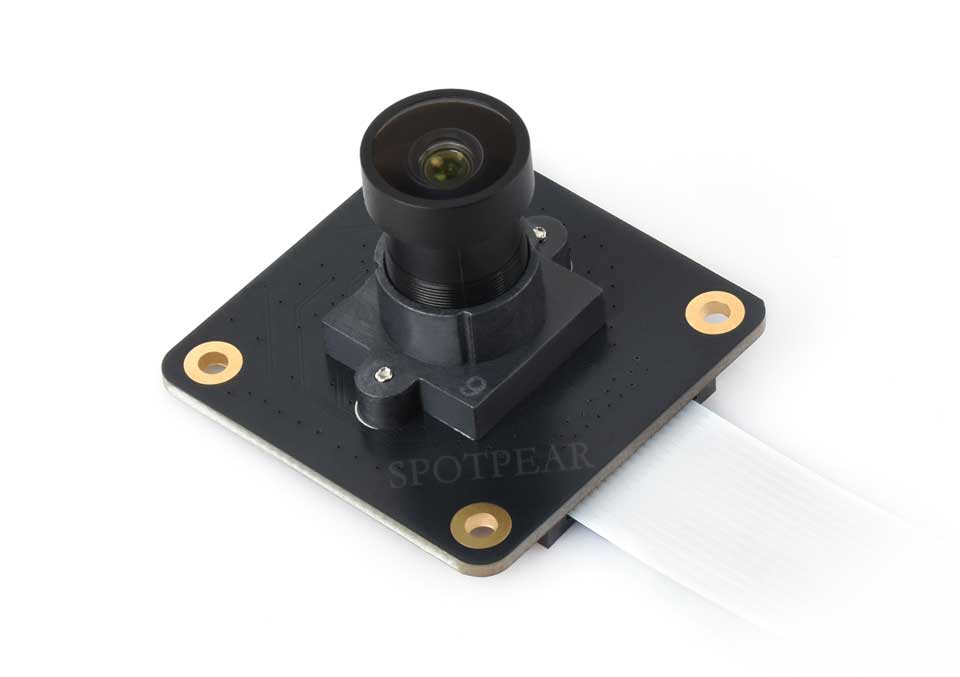

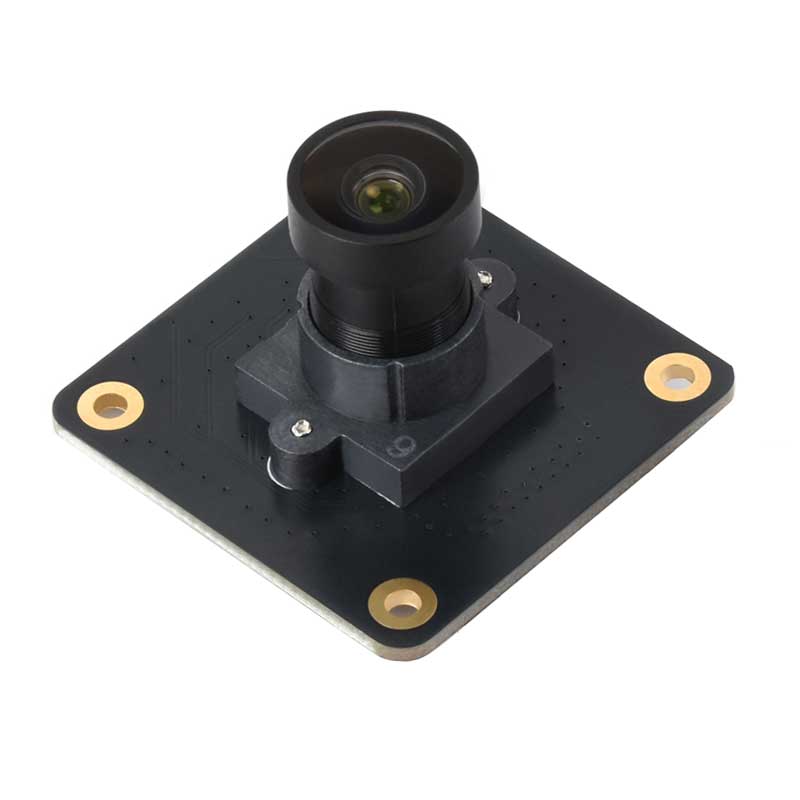

IMX296 Global Shutter Camera Module

IMX296 Sensor | 1.6MP | Mono Camera | Supports Raspberry Pi Series Boards

Features At A Glance

This IMX296 mono global shutter camera module is based on the IMX296 sensor with 1.6MP resolution. It is capable of capturing fast moving objects without Jelly-Effect of rolling shutter, ideal for fast motion photography and machine vision applications. Adopts M12 lens offering 130° FOV, comes with dual FFC cables, compatible with all Raspberry Pi series boards.

Specifications

SENSOR	Model	IMX296
	Resolution	1.58 MP (mono), 1456 × 1088
	CMOS diagonal size	6.3mm
	Pixel size	3.45µm × 3.45µm
LENS	Aperture (F)	1.6
	Back Focal Length (BFL)	3.0mm
	Field of View (FOV)	130° (D) 99° (H) 72° (V)
	Distortion	<20%

Global Shutter, More Clear Imaging

The Global Shutter Eliminates Jelly-Effect While Shooting Fast Moving Objects,
More Suitable For High-Speed Motion Capturing

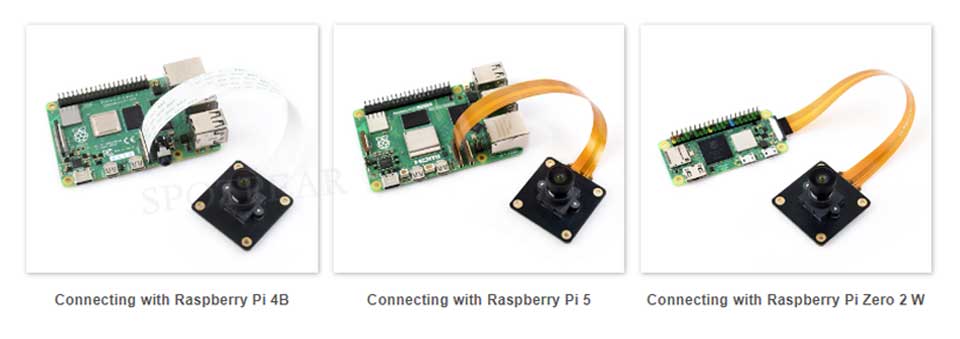

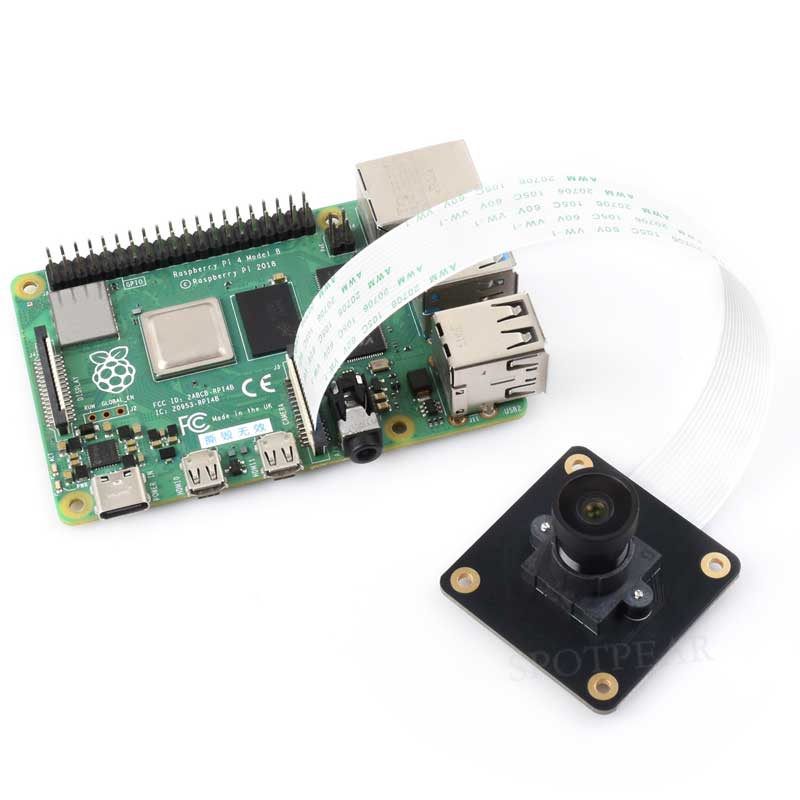

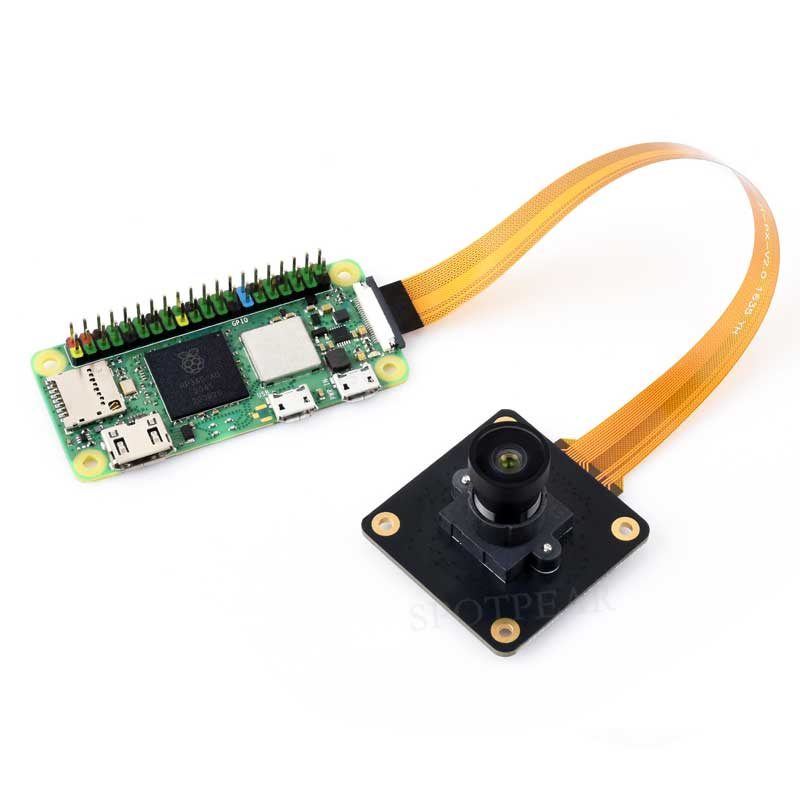

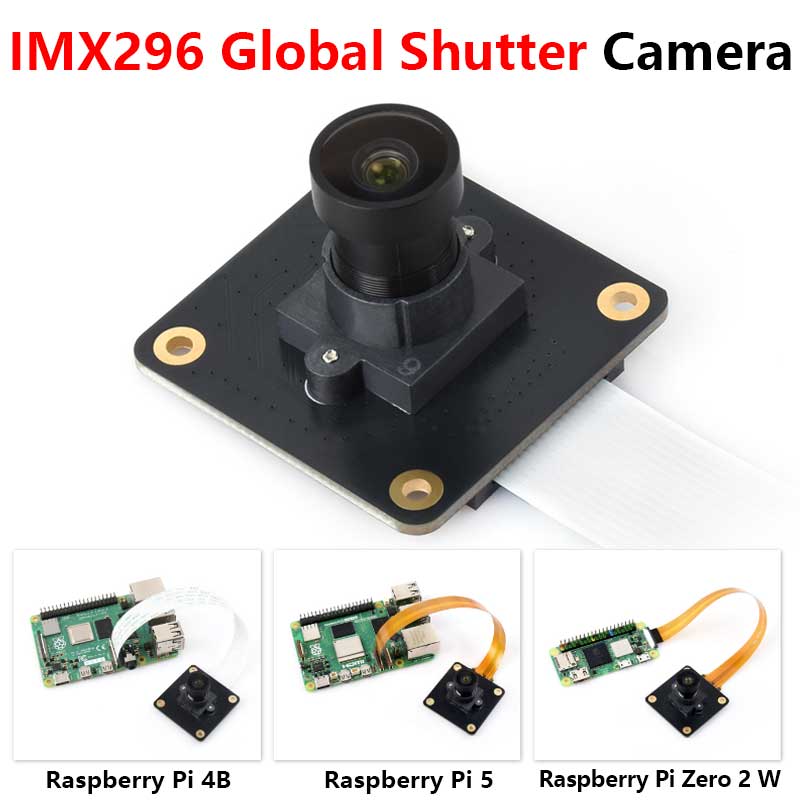

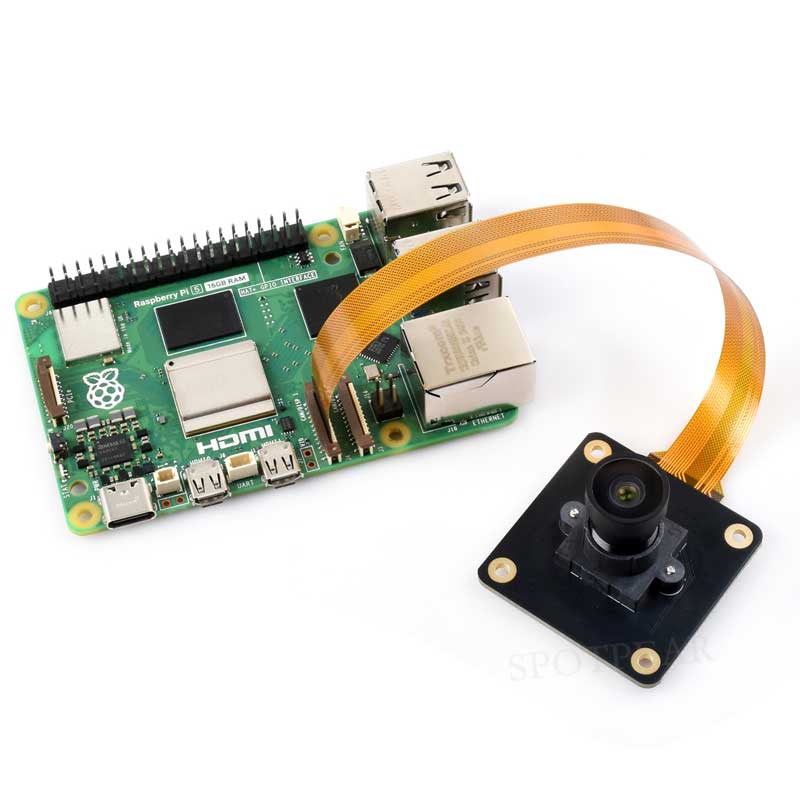

Working With Raspberry Pi

* for reference only, the Raspberry Pi 4B, Raspberry Pi 5, Zero 2 W are NOT included.

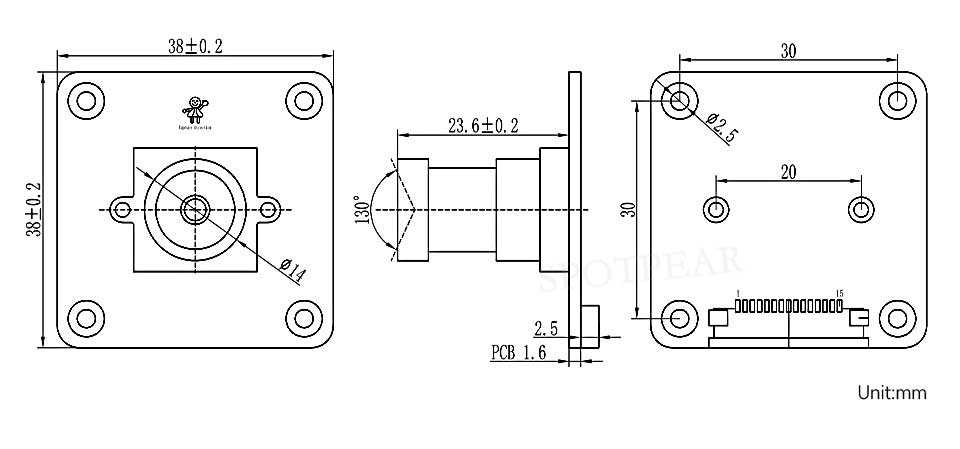

Outline Dimensions

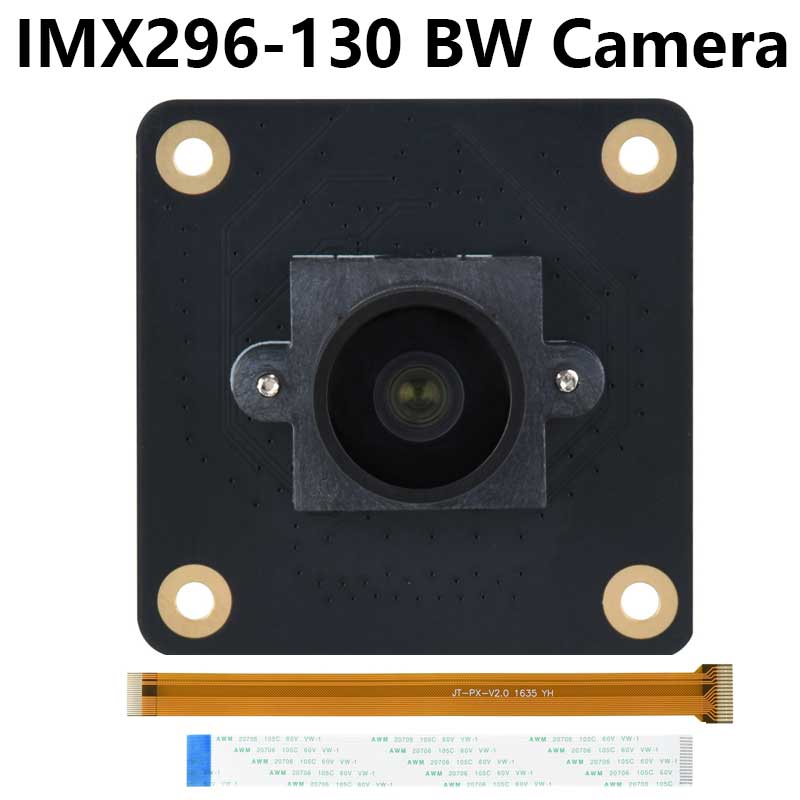

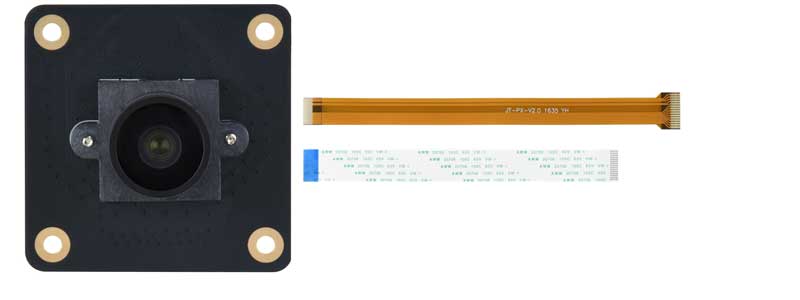

[] IMX296-130 BW Camera
