【Overview】

[] ESP32-P4-NANO development board

[] Dual-core RISC-V high-performance development board based on ESP32-P4 chip

[] Rich human-computer interaction interface

【Package Selection】

【Combination Examples】

【10.1-inch DSI capacitive touch screen】

[] It uses IPS fully laminated tempered glass panel, with a resolution of 800 × 1280 and a 178° wide viewing angle. It supports ten-point touch, with clear images and excellent visual experience.

Resolution	800 × 1280 (H×V)	Overall dimensions	147.0 × 239.0 (mm)
Communication interface	MIPI 2-lane (ESP32-P4、RK3576、RK3506)	Display size	135.96 × 217.18 (mm)
	MIPI 4-lane (Only supported by RK3576)	Dot Pitch	0.1175 × 0.1088 (mm)
Brightness	500cd/m² (Support customized 1000cd/m² high brightness version)	contrast ratio	800:1
Touch chip	GT9271	Operating temperature	-10℃~50℃

(Only the D package has a screen, the screen model is 101M-8001280-IPS-CT-K )

【Raspberry Pi Camera Model B】

[] 5 megapixels | Manual focus

[] Compatible with Raspberry Pi series motherboards

Photosensitive chip	OV5647	CMOS size	1/4 inch
Pixel	500 万	aperture	F2.0
Focal distance	6mm	Diagonal field of view	60.6°
Infrared night vision	Not supported	Focusing method	Manual focus

The pictures are for display only. Please refer to the configuration list for detailed configuration.

【Development Board Introduction】

This product is a dual-core RISC-V high-performance development board based on the ESP32-P4 chip. It supports a variety of human-machine interaction interfaces, including MIPI-CSI (integrated image signal processor ISP) and MIPI-DSI interfaces, as well as common peripherals such as SPI, I2S, I2C, LED PWM, MCPWM, RMT, ADC, UART and TWAI. It also supports USB OTG 2.0 HS, Ethernet and SDIO Host 3.0 for high-speed connection. The ESP32-P4 chip integrates digital signature peripherals and a dedicated key management unit to ensure the security of data and operations. ESP32-P4-NANO is designed for high-performance and high-security applications, fully meeting the higher requirements of embedded applications for human-machine interface support, edge computing capabilities and IO connection characteristics.

[] Main features:

[] High-performance MCU with RISC-V 32-bit dual-core and single-core processors

[] 128 KB HP ROM, 16 KB LP ROM, 768 KB HP L2MEM, 32 KB LP SRAM, 8 KB TCM

[] Powerful image and voice processing capabilities

[] 32 MB PSRAM is stacked inside the chip package, and 16MB Nor Flash is integrated outside the package

[] Common peripheral interfaces such as MIPI-CSI, MIPI-DSI, USB 2.0 OTG, Ethernet, SDIO 3.0 SD card slot, microphone, speaker terminal and RTC battery terminal are brought out on the board

[] 2*2*13 pin headers are brought out on the board, and 28 remaining programmable GPIOs are brought out

[] Security mechanisms: secure boot, Flash encryption, hardware encryption accelerator and hardware random number generator. It also supports hardware access protection, which can realize access rights management (APM) and privilege separation

【Highly integrated, powerful performance】

[] The development board uses the ESP32-P4 high-performance MCU

【Supports Wi-Fi 6 and Bluetooth modules】

[] The onboard ESP32-C6-MINI module expands 2.4GHz Wi-Fi 6 and Bluetooth 5/BLE for ESP32-P4, and uses the SDIO interface protocol for communication, providing stable connection and efficient transmission.

【Reserved PoE module interface】

[] Make the power supply mode of the development board more flexible

【Use PoE module to realize PoE Ethernet power supply】

[] Just one Ethernet cable connected to a PoE device can connect ESP32-P4-NANO to the Internet and power it


The pictures are for display only. Please refer to the configuration list for detailed configuration.

【Resource introduction】

1. ESP32-P4NRW32 ESP32-P4 Overlap 32MB PSRAM	9. PoE Module power supply interface/external power supply interface Can be powered by an external 5V power supply or PoE module
2. ESP32-C6-MINI-1 SDIO Interface Protocol，Expand ESP32-P4-NANO                         Wi-Fi 6、Bluetooth 5	10. RTC Seat Connect a rechargeable RTC battery (only rechargeable RTC batteries are supported)
3. Display interface MIPI-2lane	11. Patch microphone
4. Camera interface MIPI-2lane	12. PoE Module interface
5. Type-C interface Can be used for power supply, program burning and debugging	13. Type-A interface USB OTG 2.0 High Speed interface
6. USER-LED Power indicator	14. 100M RJ45 network port
7. BOOT button Press when powering on or resetting to enter download mode	15. Speaker interface MX1.25 2P Connector, supports 8Ω 2W speakers
8. RESET button	16. GPIO Interface
	17. TF card slot SDIO 3.0 Interface Protocol

Pin Definition

Make the power supply mode of the development board more flexible

Product size

[] ESP32-P4-NANO（Main-Board + Buzzer）

[] ESP32-P4-NANO-KIT-A（Main-Board + Buzzer + Camera ）

[] ESP32-P4-NANO-KIT-B（Main-Board + Buzzer + POE）

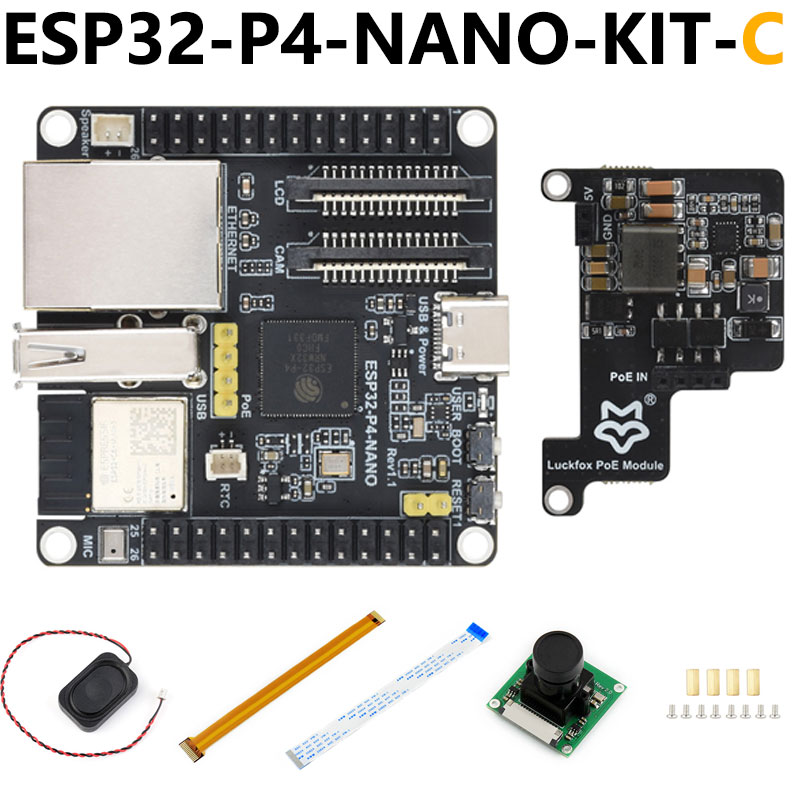

[] ESP32-P4-NANO-KIT-C （Main-Board + Buzzer + Camera + POE）

[] ESP32-P4-NANO-KIT-D（Main-Board + Buzzer + Camera + POE + 10.1TouchScreen）
